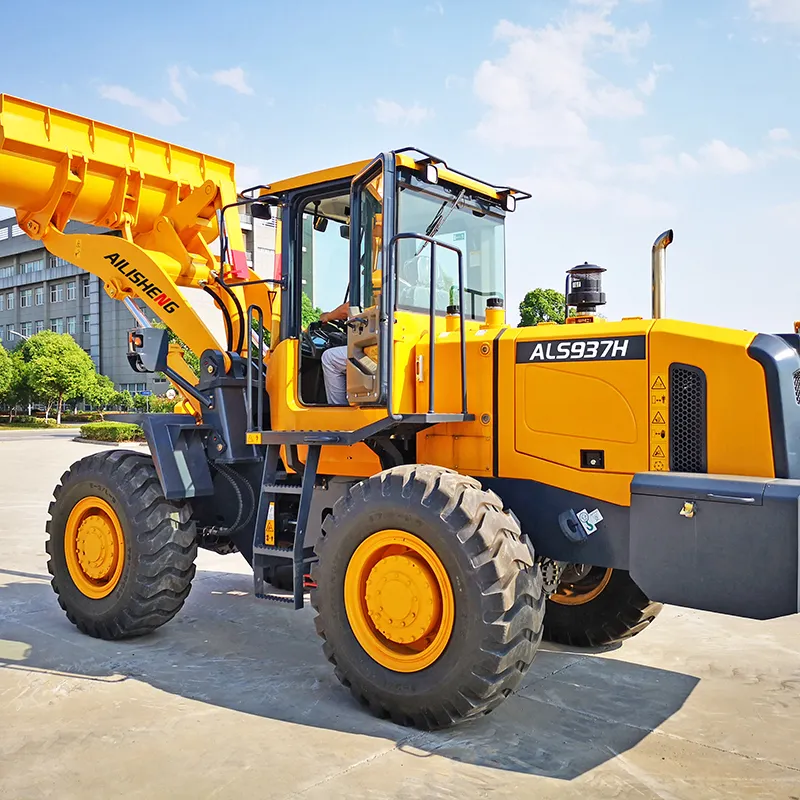

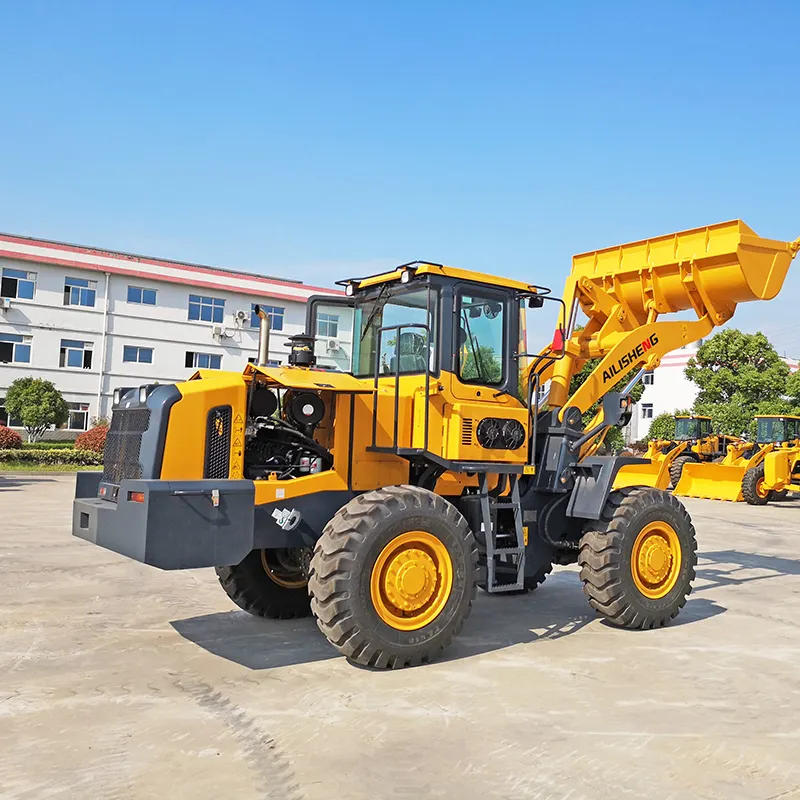

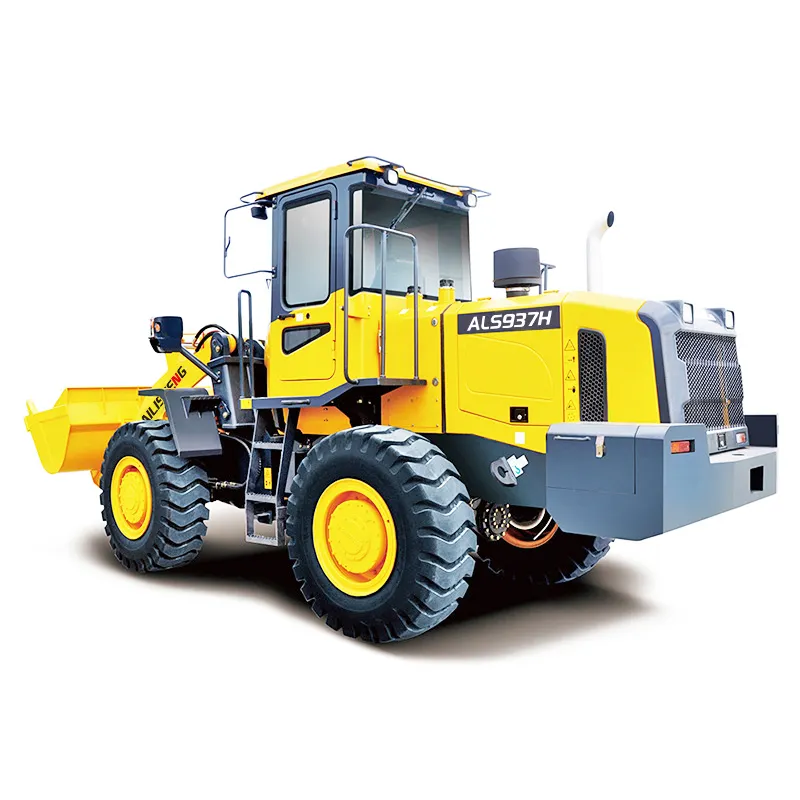

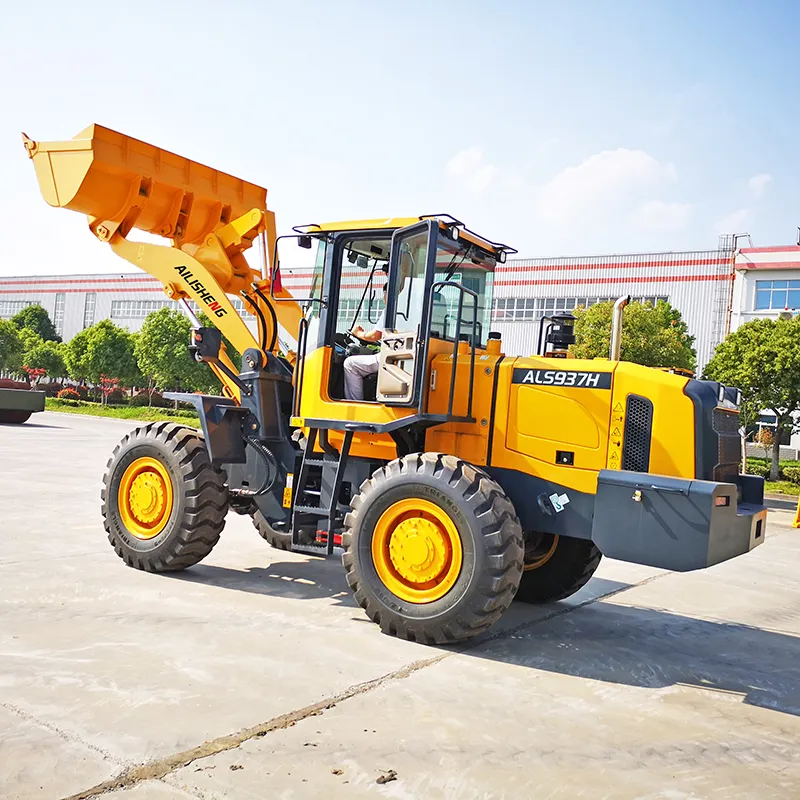

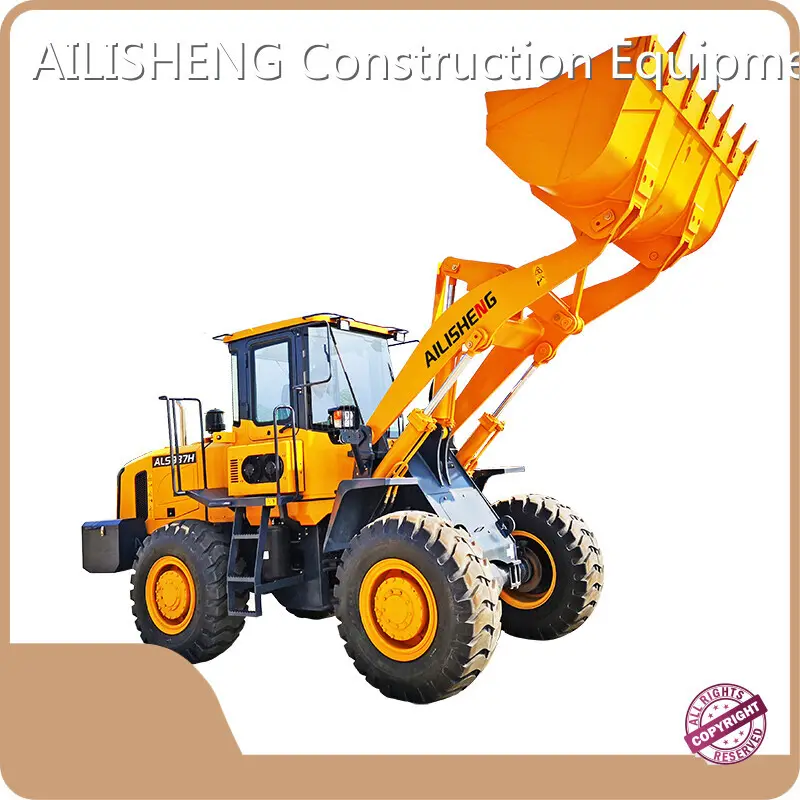

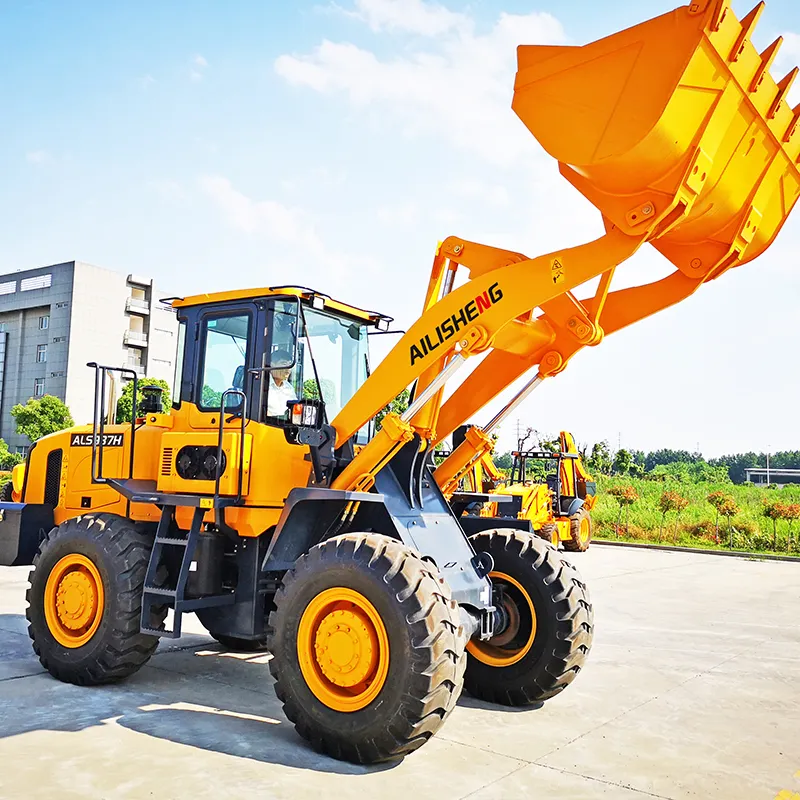

Small Articulated Loaders for Sale - - AILISHENG Construction Equipment 1
Small Articulated Loaders for Sale - - AILISHENG Construction Equipment 2
Small Articulated Loaders for Sale - - AILISHENG Construction Equipment 3
Small Articulated Loaders for Sale - - AILISHENG Construction Equipment 4
Small Articulated Loaders for Sale - - AILISHENG Construction Equipment 5
Small Articulated Loaders for Sale - - AILISHENG Construction Equipment 6
Small Articulated Loaders for Sale - - AILISHENG Construction Equipment 1
Small Articulated Loaders for Sale - - AILISHENG Construction Equipment 2
Small Articulated Loaders for Sale - - AILISHENG Construction Equipment 3
Small Articulated Loaders for Sale - - AILISHENG Construction Equipment 4
Small Articulated Loaders for Sale - - AILISHENG Construction Equipment 5
Small Articulated Loaders for Sale - - AILISHENG Construction Equipment 6

Small Articulated Loaders for Sale - - AILISHENG Construction Equipment

Inquiry
Send your inquiry

Product details of the small articulated loaders for sale


Quick Overview

Lean production method is adopted to produce AILISHENG Construction Equipment small articulated loaders for sale to achieve high efficiency, low production cost, and short lead time. The product is tested at various stages of development. The small articulated loaders for sale produced by AILISHENG Construction Equipment is widely used. Xiamen Ailisheng Intelligent Equipment Co.,Ltd constantly advancing with the times in small articulated loaders for sale field.


Product Introduction

Compared with products in the industry, AILISHENG Construction Equipment's small articulated loaders for sale has the outstanding advantages which are mainly reflected in the following aspects.

ALS937H  Specification

  • Overall Dimension

1

Length(with bucket on ground)

6983(mm)

2

Width(to outside of wheels)

2305(mm)

3

Bucket width

2430(mm)

4

Height(To the top of the cab)

3136(mm)

5

Wheel base

2750(mm)

6

Min. ground clearance

360(mm)

  • Technical Specification

1

Rated load

3000(Kg)

2

Operating weight

10200KG

3

Rated bucket capacity

1.7(m3),option1.4-3.2 (m3)

4

Max. dump clearance

2934(mm)

5

Dump reach

1043(mm)

6

Min. turning radius(wheel)

5185(mm)

  • Diesel engine

1

Model

Dongfeng Cummins 6BT5.9-C130

WeiChai   WP6G125E22

2

Type

Direct injection.

3

Rated output

97 (kW)

92 (kW)

5

Total exhaust of cylinder

5.9 (L)

6.75 (L)

9

Rated speed

2200(r/min)

10

Max. Torque

440(N.M)@1500 rpm

500(N.M)@1500 rpm

  • Transmission System

1

Model

BS428DX2+YJ315GZ-6F2

2

Type

Power shift

3

Gear shift position

 4 F、 2 R

4

Speed(F/R)

F:7.8/14.7/23.5/41.2 R:10.8/31.6

5

Max. drawing force

96kN

6

Size of tire

17.5-25-12PR

  • Working Hydraulic System

1

System pressure

16MPa

  • Steering System

1

System pressure

14MPa

  • Brake System

1

Type of traveling brake

Caliper disc brake

2

Air pressure

0.7~0.8 MPa

3

Type of parking brake

clamp brake

  • Oil Capacity

1

Fuel(diesel)

130(L)

2

Engine lubricating oil

13.5(L)(Cummins)

17(L)(Weichai)

Performance Features

图片1 (8)
图片1 (8)
The comfortable and safe cab provides perfect all-round visibility.
图片2 (6)
图片2 (6)
(2)The external braking system, external filter of drive system, centralized lubrication system and quick coupler for hydraulic work tools connection are all beneficial factors that make the maintenance operations easier and more efficient.
图片11 (4)
图片11 (4)
The bucket and its teeth are made of wear-resistant hardened steel and high-strength cast alloy steel respectively, ensuring a long service life.
图片3 (6)
图片3 (6)
Articulated frame with small turning radius enable the wheel loader more flexible and maneuverable.
图片4 (6)
图片4 (6)
A hydraulic torque converter is placed between engine and gearbox, which can give full play to the engine power, increase the output torque, adapt to the external load changes within a certain range, and automatically adjust to achieve stepless speed change. All of these designs can protect the engine from stalling and prevent loader parts against damage due to overloading.
图片5 (5)
图片5 (5)
The hydraulic shift gearbox is utilized to deliver smooth gear shifting, and the flexible shaft enables low-effort control with high safety. (pilot control is optional)
图片6 (5)
图片6 (5)
A hydraulic steering system is adopted in the wheel loader, the compact structure of which makes it easy to operate and simple to maintain.
图片7 (5)
图片7 (5)
The hydraulic control system of the wheel loader allows for simple, sensitive and stable operation.
图片8 (5)
图片8 (5)
The cab can be configured with heating and cooling air-conditioning system that helps create a comfortable operating environment.
图片12 (3)
图片12 (3)
A newly developed Z-bar linkage paired with single arm is adopted for stronger lifting and digging force with high efficiency.
图片9 (5)
图片9 (5)
A pneumatic emergency braking system is fitted to ensure the safety when braking and ramp parking.
图片10 (6)
图片10 (6)
The wheel loader utilizes front and rear axle four-wheel drive, wheel side deceleration and low-pressure wide base tires, delivering effective driving force and strong climbing ability which ensure the earthmoving machine able to work on rough terrains.
