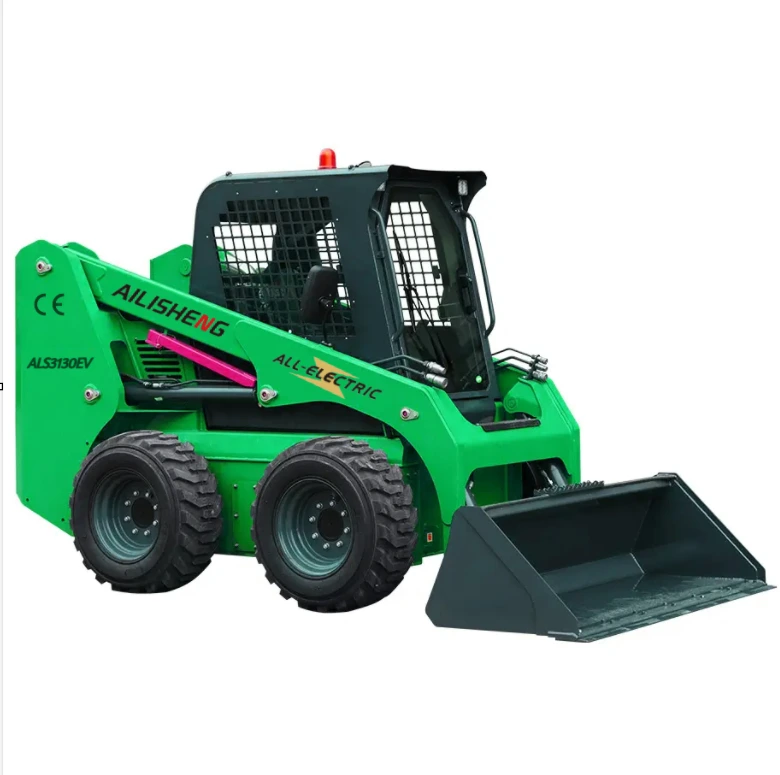

AILISHENG Electric Skid Steer Loaders ALS3120EV/ALS3130EV
AILISHENG's electric skid steer loaders represent the latest development from our company. These compact, multifunctional equipment units integrate mechanical, electrical and hydraulic technologies. These efficient, aesthetically pleasing, safe and reliable products are set to make a significant impact in the market. Utilising modern design methodologies such as virtual prototyping and finite element analysis, these products have been developed to enhance the technology of similar domestic and international products. This has resulted in significant performance advantages over other similar products, bringing them to the level of advanced international standards. The machine features a compact structure, flexible operation, easy control, high efficiency, and powerful functions. It is particularly well-suited for use in urban infrastructure, on roads or construction sites, in factory workshops, warehouses, docks, ship decks, and even within the confined spaces of ship cabins—wherever space is limited and job requirements frequently change. Its versatility is further enhanced by interchangeable attachments, allowing it to perform a wide range of tasks, including loading, lifting, excavating, drilling, breaking, grabbing, scarifying, road sweeping and pavement compaction.
Product features：
- Pure electric power, zero-emission, green and environmentally friendly, with no pollution.
- The self-developed electric skid loader management and control software is defined by the software, providing methods for optimising performance and whole machine management.
- Electric drive control, linear power output, smooth operation.
- Four-wheel drive system, with fast acceleration, strong power, and its working efficiency is more than 92%.
- The advanced hydraulic system design performs two actions, boom lifting and bucket rotation, to complete the work faster.
- Strengthen the body, the structure is more compact, and it is more suitable for harsh working conditions.
- Maintenance and operating costs are drastically reduced.
- Near-silent operation and low vibration ensure a comfortable operating environment for the operator.
- The pilot handle with proportional control is easy to operate and saves effort, enabling the operator to quickly become proficient in operating the machine without fatigue.
- The driver's cab is spacious with good vision, an upgraded large space, large side windows, multiple air-conditioning outlets, switches within reach, and an optional FOPS/ROPS cab.
- The cab can be flipped back at a large angle, which greatly facilitates maintenance.
- The internationally used quick-change device is adopted, which can quickly and conveniently replace various accessories.
- Standard pipe quick connectors allow most attachments from other manufacturers to be used on this skid loader.
Main technical parameter：
|
ALS3120EV/ALS3130EV |
|
|
Electric motor model type |
PMSM |
|
Rated motor power |
2x32kW+30kw |
|
Lithium Battery Pack |
63kwh（Option 87kwh） |
|
Max. Speed (km/h) |
0-13 |
|
Tire model |
12/16.5NHS |
|
Loading Capacity(kg) |
1300 |
|
Bucket capacity(m3) |
0.65 |
|
Rated hydraulic flow(L/min) |
85 |
|
Hydraulic tank capacity(L) |
70 |
|
Weight with bucket(kg) |
3960 |
|
|
|
A |
Overall operating height (mm) |
4295 |
|
B |
Height to bucket hinge pin (mm) |
3290 |
|
C |
Height to top of cab (mm) |
2023 |
|
D |
Height to bottom of level bucket (mm) |
3116 |
|
E |
Without bucket length(mm) |
2889 |
|
F |
Overall length with bucket(mm) |
3688 |
|
G |
Dumping angle at maximum height (°) |
38 |
|
H |
Dumping height (mm) |
2543 |
|
J |
Dumping reach(mm) |
652 |
|
K |
Rollback of bucket on ground (°) |
30 |
|
L |
Rollback of bucket at full height(°) |
97 |
|
M |
Wheelbase (mm) |
1179 |
|
P |
Ground clearance(mm) |
202 |
|
Q |
Angle of departure (°) |
24 |
|
R |
Front turning radius without bucket(mm) |
1331 |
|
S |
Front turning radius with bucket(mm) |
2225 |
|
T |
Rear tuning radius(mm) |
1728 |
|
U |
Rear axle to bumper (mm) |
1092 |
|
V |
Tread width (mm) |
1499 |
|
W |
Width (mm) |
1817 |
|
X |
Bucket width (mm) |
1880 |
