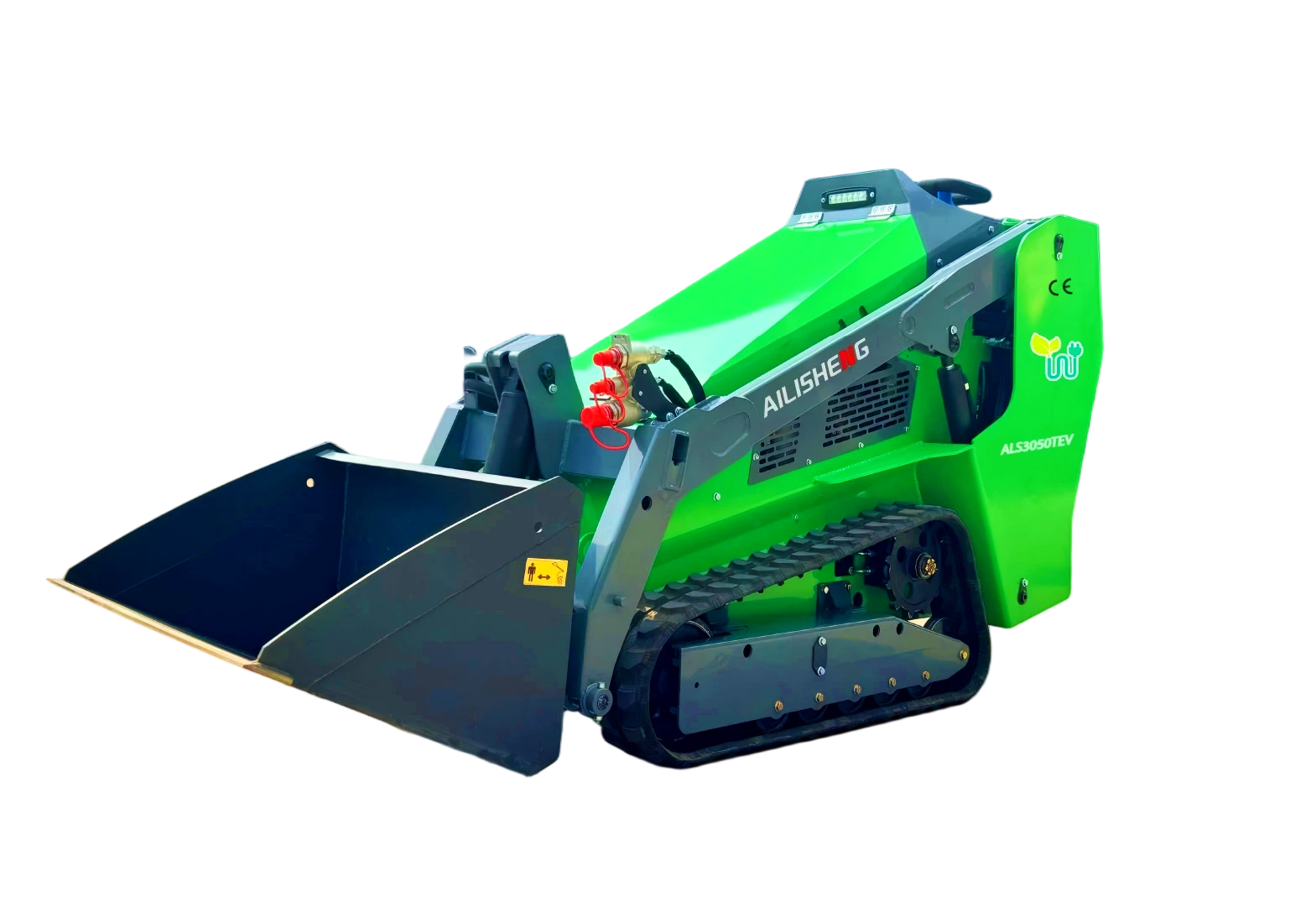

ALS3050TEV: The Stand-On Electric Tracked Skid Steer Built Differently
Compact, powerful, and engineered for operator-first productivity, the ALS3050EV redefines efficiency for demanding indoor and confined-space applications.
ALS3050TEV: The Stand-On Electric Tracked Skid Steer Built Differently
Compact, powerful, and engineered for operator-first productivity, the ALS3050EV redefines efficiency for demanding indoor and confined-space applications.
A. Efficient & Quiet Electric Power
High-efficiency PMSM motors deliver reliable power with significant energy savings. Paired with a high-flow electric cooling fan and optimized vibration damping, the machine operates at remarkably low noise and vibration levels, perfect for noise-sensitive environments.
B. Superior Traction & Durability
Its 180mm-wide tracks provide a minimal ground footprint, allowing access through doorways as narrow as 920mm while reducing ground pressure for superior traction on soft or uneven terrain. The elevated sprogue design minimizes wear in rocky conditions, and the heat-treated ADI alloy drive sprockets ensure extended service life, lowering your long-term operating costs.
C. Intuitive Pilot Control & Quick-Attach
The responsive pilot control system makes operation effortless. The integrated, tool-free quick-attach coupling allows operators to switch between dozens of attachments in minutes, transforming one machine into a multi-tasking fleet.
D. Sealed, Tool-Free Hydraulic Connectivity
A breakthrough in convenience and reliability. The fully sealed, tool-free hydraulic quick-coupling system enables single-operator attachment changes, guaranteeing zero contamination to the hydraulic system and preventing downtime and costly repairs.
E. Powerful Lift Arm & Optimized Hydraulics
The robust lift arm design delivers impressive breakout force and is built to handle diverse tasks and environments. Precisely matched pumps and cylinders ensure fast, efficient work cycles for maximum job-site productivity.
F. Simple, Smooth Operation
A hydrostatic drive system provides infinitely variable travel speeds for smooth, effortless forward/reverse movement and turning—no manual shifting required. This intuitive operation reduces fatigue and increases precision.
G. Operator-Focused Safety & Comfort
Every detail is designed around the operator, from the comfortable stand-on platform to the clear sightlines and ergonomic controls, ensuring a safer, less taxing workday.
H. Easy Access for Maintenance
Routine checks and servicing are simplified. The front hood opens wide to provide direct, unhindered access to the power battery, motors, and key hydraulic components, streamlining maintenance and minimizing machine downtime.
Ideal for: Material handling in narrow warehouses, landscaping on sensitive grounds, livestock operations, and any application demanding a quiet, emission-free, and highly maneuverable powerhouse.
|
Power Battery |
|
||
|
1 |
Battery Type |
Lithium-ion |
|
|
2 |
Gross Capacity |
21.5kWh |
|
|
3 |
System Voltage |
76.8V |
|
|
4 |
Indicative Run Time |
6 hours, based upon typical duty cycle. |
|
|
|
Drive Motor |
|
|
|
1 |
Motor Type |
3 Phase AC Permanent Magnet |
|
|
2 |
Continuous Power |
14.0kW |
|
|
3 |
Peak Power |
22.0kW |
|
|
4 |
Continuous Torque |
76.0Nm |
|
|
5 |
Peak Torque |
116.0Nm |
|
|
6 |
Rate Speed |
1800.0rpm |
|
|
|
Specification |
U.S. |
METRIC |
|
A |
Overall Operating Height |
114.00in |
2916mm |
|
B |
Height to Bucket Hinge Pin |
85.60in |
2175mm |
|
C |
Height to Top of Cab |
59.00in |
1500mm |
|
D |
Height to Bottom of Level Bucket |
82.60in |
2100mm |
|
E |
Overall Length without Bucket |
92.99in |
2108mm |
|
F |
Overall Length with Bucket |
108.00in |
2758mm |
|
G |
Dumping angle at maximum height |
40° |
40° |
|
H |
Dumping height |
59.20in |
1506mm |
|
I |
Dumping height |
22.90in |
582mm |
|
J |
Rollback of buchet on Ground |
30° |
30° |
|
K |
Rollback of buchet at full Hight |
98° |
98° |
|
L |
Wheelbase |
42.80in |
1087mm |
|
M |
Ground Cearance |
7.87in |
200mm |
|
N |
Angle of Departure |
26° |
26° |
|
O |
Turning Radius front Without Bucket |
47.00in |
1210mm |
|
P |
Front Turning Radius with Bucket |
66.70in |
1700mm |
|
S |
Tread Width,CenterLine to Center Line |
28.90in |
736mm |
|
T |
Width Between Outside of Two Wheels |
35.60in |
906mm |
|
U |
Bucket Width |
36.00in |
916mm |
|
|
SERVICE CAPACITIES |
U.S. |
METRIC |
|
1 |
Rated Loading Capacity |
1210lbs |
550kg |
|
2 |
Tipping Loading |
2420lbs |
1100kg |
|
3 |
Speed-Standard |
3.7 mph |
6 km/h |
|
4 |
Track Model |
|
180*72 |
|
5 |
Lifting Form |
RadiaLift |
|
|
6 |
Total Cycle Time |
9.2s |
|
|
7 |
System Safety Pressure |
180.0bar |
|
|
8 |
Rated Flow of Hydraulic System |
45.0L/min |
|
|
9 |
Hydraulic Oil Tank Capacity |
40.0L |
|
|
10 |
Raidtor Capacity |
10.0L |
|
