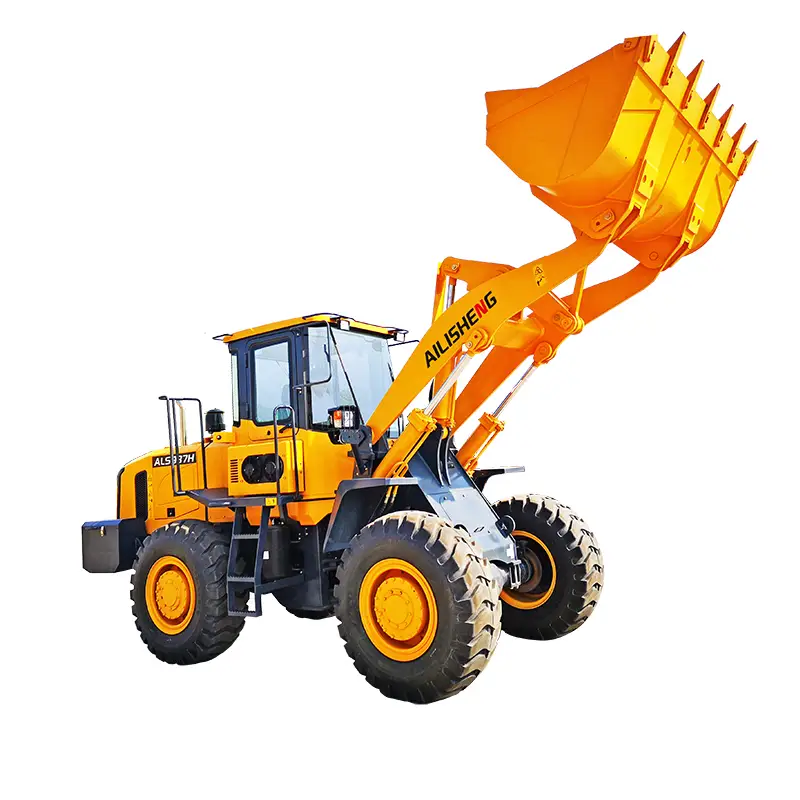

ALS937H Specification
|
||||
1 |
Length(with bucket on ground) |
6983(mm) |
||
2 |
Width(to outside of wheels) |
2305(mm) |
||
3 |
Bucket width |
2430(mm) |
||
4 |
Height(To the top of the cab) |
3136(mm) |
||
5 |
Wheel base |
2750(mm) |
||
6 |
Min. ground clearance |
360(mm) |
||
|
||||
1 |
Rated load |
3000(Kg) |
||
2 |
Operating weight |
10200KG |
||
3 |
Rated bucket capacity |
1.7(m3),option1.4-3.2 (m3) |
||
4 |
Max. dump clearance |
2934(mm) |
||
5 |
Dump reach |
1043(mm) |
||
6 |
Min. turning radius(wheel) |
5185(mm) |
||
|
||||
1 |
Model |
Dongfeng Cummins 6BT5.9-C130 |
WeiChai WP6G125E22 |
|
2 |
Type |
Direct injection. |
||
3 |
Rated output |
97 (kW) |
92 (kW) |
|
5 |
Total exhaust of cylinder |
5.9 (L) |
6.75 (L) |
|
9 |
Rated speed |
2200(r/min) |
||
10 |
Max. Torque |
440(N.M)@1500 rpm |
500(N.M)@1500 rpm |
|
|
||||
1 |
Model |
BS428DX2+YJ315GZ-6F2 |
||
2 |
Type |
Power shift |
||
3 |
Gear shift position |
4 F、 2 R |
||
4 |
Speed(F/R) |
F:7.8/14.7/23.5/41.2 |
||
5 |
Max. drawing force |
96kN |
||
6 |
Size of tire |
17.5-25-12PR |
||
|
||||
1 |
System pressure |
16MPa |
||
|
||||
1 |
System pressure |
14MPa |
||
|
||||
1 |
Type of traveling brake |
Caliper disc brake |
||
2 |
Air pressure |
0.7~0.8 MPa |
||
3 |
Type of parking brake |
clamp brake |
||
|
||||
1 |
Fuel(diesel) |
130(L) |
||
2 |
Engine lubricating oil |
13.5(L)(Cummins) |
17(L)(Weichai) |
