Company Advantages
· AILISHENG Construction Equipment heavy duty tracked robot chassis stands out from the crowd with technological innovation.
· Our QC team takes strict testing methods in order to achieve high quality.
· As the product can meet various application needs, it is now widely used in the market.
The main features include:
1. Multi-application scenarios: Due to its versatility, this chassis can be used in various indoor and outdoor environments, including geographic information collection, unmanned driving teaching, inspection applications, agricultural applications, etc.
2. Wire control technology: Through wire control technology, users can operate the vehicle remotely, improving the convenience and safety of operation.
3. Standard communication protocols: Using standard communication protocols makes it possible for the chassis to connect seamlessly with other devices, enhancing system integration.
4. Secondary development: Based on user requirements, secondary development is possible to meet specific application needs.
5. Expansion components and navigation systems: By installing different expansion components and navigation systems, multiple functions can be achieved, such as geographic information collection, unmanned driving teaching, inspection applications, agricultural applications, etc.
6. High intelligence: Through built-in intelligent algorithms, functions such as automatic driving and obstacle avoidance can be achieved, greatly improving work efficiency and safety.

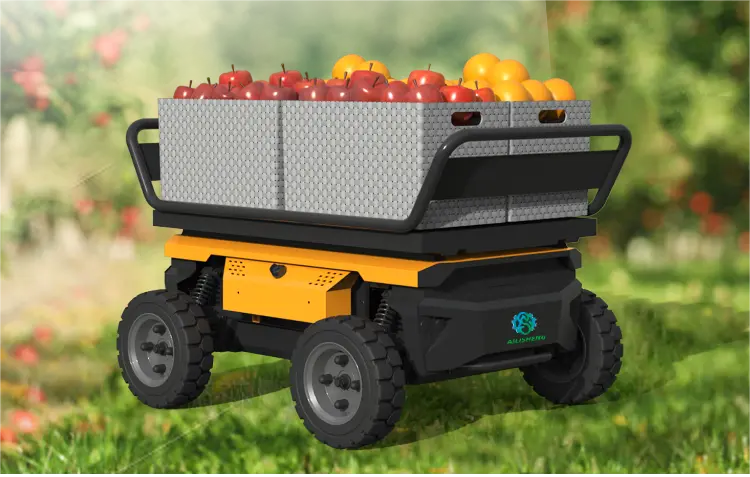

Application scenarios: Through the expansion of components and navigation systems, ALST525 is widely used in agricultural transportation and picking, logistics distribution, unmanned disinfection, industrial inspection, etc., and more scenarios can be explored.
Main technical parameter
ALST525 | ||
Standard | Heavy-Duty | |
Overall dimensions | 1000*810*445mm , | 1000*965*445mm |
Operating weight | 90kg | 160kg |
Rated load | 50kg | 100kg |
Travel speed | 0-3.6km/h | 0-3.6km/h |
Endurance | ≥10km Straight level road | ≥10km Straight level road |
Drive motor | 400W*4、servo motor | 1000W*4 |
Battery | 48V/30AH | 48V/50AH |
Operating water depth | 100mm | |
Max. gradeability | 40% | |
Over-height of the obstacle | 70mm | |
Protect class | IP55 | |
Operating tempeture | -10℃~50℃ | |
Drive type | Four-wheel drive different steering | |
Suspension form | rigid axle suspension |
Company Features
· With years of research and development, AILISHENG Construction Equipment is strong enough to provide heavy duty tracked robot chassis.
· Every production lines are reasonably arranged in the factory, aiming to give full play of productivity. These production lines are under the supervision of the ISO 9001 management system, guaranteeing all products including heavy duty tracked robot chassis are produced in line with standards. After being put out, our products such as heavy duty tracked robot chassis have received very good market repercussion. The market response provides us the opportunity to continually assess the market trend, thereby we can provide market-oriented products.
· In order to meet market demand, Xiamen Ailisheng Intelligent Equipment Co.,Ltd will adhere to the long-term improvement of heavy duty tracked robot chassis. Call now!
Enterprise Advantages
We have a high-level R&D expert team and a high-quality staff team. Based on their strong production capacity, our company has developed rapidly.
AILISHENG Construction Equipment has an experienced service team and a complete service system to provide quality and considerate services for customers.
Based on the principle of providing customers with high-quality products, our company has always been taking integrity and duty as the enterprise spirit, and customer first as the corporate mission.
Since the establishment in AILISHENG Construction Equipment has experienced vigorous development and continuous growth for years. Now, we have been leading the industry.
AILISHENG Construction Equipment's Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders receive trust and favor from domestic and foreign customers.
