Ailisheng Electric Intelligent chassis ALST525

ALST525 is a multi-application scenario indoor and outdoor general-purpose intelligent chassis that uses wire control technology and standard communication protocols, allowing for secondary development based on user requirements.

    oops...!

    no product data.

    Go to homepage
    Ailisheng Electric Intelligent chassis ALST525 6

    The main features include:

    1. Multi-application scenarios: Due to its versatility, this chassis can be used in various indoor and outdoor environments, including geographic information collection, unmanned driving teaching, inspection applications, agricultural applications, etc.

    2. Wire control technology: Through wire control technology, users can operate the vehicle remotely, improving the convenience and safety of operation.

    3. Standard communication protocols: Using standard communication protocols makes it possible for the chassis to connect seamlessly with other devices, enhancing system integration.

    4. Secondary development: Based on user requirements, secondary development is possible to meet specific application needs.

    5. Expansion components and navigation systems: By installing different expansion components and navigation systems, multiple functions can be achieved, such as geographic information collection, unmanned driving teaching, inspection applications, agricultural applications, etc.

    6. High intelligence: Through built-in intelligent algorithms, functions such as automatic driving and obstacle avoidance can be achieved, greatly improving work efficiency and safety.

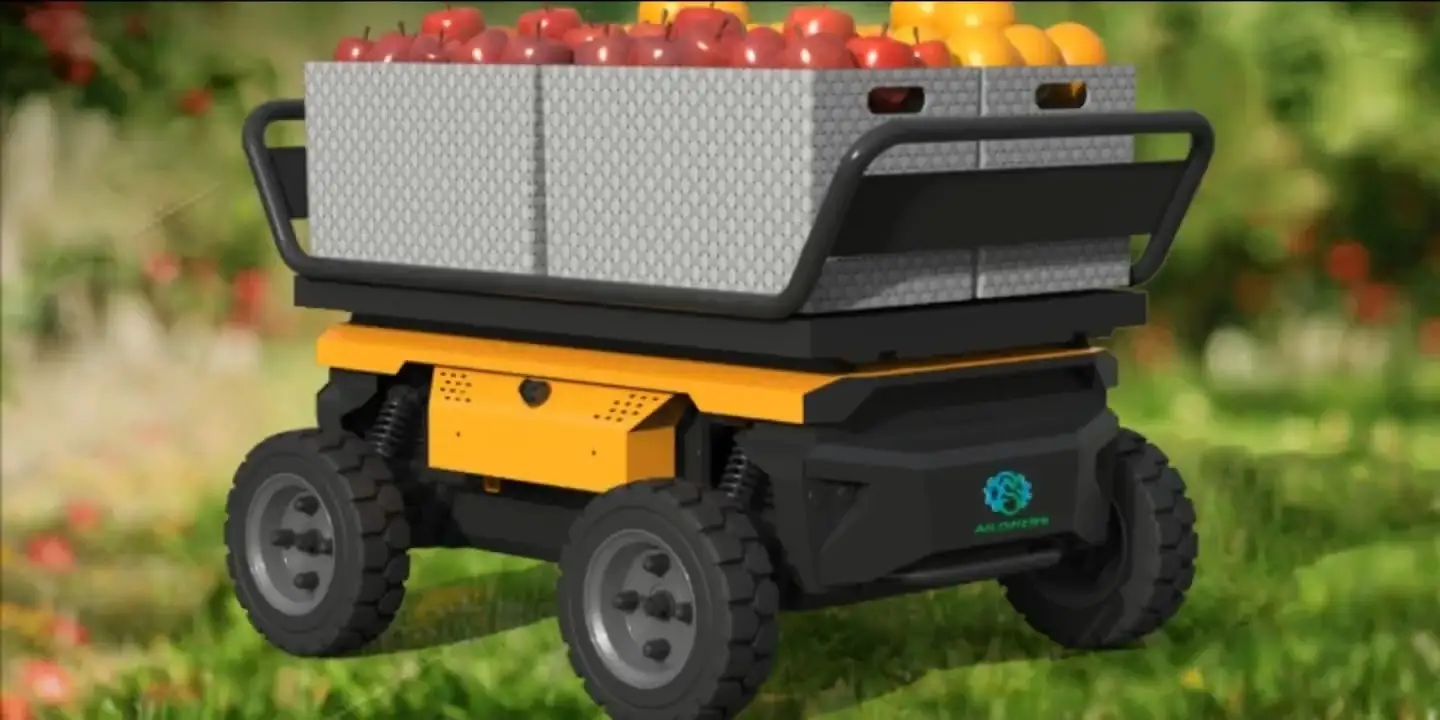

    Application scenarios: Through the expansion of components and navigation systems, ALST525 is widely used in agricultural transportation and picking, logistics distribution, unmanned disinfection, industrial inspection, etc., and more scenarios can be explored.



    Main technical parameter

      ALST525
      Standard Heavy-Duty
    Overall dimensions 1000*810*445mm    ,  1000*965*445mm
    Operating weight 90kg 160kg
    Rated load 50kg 100kg
    Travel speed 0-3.6km/h 0-3.6km/h
     Endurance 10km Straight level road 10km Straight level road
    Drive motor 400W*4servo motor 1000W*4
    Battery 48V/30AH 48V/50AH
    Operating water depth 100mm
    Max. gradeability 40%
    Over-height of the obstacle 70mm
    Protect class IP55
    Operating tempeture -10℃~50℃
    Drive type Four-wheel drive different steering
    Suspension form rigid axle suspension
