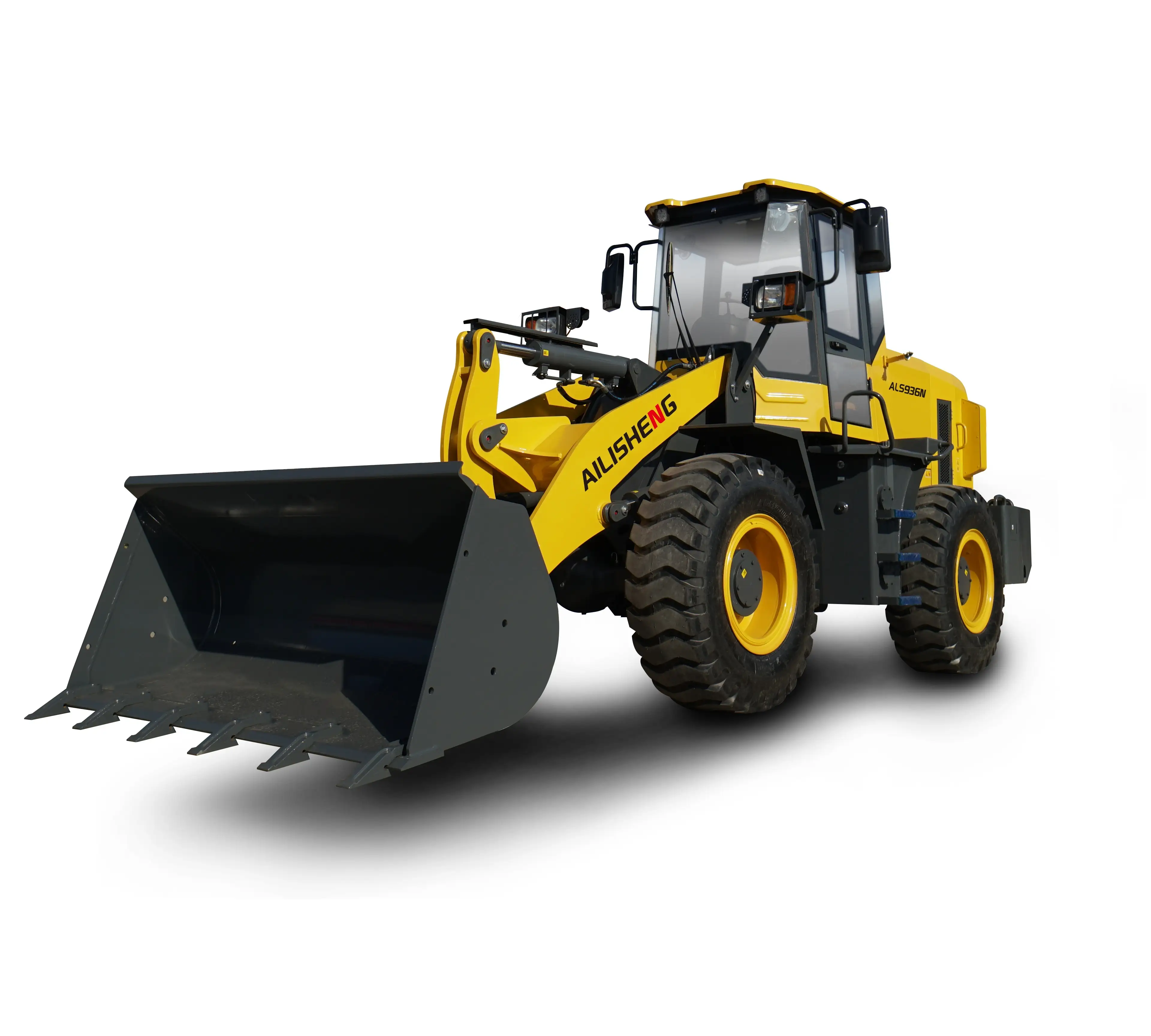

Latest Small Articulated Wheel Loader Cost 1

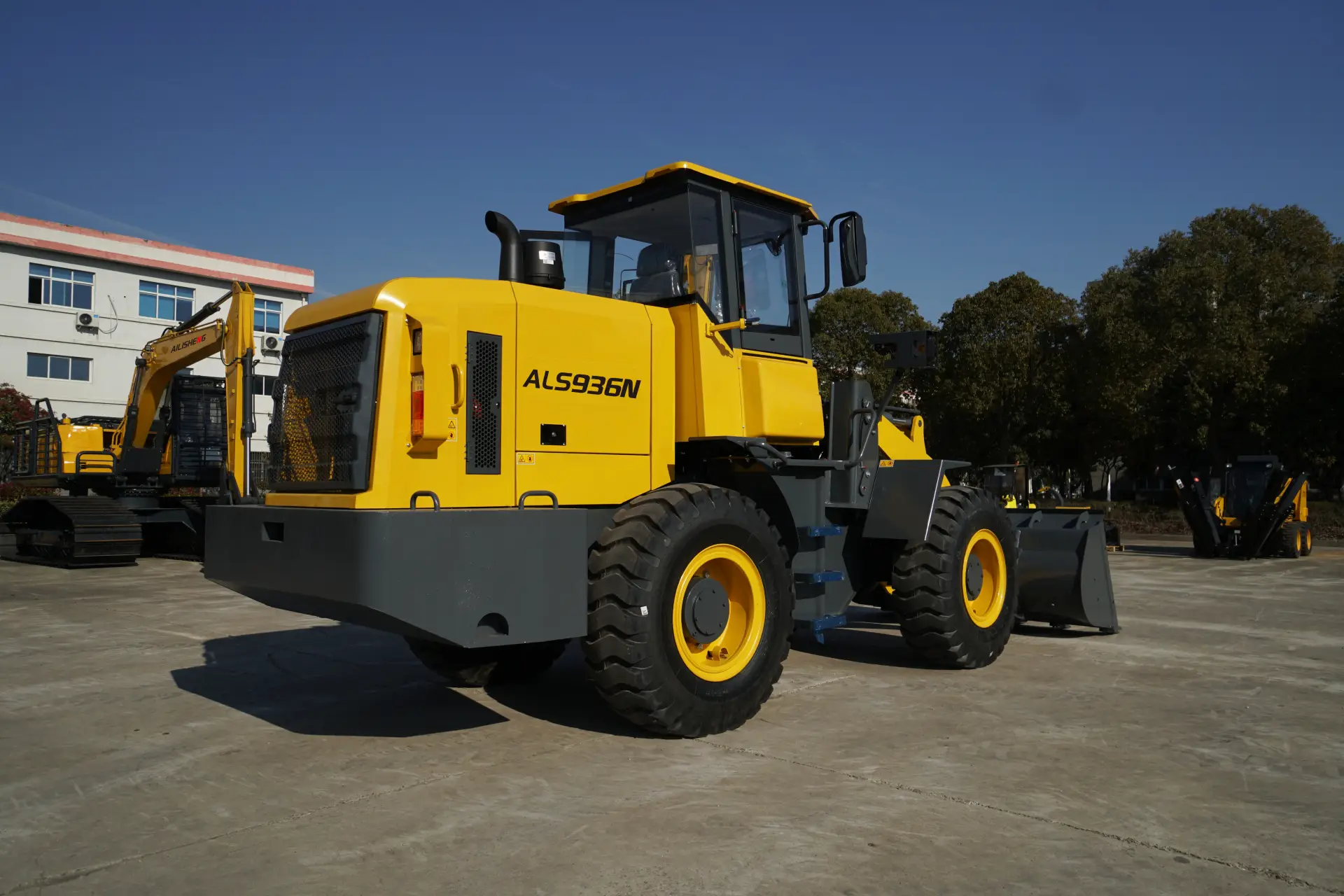

Latest Small Articulated Wheel Loader Cost 2

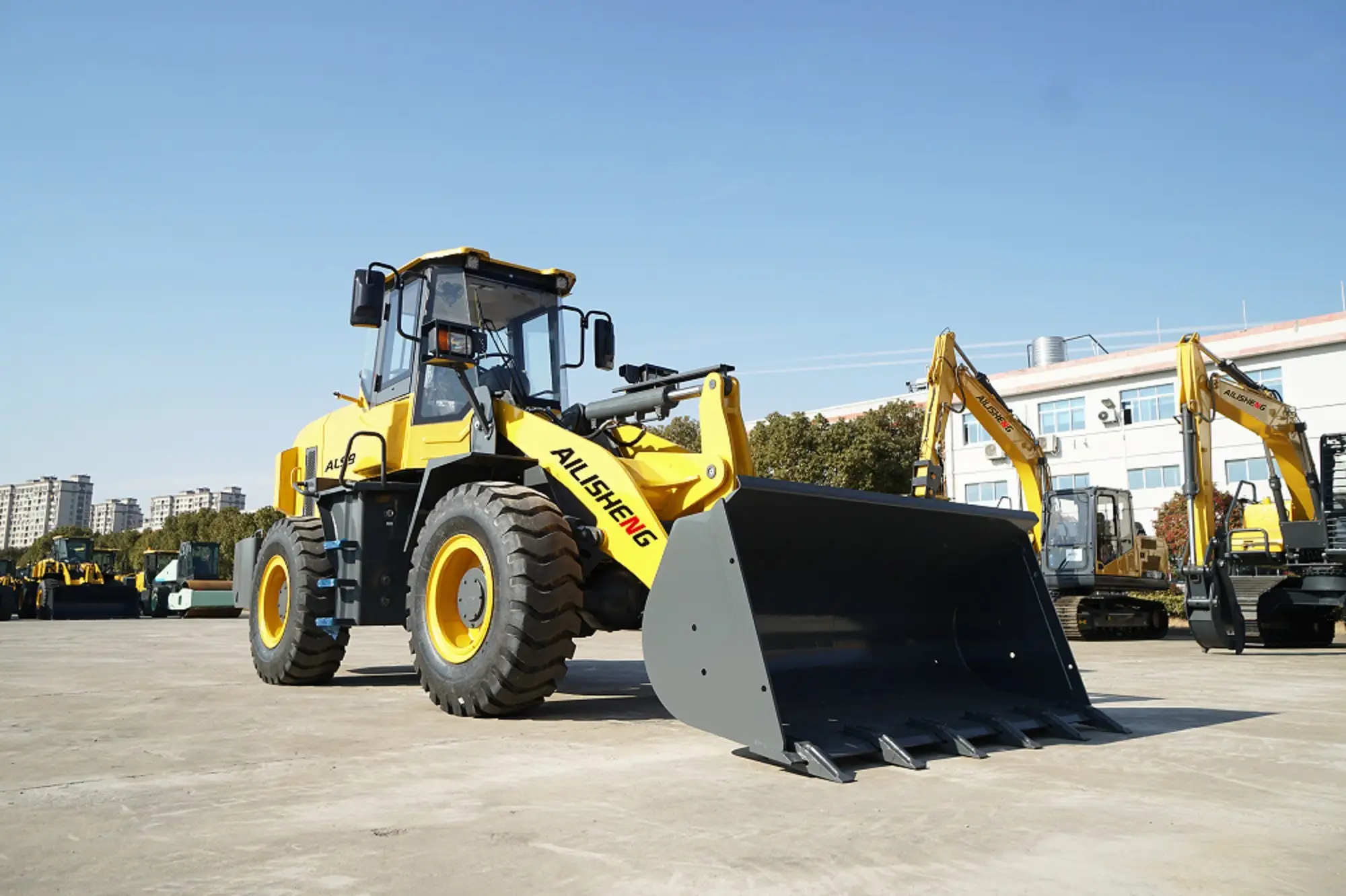

Latest Small Articulated Wheel Loader Cost 3

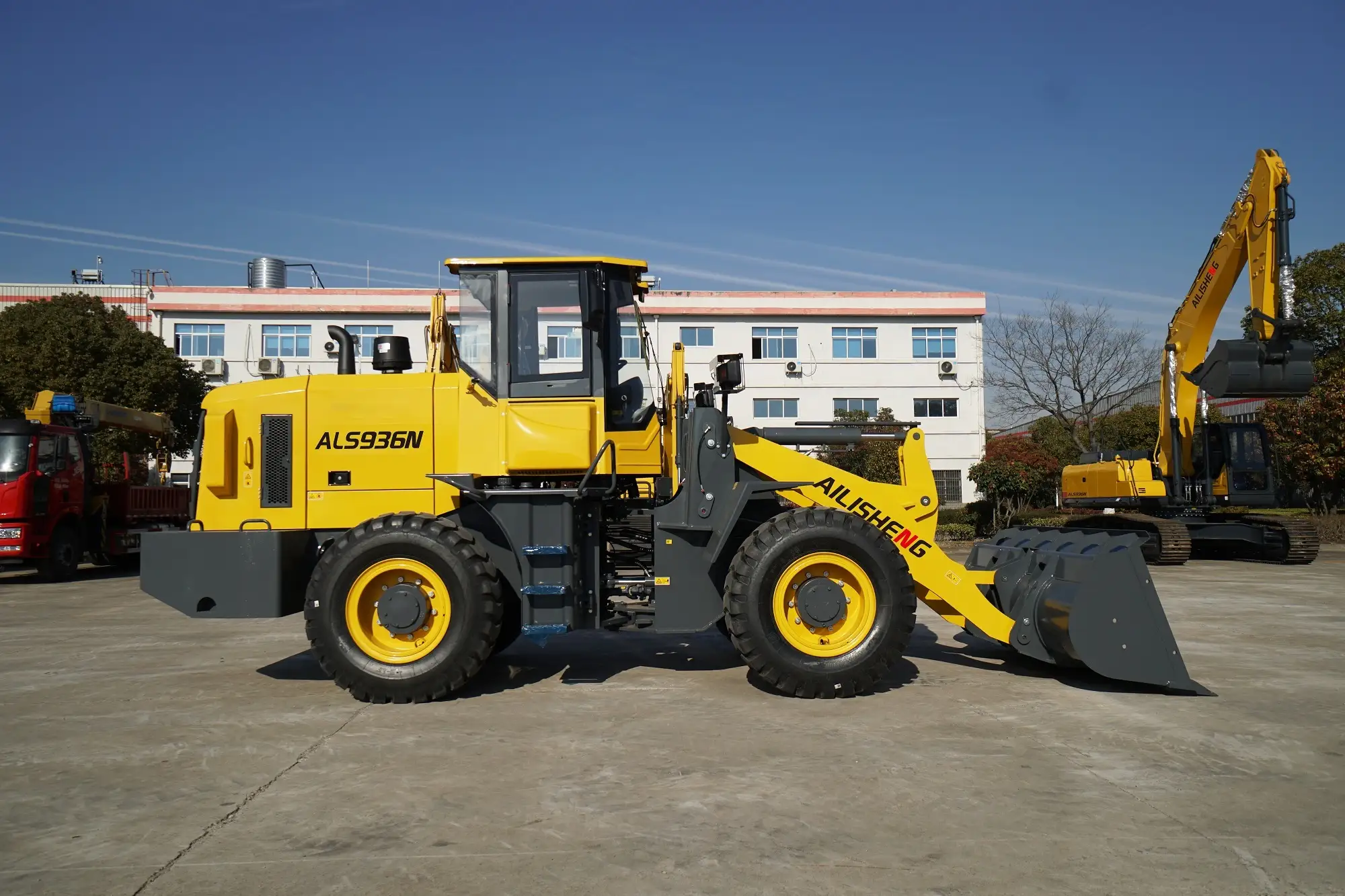

Latest Small Articulated Wheel Loader Cost 4
Latest Small Articulated Wheel Loader Cost 1
Latest Small Articulated Wheel Loader Cost 2
Latest Small Articulated Wheel Loader Cost 3
Latest Small Articulated Wheel Loader Cost 4

Latest Small Articulated Wheel Loader Cost

Inquiry
Send your inquiry

ALS936N Specification

 Overall Dimension
1 Length(with bucket on ground) 7200(mm)
2 Width(to outside of wheels) 2320(mm)
3 Bucket width 2500(mm)
4 Height(To the top of the cab) 3180(mm)
5 Wheel base 2850(mm)
6 Min. ground clearance 345(mm)
Technical Specification
1 Rated load 3000(Kg)
2 Operating weight 10000Kg
3 Rated bucket capacity 1.7(m3),Option 2.0、2.3、2.5 (m3)
4 Max. dump clearance 2905(mm)
5 Dump reach 1095mm)
6 Min. turning radius(wheel) 5685(mm)
Diesel engine
1 Model WeiChai   WP6G125E22
2 Type Direct injection.
3 Rated output 92 (kW)
5 Total exhaust of cylinder 6.75 (L)
9 Rated speed 2200(r/min)
10 Max. Torque 500(N.M) / 1400-1600 rpm
Transmission System
1 Type Power shift
2 Gear shift position  4 F、 2 R
3 Speed (F/R) F:7/12/24/36km/h  R:8.5/28
4 Max. drawing force 97kN
5 Size of tire 17.5-25-12PR
Working Hydraulic System
1 System pressure 16MPa
2 Model of Muti-way directional valve  YGDF-25-00D1(X3)
5 Pilot valve CRV-00(H4)
Steering System
1 Model of steering pump JHPg3113
2 Model of redirector   BZZ5-E500C+FKBRB-3020
3 Model of priority valve  YXL-F250F-15N7-A
4 System pressure 15MPa
 Brake System
1 Type of traveling brake  Caliper disc brake
2 Air pressure 0.7~0.78 MPa
3 Type of parking brake Caliper disc brake
4 Type of Emergency brake  Caliper disc brake
 Oil Capacity
1 Fuel(diesel) 200(L)
2 Engine lubricating oil 14(L)
3 Oil for converter and gear box 36(L)
4 Oil for hydraulic system 165(L)
5 Oil for driving axles(F/R) 18/18(L)
ALS936N-1

The transmission fluid is designed for air cooling to improve cooling efficiency and enhance the working stability of the hydraulic system .

Adopting large displacement piston pump to enlarge displacement by 30% ,the diameter of brake oil duct increase 50% , the technolgy of brake piston got a big breakthrough and obtained China National Patent , the brake heat release and the performance are also get a big breakthrough to reduce the braking fault ratio and improve working stability .

The center of gravity of the engine move backward, and the longitudinal balance is stronger to avoid the rear wheels leave the ground.

The overall improvement of the hydraulic system, optimize the connection mode of the hydraulic components , reduce the welding point, so as to reduce the hydraulic loss(reduce by 25%) and failure rate, , and improve the service life of the hydraulic element.

Adopt power centralized distribution desgin , easy maintenance.Integrated fuse , relay, buzzer and so on.

ALS936N-3


Company Advantages

· AILISHENG Construction Equipment small articulated wheel loader is independently designed by our designers who think highly of the innovation.

· With excellent quality and novel design, small articulated wheel loader is an indispensable equipment for modern industry.

· These products can be updated as per our patrons' requirements.


Company Features

· Being an expert in the industry, Xiamen Ailisheng Intelligent Equipment Co.,Ltd has been engaged in the research, development, design, manufacturing, and marketing of small articulated wheel loader.

· AILISHENG Construction Equipment has put a lot of investment into its technology introduction.

· Achieving constant improvements in product quality and service is Xiamen Ailisheng Intelligent Equipment Co.,Ltd's ultimate goal. Contact!


Application of the Product

AILISHENG Construction Equipment's small articulated wheel loader can be used in a variety of industries.

In addition to providing high-quality products, we also provide effective solutions based on the actual conditions and the needs of different customers.
