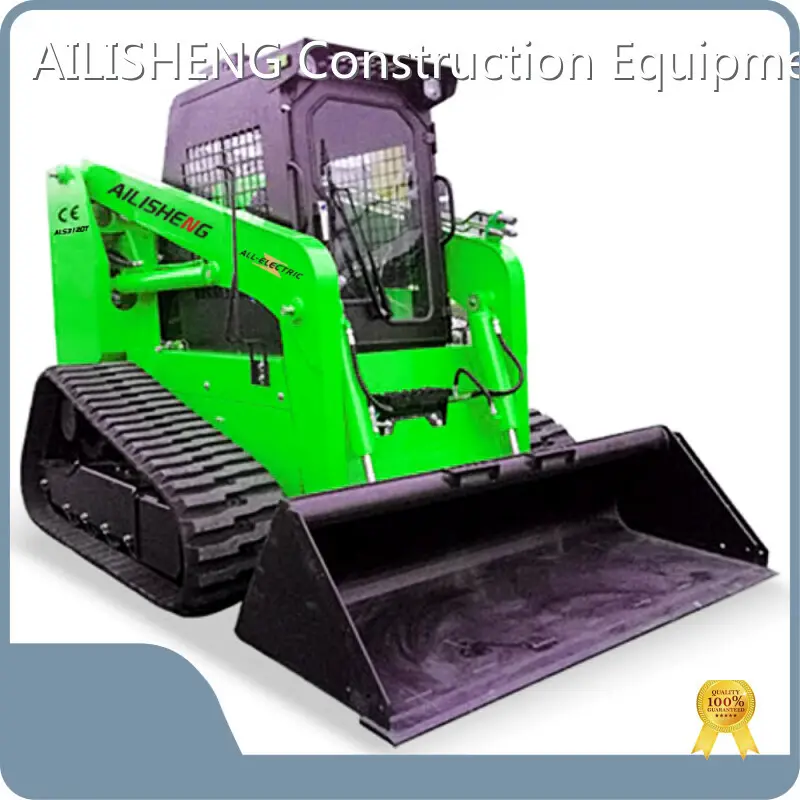

Electric Mini Skid Steer Loader Factory Price
Product details of the electric mini skid steer loader
Product Overview
The manufacturing process for AILISHENG Construction Equipment electric mini skid steer loader has time and technology constrains. Under the strict supervision of quality experts, 100% of the products have passed the conformance test. electric mini skid steer loader of AILISHENG Construction Equipment can play a role in various industries. The product has been exported to many countries and gains customers' recognition.
Product Introduction
Compared with products in the industry, AILISHENG Construction Equipment's electric mini skid steer loader has the outstanding advantages which are mainly reflected in the following aspects.
Product features
It uses an electric-driven track-type movement system, with 360° sliding steering, and the rubber tracks exert low pressure on the ground, making it more suitable for working on soft, gravelly, wet or muddy surfaces. It can be matched with almost all types of attachments available on the market, completing various tasks and enhancing the versatility of the loader, make the operation more enjoyable and efficient.
2. The assembled track frame, permanently sealed and lubricated forged steel rollers and idlers, reinforced rubber tracks, and triangular track drive structures are more suitable for complex uneven roads, with lower maintenance costs.
3. The hydraulic system uses top brand components, ensuring stability and reliability; pilot control makes operation flexible and labor-saving; rational piping arrangement reduces loss and prevents leakage to avoid oil contamination; an excellent cooling system introduces clean cooling air through reasonable air channels continuously onto the radiator, ensuring the machine can work non-stop for long periods; a centralized monitoring system facilitates troubleshooting.
4. The positive pressure cab meets safety standards and constantly protects the driver's safety and fresh air; it is spacious, bright, quiet, and clean; the shock-absorbing seat can accommodate operators of various sizes, improving operator comfort; the design is closer to the front of the loader, with larger side windows and left and right rearview mirrors for better monitoring of the performance of attachments, improving the operator's view of the loader's corners and work area; the cab features a large-angle back-tilting design that one person can easily lift; the rear cover can be fully opened, making maintenance very convenient.
5. The integrated luxury instrument panel is clear and easy to watch, with operating buttons arranged reasonably, in line with ergonomics, within easy reach, and simple to operate; electronic control self-locking interlock design reduces misoperation, making it safer to use; manual throttle control for movement is sensitive and light, and foot-operated throttle controls the hydraulics, conforming to your daily operating habits.
6. The quick-change attachment comes standard with a single-sided manual type, which is effortless and labor-saving, and an optional hydraulic quick-change device eliminates the hassle of changing attachments for the operator entering and exiting the cab, allowing for quick and easy changing of various attachments; the hydraulic quick-change connectors can match most manufacturers' attachments or hosts, with a one-button pressure relief function, achieving easy plug-and-play.
Main technical parameter
|
|
ALS3120TEV/ALS3130TEV |
|
Battery |
Lithium Iron Phosphate |
|
Battery capacity(Kwh) |
70kwh |
|
Electric travel motor model |
PMSM |
|
Rated power(kw) |
2x35kW |
|
Electric hydraulic motor |
PMSM |
|
Rated power(kw) |
30kW |
|
Max. Speed (rpm) |
2600 |
|
Travel speed(L/H)（km/h） |
8/14 |
|
Rated load(kg) |
1300 |
|
Rated flow(L/min) |
85 |
|
Hydraulic pressure(Mpa) |
21 |
|
Operating weight with bucket(kg) |
4850 |
|
Dimension |
|
|
A Height at Maximum Extension (mm) |
4390 |
|
B Hinge Pin Height (mm) |
3393 |
|
C Total Height (mm) |
2140 |
|
V Overall length without bucket ( mm ) |
2885 |
|
D Overall length with bucket(mm) |
3695 |
|
E Dumping angle at maximum height(° ) |
40 |
|
F Dumping height(mm) |
2625 |
|
G Dumping reach(mm) |
600 |
|
J Rollback at ground position(° ) |
30 |
|
M Rollback fully raised at max height(° ) |
100 |
|
S Ground clearance(mm) |
230 |
|
W Angle of departure(°) |
20 |
|
Y Turning radius without bucket(mm) |
1600 |
|
X Turning radius with bucket(mm) |
2430 |
|
Z Rear tuning radius(mm) |
1660 |
|
Q Overall Width without bucket(mm) |
1920 |
|
R Bucket width (mm) |
2180 |
Note: Our products are constantly updated and improved. We reserve the right to change specifications and design without prior notice. There might be differences between the product configurations and colors shown in the photos and those of the actual models. The actual product shall prevail in terms of configurations and colors.
