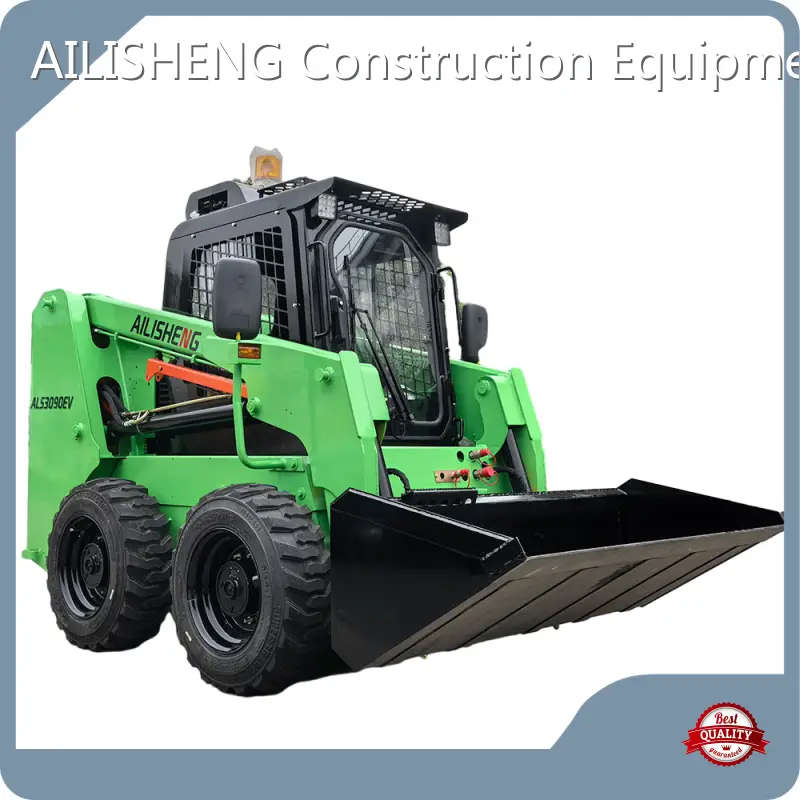

Product details of the electric mini skid steer for sale
Product Introduction
Thanks to the advanced production equipment, AILISHENG Construction Equipment electric mini skid steer for sale is produced efficiently. The product is quality-assured as our production team is highly qualified and has rich production experience. Xiamen Ailisheng Intelligent Equipment Co.,Ltd will continuously shorten the product development and service response cycle.
Product features
● Four wheel drive, full power. The whole machine has compact structure and flexible operation. The structural parts of the whole machine are optimized, stable and reliable.
● Reliable battery, drive motor and electrical accessory system, advanced AC controller and CANbus data bus technology ensure the durability and long endurance of the equipment.
● The cover of the whole machine can be turned over to facilitate maintenance. The system maintenance items are simple and convenient, saving maintenance time and labor cost. Families can charge by themselves, which is convenient and safe to use.
● The operating device is designed by ergonomics, with comfortable operation and stable driving. The whole machine protection frame provides full safety protection for drivers.
● Pure electric system has the advantages of high efficiency, zero exhaust emission, low noise, environmental protection and energy saving. It is suitable for indoor and outdoor use with lower cost.
● A variety of accessories can be selected to meet the needs of various working conditions such as loading, forking, grass clamping, snow pushing, cleaning, drilling, hoisting and so on.
Model |
Fuel loader |
Electric Loader |
Cost comparison of 200 days per year |
||||
Country |
Diesel price |
Hourly fuel consumption |
Cost of working 8 hours per day |
Electricity price |
Hourly energy consumption |
Cost of working 8 hours per day |
|
Canada |
1.6 C$/L |
5L/h |
64 C$ |
0.06 C$/Kwh |
5Kwh/h |
2.4 C$ |
save 12320 C$ |
U.S.A |
0.66 $/L |
26.4 $ |
0.13 $/Kwh |
5.2 $ |
Save 4240 $ |
||
China |
6.7 RMB/L |
268 RMB |
0.50RMB/Kwh |
20 RMB |
Save 49600 RMB |
Main technical parameter
|
ALS3090EV |
Electric motor model |
PMSM |
Rated power |
5x12kW |
Battery Pack |
53kwh |
Max. Speed (km/h) |
0-13 |
Tire (track) model |
10-16.5 |
Loading Capacity(kg) |
900 |
Bucket capacity(m3) |
0.5 |
Rated flow(L/min) |
62.5 |
hydraulic tank capacity(L) |
70 |
Weight with bucket(kg) |
3300 |
Height at Maximum Extension (mm) |
3980 |
Hinge Pin Height (mm) |
3080 |
Total Height (mm) |
2140 |
Height to bottom of bucket(mm) |
2913 |
Overall length without bucket ( mm ) |
2640 |
overall length with bucket(mm) |
3450 |
Dumping angle at maximum height(° ) |
40 |
Dumping height(mm) |
2380 |
Dumping reach(mm) |
700 |
Rollback at ground position(° ) |
30 |
Rollback fully raised at max height(° ) |
104 |
Wheelbase(mm) |
991 |
Ground clearance(mm) |
185 |
Angle of departure(°) |
20 |
Front turning radius without bucket(mm) |
1168 |
Front turning radius(mm) |
1958 |
Rear tuning radius(mm) |
1630 |
Rear length (mm) |
1108 |
Track width(mm) |
1450 |
Width (mm) |
1850 |
Bucket width (mm) |
1850 |
Company Feature
• The superior geographical location and traffic convenience lay a solid foundation for AILISHENG Construction Equipment to develop sustainably in the following days.
• Being customer-oriented, our company is devoted to creating a convenient, high-quality, and professional service model. It makes contribution for us to provide consumers with a high level of service.
• Our products are not only supplied to various regions of China, but also exported to different overseas countries and regions. And they are very popular and influential.
• Our company has established a high-quality and high-efficiency production team. With years of production experience, our members can solve problems in the process of production effectively.
As the manufacturer of Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders, AILISHENG Construction Equipment advocates small profits but quick turnover. We are mainly engaged in the bulk purchase and we also have retailing. We have discounts for large-quantity order. Different discounts will be offered on different products. For detailed information, please contact us.
