Durableelectric Skid Loader

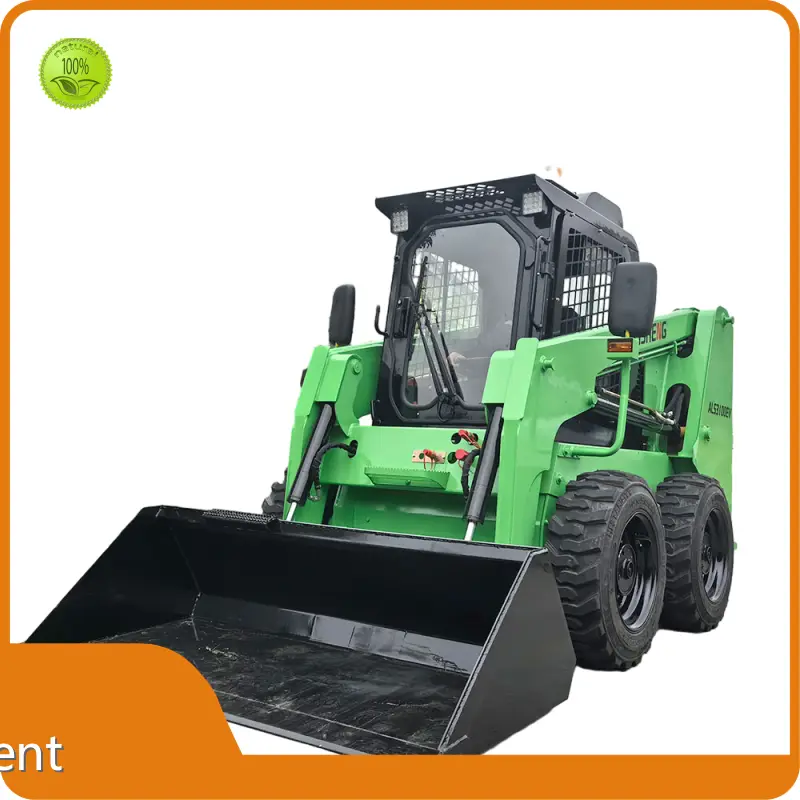

Product details of the electric skid loader
Product Overview
AILISHENG Construction Equipment electric skid loader is fabricated using top grade raw materials under the strict supervision of our quality experts. The product is superior to its competitors in terms of quality, performance, durability, etc. Xiamen Ailisheng Intelligent Equipment Co.,Ltd's customer service is highly recommended by clients.
Product Description
AILISHENG Construction Equipment's electric skid loader is processed based on advanced technology. It has excellent performances in the following details.
Product features
● Four wheel drive, full power. The whole machine has compact structure and flexible operation. The structural parts of the whole machine are optimized, stable and reliable.
● Reliable battery, drive motor and electrical accessory system, advanced AC controller and CANbus data bus technology ensure the durability and long endurance of the equipment.
● The cover of the whole machine can be turned over to facilitate maintenance. The system maintenance items are simple and convenient, saving maintenance time and labor cost. Families can charge by themselves, which is convenient and safe to use.
● The operating device is designed by ergonomics, with comfortable operation and stable driving. The whole machine protection frame provides full safety protection for drivers.
● Pure electric system has the advantages of high efficiency, zero exhaust emission, low noise, environmental protection and energy saving. It is suitable for indoor and outdoor use with lower cost.
● A variety of accessories can be selected to meet the needs of various working conditions such as loading, forking, grass clamping, snow pushing, cleaning, drilling, hoisting and so on.
|
Model |
Fuel loader |
Electric Loader |
Cost comparison of 200 days per year |
||||
|
Country |
Diesel price |
Hourly fuel consumption |
Cost of working 8 hours per day |
Electricity price |
Hourly energy consumption |
Cost of working 8 hours per day |
|
|
Canada |
1.6 C$/L |
5L/h |
64 C$ |
0.06 C$/Kwh |
5Kwh/h |
2.4 C$ |
save 12320 C$ |
|
U.S.A |
0.66 $/L |
26.4 $ |
0.13 $/Kwh |
5.2 $ |
Save 4240 $ |
||
|
China |
6.7 RMB/L |
268 RMB |
0.50RMB/Kwh |
20 RMB |
Save 49600 RMB |
||
Main technical parameter
|
|
ALS3100EV |
|
Electric motor model |
PMSM |
|
Rated power |
5x12kW |
|
Battery Pack |
53kwh |
|
Max. Speed (km/h) |
0-13 |
|
Tire (track) model |
10-16.5 |
|
Loading Capacity(kg) |
1000 |
|
Bucket capacity(m3) |
0.5 |
|
Rated flow(L/min) |
62.5 |
|
hydraulic tank capacity(L) |
70 |
|
Weight with bucket(kg) |
3500 |
|
Dimension |
|
|
Height at Maximum Extension (mm) |
4050 |
|
Hinge Pin Height (mm) |
3080 |
|
Total Height (mm) |
2140 |
|
Height to bottom of bucket(mm) |
2913 |
|
Overall length without bucket ( mm ) |
2640 |
|
overall length with bucket(mm) |
3450 |
|
Dumping angle at maximum height(° ) |
40 |
|
Dumping height(mm) |
2380 |
|
Dumping reach(mm) |
700 |
|
Rollback at ground position(° ) |
30 |
|
Rollback fully raised at max height(° ) |
104 |
|
Wheelbase(mm) |
1050 |
|
Ground clearance(mm) |
185 |
|
Angle of departure(°) |
20 |
|
Front turning radius without bucket(mm) |
1168 |
|
Front turning radius(mm) |
1958 |
|
Rear tuning radius(mm) |
1630 |
|
Rear length (mm) |
1108 |
|
Track width(mm) |
1450 |
|
Width (mm) |
1850 |
|
Bucket width (mm) |
1850 |
