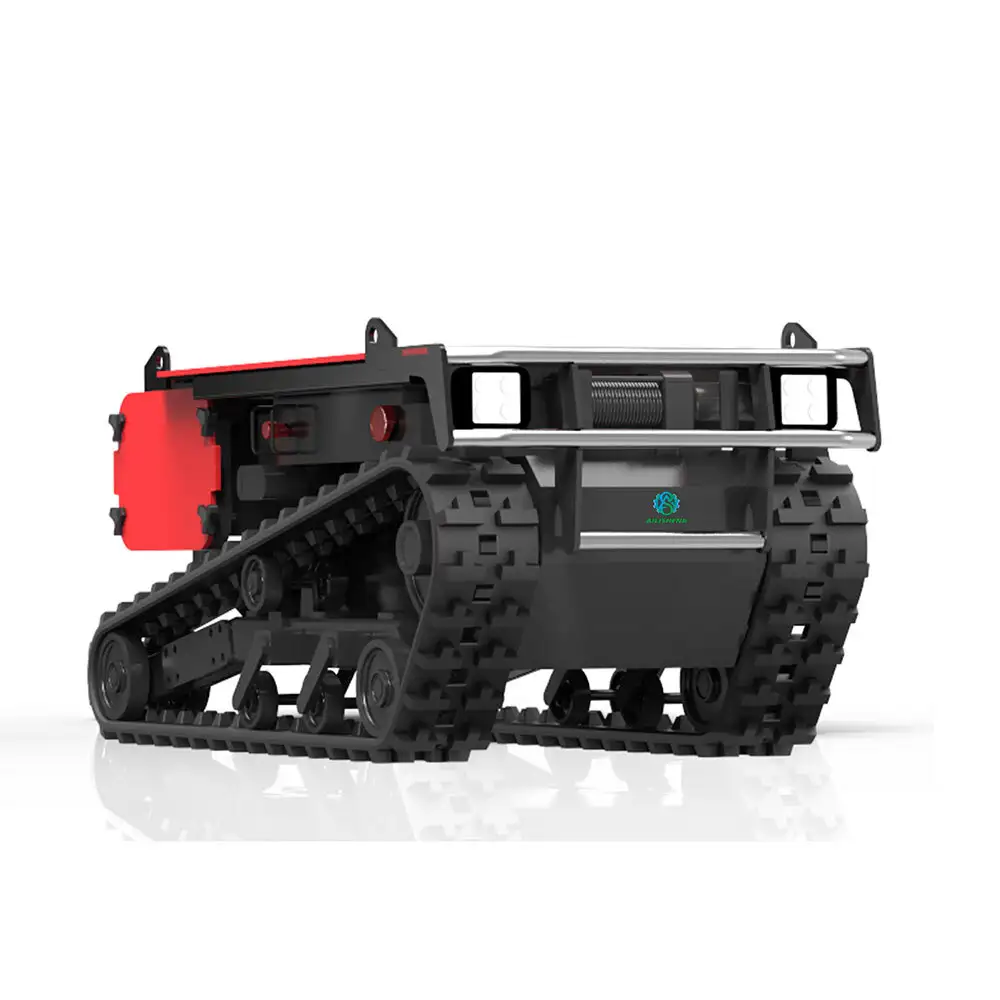

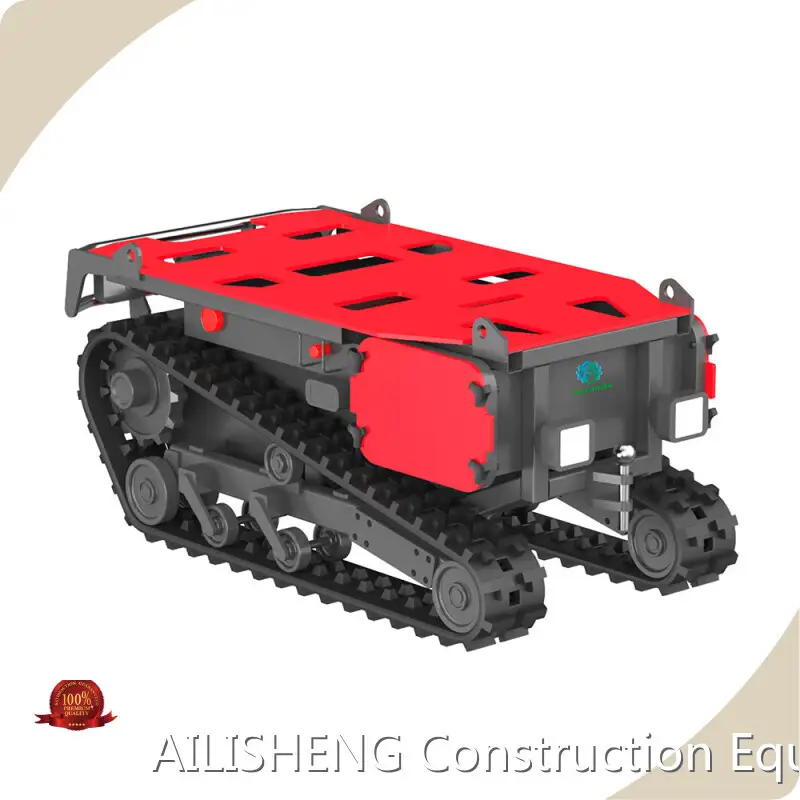

Product details of the rc tank chassis
Product Description
AILISHENG Construction Equipment rc tank chassis has appealing styles, which is designed by professional designers. The high quality and reliability of this product translate into a low total cost of its operational lifespan. By improving the customer service, our rc tank chassis has been more and more popular.
Product features
● High Performance: ALST535 employs advanced wire control technology to achieve precise chassis control, improving driving stability and maneuverability. Its powerful power system and efficient transmission system enable outstanding performance in complex terrain.
● Dedicated Tracks: Equipped with specialized tracks, ALST535 adapts to various harsh terrains such as mud, sand, snow, etc. The track design enhances the vehicle's traction and mobility in complex terrains.
● Intelligent Chassis: ALST535 features intelligent chassis capabilities that allow for secondary development based on user requirements. Users can communicate with the chassis through standard communication protocols to achieve remote control and monitoring. Additionally, the chassis supports multiple sensors and actuators, enabling functions like autonomous driving and obstacle avoidance.
● Scalability: ALST535 offers good scalability, allowing users to add various accessories and equipment such as cameras, radars, lidar, etc., to meet the needs of different application scenarios.
● Easy Maintenance: Designed with modularity, ALST535 facilitates repair and component replacement. The chassis has a simple structure, making it easy to operate and maintain.
Application Scenarios

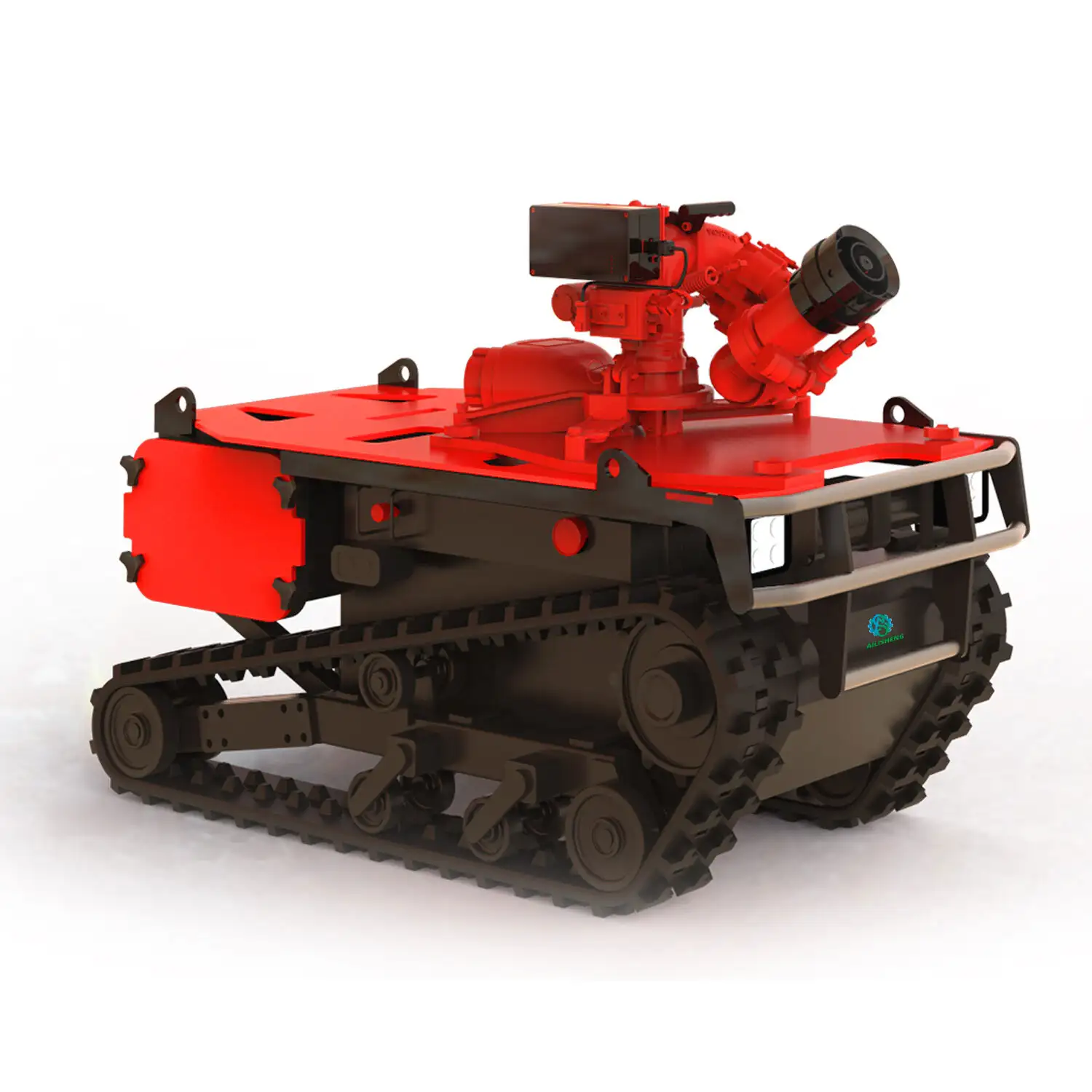

With its extension modules and navigation system, this chassis can be widely used in fire inspection, complex terrain inspection,
CAFS fire extinguishing systems, casualty evacuation rescue, and other scenarios.
Main technical parameter
|
ALST535 |
Overall dimensions |
Overall dimensions |
Operating weight |
500kg |
Rated load |
800kg |
Rated motor power |
6kw |
Max. power |
12kw |
Max. gradeability |
45° |
Rollover angle |
40° |
Over-height of the obstacle |
300mm |
Max. traction |
12500N |
Max. speed |
3.5km/h |
Endurance |
4-6h |
Charge time |
2-5h |
Battery |
Quick replacement lithium battery |
Water hose towing capability |
200m80ater hose (flushing) |
Shoe width |
180mm |
Protect class |
IP66 |
