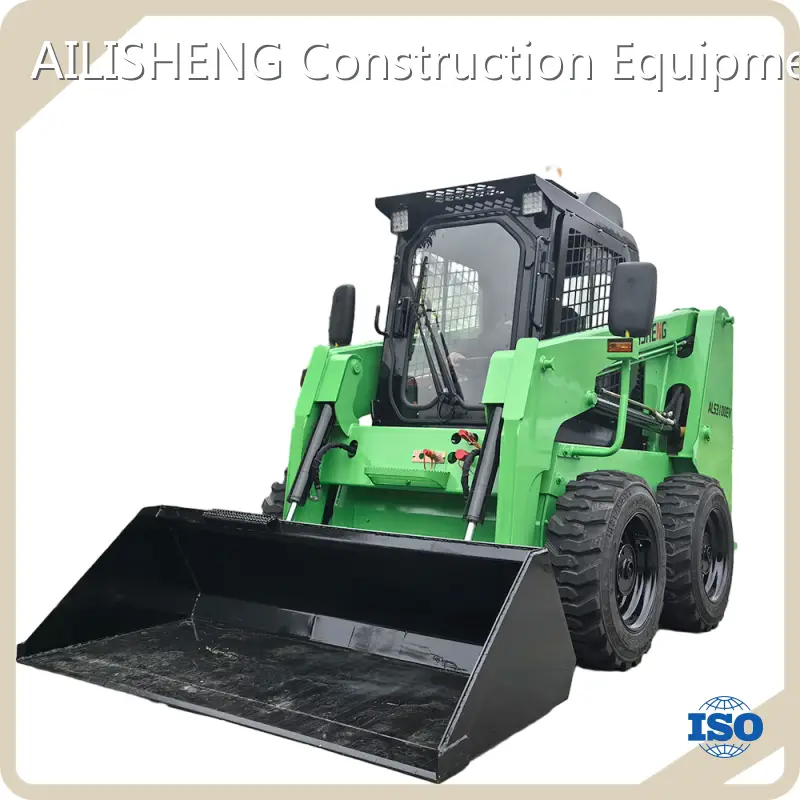

Product details of the electric skid steer loader
Product Information
Drafted by our professional team, the appearance of electric skid steer loader looks very attractive. The quality of this product is far more superior to that of other brands. Thanks to the excellent characteristics, the product is popular among customers and is getting more and more uses in the market.
Product features
● Four wheel drive, full power. The whole machine has compact structure and flexible operation. The structural parts of the whole machine are optimized, stable and reliable.
● Reliable battery, drive motor and electrical accessory system, advanced AC controller and CANbus data bus technology ensure the durability and long endurance of the equipment.
● The cover of the whole machine can be turned over to facilitate maintenance. The system maintenance items are simple and convenient, saving maintenance time and labor cost. Families can charge by themselves, which is convenient and safe to use.
● The operating device is designed by ergonomics, with comfortable operation and stable driving. The whole machine protection frame provides full safety protection for drivers.
● Pure electric system has the advantages of high efficiency, zero exhaust emission, low noise, environmental protection and energy saving. It is suitable for indoor and outdoor use with lower cost.
● A variety of accessories can be selected to meet the needs of various working conditions such as loading, forking, grass clamping, snow pushing, cleaning, drilling, hoisting and so on.
Model |
Fuel loader |
Electric Loader |
Cost comparison of 200 days per year |
||||
Country |
Diesel price |
Hourly fuel consumption |
Cost of working 8 hours per day |
Electricity price |
Hourly energy consumption |
Cost of working 8 hours per day |
|
Canada |
1.6 C$/L |
5L/h |
64 C$ |
0.06 C$/Kwh |
5Kwh/h |
2.4 C$ |
save 12320 C$ |
U.S.A |
0.66 $/L |
26.4 $ |
0.13 $/Kwh |
5.2 $ |
Save 4240 $ |
||
China |
6.7 RMB/L |
268 RMB |
0.50RMB/Kwh |
20 RMB |
Save 49600 RMB |
Main technical parameter
|
ALS3100EV |
Electric motor model |
PMSM |
Rated power |
5x12kW |
Battery Pack |
53kwh |
Max. Speed (km/h) |
0-13 |
Tire (track) model |
10-16.5 |
Loading Capacity(kg) |
1000 |
Bucket capacity(m3) |
0.5 |
Rated flow(L/min) |
62.5 |
hydraulic tank capacity(L) |
70 |
Weight with bucket(kg) |
3500 |
Dimension |
|
Height at Maximum Extension (mm) |
4050 |
Hinge Pin Height (mm) |
3080 |
Total Height (mm) |
2140 |
Height to bottom of bucket(mm) |
2913 |
Overall length without bucket ( mm ) |
2640 |
overall length with bucket(mm) |
3450 |
Dumping angle at maximum height(° ) |
40 |
Dumping height(mm) |
2380 |
Dumping reach(mm) |
700 |
Rollback at ground position(° ) |
30 |
Rollback fully raised at max height(° ) |
104 |
Wheelbase(mm) |
1050 |
Ground clearance(mm) |
185 |
Angle of departure(°) |
20 |
Front turning radius without bucket(mm) |
1168 |
Front turning radius(mm) |
1958 |
Rear tuning radius(mm) |
1630 |
Rear length (mm) |
1108 |
Track width(mm) |
1450 |
Width (mm) |
1850 |
Bucket width (mm) |
1850 |
Company Feature
• Built in AILISHENG Construction Equipment has a history of years and a wealth of industry experience.
• At present, AILISHENG Construction Equipment's products are not only sold in major cities in China but also exported to the Americas, Australia, Europe, and other regions.
• With a focus on talents cultivation, AILISHENG Construction Equipment established an innovative talent team. The team members have innovative thinking and management capabilities.
• Based on the principle of 'customer first', our company is committed to providing quality and perfect service for customers.
• Good location advantages and developed transportation and infrastructure are conducive to long-term development.
Our products are guaranteed to be quality. Customers with needs are welcomed to contact us for purchase.
