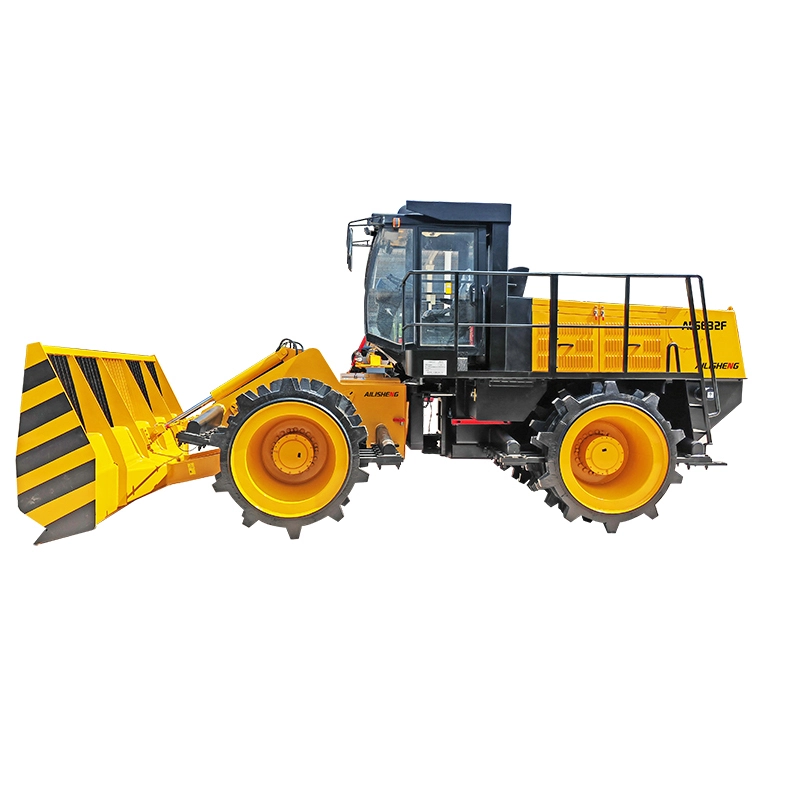

AILISHENG Landfill Side Compactors ALS632F
Excellent Performance
● Equipped with Wechai turbocharged diesel engine or Equipped with the original cummins engine imported from U.S.A,allowing work in high altitude environment.
● Multiple international advanced technologies are used:full hydraulic steering system of SAUER-DANFOSS,central lubrication system of VOGEL.
● The footpads of the wheels are made with manganese alloy,highly effective for compacting and tearing solid waste.
● Equipped with the spraying device which can spray the pesticide to kill the pests and the bacteria.
● The fully-enclosed box-shaped frame structure can effectively prevent the trash from entering into the inside of the machine.
● The machine is equipped with an air-conditioned cab, reinforced by FOPS (falling object protection structure) and ROPS (roll over protection structure). Except steering and throttle control, which are operated by hand levers through hydraulic systems, all other operation can be fulfilled on board via electrical control system. Besides, there is a radio in the cab. All of above makes up a safe and comfortable working condition for operator."
Specifications
|
Description |
Unit |
ALS632F |
|
|
Operating Weight |
kg |
32000 |
|
|
Front Wheel Distributing Weight |
kg |
16000 |
|
|
Real Wheel Distributing Weight |
kg |
16000 |
|
|
Travel Speed |
F/R I |
km/h |
0-4/0-4 |
|
|
F/R II |
km/h |
0-11.5/0-11.5 |
|
|
F/R III |
km/h |
- |
|
Min. Turning Radius(Bucket Outer) |
mm |
9000 |
|
|
Theory Max.Gradeability |
% |
100 |
|
|
Static Linear Load（F/R） |
N/cm |
1269/1532 |
|
|
Ground Clearance |
mm |
610 |
|
|
Max. Thrust |
KN |
320 |
|
|
Wheelbase |
mm |
3500 |
|
|
Blade Adjustment Range |
Higher ground |
mm |
1200 |
|
|
Under ground |
mm |
200 |
|
Drive Type |
|
Hydraulic transmission |
|
|
Brake Type |
|
Hydrostati,Multi-disc,Mechanical |
|
|
Frame Structure |
|
Oscillating articulation |
|
|
Turning Type |
|
Hydraulic |
|
|
Turning Angle |
° |
±40 |
|
|
Swing Angle |
° |
±10 |
|
|
Engine |
Model |
|
6MTA11-C350（Tier II） |
|
|
Rated power |
kW |
252 |
|
|
Rated speed |
rpm |
2100 |
|
|
Max. Torque |
N.m |
1559 |
|
|
Rated power ratio fuel consumption |
g/KW.h |
≦206 |
|
|
Type |
|
|
|
Dimension of |
Front wheel |
mm |
1620×1350 |
|
|
Rear wheel |
mm |
1620×1150 |
|
Landfill Pushing Plate Size(W×H) |
mm |
3800×2000 |
|
|
Working Efficiency |
t/h |
≥100 |
|
|
Compacting Density |
t/m³ |
≥1.0 |
|
|
Overall Dimension(L×W×H) |
mm |
8090×3800×3755 |
|
|
Fuel Tank Capacity |
L |
400 |
|
|
Hydraulic Tank Capacity |
L |
305 |
|
|
Engine Oil |
L |
35 |
|
|
Torque converter |
L |
|
|
|
Coolant |
L |
40 |
|
