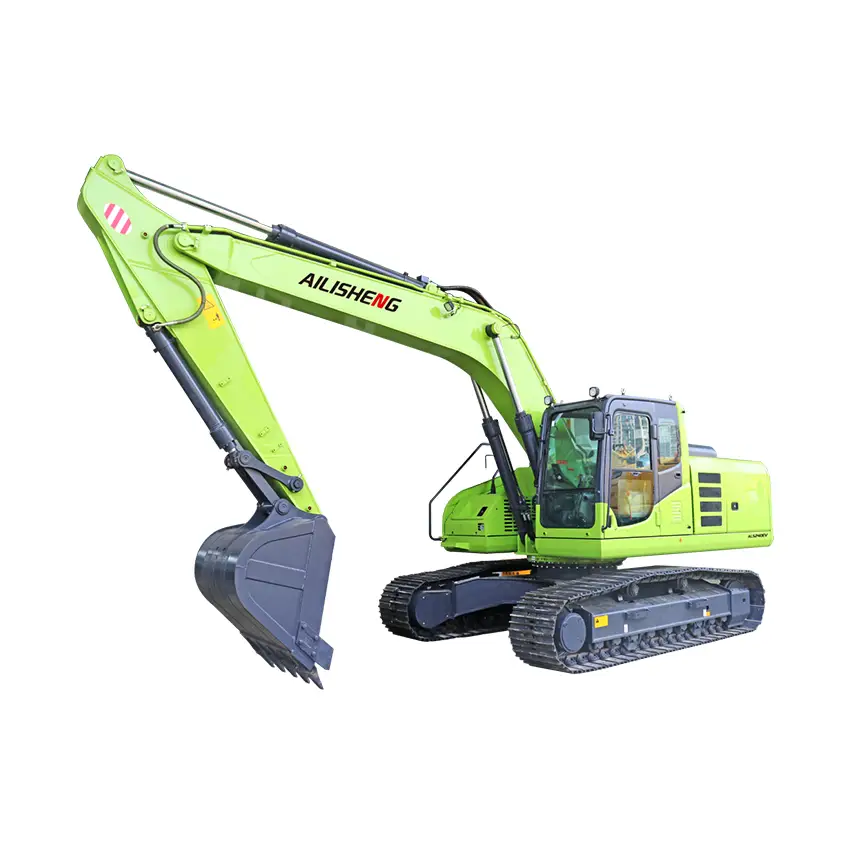

AILISHENG Electric Excavators ALS240EV
Product features
● AILISHENG ALS240EV all electric excavators can expand your work field and time range to a greater extent, showing the working performance no less than that of the same traditional internal combustion engine powered models.
● ALS240EV unique features of environmental friendliness and lower cost, as well as its traditional characteristics such as ultra compactness, durability and versatility, make it an ideal machine for use in places that are sensitive to noise and waste gas and have very narrow and compact workplaces.
● The lithium iron phosphate power battery used in this product does not need maintenance, the power cost is far lower than the fuel cost, which greatly reduces the noise, vibration, pollution-free, high efficiency, high stability and high quality.
● ALS240EV electric excavators adopts electric professional design chassis, frame, boom and hydraulic system, with excellent performance. It can adapt to a large number of auxiliary working devices, such as bucket, crushing, clamp, drilling, etc., with flexible and convenient switching.
● Optional configurations also include retractable chassis, boom side sway, folding anti roll frame, four column ceiling, fast charging, photovoltaic charging, remote control device, etc.
Main technical parameter
|
NO. |
ITEM | ALS240EV |
|
1 |
Electric elements |
|
|
2 |
Battery Capacity（KWh) |
422.8 |
|
3 |
Rated Voltage (V) |
618.24 |
|
4 |
Battery Type |
CALT Lithium Battery |
|
5 |
Electric Motor Model |
PMSM WR510 |
|
6 |
charging current (A) |
400 |
|
7 |
charging pile power optional |
180KW-240KW |
|
8 |
Endurance time (h) |
5—8 |
|
9 |
Rated Power (KW /r/Min) |
140/1900 |
|
10 |
main motor power (KW) |
85 |
|
11 |
charging time (20%-100%) |
1 hr (240KW charing pile) |
|
12 |
Traveling Speed (km/h) |
5.69/3.86 |
|
13 |
swing speed (r/min) |
12.82 |
|
14 |
gradeabliity(°) |
35 |
|
15 |
Bucket digging force ISO (KN) |
159 |
|
16 |
Boom Arm digging force ISO (KN) |
115 |
|
17 |
Average Ground Pressure (Kpa) |
48.6 |
|
18 |
Traction (kN) |
219 |
|
19 |
Hydraulic Pump Model |
AP4VO140TVN90WI |
|
20 |
Max rated flow (l/min) |
260*2 |
|
21 |
Working Pressure (Mpa) |
34.3 |
|
22 |
Hydraulic Tank Capacity (L) |
246 |
|
23 |
A- Overall Length (mm) |
9930 |
|
24 |
B-Overall Width (mm) |
2980 |
|
25 |
C- Overall Height (Boom Arm Top) (mm) |
3190 |
|
26 |
D-Overall Height (Cabin) (mm) |
3120 |
|
27 |
E-counterweight ground clearance (mm) |
1065 |
|
28 |
F-Min Ground Clearance (mm) |
442 |
|
29 |
G-Swing Radius (mm) |
3000 |
|
30 |
H-crawler bearing length (mm) |
3640 |
|
31 |
J-overall track length (mm) |
4450 |
|
32 |
K-Track Gauge (mm) |
2380 |
|
33 |
L-Track width (mm) |
2980 |
|
34 |
M-Shoe width (mm) |
600 |
|
35 |
O-Max digging height (mm) |
9310 |
|
36 |
P-Max dumping height (mm) |
6438 |
|
37 |
Q-Max digging depth (mm) |
6875 |
|
38 |
R-Max vertical digging depth (mm) |
5860 |
|
39 |
S-max depth of excavation at 2.5m level |
6680 |
|
40 |
T-Max excavation distance (mm) |
10170 |
|
41 |
U-Max excavation distance at ground level (mm) |
9990 |
|
42 |
V-Min swing radius (mm) |
3975 |
|
43 |
W-Min. swing radius at Max height (mm) |
7775 |
|
44 |
Y-track teeth thickness (mmO |
26 |
|
45 |
Z-counterweight height (mm) |
2120 |
|
46 |
A1-transportation length (mm) |
5165 |
|
47 |
Bucket Capacity (m3) |
1.17 |
|
48 |
Operating weight (T) |
23.5 |
