Wheel Loaders Manufacturer by AILISHENG Construction Equipment
Product details of the wheel loaders manufacturer
Quick Overview
The needs of designing latest wheel loaders manufacturer is the fostering of a vibrant and dynamic AILISHENG Construction Equipment. A strict quality control system ensures that product quality meets international standards. Xiamen Ailisheng Intelligent Equipment Co.,Ltd has proficiency in quality control systems.
Product Description
With a focus on product quality, AILISHENG Construction Equipment pursues perfection in every detail.

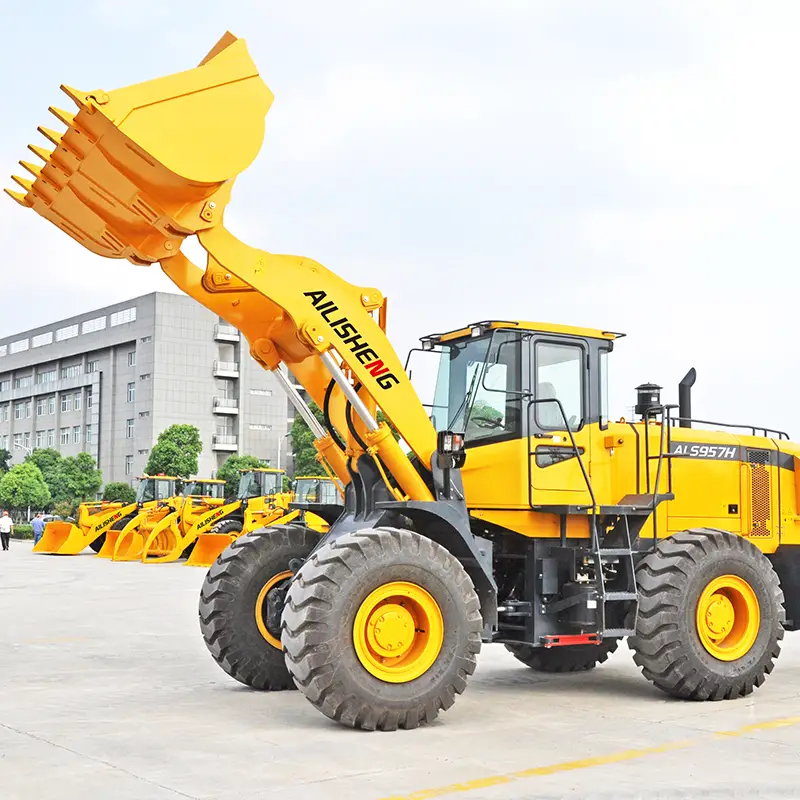

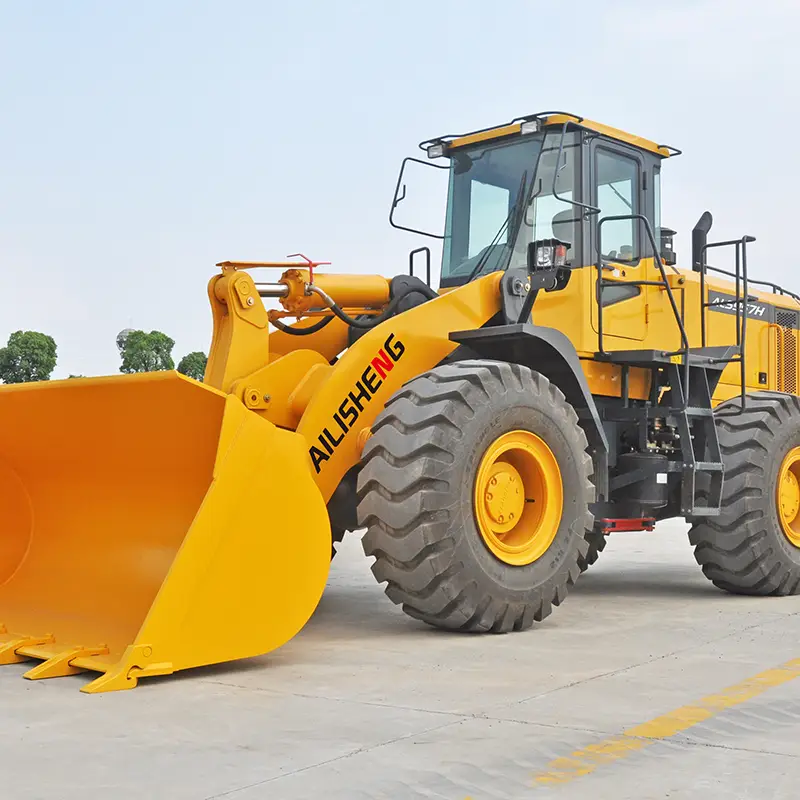

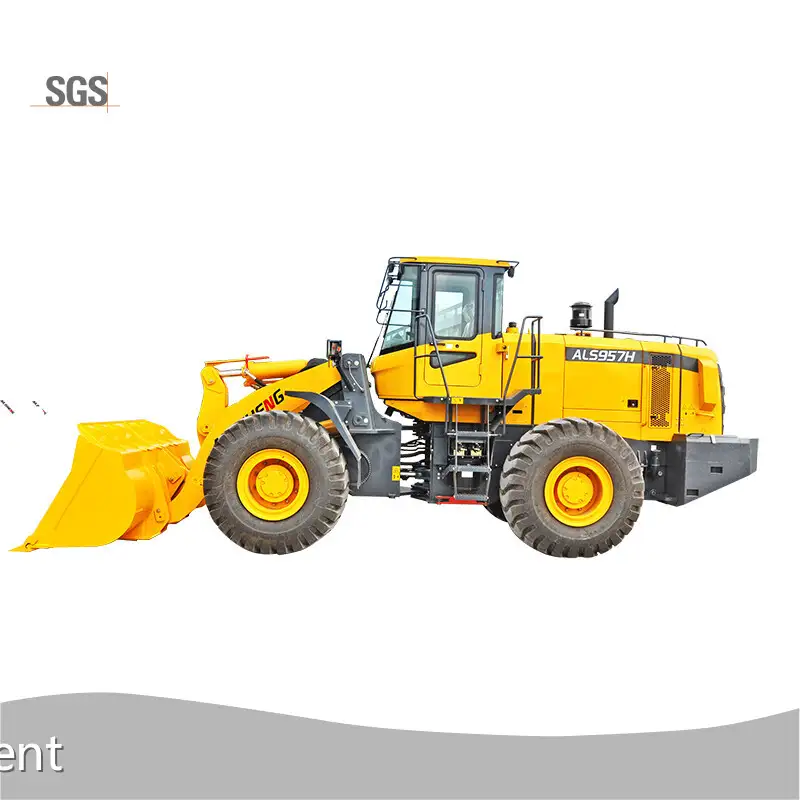

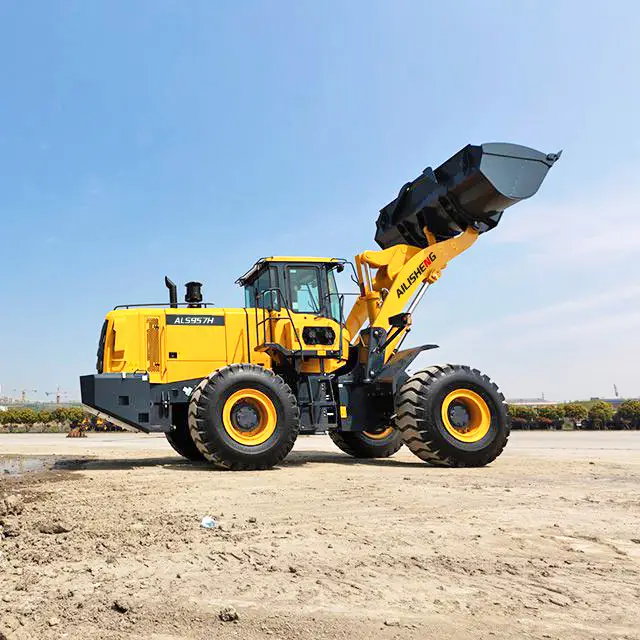

ALS957H Specification
|
||||
|
1 |
Length(with bucket on ground) |
8390(mm) |
||
|
2 |
Width(to outside of wheels) |
2800(mm) |
||
|
3 |
Bucket width |
2946(mm) |
||
|
4 |
Height(To the top of the cab) |
3450(mm) |
||
|
5 |
Wheel base |
3300(mm) |
||
|
6 |
Min. ground clearance |
450(mm) |
||
|
||||
|
1 |
Rated load |
5000(Kg) |
||
|
2 |
Operating weight |
17300KG |
||
|
3 |
Rated bucket capacity |
3.1(m3)，Option2.2-4.5 (m3) |
||
|
4 |
Max. dump clearance |
3136(mm) |
||
|
5 |
Dump reach |
1121(mm) |
||
|
6 |
Min. turning radius(wheel) |
6192(mm) |
||
|
||||
|
1 |
Model |
Cummins 6LTAA 9.3 |
ShangChai SC11CB220G2B1 |
|
|
2 |
Type |
Direct injection. |
||
|
3 |
Rated output |
162 (kW) |
||
|
5 |
Total exhaust of cylinder |
9.3 (L) |
10.5（L） |
|
|
9 |
Rated speed |
2200(r/min) |
||
|
10 |
Max. Torque |
940(N.M)@1400 rpm |
843(N.M)@1400 rpm |
|
|
||||
|
1 |
Model |
CHANGLIN 957H.4C |
||
|
2 |
Type |
Power shift |
||
|
3 |
Gear shift position |
3 F/3 R |
||
|
4 |
Speed（F/R） |
6.8/8，10.8/14.3，32/34.1 |
||
|
5 |
Max. drawing force |
160kN |
||
|
6 |
Size of tire |
23.5-25-16PR |
||
|
||||
|
1 |
System pressure |
18MPa |
||
|
||||
|
1 |
System pressure |
16MPa |
||
|
||||
|
1 |
Type of traveling brake |
Caliper disc brake |
||
|
2 |
Air pressure |
6-7.5(kgf/cm2) |
||
|
3 |
Type of parking brake |
Caliper disc brake |
||
|
||||
|
1 |
Fuel(diesel) |
280(L) |
||
|
2 |
Oil for hydraulic system |
230（L) |
||
Performance Features
The hydraulic system adopts dual pump parallel flow, innovatively introduces a split cooling system to increase cooling flow and reduce the hydraulic oil temperature below 85℃；
T series appearance protective cover has a large door design, and the front air inlet of the radiator and the rear air outlet can be opened. The new cab upgrade has strong sealing, and the overall noise of the machine is much lower than the national standard;
The whole vehicle relay and fuse box are centralized, and the working device's grease nozzle is led to the side of the frame, and the pressure measuring port is arranged in the front of the auxiliary box and other humanized designs, making maintenance and repair more convenient.
Company Information
Xiamen Ailisheng Intelligent Equipment Co.,Ltd is a company with greater strength in wheel loaders manufacturer industry. We have a high-quality workforce. Each of them has a high level of motivation and professionalism, which marks our differentiation in the wheel loaders manufacturer industry. Focused on social responsibility, our company has developed and established a comprehensive set of sustainable business initiatives that improve our approach to operating the business.
If you have any questions, feel free to consult us.
