Company Advantages
· AILISHENG Construction Equipment telescopic forklift for sale follows the normative production conditions.
· The product outperforms others in terms of durability, performance.
· With the service-type society coming, AILISHENG Construction Equipment is paying a lot of attention to the service quality.

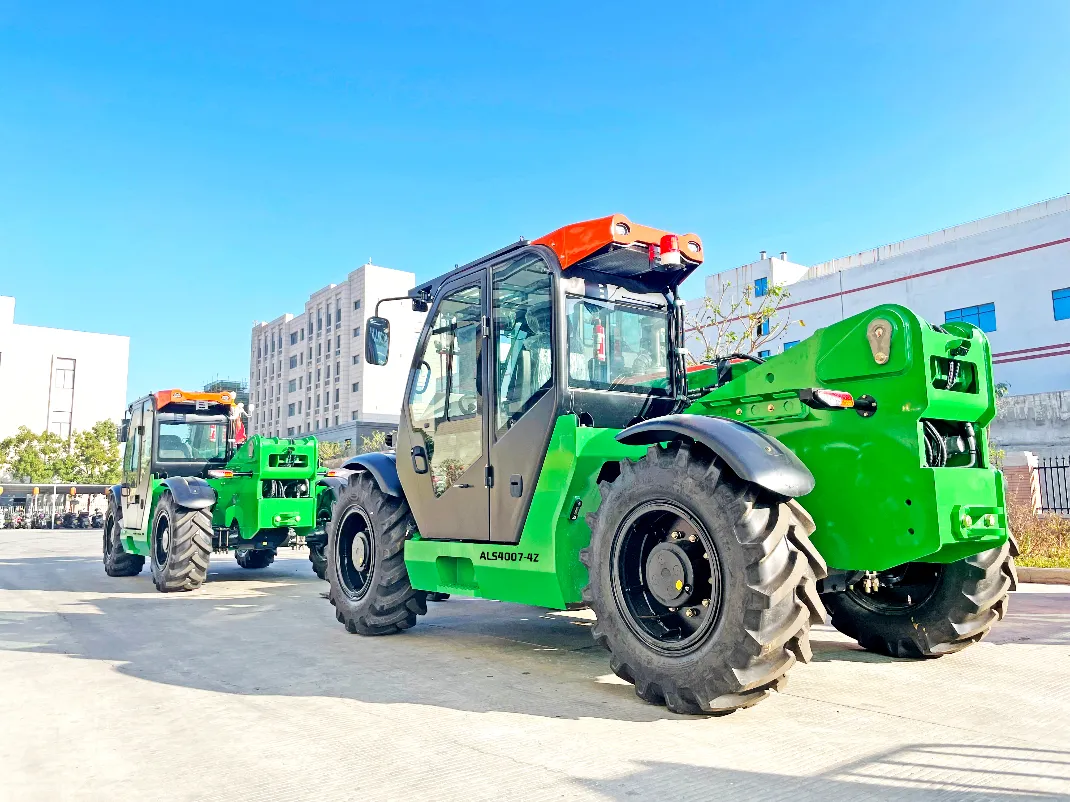

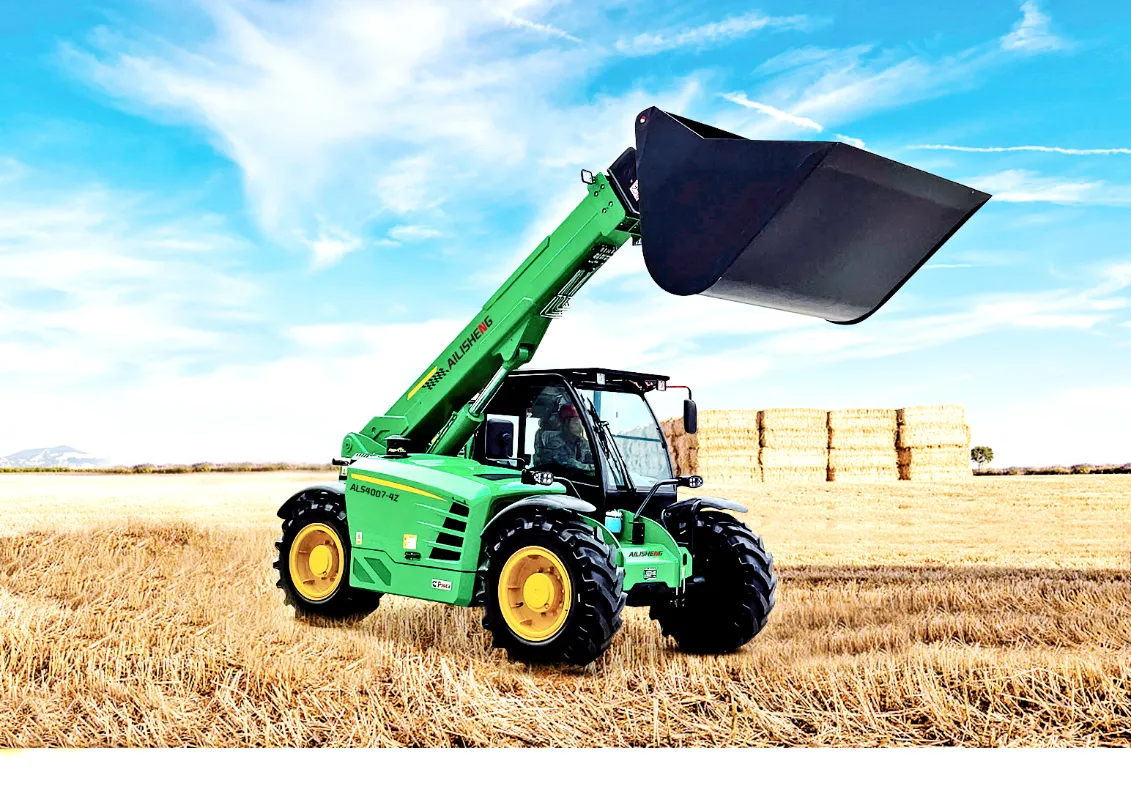

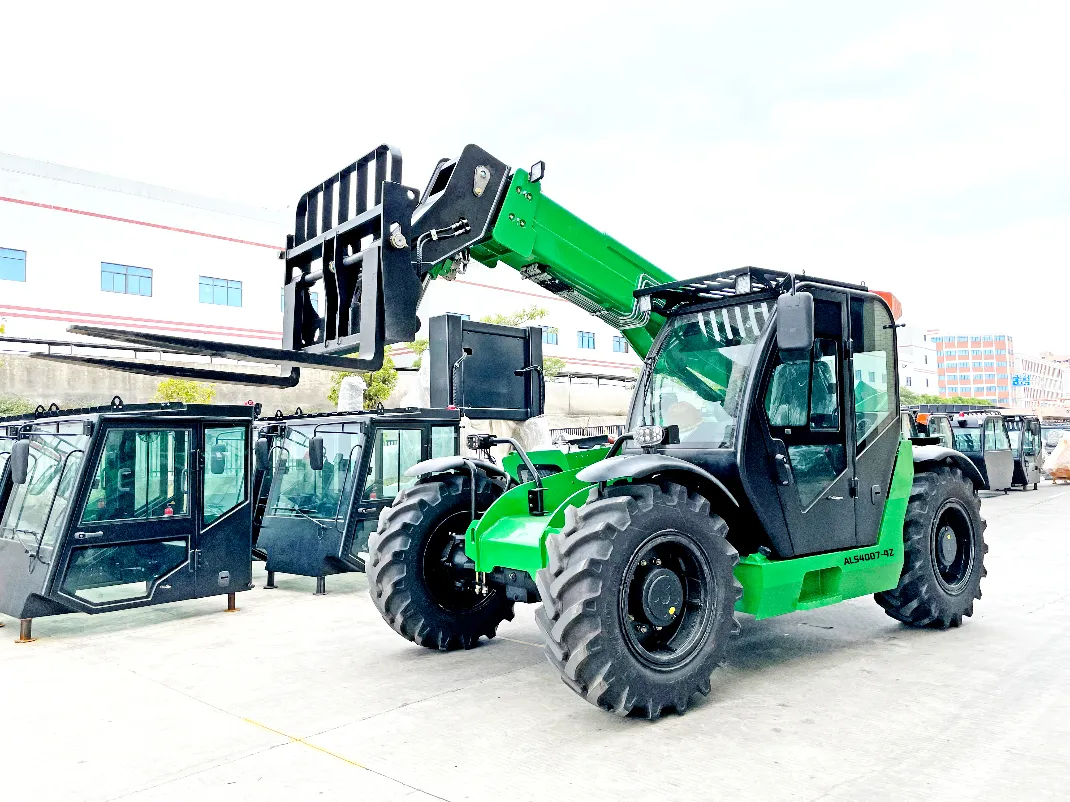

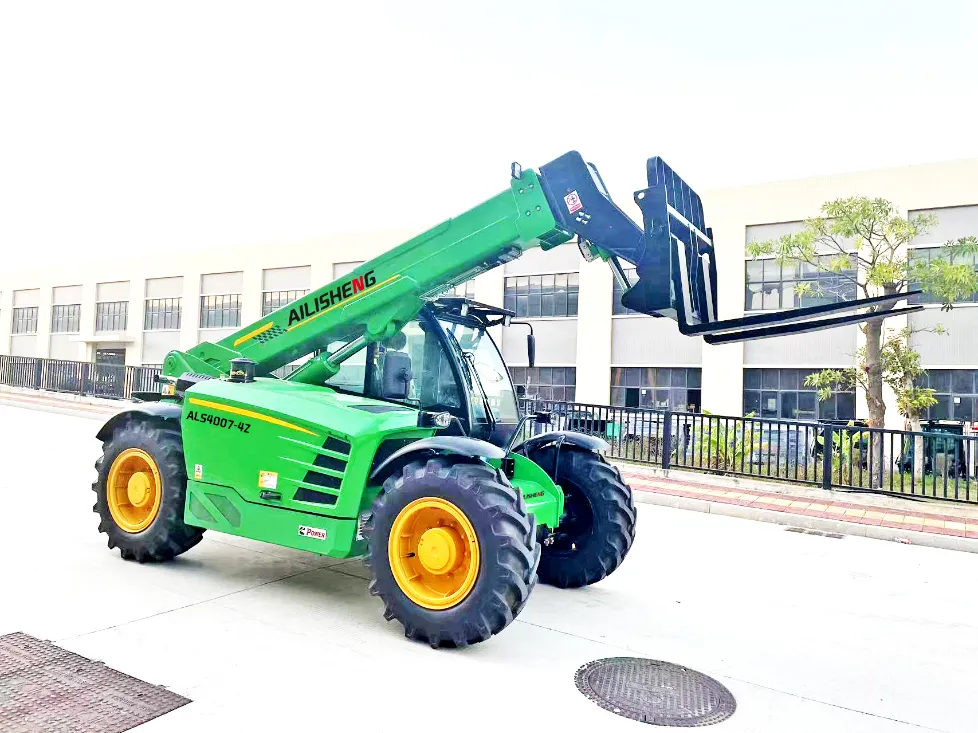

Ailisheng multi-purpose off-road telescopic forklifts ALS4007-4Z is widely used in construction, agriculture, mining, port logistics and other industries.
Items | Unit | Deviation allowed | ALS4007-4Z | ||
Basic parameter | Rated load | kg | - | 4000 | |
Load center | mm | - | 500 | ||
Load capacity @ max. Forward reach | kg | - | 1800 | ||
Max. Lifting height | m | 1.50% | 7050 | ||
Max. Horizontal reach(without fork) | m | 1.50% | 3220 | ||
Min. Ground clearance | mm | 1.50% | 380 | ||
Min. Turning radius outer tire center | mm | 1.50% | 4850 | ||
Angle | Boom frame upward angle | ° | ±1 | 63 | |
Boom frame downward angle | ° | ±1 | -3 | ||
Operating weight | kg | 5% | 8500 | ||
Overall dimension | Length (without fork) | mm | 2% | 5020 | |
Width | mm | 2% | 2250 | ||
Height | mm | 2% | 2340 | ||
Wheelbase | mm | 2% | 2900 | ||
Front wheel tread | mm | 2% | 1790 | ||
Rear wheel tread | mm | 2% | 1790 | ||
Fork size | (L*W*T) | mm | - | 1200x50x150 | |
Engine | Cummins | - | QSB3.9-C80 | ||
Rated power | kw/rpm | - | 60/2200 | ||
Transmission type | - | Hydraulic static transmission | |||
Driving system | Max. Travelling speed (unloaded) | km/h | 10% | 25 | |
Gradeability | % | - | 25% | ||
Tire | Front 2 pcs | - | - | 16/70-24-24PR | |
Rear 2pcs | - | - | 16/70-24-24PR | ||
Capacity | Hydraulic oil tank | L | 160 | ||
Fuel tank | L | 120 | |||
Note: the above data are subject to change without prior notice. |
Product features
Equipping with Cummins China National III Standard turbocharged diesel engine and high-pressure common rail fuel system, which has strong power, energy saving and environmental protection, and meets the require ments of efficient operation.
The power system is equipped with an air-to-air cooling radiator to reduce the intake temperature of the engine, increase the intake air volume, and increase the power of the engine.
Multifunctional LCD monitor, comprehensively monitor the working status of the engine, such as speed, oil pressure, oil temperature, water temperature, liquid level, etc.
Equipped with a HD reversing camera system, more handy in complex operating environments.
The long wheelbase and box-shaped frame can provide good rigidity and strength to ensure the high reliability of the forklift truck chassis.
The product equips with closed static pressure, four-wheel drive and four-wheel steering walking system; it can realize four-wheel steering, crab walk and other moving modes.
The Axles are equipped with hydraulic wet brakes, which can dissipate heat and break safer and faster than the traditional air breaks.
Equipped with off-road herringbone pattern tires, and the front and rear axles can swing around the center, which has good traction performance, passing performance and off-road performance.
Swingable chassis ensures the smoothness and security during complex operations.
The shape of the whole machine is grand, elegant and smooth; the luxurious wide-view cab with sunroof is convenient for the driver to observe around, with low noise and good sealing.
Adjustable steering wheel, aviation OPS seat, ergonomics, more comfortable sitting.
The operating device adopts a large-section, high-strength box-shaped structure, and the precise control of lifting, telescopic, and tilting movements is realized through the pilot. Two or more box-shaped telescopic working arms are selected according to different lifting heights.
The static hydrostatic pilot control system is adopted, and equipped with hydraulic Lifting balance feature. It has good automatic adaptability and maneuverability; the closed plunger pump, electronically controlled multi-way valve, hydraulic motor, hydraulic cylinder, and electronically controlled pilot control valve all adopt well-known brands.
Equipped with Cascade high-strength forks, which are stronger and more wear-resistant, and can double the service life.
Equipped with high-quality electrical components, maintenance-free batteries, and wires are made of anti-flame retardant materials, which are reliable and durable; the cab is equipped with fans, radios, heating and cooling air conditioners, reversing buzzers, and reversing.
Standard configuration comes with quick swap attachment lock up, attachments can be replaced quickly accordingly.
Company Features
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd, engaging in the development and manufacture of telescopic forklift for sale for many years, is gradually taking the lead in this industry.
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd has established a more complete quality assurance system and product testing standards. Xiamen Ailisheng Intelligent Equipment Co.,Ltd has a perfect quality assurance system.
· Quality inspectors in our factory will check materials in accordance with the standards.
Application of the Product
AILISHENG Construction Equipment's telescopic forklift for sale can be used in different industries to meet the needs of customers.
AILISHENG Construction Equipment has an excellent team consisting of R&D, production, operation and management. According to actual needs of different customers, we could provide customers with practical solutions.
