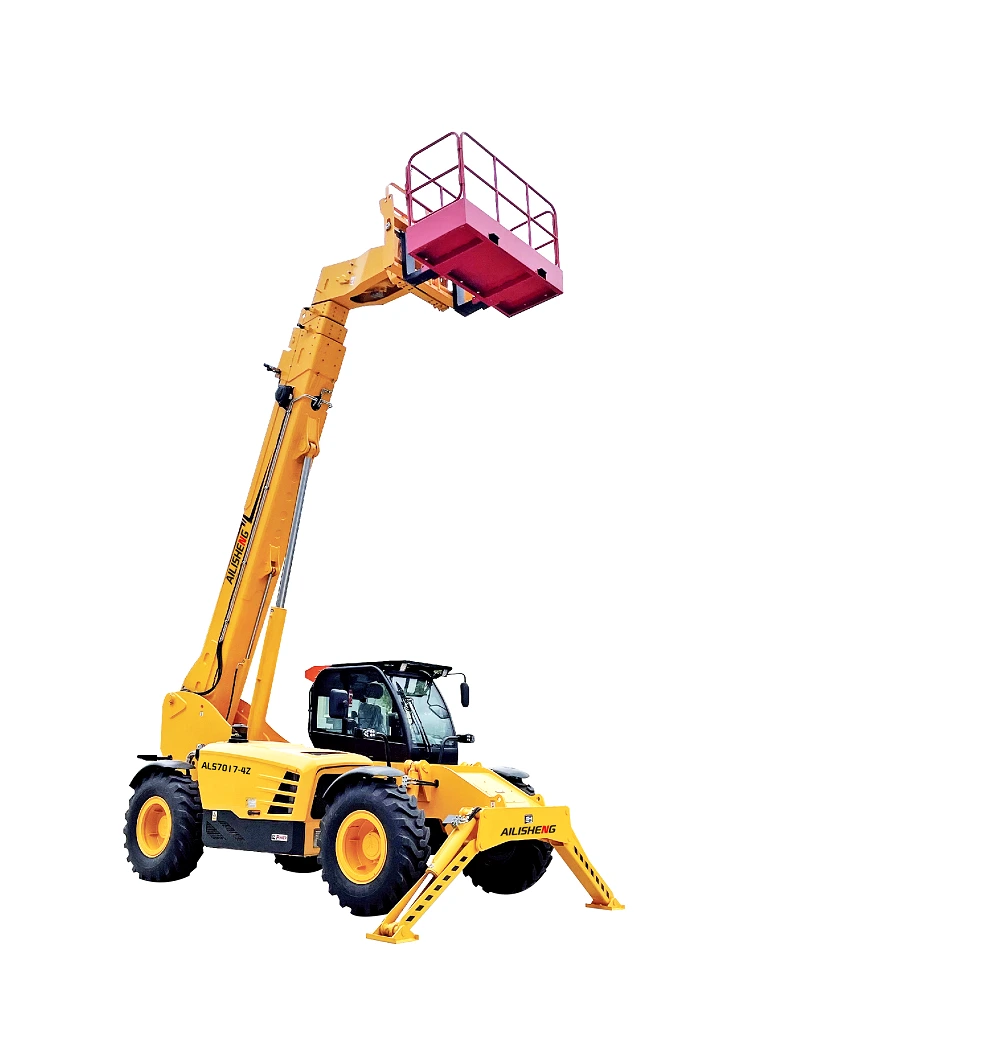

AILISEHNG 7-Ton Telescopic Forklift ALS7017-4Z
Ailisheng ALS7017-4Z multi-purpose off-road telescopic forklift is widely used in various industries such as construction, agriculture, mining, port logistics, municipal fire protection, etc.
| Items | Unit | Deviation allowed | ALS7017-4Z | ||
| Basic parameter | Rated load | kg | - | 7000 | |
| Load center | mm | - | 500 | ||
| Load capacity @ max. Forward reach | kg | - | 800 | ||
| Max. Lifting height | mm | 1.50% | 16510（with outrigger） | ||
| mm | 1.50% | 16625（without outrigger） | |||
| Max. Horizontal reach(without fork) | mm | 1.50% | 11800 | ||
| Min. Ground clearance | mm | 1.50% | 425 | ||
| Min. Turning radius outer tire center | mm | 1.50% | 5757 | ||
| Angle | Boom frame upward angle | ° | ±1 | 70 | |
| Boom frame downward angle | ° | ±1 | -2 | ||
| Operating weight | kg | 5% | 17000 | ||
| Overall dimension | Length (without fork) | mm | 2% | 6720 | |
| Width | mm | 2% | 2500 | ||
| Height | mm | 2% | 2710 | ||
| Wheelbase | mm | 2% | 3370 | ||
| Front wheel tread | mm | 2% | 2125 | ||
| Rear wheel tread | mm | 2% | 2125 | ||
| Fork size | (L*W*T) | mm | - | 1220x150x65 | |
| Engine | Cummins | - | QSB4.5-C160-30 | ||
| Rated power | kw/rpm | - | 119/2200 | ||
| Transmission type | - | Hydraulic static transmission | |||
| Driving system | Max. Travelling speed (unloaded) | km/h | 10% | 25 | |
| Gradeability | % | - | 25% | ||
| Tire | Front 2 pcs | - | - | 14.00-24-28PR | |
| Rear 2pcs | - | - | 14.00-24-28PR | ||
| Capacity | Hydraulic oil tank | L | 320 | ||
| Fuel tank | L | 215 | |||
| Note: the above data are subject to change without prior notice. | |||||
Product features
Equipping with Cummins China National III Standard turbocharged diesel engine and high-pressure common rail fuel system, which has strong power, energy saving and environmental protection, and meets the require ments of efficient operation.
The power system is equipped with an air-to-air cooling radiator to reduce the intake temperature of the engine, increase the intake air volume, and increase the power of the engine.
Multifunctional LCD monitor, comprehensively monitor the working status of the engine, such as speed, oil pressure, oil temperature, water temperature, liquid level, etc.
Equipped with a HD reversing camera system, more handy in complex operating environments.
The long wheelbase and box-shaped frame can provide good rigidity and strength to ensure the high reliability of the forklift truck chassis.
The product equips with closed static pressure, four-wheel drive and four-wheel steering walking system; it can realize four-wheel steering, crab walk and other moving modes.
The Axles are equipped with hydraulic wet brakes, which can dissipate heat and break safer and faster than the traditional air breaks.
Equipped with off-road herringbone pattern tires, and the front and rear axles can swing around the center, which has good traction performance, passing performance and off-road performance.
Swingable chassis ensures the smoothness and security during complex operations.
The shape of the whole machine is grand, elegant and smooth; the luxurious wide-view cab with sunroof is convenient for the driver to observe around, with low noise and good sealing.
Adjustable steering wheel, aviation OPS seat, ergonomics, more comfortable sitting.
The operating device adopts a large-section, high-strength box-shaped structure, and the precise control of lifting, telescopic, and tilting movements is realized through the pilot. Two or more box-shaped telescopic working arms are selected according to different lifting heights.
The static hydrostatic pilot control system is adopted, and equipped with hydraulic Lifting balance feature. It has good automatic adaptability and maneuverability; the closed plunger pump, electronically controlled multi-way valve, hydraulic motor, hydraulic cylinder, and electronically controlled pilot control valve all adopt well-known brands.
Equipped with Cascade high-strength forks, which are stronger and more wear-resistant, and can double the service life.
Equipped with high-quality electrical components, maintenance-free batteries, and wires are made of anti-flame retardant materials, which are reliable and durable; the cab is equipped with fans, radios, heating and cooling air conditioners, reversing buzzers, and reversing.
Standard configuration comes with quick swap attachment lock up, attachments can be replaced quickly accordingly.
