Qualityelectric Construction Vehicles
Product details of the electric construction vehicles
Quick Detail
The production of AILISHENG Construction Equipment electric construction vehicles follows the international standards and green norms. Under the high demand on testing procedure, the product is guaranteed to be zero defect. AILISHENG Construction Equipment will periodically send customer satisfaction questionnaires to all customers who use its products.
Product Introduction
With a focus on product quality, AILISHENG Construction Equipment strives for quality excellence in the production of electric construction vehicles.
Product features

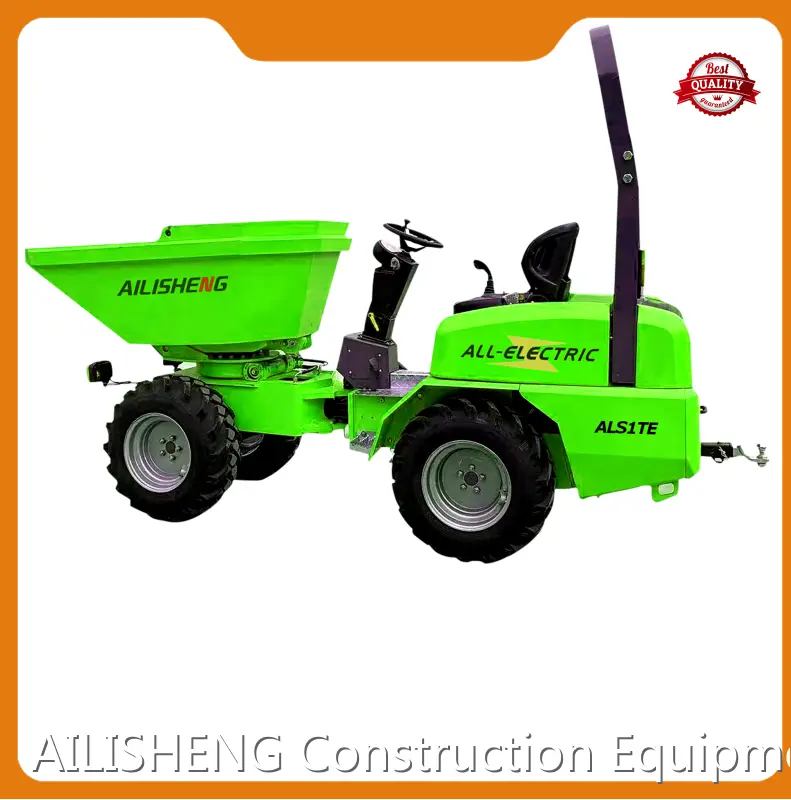

The Ailisheng electric dumper ALS1TE is a versatile and efficient piece of equipment designed for various applications in construction, landscaping, and agriculture. Here are some key features and specifications of the ALS1TE:
1. Electric Power: The ALS1TE is powered by electric motors, making it environmentally friendly and allowing for quiet operation.
2. Load Capacity: The ALS1TE has a rated operating capacity of approximately 1000 kilograms. It is equipped with a powerful lifting system that allows it to handle heavy loads effectively.
3. Operating Efficiency: With electric power, the dumper offers instant torque and precise control, which improves productivity and efficiency. It can deliver consistent performance throughout the operation without the need for constant refueling.
4. Battery System: The ALS1TE comes with a robust battery system designed for extended operation. The battery capacity depends on the specific model, but it is typically equipped with a high-capacity lithium-ion battery pack to provide sufficient power.
5. Safety and Comfort: The dumper includes safety features like seatbelt, backup cameras(optional), and ergonomic controls. These features ensure the operator's safety and provide a comfortable working environment.
6. Maintenance: Electric dumper generally have lower maintenance requirements compared to their diesel counterparts. However, it is essential to follow the Ailisheng's maintenance guidelines to ensure optimal performance and longevity.
It's important to note that the specifications and features may vary depending on the specific model and Ailisheng. It's always recommended to refer to the official documentation or contact Ailisheng for the most accurate and up-to-date information about the Ailisheng electric dumper ALS1TE.
Main technical parameter
|
|
|
ALS1TE |
|
A |
Overall Length:mm |
3320 |
|
B |
Wheel Base:mm |
1530 |
|
C |
Minimum Ground Clearance：mm |
227 |
|
D |
Dump Height：mm |
935 |
|
E |
Shaft Height：mm |
1033 |
|
F |
Front Edge Height of the Bucket：mm |
1217 |
|
G |
Maximum Dump Height：mm |
2327 |
|
H |
Dump Angle |
72° |
|
I |
Overall Height：mm |
2400 |
|
J |
Overall Wheel Width：mm |
1160 |
|
K |
Skip Width:mm |
1150 |
|
L |
Tipping Bucket Length：mm |
1410 |
|
M |
Safe Dumping Distance Front：mm |
367 |
|
N |
Safe Dumping Distance Lateral：mm |
335 |
|
|
Maximum Transport Weight： |
1T |
|
|
Cross Weight： |
1.68T |
|
|
Hydraulic Tank Capacity：L |
30 |
|
|
Maximum Travel Speed：KM/h |
15 |
|
|
Gradeability： |
30% |
|
|
Max Turning Angle of the Bucket |
±90° |
Technical specifications
Operating data | ALS1TE |
Payload | 1000kg |
Shipping weight | 1000kg |
Skip capacity level | 650 |
Skip capacity heaped | 800 |
Tires | 10.0/75-15.3 |
Tire width mm | 264 |
L x W x H mm | 3320×1150×2150 |
BucketCapacity | 0.6m³ |
Battery |
|
Brand | EIKTO |
Rate power | 15.6KWh |
