Professional Backhoe Loader Price Price List

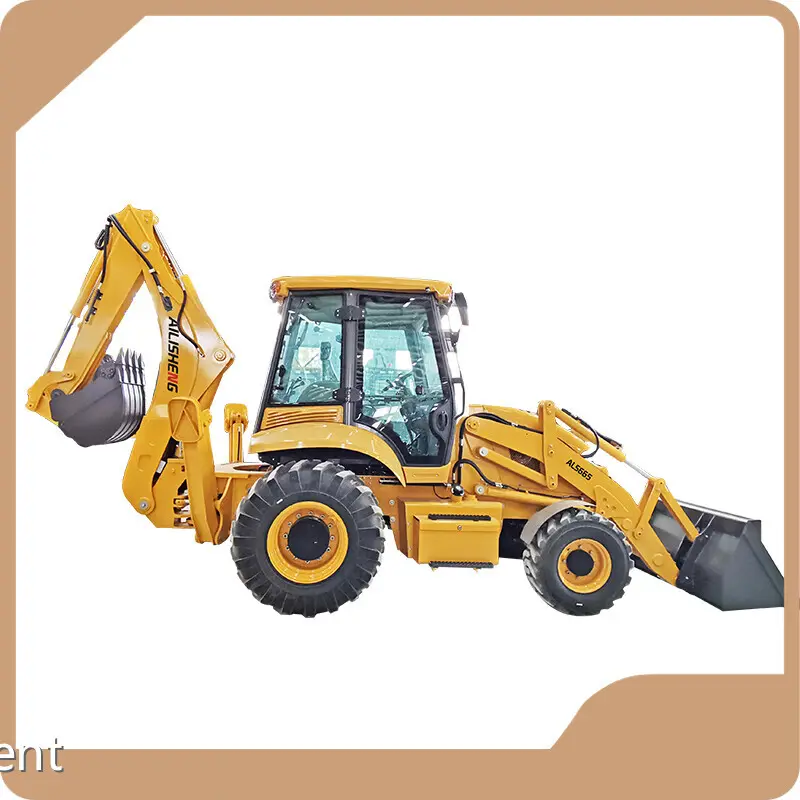

Product details of the backhoe loader price
Product Information
Xiamen Ailisheng Intelligent Equipment Co.,Ltd only uses environmentally friendly raw materials for backhoe loader price. The product has excellent performance, stable and reliable quality. Xiamen Ailisheng Intelligent Equipment Co.,Ltd has wide-spread sales and service networks for backhoe loader price in China.
Performance
1. Special backhoe loader chassis, compact structure and reasonable layout;
2. Equipped with a fully enclosed cab with a wide field of vision, the whole machine has a beautiful appearance, and the leading design of the all-round humanized control system makes the whole machine operation more reasonable and comfortable;
3. The engine adopts CUMMINS 4BTA3.9—C100 engine, which is environmentally friendly and powerful, which greatly improves the fuel economy and work efficiency, and greatly reduces the customer's use cost; a variety of domestic and foreign well-known brand engines can be selected.
4. The original professional backhoe loader transmission system is adopted, and the hydraulic system adopts domestic well-known brands to ensure the stability of product quality, and the performance of the whole machine reaches the international advanced level;
5. Excellent excavation and loading performance brings value-added returns to customers;
6. The drive axle with differential lock and wet brake ensures the traction performance of the whole machine and the safety performance of the whole vehicle; the design of the swing steering axle, the steering angle and the swing angle are large, so that the whole vehicle has better passability ;Service and parking brakes adopt maintenance-free, self-adjusting, fully adjustable wet brakes;
7. Two-wheel and four-wheel drive can meet the needs of customers;
8. The whole machine can be equipped with a variety of tools according to customer needs.
Specifications
|
Model |
|
ALS665 |
|
Operating weight(T) |
kg |
8200 |
|
Transport Dimensions (L*W*H ) |
mm |
5920×2250×3770 |
|
Wheelbase |
mm |
2200 |
|
Min. Ground Clearance |
mm |
300 |
|
Bucket Capacity (Excavating bucket) |
m3 |
1.0 |
|
Breakout Force |
KN |
38 |
|
Loading Lifting Capacity(Excavating bucket) |
KG |
2500 |
|
Bucket Dumping Height |
mm |
2742 |
|
Bucket Dumping Distance |
mm |
925 |
|
Digging Depth |
mm |
52 |
|
Backhoe Capacity |
m3 |
0.3 |
|
Max. Digging Depth |
mm |
4082/4500 |
|
Swing Angle of Excavator Grab |
˚ |
190 |
|
Max. Traction |
KN |
39 |
|
Engine |
|
|
|
Model |
|
CUMMINS 4BTA3.9—C100 |
|
Type |
|
In-Line Direct injection Four-Stroke and InjectionCombustion Chamber |
|
Rated Power |
KW |
74 |
|
Min. Fuel Consumption |
|
≤216g/km.h |
|
Rated Speed |
rpm |
2200r/min |
|
Displacement |
L |
3.9 |
|
Consumption |
|
Euro 2 |
|
Max Torque/Speed |
|
≥410N.M/1800r/min |
|
Transmission System |
|
|
|
Model |
|
TLB1-4WD |
|
Type |
|
Single-stage Three Elements |
|
Max. Efficiency |
% |
84.4 |
|
Inlet Pressure |
Mpa |
0.5 |
|
Outlet Pressure |
Mpa |
1.1—1.3 |
|
Cooling Method |
|
Oil-cooling Pressure Circulation |
|
Gearbox |
|
|
|
Type |
|
Fixed Shaft Power Transmission |
|
Oil Pressure of Clutch |
|
1373Kpa—1569 Kpa |
|
Gears |
|
fourGears Ahead, four Gears Astern |
|
Max. speed |
Km/h |
38Km/h |
|
Hydraulic system |
|
|
|
Digging Power of Excavator Grab |
KN |
46.5 |
|
Digging Power of Dipper |
KN |
31 |
|
Bucket Lifting Time |
S |
6.8 |
|
Bucket Lowering Time |
S |
3.1 |
|
Bucket Discharge Time |
S |
2.0 |
|
Tyre |
|
|
|
Model |
|
14-17.5/19.5L-24 |
|
Pressure of Front wheel |
Mpa |
0.55 |
|
Pressure of Back Wheel |
Mpa |
0.23 |
|
Brake system |
|
|
|
Service Brake |
|
wet-type, internal type, self-regulation, self-balance. |
|
Emergency Brake |
|
spring brake, terminating brake through hydraulic |
|
Steering System |
|
|
|
Model of Steering Device |
|
BZZ5-250 |
|
Steering Angle |
˚ |
±33 |
|
Min. turning radius |
mm |
6950 |
|
Pressure of the system |
12 |
|
|
Axle |
|
|
|
Rated dynamic/static Load of the front axle |
t |
9/22.5 |
|
Rated dynamic/static Load of the rear axle |
t |
7.5/18.75 |
