Latest Construction Loaders for Sale Cost
Product details of the construction loaders for sale
Product Description
The design of AILISHENG Construction Equipment construction loaders for sale adopts the first-class concept. Compared with the same type of product, this construction loaders for sale is more stable and faster. From incoming material inspection to process quality control, Xiamen Ailisheng Intelligent Equipment Co.,Ltd pays high attention.

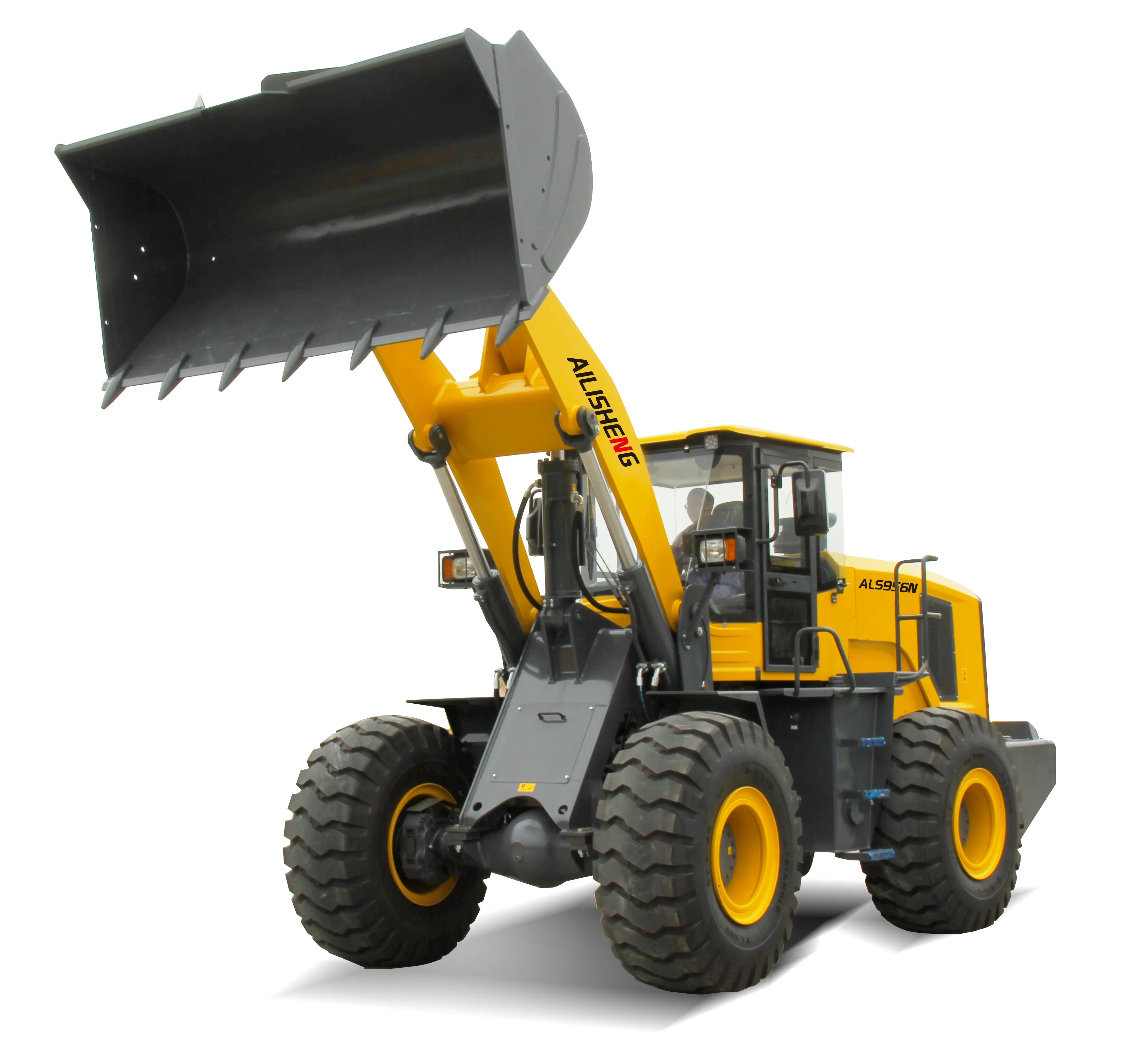

ALS956N Specification
| Overall Dimension | |||
| 1 | Length(with bucket on ground) | 8090(mm) | |
| 2 | Width(to outside of wheels) | 2840(mm) | |
| 3 | Bucket width | 3000(mm) | |
| 4 | Height(To the top of the cab) | 3400(mm) | |
| 5 | Wheel base | 3230(mm) | |
| 6 | Min. ground clearance | 408(mm) | |
| Technical Specification | |||
| 1 | Rated load | 5000(Kg) | |
| 2 | Operating weight | 16600KG | |
| 3 | Rated bucket capacity | 3.0(m3)，Option 2.7-4.2 (m3) | |
| 4 | Max. dump clearance | 3062(mm) | |
| 5 | Dump reach | 1276(mm) | |
| 6 | Min. turning radius(wheel) | 6540(mm) | |
| Diesel engine | |||
| 1 | Model | WeiChai WD10G220E21 | |
| 2 | Type | Direct injection. | |
| 3 | Emission level | Ⅱ | |
| 4 | Rated output | 162 (kW) | |
| 5 | Displacement | 9.726(L) | |
| 6 | Rated speed | 2200(r/min) | |
| 7 | Max. Torque | 860(N.M)@1400-1600 r/min | |
| Transmission System | |||
| 1 | Model | ||
| 2 | Type | 4-elements.single stage | |
| Single-stage four-element | |||
| 3 | Gear shift position | 2F、1R | |
| 4 | Speed（F/R） | F：13/36 R：16 | |
| 5 | Max. drawing force | 155kN | |
| 6 | Size of tire | 23.5-25-16PR | |
| Working Hydraulic System | |||
| 1 | Model of oil pump | 3100J-A | |
| 2 | System pressure | 19MPa | |
| 3 | Model of Muti-way directional valve | CG.07.03.01 | |
| 5 | Pilot valve | 07.05.01 | |
| Steering System | |||
| 1 | Model of steering pump | 06.03.01 | |
| 2 | Model of redirector | 06.01.01.01 | |
| 3 | Model of priority valve | 06.02.02 | |
| 4 | System pressure | 15MPa | |
| Brake System | |||
| 1 | Type of traveling brake | Caliper disc brake | |
| 2 | Air pressure | 0.7-0.78KMPa | |
| 3 | Type of parking brake | Caliper disc brake | |
| 4 | Type of Emergency brake | Caliper disc brake | |
| Oil Capacity | |||
| 1 | Fuel(diesel) | 285(L) | |
| 2 | Engine lubricating oil | 20(L) | |
| 3 | Oil for converter and gear box | 46(L) | |
| 4 | Oil for hydraulic system | 265（L) | |
| 5 | Oil for driving axles（F/R） | 28/28(L) | |
Adopt heavy-duty axles, high relilability, strong heavy-load adaptive ability
Forward 2/ Rearward 1、Mechanical-hydraulic power shift、Stronger torque、High reliability、Long service life.
Advanced hydraulic system: Full hydraulic power steering with flow load-sensing、Double pump confluence、Optional hydraulic pilot control.
Reliable electric system: Bucket auto-balance function、Equip strong waterproof connector、Battery disconnect switch、More effective & safe.
Well sealed, increase the wind pressure, keep all of the wind via the radiator.

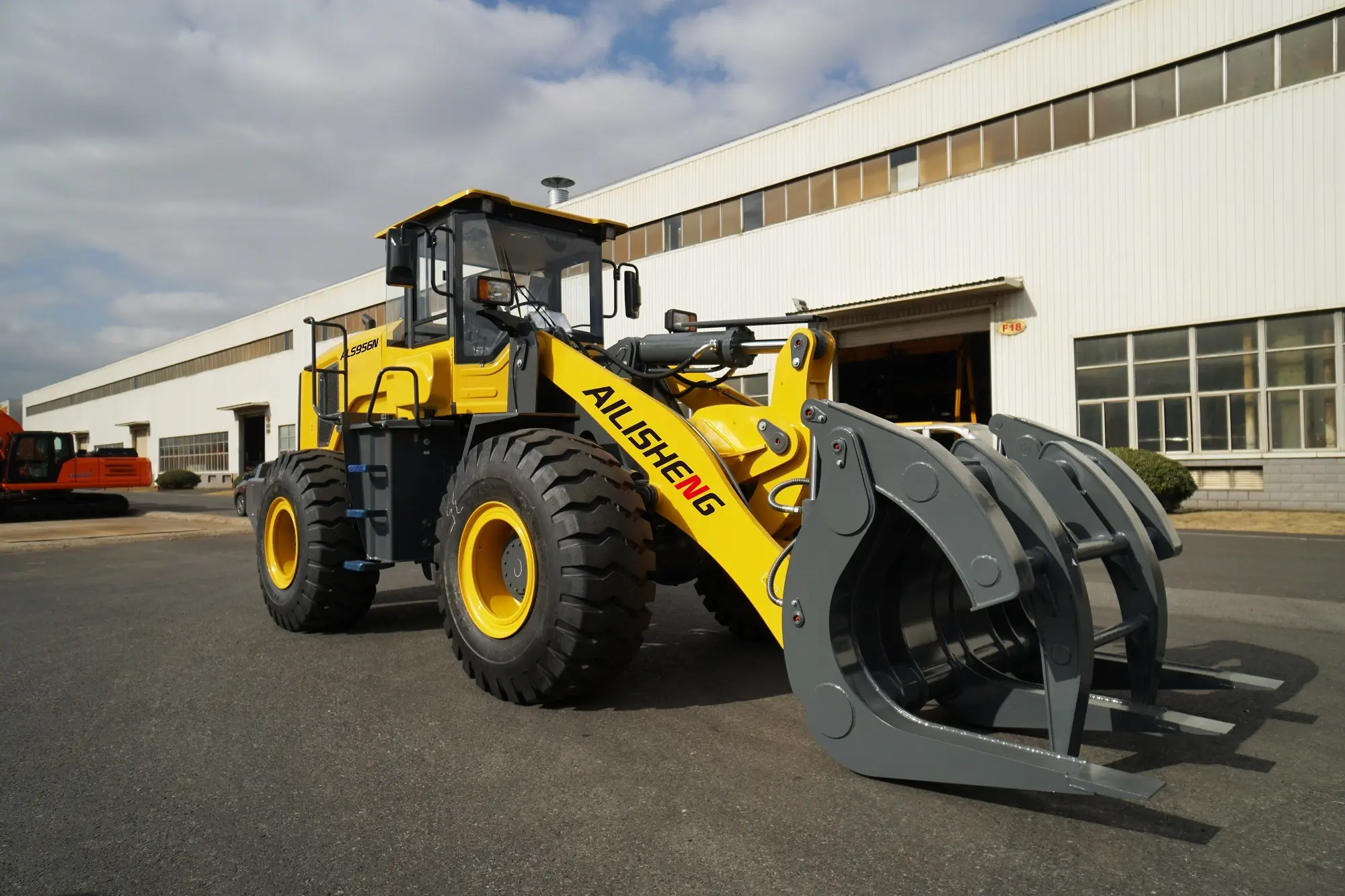

Kinds of optional implement, can satisfy the reqiruement of almost all working condition.
