Front Loader Backhoe Cost
Performance
1. Special backhoe loader chassis, compact structure and reasonable layout;
2. Equipped with a fully enclosed cab with a wide field of vision, the whole machine has a beautiful appearance, and the leading design of the all-round humanized control system makes the whole machine operation more reasonable and comfortable;
3. The engine adopts CUMMINS 4BTA3.9—C100 engine, which is environmentally friendly and powerful, which greatly improves the fuel economy and work efficiency, and greatly reduces the customer's use cost; a variety of domestic and foreign well-known brand engines can be selected.
4. The original professional backhoe loader transmission system is adopted, and the hydraulic system adopts domestic well-known brands to ensure the stability of product quality, and the performance of the whole machine reaches the international advanced level;
5. Excellent excavation and loading performance brings value-added returns to customers;
6. The drive axle with differential lock and wet brake ensures the traction performance of the whole machine and the safety performance of the whole vehicle; the design of the swing steering axle, the steering angle and the swing angle are large, so that the whole vehicle has better passability ;Service and parking brakes adopt maintenance-free, self-adjusting, fully adjustable wet brakes;
7. Two-wheel and four-wheel drive can meet the needs of customers;
8. The whole machine can be equipped with a variety of tools according to customer needs.
Specifications
|

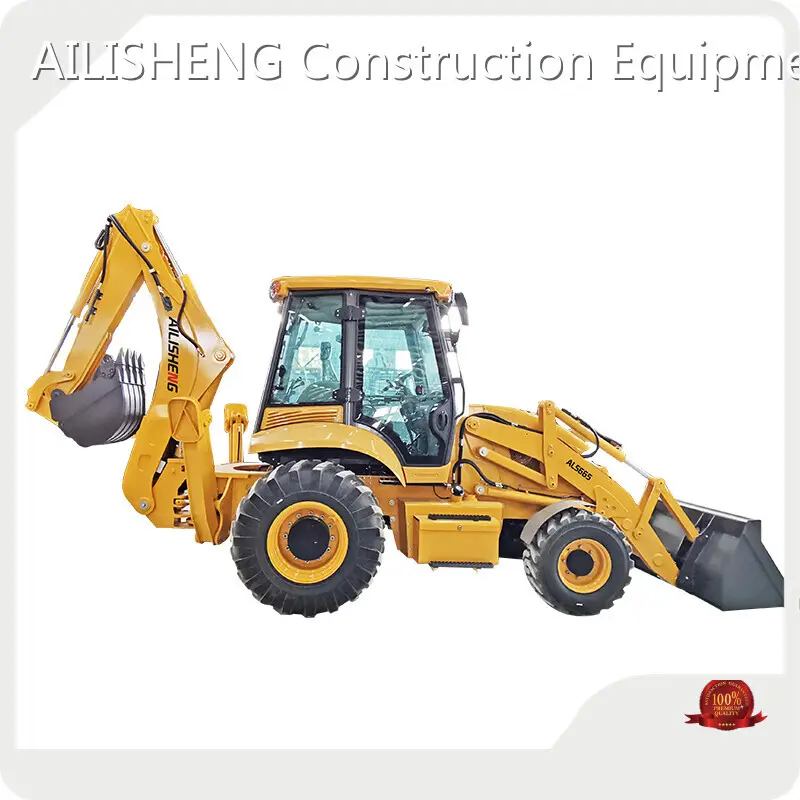

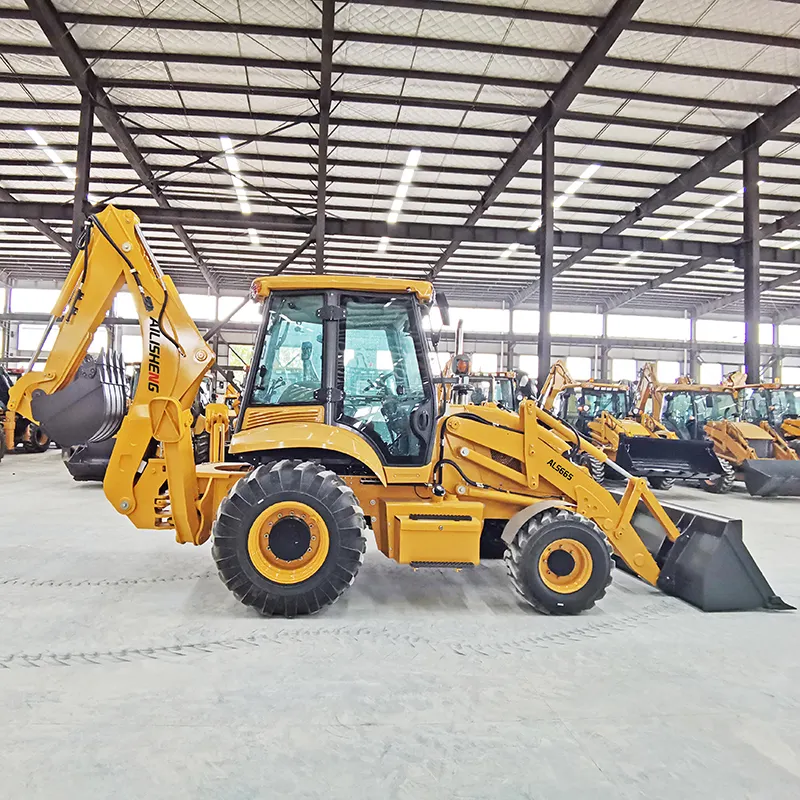

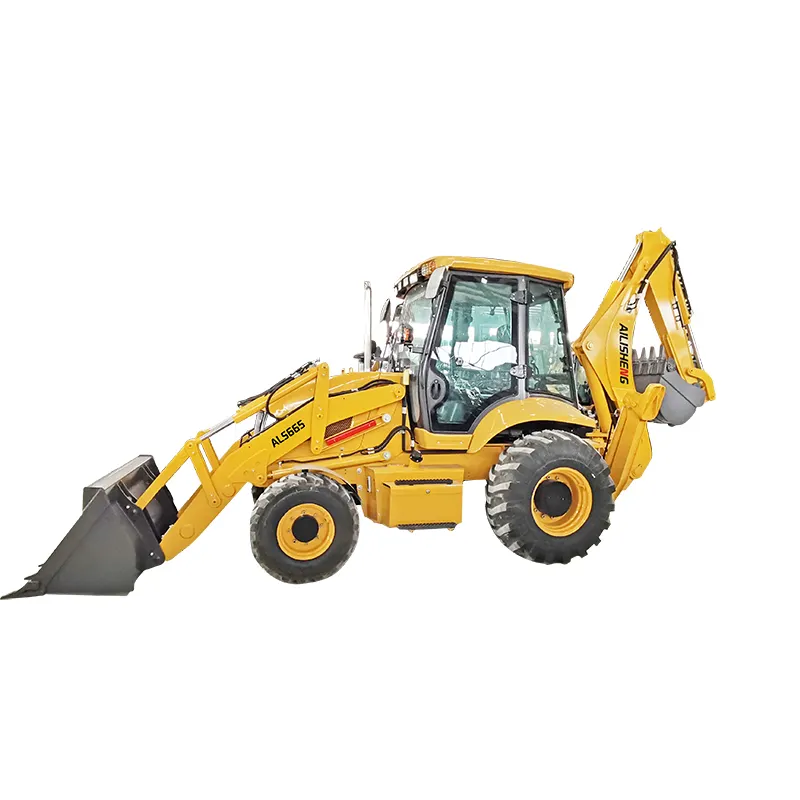

Model |
|
ALS665 |
|
Operating weight(T) |
kg |
8200 |
|
Transport Dimensions (L*W*H ) |
mm |
5920×2250×3770 |
|
Wheelbase |
mm |
2200 |
|
Min. Ground Clearance |
mm |
300 |
|
Bucket Capacity (Excavating bucket) |
m3 |
1.0 |
|
Breakout Force |
KN |
38 |
|
Loading Lifting Capacity(Excavating bucket) |
KG |
2500 |
|
Bucket Dumping Height |
mm |
2742 |
|
Bucket Dumping Distance |
mm |
925 |
|
Digging Depth |
mm |
52 |
|
Backhoe Capacity |
m3 |
0.3 |
|
Max. Digging Depth |
mm |
4082/4500 |
|
Swing Angle of Excavator Grab |
˚ |
190 |
|
Max. Traction |
KN |
39 |
|
Engine |
|
|
|
Model |
|
CUMMINS 4BTA3.9—C100 |
|
Type |
|
In-Line Direct injection Four-Stroke and InjectionCombustion Chamber |
|
Rated Power |
KW |
74 |
|
Min. Fuel Consumption |
|
≤216g/km.h |
|
Rated Speed |
rpm |
2200r/min |
|
Displacement |
L |
3.9 |
|
Consumption |
|
Euro 2 |
|
Max Torque/Speed |
|
≥410N.M/1800r/min |
|
Transmission System |
|
|
|
Model |
|
TLB1-4WD |
|
Type |
|
Single-stage Three Elements |
|
Max. Efficiency |
% |
84.4 |
|
Inlet Pressure |
Mpa |
0.5 |
|
Outlet Pressure |
Mpa |
1.1—1.3 |
|
Cooling Method |
|
Oil-cooling Pressure Circulation |
|
Gearbox |
|
|
|
Type |
|
Fixed Shaft Power Transmission |
|
Oil Pressure of Clutch |
|
1373Kpa—1569 Kpa |
|
Gears |
|
fourGears Ahead, four Gears Astern |
|
Max. speed |
Km/h |
38Km/h |
|
Hydraulic system |
|
|
|
Digging Power of Excavator Grab |
KN |
46.5 |
|
Digging Power of Dipper |
KN |
31 |
|
Bucket Lifting Time |
S |
6.8 |
|
Bucket Lowering Time |
S |
3.1 |
|
Bucket Discharge Time |
S |
2.0 |
|
Tyre |
|
|
|
Model |
|
14-17.5/19.5L-24 |
|
Pressure of Front wheel |
Mpa |
0.55 |
|
Pressure of Back Wheel |
Mpa |
0.23 |
|
Brake system |
|
|
|
Service Brake |
|
wet-type, internal type, self-regulation, self-balance. |
|
Emergency Brake |
|
spring brake, terminating brake through hydraulic |
|
Steering System |
|
|
|
Model of Steering Device |
|
BZZ5-250 |
|
Steering Angle |
˚ |
±33 |
|
Min. turning radius |
mm |
6950 |
|
Pressure of the system |
12 |
|
|
Axle |
|
|
|
Rated dynamic/static Load of the front axle |
t |
9/22.5 |
|
Rated dynamic/static Load of the rear axle |
t |
7.5/18.75 |
Company Advantages
· Our expert's extensive knowledge of the various materials ensures the AILISHENG Construction Equipment front loader backhoe is made of the most appropriate materials.
· The quality of the product meets the requirements of domestic and international standards.
· Till now this product has demonstrated a huge market prospect.
Company Features
· AILISHENG Construction Equipment is famous for its excellent and distinguished front loader backhoe.
· Our company has received many honors. Awards such as Best Supplier, Excellence in Quality Award, etc. have earned us a stellar reputation and encourage us to great heights.
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd focuses on improving quality and image as well as our brand prestige. Ask online!
Application of the Product
Our front loader backhoe can be used in a variety of industries to play a certain role.
AILISHENG Construction Equipment insists on providing customers with Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders of high quality and a one-stop solution that's comprehensive and efficient.
