Product details of the electric construction machinery
Product Overview
The superior material applied in electric construction machinery can ensure quality at the source. The product is in high demand in the international market due to its high quality and good usability. With trustworthy cooperation partners, AILISHENG Construction Equipment ensures the fast delivery time.
Product Introduction
Based on the professionalism of pursuing excellence, we strive for perfection in every detail of the product.

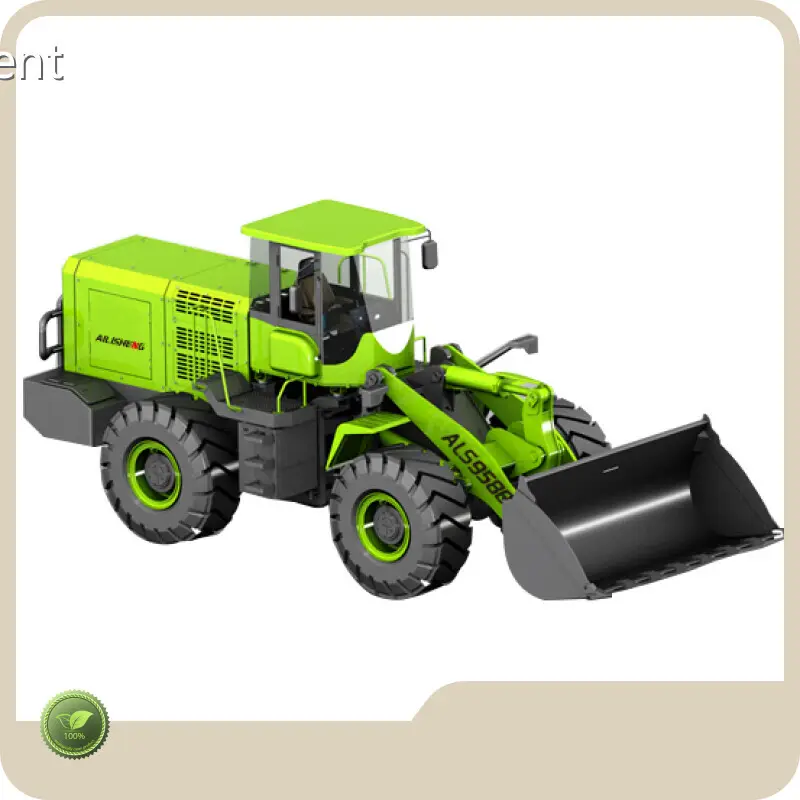

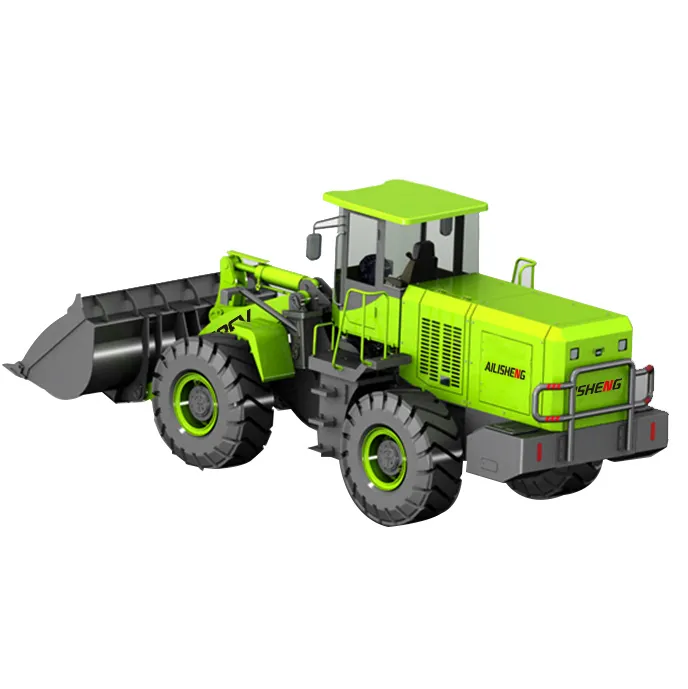

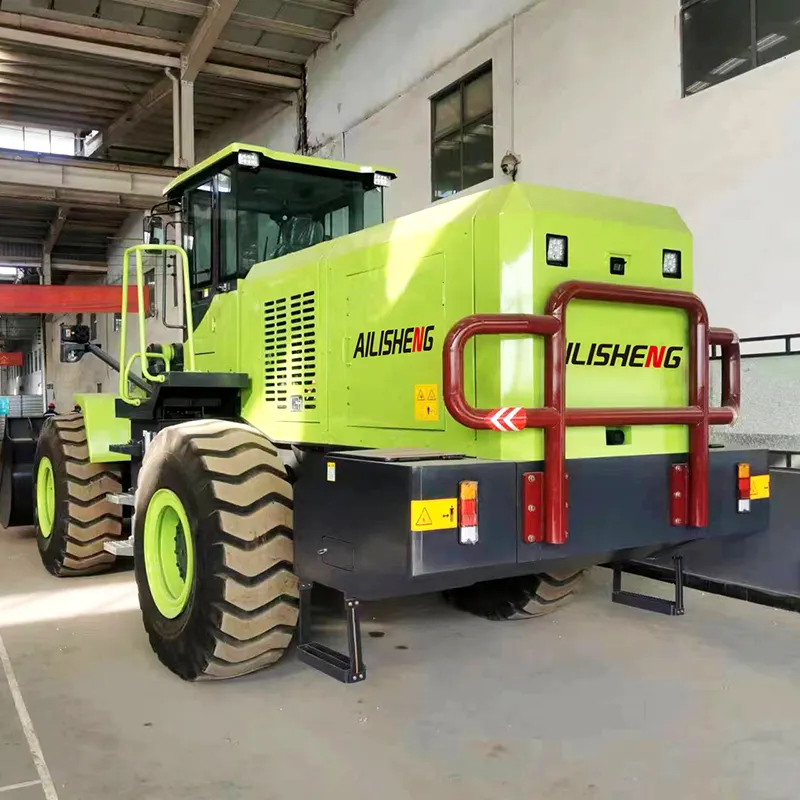

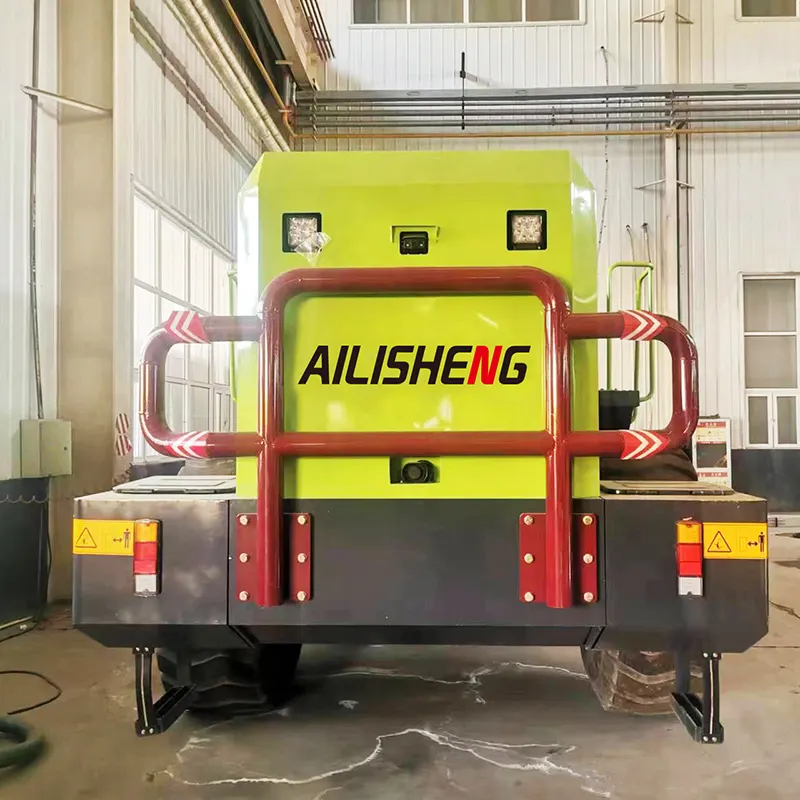

ALS958EV Specifications
Electric Wheel Loaders Parameters
Item |
No. |
Item |
Item |
Main Parameters |
1 |
Rated Load(kg) |
5500 |
2 |
Operating weight(kg) |
18500 |
|
3 |
Bucket capacity(m3) |
3.5 |
|
4 |
Max.traction (KN) |
150-180KN |
|
5 |
Max. breakout force (KN) |
170 |
|
6 |
Max. grade ability(°) |
30 |
|
7 |
Max. dumping height(mm) |
3450 |
|
8 |
Max. dumping distance(mm) |
1200mm |
|
9 |
Dimensions(LxWxH))mm |
8850×3120×3500 |
|
10 |
Min. turning diameter(mm) |
6780 |
|
11 |
Diameter of traverse |
7500 |
|
Hydraulic motor |
12 |
Motor type |
Permanent magnet synchronous motor |
13 |
Motor model |
TZ300-S180 |
|
14 |
Rated power/Peak power(KW) |
80/140 |
|
15 |
Rated speed/Peak speed(r/min) |
850/2300 |
|
16 |
Rated torque/Peak torque(N.M) |
980/1300 |
|
Driving motor |
18 |
Motor type |
Permanent magnet synchronous motor |
19 |
Motor model |
TZ370-S280 |
|
20 |
Rated power/Peak power(KW) |
135/200 |
|
21 |
Rated speed/Peak speed(r/min) |
990/2800 |
|
22 |
Rated torque/Peak torque(N.M) |
1300/2850 |
|
Transmission system |
24 |
Transmission type |
Electro-hydraulic control counter-shaft type |
25 |
Gear number |
F2/R2 |
|
26 |
Speed F1/R1 |
0-12 |
|
27 |
Speed F2/R2 |
0-39 |
|
28 |
Speed F3/R3 |
- |
|
29 |
Speed F4/R4 |
- |
|
Driving system |
30 |
Driving axles type |
Wet-type |
31 |
Axles manufacturor |
Yunyu |
|
32 |
Velocity ratio |
27.53 |
|
33 |
Wheel redction pattern |
Planetary |
|
34 |
Wheelbase(mm) |
3330 |
|
35 |
Wheel track(mm) |
2350 |
|
36 |
Ground clearance(mm) |
480mm |
|
37 |
Tyre spec. |
23.5-25 |
|
38 |
Driving type |
4WD |
|
Hydraulic system |
39 |
Hydraulic pump model & manufacturor |
SGP2112-2090-0016L01Jinan Hydraulic |
40 |
Pump displacement(ml/r) |
112-90-16 |
|
41 |
Valve model and manufacturor |
D32-00A/Gaoyu |
|
42 |
Steering model and manufacturor |
TLF2-E1000C-Zhengjiang |
|
43 |
Working Pressure(Mpa) |
18 |
|
44 |
Boom lifting time(s) |
6.0 |
|
45 |
Boom lowering time(s) |
3.0 |
|
46 |
Dumping time(s) |
1.5 |
|
47 |
Total cycle time(s) |
≦10.5 |
|
Brake system |
48 |
Working brake type |
Hydraulic brake |
49 |
Parking brake type |
Manual clamp type |
|
Battery system |
50 |
System voltage(V) |
24 |
51 |
Battery type |
Water-cooling/heating |
|
52 |
Working voltage(V) |
540 |
|
53 |
Battery capacity(kWh) |
351 |
|
54 |
Battery capacity(Ah) |
579 |
|
55 |
Charging time(h) |
1.5-2(h) |
|
56 |
Charging pile power(kw) |
180-240 |
