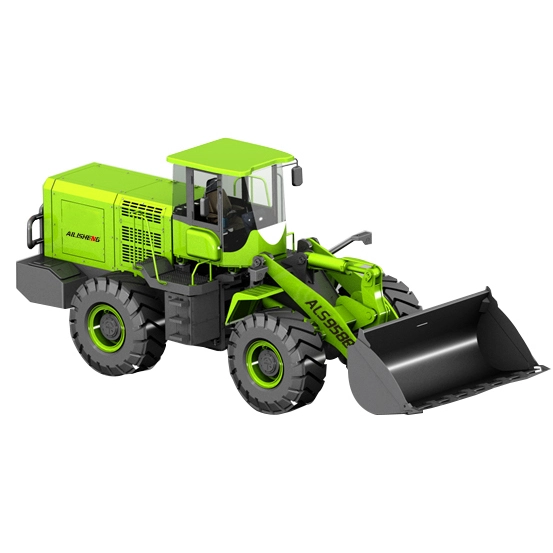

AILISEHNG  Electric Wheel Loaders ALS958EV 1
AILISEHNG  Electric Wheel Loaders ALS958EV 2
AILISEHNG  Electric Wheel Loaders ALS958EV 3
AILISEHNG  Electric Wheel Loaders ALS958EV 4
AILISEHNG  Electric Wheel Loaders ALS958EV 1
AILISEHNG  Electric Wheel Loaders ALS958EV 2
AILISEHNG  Electric Wheel Loaders ALS958EV 3
AILISEHNG  Electric Wheel Loaders ALS958EV 4

AILISEHNG Electric Wheel Loaders ALS958EV

AILISHENG has a really strong commitment to meeting the requirements of the Paris Agreement on climate change and reducing carbon emissions. We also see a strong ambition in our customers’ roadmaps towards the reduction of their emissions. Increasing emission incentives and zero-emission targets coming into play in recent years have had a marked effect on the increase in electric construction machinery and equipment.

    oops...!

    no product data.

    Go to homepage

    ALS958EV Specifications

    未标题-1
    Power Battery
    Lithium iron phosphate battery Energy recovery system, longer endurance and more energy saving. Equipped with large-capacity lithium iron phosphate battery, optional charging pile specification: 240KWH/282KWH/350KWH, using double gun charging, it can be fully charged in 60 minutes. The battery has its own heating and cooling system. The battery adopts intelligent temperature control and liquid cooling, which can ensure the best working temperature of the battery in real time, which is beneficial to guarantee the battery life.
    ALS958EV 03
    Motor Control
    Permanent magnet synchronous motor,High torque, high power Low noise, small vibration, Quick start, more comfortable Waterproof and dustproof, Insulation maintenance. The whole machine adopts dual-motor system drive scheme, The oil pump motor and the walking motor can be separated to achieve independent control, which is more powerful and energy-saving.
    ALS958EV 04
    Transmission & Axles
    Adopts a electro-hydraulic control counter-shaft gearbox with more gear shifts, and uses a variety of transmission ratios to implement different walking speeds and traction forces to meet the needs of various operating speeds and operating conditions. Adopts upgraded wet-tpype drive axle, equipped with four planetary gears, with high structural strength, large carrying capacity, long service life and high reliability.
    20231201-ALS9588EV-2
    Frame
    The wheelbase extended to 3330mm, and the rear suspension distance is increased. The front and rear axle load distribution are more reasonable and stability. The reliability of the frame is greatly improved through finite element simulation analysis.
    20231201-ALS9588EV-1
    Safty
    Battery system protection level: IP67. The motor adopts intelligent temperature control and liquid cooling. Ambient temperature: -30~+70℃, Protection level: IP67, Altitude ≤5000m.
    图片1 (2)
    Pilot Operation
    Efficient conversion and comfortable operation Electronically controlled pilot hydraulic system, oil supply on demand,Double pump confluence.
    Carbon Emission
    Pure Electric Wheel Loader:zero emission. Carbon emisson saving 187.8 ton/year/set.

    Item

    No.

    Item

    Item

    Main Parameters

    1

    Rated Load(kg)

    5500

    2

    Operating weight(kg)

    18500

    3

    Bucket capacity(m3)

    3.5

    4

    Max.traction (KN)

    150-180KN

    5

    Max. breakout force (KN)

    170

    6

    Max. grade ability(°)

    30

    7

    Max. dumping height(mm)

    3450

    8

    Max. dumping distance(mm)

    1200mm

    9

    Dimensions(LxWxH))mm

    8850×3120×3500

    10

    Min. turning diameter(mm)

    6780

    11

    Diameter of traverse

    7500

    Hydraulic motor

    12

    Motor type

    Permanent magnet synchronous motor

    13

    Motor model

    TZ300-S180

    14

    Rated power/Peak power(KW)

    80/140

    15

    Rated speed/Peak speed(r/min)

    850/2300

    16

    Rated torque/Peak torque(N.M)

    980/1300

    Driving motor

    18

    Motor type

    Permanent magnet synchronous motor

    19

    Motor model

    TZ370-S280

    20

    Rated power/Peak power(KW)

    135/200

    21

    Rated speed/Peak speed(r/min)

    990/2800

    22

    Rated torque/Peak torque(N.M)

    1300/2850

    Transmission system

    24

    Transmission type

    Electro-hydraulic control counter-shaft type

    25

    Gear number

    F2/R2

    26

    Speed F1/R1

    0-12

    27

    Speed F2/R2

    0-39

    28

    Speed F3/R3

    -

    29

    Speed F4/R4

    -

    Driving system

    30

    Driving axles type

    Wet-type

    31

    Axles manufacturor

    Yunyu

    32

    Velocity ratio

    27.53

    33

    Wheel redction pattern

    Planetary

    34

    Wheelbase(mm)

    3330

    35

    Wheel track(mm)

    2350

    36

    Ground clearance(mm)

    480mm

    37

    Tyre spec.

    23.5-25

    38

    Driving type

    4WD

    Hydraulic system

    39

    Hydraulic pump model & manufacturor

    SGP2112-2090-0016L01Jinan Hydraulic

    40

    Pump displacement(ml/r)

    112-90-16

    41

    Valve model and manufacturor

    D32-00A/Gaoyu

    42

    Steering model and manufacturor

    TLF2-E1000C-Zhengjiang

    43

    Working Pressure(Mpa)

    18

    44

    Boom lifting time(s)

    6.0

    45

    Boom lowering time(s)

    3.0

    46

    Dumping time(s)

    1.5

    47

    Total cycle time(s)

    ≦10.5

    Brake system

    48

    Working brake type

    Hydraulic brake

    49

    Parking brake type

    Manual clamp type

    Battery system

    50

    System voltage(V)

    24

    51

    Battery type

    Water-cooling/heating

    52

    Working voltage(V)

    540

    53

    Battery capacity(kWh)

    351

    54

    Battery capacity(Ah)

    579

    55

    Charging time(h)

    1.5-2(h)

    56

    Charging pile power(kw)

    180-240
