Company Advantages
· The production process of AILISHENG Construction Equipment electric construction machinery adheres to the requirement of standardization production.
· The product is able to meet customers' expectation with respects to functionality, reliability, and durability.
· It is a hot product in this field and popular with many customers.
Product features

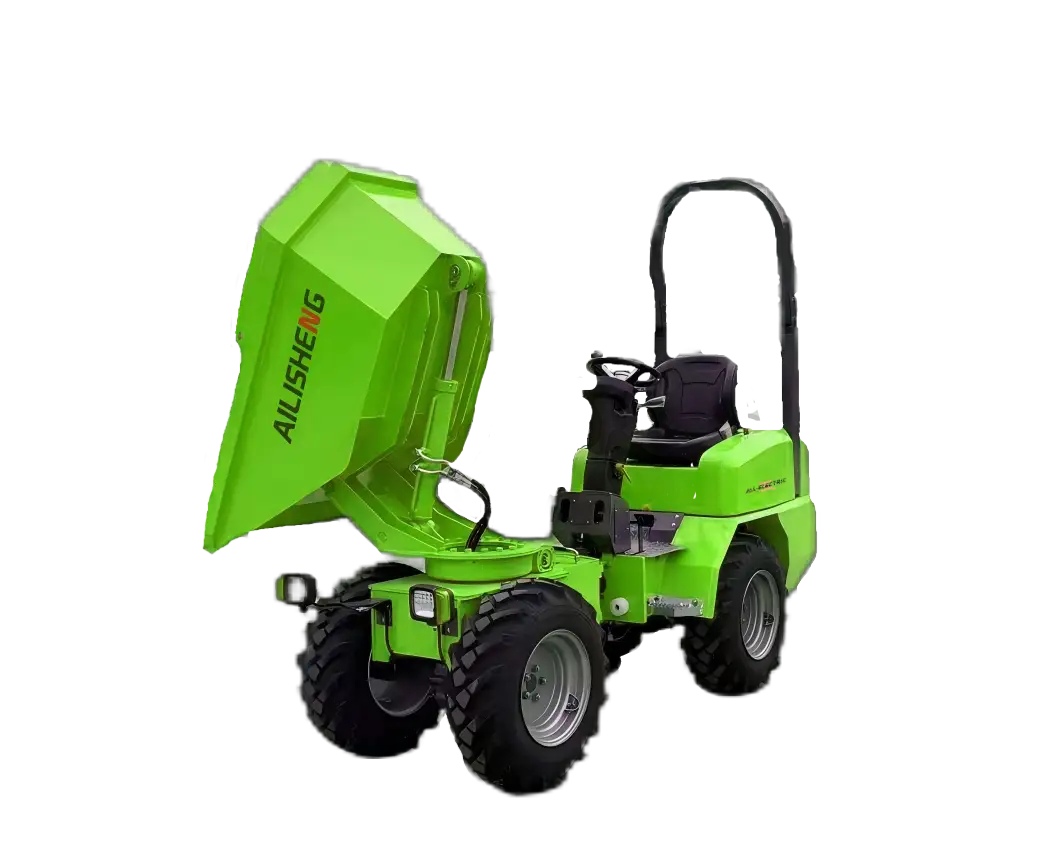

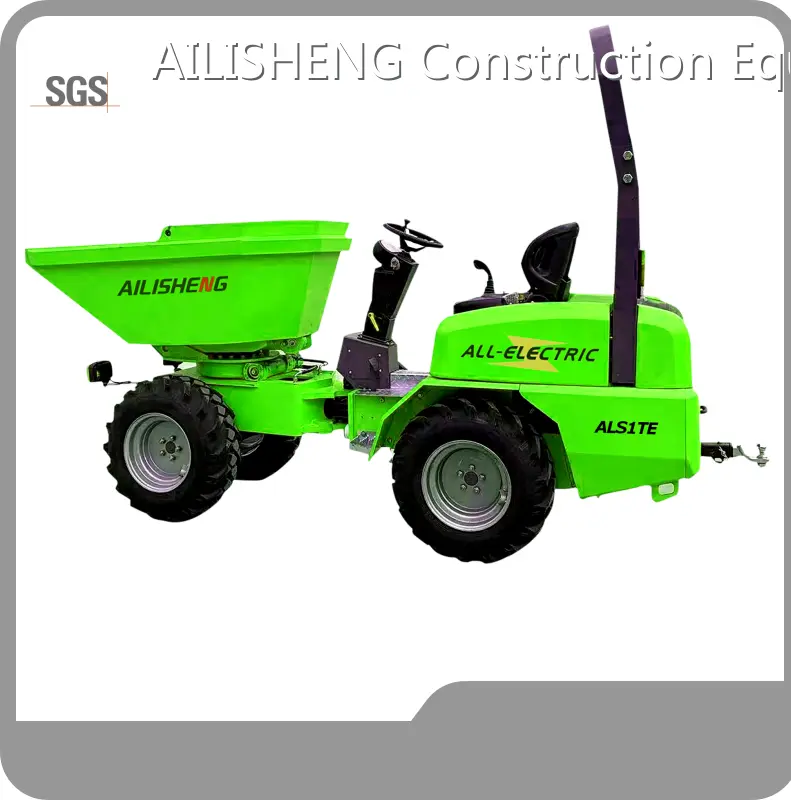

The Ailisheng electric dumper ALS1TE is a versatile and efficient piece of equipment designed for various applications in construction, landscaping, and agriculture. Here are some key features and specifications of the ALS1TE:
1. Electric Power: The ALS1TE is powered by electric motors, making it environmentally friendly and allowing for quiet operation.
2. Load Capacity: The ALS1TE has a rated operating capacity of approximately 1000 kilograms. It is equipped with a powerful lifting system that allows it to handle heavy loads effectively.
3. Operating Efficiency: With electric power, the dumper offers instant torque and precise control, which improves productivity and efficiency. It can deliver consistent performance throughout the operation without the need for constant refueling.
4. Battery System: The ALS1TE comes with a robust battery system designed for extended operation. The battery capacity depends on the specific model, but it is typically equipped with a high-capacity lithium-ion battery pack to provide sufficient power.
5. Safety and Comfort: The dumper includes safety features like seatbelt, backup cameras(optional), and ergonomic controls. These features ensure the operator's safety and provide a comfortable working environment.
6. Maintenance: Electric dumper generally have lower maintenance requirements compared to their diesel counterparts. However, it is essential to follow the Ailisheng's maintenance guidelines to ensure optimal performance and longevity.
It's important to note that the specifications and features may vary depending on the specific model and Ailisheng. It's always recommended to refer to the official documentation or contact Ailisheng for the most accurate and up-to-date information about the Ailisheng electric dumper ALS1TE.
Main technical parameter
|
|
ALS1TE |
A |
Overall Length:mm |
3320 |
B |
Wheel Base:mm |
1530 |
C |
Minimum Ground Clearance:mm |
227 |
D |
Dump Height:mm |
935 |
E |
Shaft Height:mm |
1033 |
F |
Front Edge Height of the Bucket:mm |
1217 |
G |
Maximum Dump Height:mm |
2327 |
H |
Dump Angle |
72° |
I |
Overall Height:mm |
2400 |
J |
Overall Wheel Width:mm |
1160 |
K |
Skip Width:mm |
1150 |
L |
Tipping Bucket Length:mm |
1410 |
M |
Safe Dumping Distance Front:mm |
367 |
N |
Safe Dumping Distance Lateral:mm |
335 |
|
Maximum Transport Weight: |
1T |
|
Cross Weight: |
1.68T |
|
Hydraulic Tank Capacity:L |
30 |
|
Maximum Travel Speed:KM/h |
15 |
|
Gradeability: |
30% |
|
Max Turning Angle of the Bucket |
±90° |
Operating data | ALS1TE |
Payload | 1000kg |
Shipping weight | 1000kg |
Skip capacity level | 650 |
Skip capacity heaped | 800 |
Tires | 10.0/75-15.3 |
Tire width mm | 264 |
L x W x H mm | 3320×1150×2150 |
BucketCapacity | 0.6m³ |
Battery |
|
Brand | EIKTO |
Rate power | 15.6KWh |
Company Features
· AILISHENG Construction Equipment now is an outstanding electric construction machinery manufacturer.
· In recent years, the factory has undergone a large-scale update of manufacturing facilities to gradually achieve automated production. This significantly contributes to increasing productivity. Located in a city that is the economic center of China, the factory is very close to the major ports. Hence, the traffic is very convenient so that our goods can be transported very quickly.
· AILISHENG Construction Equipment brand will further develop service quality. Inquire!
Product Comparison
AILISHENG Construction Equipment's electric construction machinery has better performances in the following aspects.
Enterprise Advantages
With the best products and professional sales and technical team, we provide customers with the best products, good technical support, and sound after-sales service.
AILISHENG Construction Equipment runs a comprehensive supply system and after-sales service system. We are committed to providing excellent service for the majority of customers.
AILISHENG Construction Equipment's mission is to provide consumers with safe and environment-friendly products. With a focus on sincerity-based management and quality, we are committed to high standards and strict requirements in the production process. Our goal is to achieve high output, excellent quality, and high efficiency.
Our company was established in and has developed for years. Through continuous efforts and struggles, we have accumulated a wealth of knowledge and experience in the years of our growth.
Based on the domestic market, our company is also actively exploring foreign markets.
