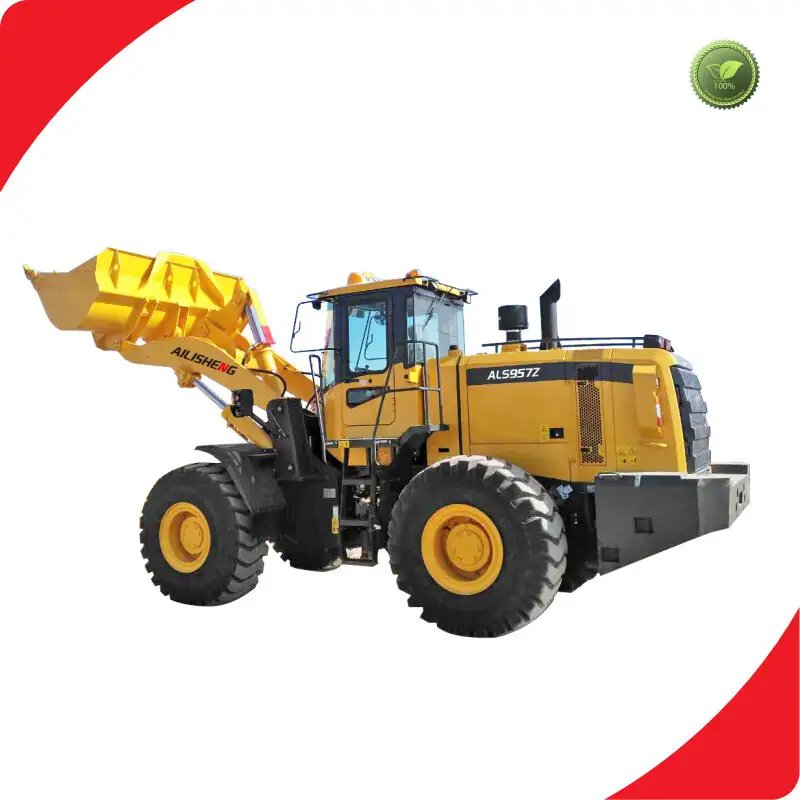

Chinese Wheel Loader Manufacturers Maker

Inquiry
Send your inquiry

Main technical parameter

  • Overall Dimension

1

Length(with bucket on ground)

8120(mm)

2

Width(to outside of wheels)

2800(mm)

3

Bucket width

2946(mm)

4

Height(To the top of the cab)

3450(mm)

5

Wheel base

3300(mm)

6

Min. ground clearance

450(mm)

  • Technical Specification

1

Rated load

5000(Kg)

2

Operating weight

17200KG

3

Rated bucket capacity

3.1(m3),Option2.2-4.5 (m3)

4

Max. dump clearance

3136(mm)

5

Dump reach

1121(mm)

6

Min. turning radius(wheel)

6238(mm)

  • Diesel engine

1

Model

Cummins  6LTAA 9.3

ShangChai SC11CB220G2B1

2

Type

Direct injection.

3

Rated output

162 (kW)

5

Total exhaust of cylinder

9.3(L)

10.5(L)

9

Rated speed

2200(r/min)

10

Max. Torque

940(N.M)@1400 rpm

920(N.M)@1400 rpm

  • Transmission System

1

Model

ZF 4BP210

2

Type

3-elementssingle stage

3

Gear shift position

 4F/3 R

4

Speed(F/R)

6.8/7.1,13.3/14.0,25.2/26.5,39.6

5

Max. drawing force

170kN

6

Size of tire

23.5-25-16PR

  • Working Hydraulic System

1

System pressure

18MPa

  • Steering System

1

System pressure

16MPa

  • Brake System

1

Type of traveling brake

Caliper disc brake Multi-discwettypebrakeoptional

2

Air pressure

6-7.5(kgf/cm2)

3

Type of parking brake

Manual control cutting-off air brake

  • Oil Capacity

1

Fuel(diesel)

280(L)

2

Oil for hydraulic system

180(L)

ZF TRANSMISSION

Product features

(1) The overall machine wheelbase is 3300mm, which is the mainstream design of high-end loading in the industry and can meet the needs of most customers;

(2) It adopts ZF 4BP210 dual-variable system, and the gearbox is an electro-hydraulic power shift fixed axle type that can achieve forced deceleration. The operation is simple and safe, and the work efficiency is high;

图片2 (7)
CAB

(3) The hydraulic system adopts dual pump parallel flow, innovatively introduces a split cooling system to increase cooling flow and reduce the hydraulic oil temperature below 85℃;the advanced hydraulic system help you higher efficiency in your construction project.

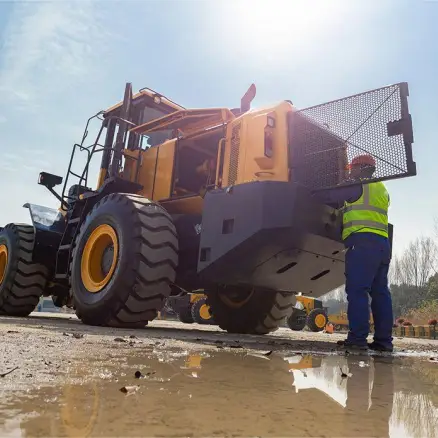

(4) T series appearance protective cover has a large door design, and the front air inlet of the radiator and the rear air outlet can be opened. The new cab upgrade has strong sealing, and the overall noise of the machine is much lower than the national standard;



(5) The whole vehicle relay, fuse box are centralized, and the working device's grease nozzle is led to the side of the frame, and the pressure measuring port is arranged in the front of the auxiliary box and other humanized designs, making maintenance and repair more convenient.

(6) The comfortable and safe cab provides perfect all-round visibility.

(7) The wheel loader has a strong power system driven by SDEC engine, which allows the construction machine to smoothly run under severe conditions. With world-class quality, the fuel-efficient wheel loader features high working efficiency and enhanced digging force. Each part of the wheel loader has been improved on its strength and safety factor, and the engine cooling system has sufficient coolant, all of which ensure high reliable work performance and long service life of the diesel engine.

ENGINE
BOOM (2)

(8) The single-pedal dual-circuit service brake system and emergency braking system that comply with the requirements of international standards are used to ensure safe and effective braking. The foot brake adopts gas-assisted hydraulic caliper disc brake to ensure high reliability, and the hand brake uses manual air braking system to achieve emergency stopping in an effective manner.

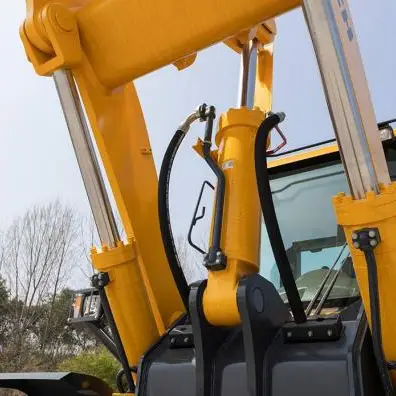

(9) The new optimized single arm allows high pivot point possible, and such a design provides large bucket loading capacity and high work efficiency. The front frame of the wheel loader is composed of strong integral structure made from high-quality and durable materials. The 85mm-thick structure can withstand all kinds of severe working conditions. The unique hinged structure means more convenience in wheel loader maintenance. Thanks to the dust-proof structure, mud, grains of sand and dust can be effectively prevented from entering the key part of wheel loader. Therefore, the wheel loader has a long service life with lower maintenance costs.

AXLE (2)
DOOR (2)

(10) The wheel loader features a reinforced drive axle, which has been tested many times under extreme working conditions, with the maximum ramp climbing angle of 30 degrees. The speed ratio of the drive axle can be adjusted to enhance the digging capacity, and a specialized helical bevel gear is equipped to withstand overload. The drive axle and swing frame are connected with high-strength bolts, which help ensure that the front axle bolts keep work well under overload conditions, and such a design can also effectively prevent the bolts from being stretched or deformed under overload circumstances.

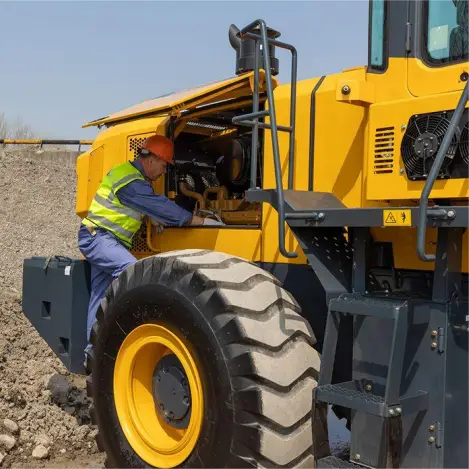

(11) The gull-wing type engine side doors can be widely opened, making daily checks easier.

(12) The newly developed radiator with increased heat dissipation area provides better cooling for engine, thus greatly enhancing the work efficiency and prolonging the service life of wheel loader parts. Even in high temperatures, the performance of our wheel loader will absolutely not let you down.

图片1 (12)
