Product details of the medium wheel loaders
Quick Detail
AILISHENG Construction Equipment medium wheel loaders is designed and developed as per international industrial standards using top quality raw materials. The product marks the best quality standards in the industry. The medium wheel loaders produced by AILISHENG Construction Equipment is of high quality. And it is one of the products widely used in the industry. Xiamen Ailisheng Intelligent Equipment Co.,Ltd's customer service will be pleased to assist you in case of any problems occurring during the process.
Product Information
Compared with other same kind of products in the market, AILISHENG Construction Equipment's medium wheel loaders is equipped with the following outstanding advantages.

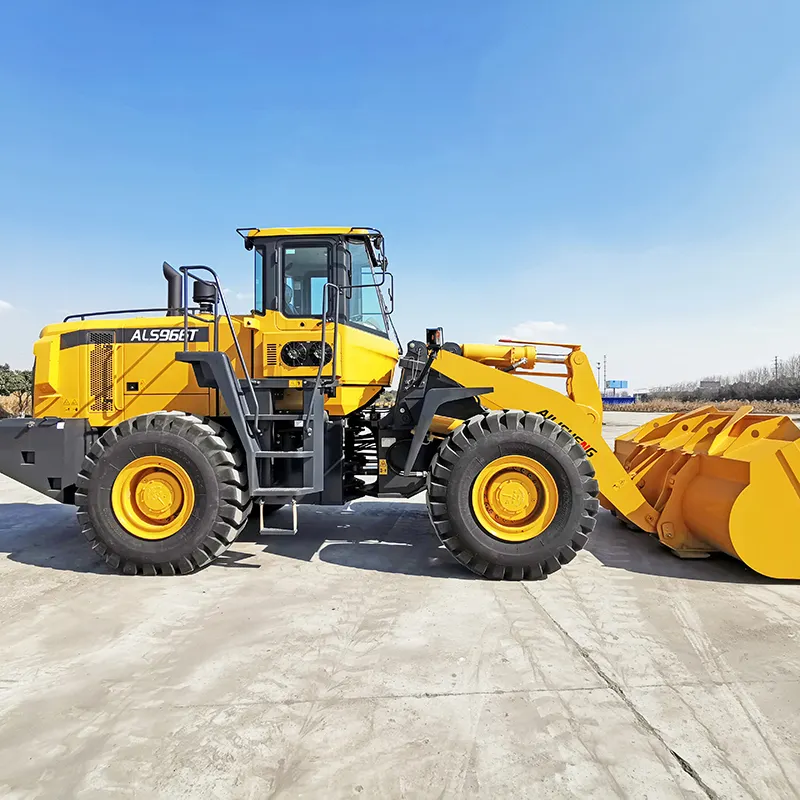

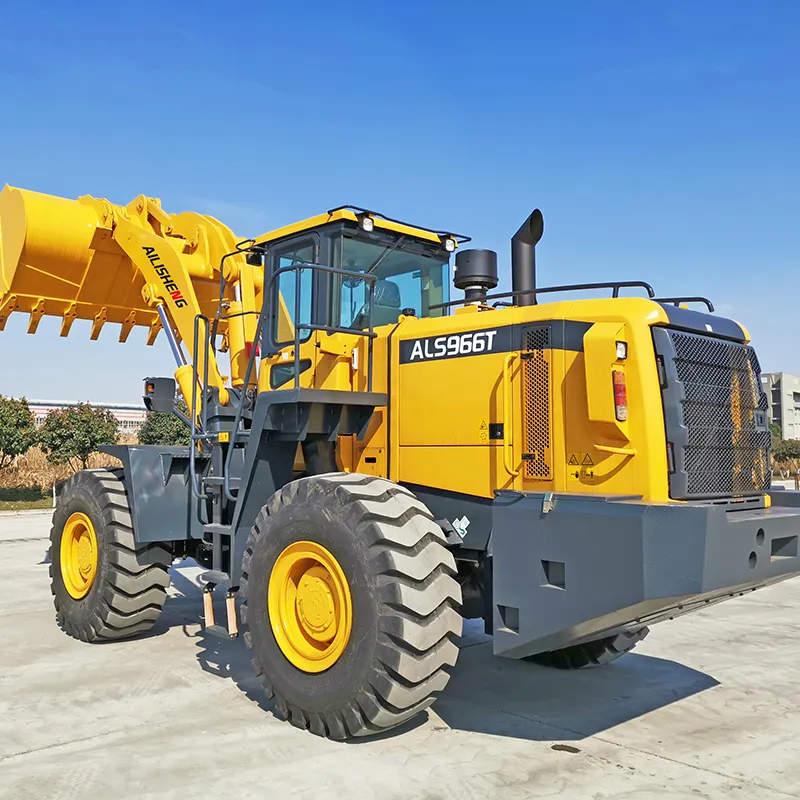

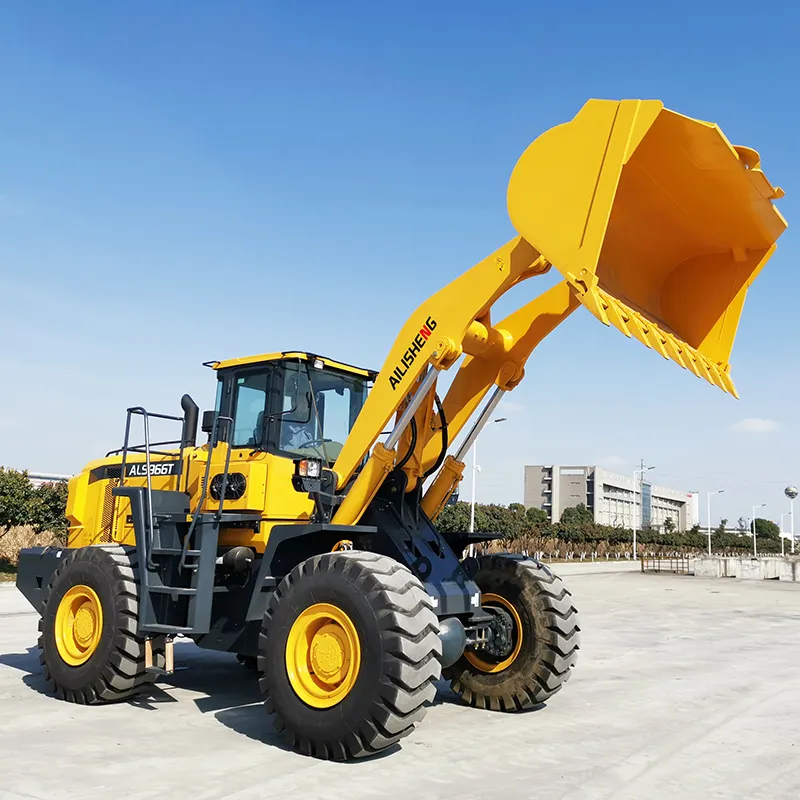

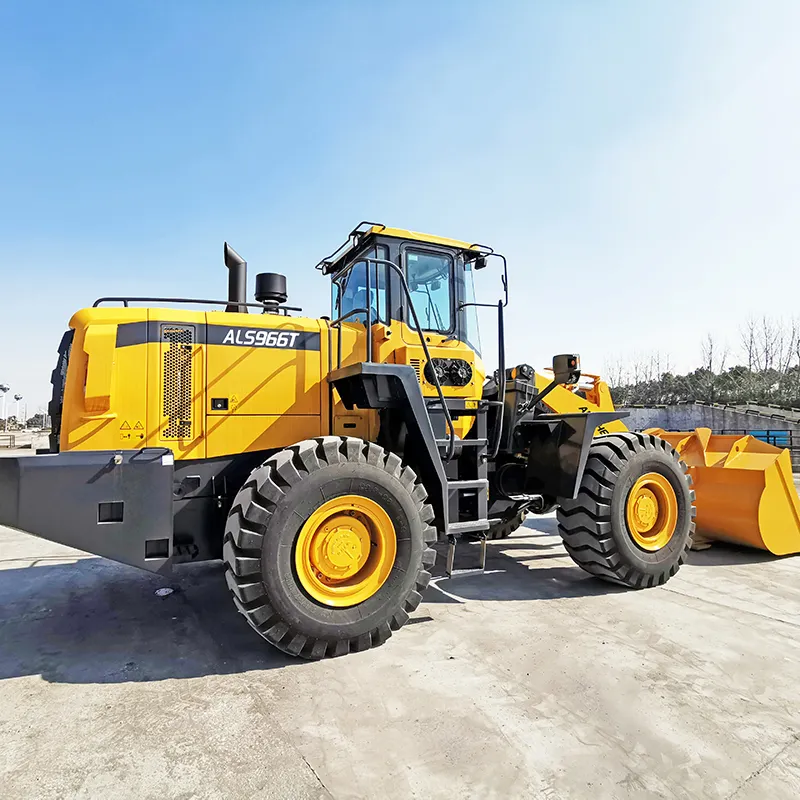

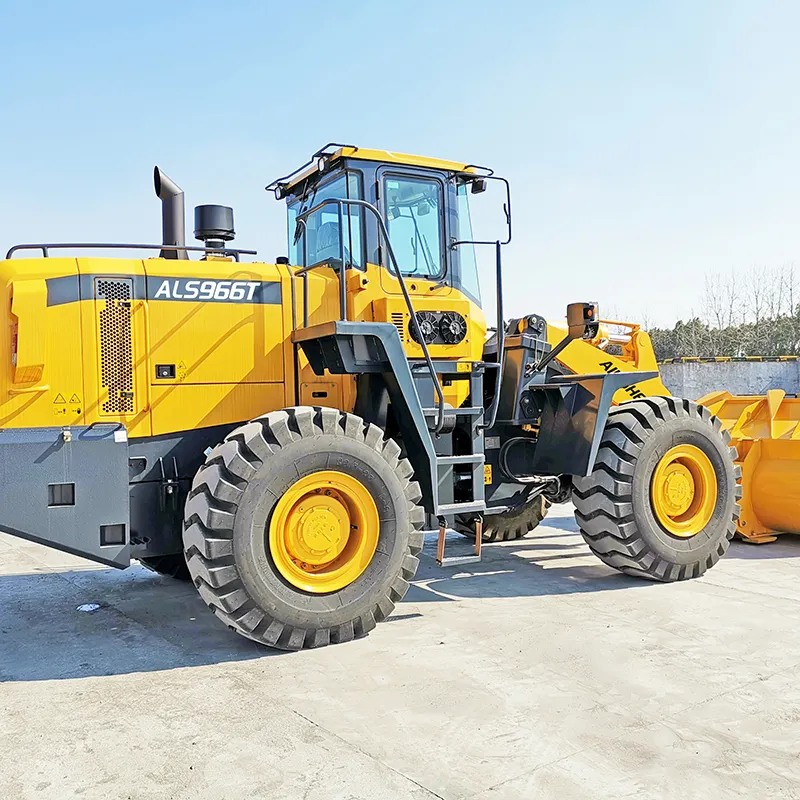

ALS966T Specification
|
||
1 |
Length(with bucket on ground) |
8714(mm) |
2 |
Width(to outside of wheels) |
2900(mm) |
3 |
Bucket width |
3048(mm) |
4 |
Height(To the top of the cab) |
3550(mm) |
5 |
Wheel base |
3300(mm) |
6 |
Min. ground clearance |
498(mm) |
|
||
1 |
Rated load |
6000(Kg) |
2 |
Operating weight |
19500KG |
3 |
Rated bucket capacity |
3.7(m3),Optional 2.6-5.0 (m3) |
4 |
Max. dump clearance |
3393(mm) |
5 |
Dump reach |
1365(mm) |
6 |
Min. turning radius(wheel) |
6240(mm) |
|
||
1 |
Model |
ShangChai SC11CB240.1G2B1 |
2 |
Type |
Direct injection. |
3 |
Rated output |
175 (kW) |
5 |
Total exhaust of cylinder |
10.5(L) |
9 |
Rated speed |
2200(r/min) |
10 |
Max. Torque |
912(N.M)@1400 r/min |
|
||
1 |
Model |
ZF4BP210 |
2 |
Type |
3-elements single stage |
3 |
Gear shift position |
4F/3 R |
4 |
Speed(F/R) |
6.6/6.6,11.8/11.8,24.1/24.1,38.6 |
5 |
Max. drawing force |
180kN |
6 |
Size of tire |
23.5-25-20PR |
|
||
1 |
System pressure |
20MPa |
|
||
1 |
System pressure |
16MPa |
|
||
1 |
Type of traveling brake |
Caliper disc brake |
2 |
Air pressure |
6-7.5(kgf/cm2) |
3 |
Type of parking brake |
Manual control cutting-off air brake |
|
||
1 |
Fuel(diesel) |
350(L) |
2 |
Oil for hydraulic system |
245(L) |
Product features
(1) The innovative design of the main frame hinge adopts a "matched" tapered roller bearing structure, which increases the contact area and ensures the reliability of the hinge even under harsh working conditions;
(2) The ZF 4WG200 dual-range system is adopted, with an electric-hydraulic power shift constant-axis gearbox that can achieve forced deceleration. It has simple and safe operation, and high work efficiency;
(3) A small-displacement steering gear and a low-pressure Load Sensing Full Hydraulic Flow Amplification Valve Steering System are used, making the steering wheel easy to operate, flexible, and greatly reducing labor intensity. The steering wheel adopts adjustable devices for more comfortable and convenient operation;
( 4) Based on simulation, emulation, and test verification, an innovatively designed split heat dissipation hydraulic system is developed, which can ensure proper and sufficient heat dissipation for the entire hydraulic system under any working condition, improving the efficiency of the radiator and the reliability of the hydraulic system;
(5)The T series has a large door opening design for the exterior shroud, with both the front inlet and rear outlet of the radiator openable. The new cab upgrade features superior sealing, resulting in significantly lower noise levels than national standards;
(6) The entire vehicle's relays and fuse boxes are centrally arranged, with grease fittings for the working device led to the side of the frame and pressure measuring ports located at the front of the auxiliary box. These user-friendly designs make maintenance and repair easier.
