Product details of the small wheeled excavator
Quick Detail
The raw materials utilized in the AILISHENG Construction Equipment small wheeled excavator are acquired from specialized suppliers. It has reliable quality and stable performance. The markets of Xiamen Ailisheng Intelligent Equipment Co.,Ltd are expanded to many countries and regions around the world.
Product Description
Supported by advanced technology, our small wheeled excavator has a greater breakthrough in the comprehensive competitiveness of the products, as shown in the following aspects.

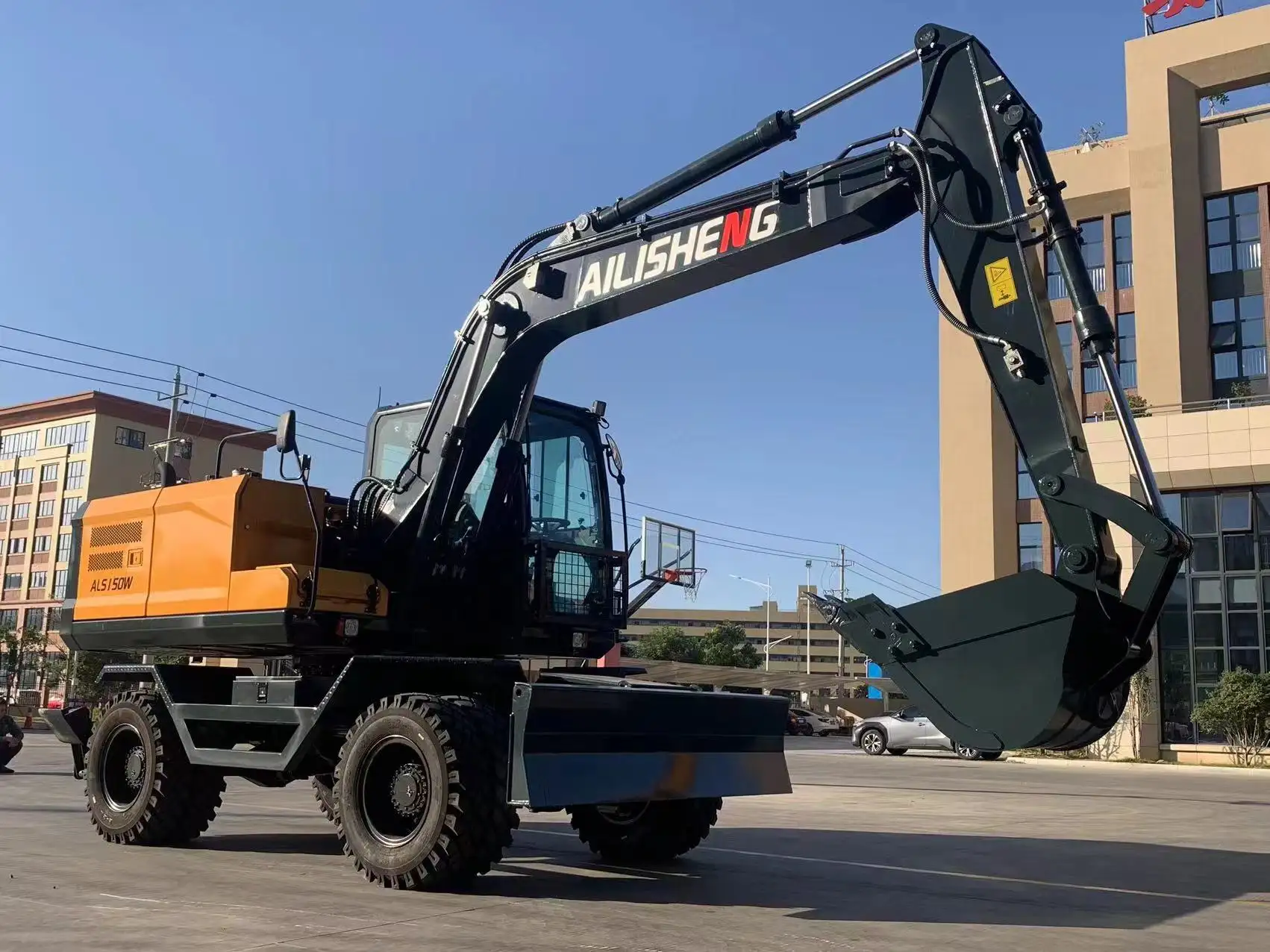

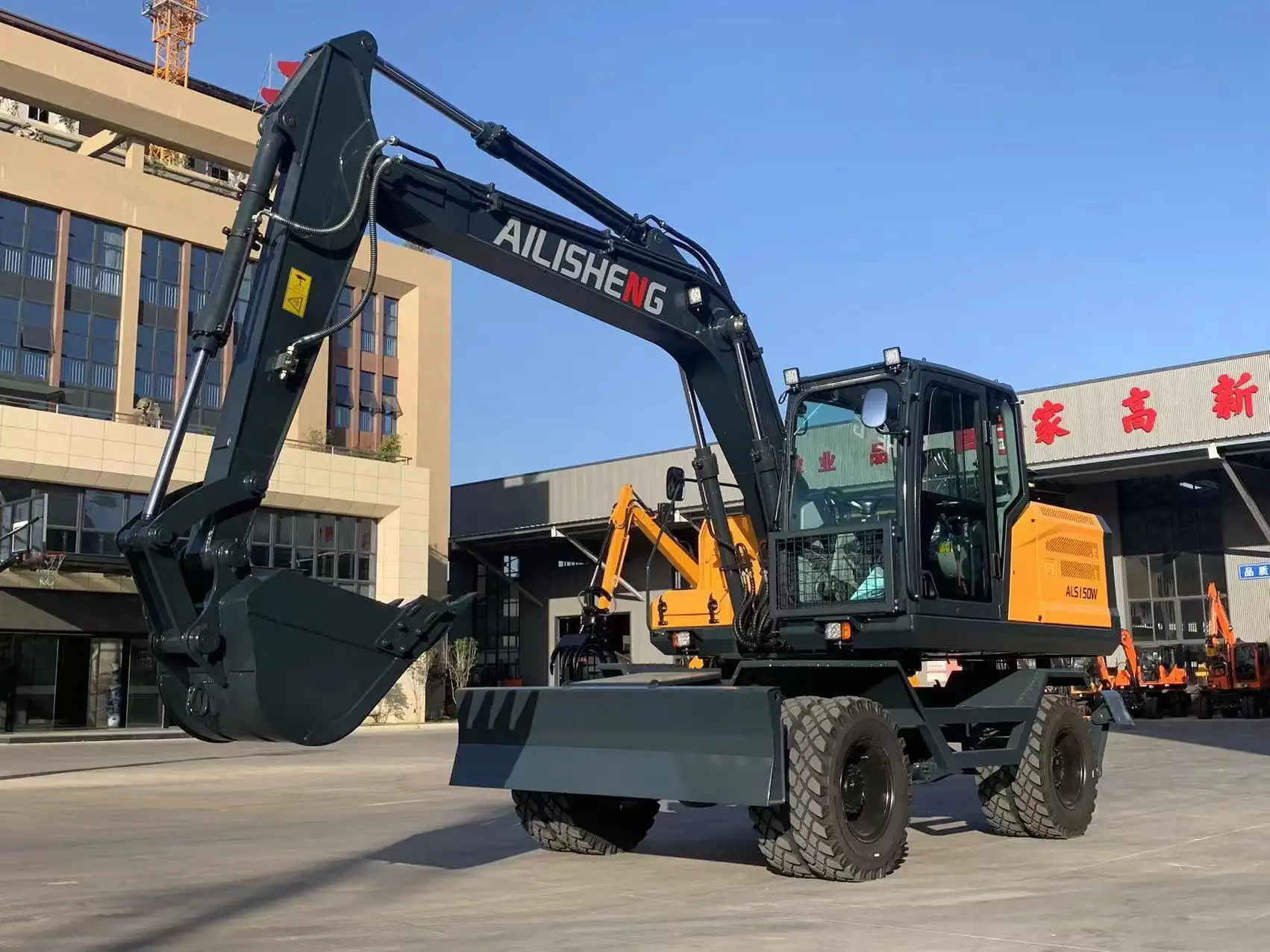

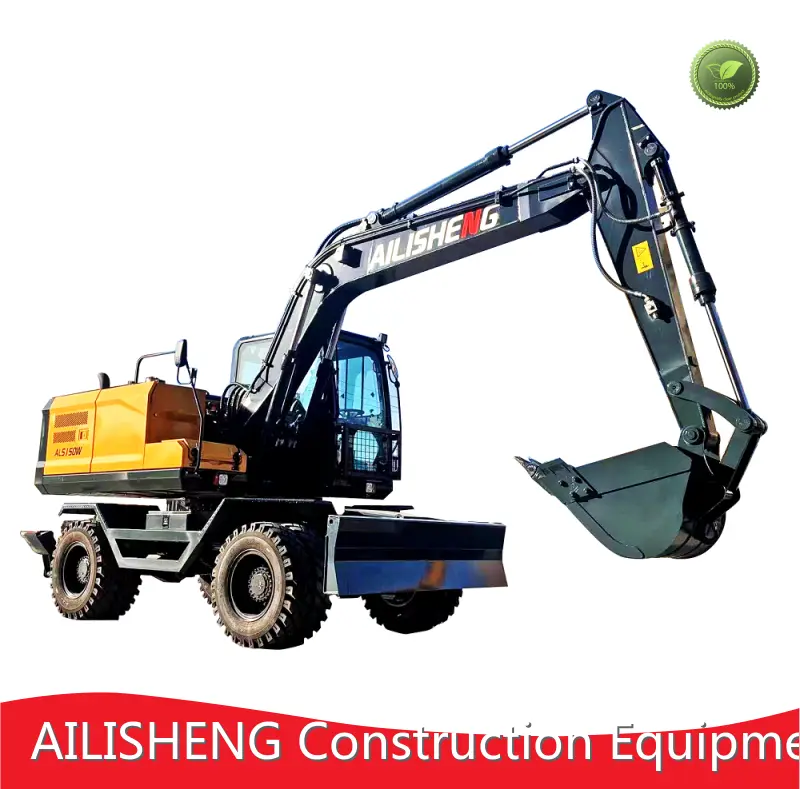

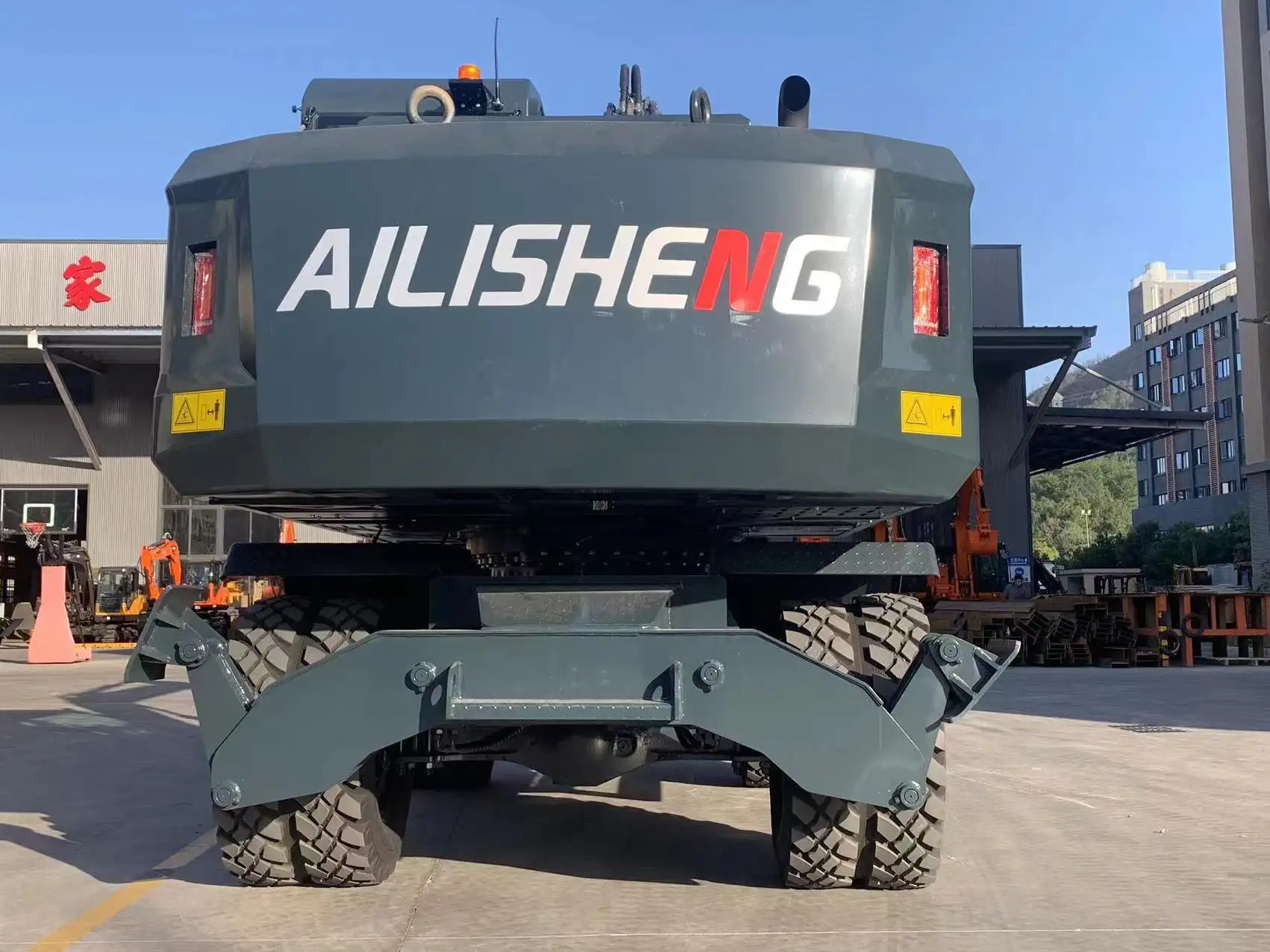

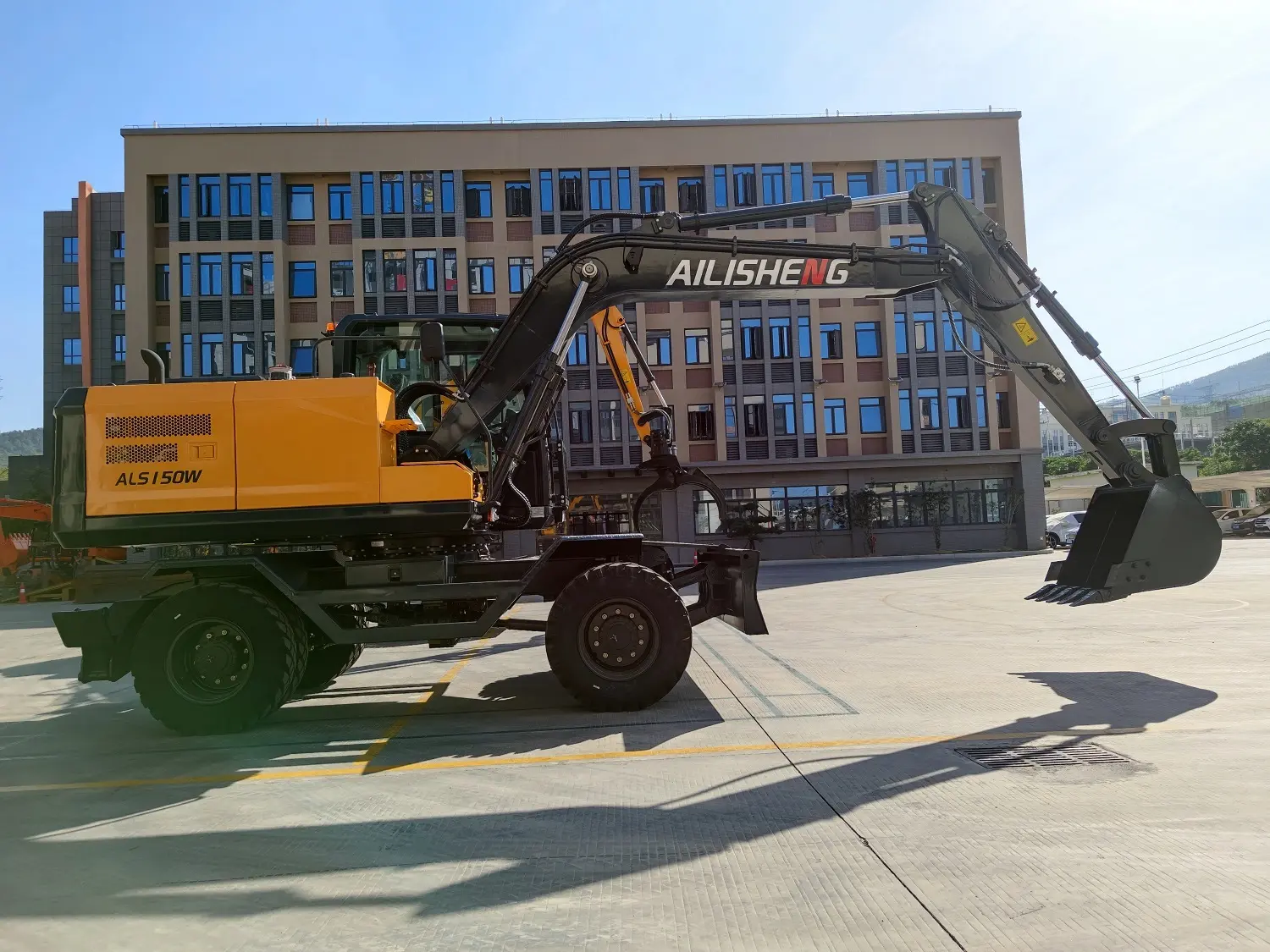

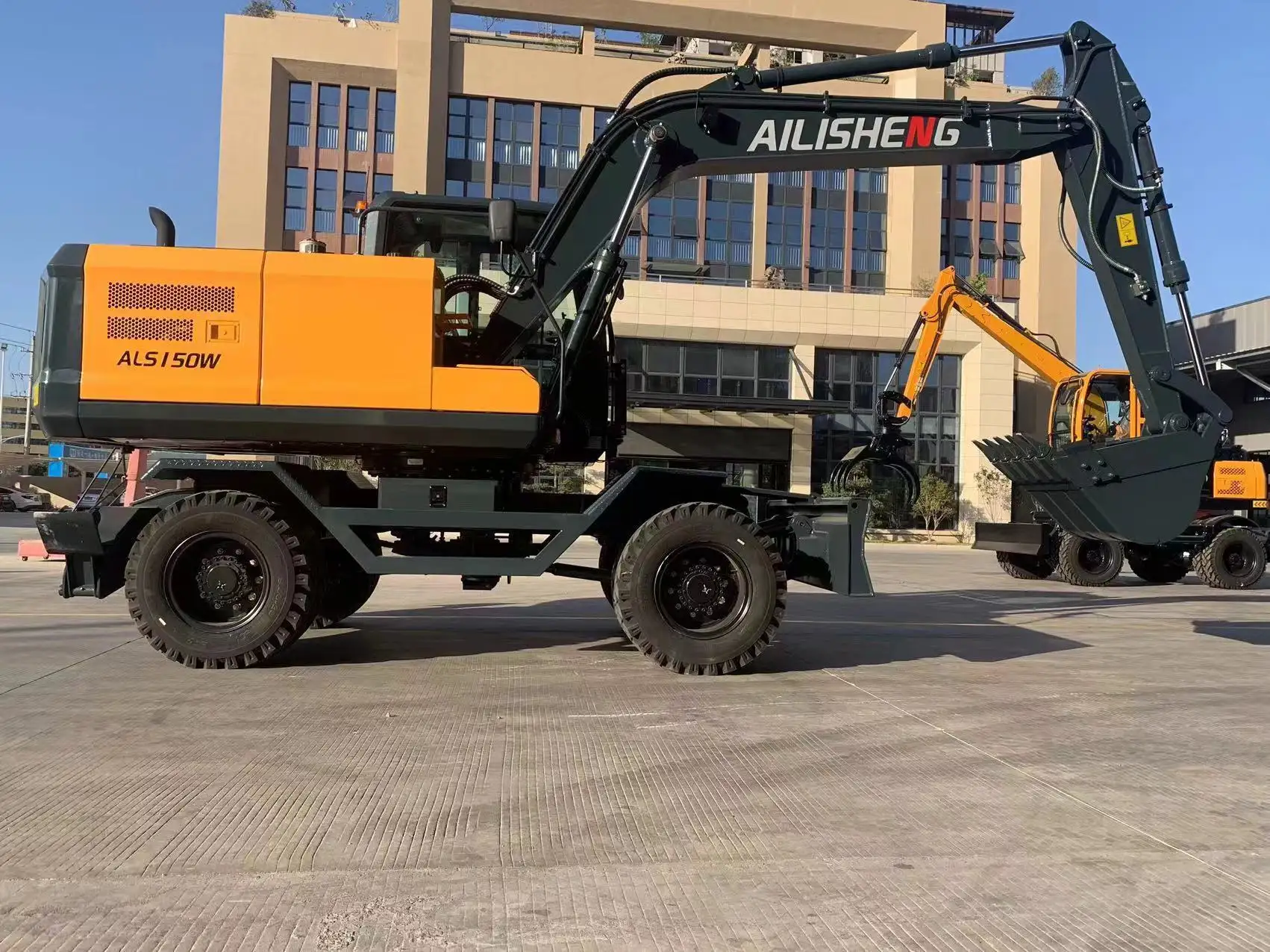

The hydraulic automatic transmission ensures a fast and quick movement. ALS150W wheel excavators has strong power, fuel-saving, and high-efficiency characteristics and is widely used in various mines and medium-scale municipal projects.
High-efficiency InLine hydraulic system
The internationally renowned hydraulic system and intelligent electronic control system greatly improve the product's working efficiency, with stable performance, soft operation and reliable quality. The overall performance of the hydraulic system is reasonably matched with the output power of the engine, which significantly reduces energy loss.
High reliability Cummins engine
Using the well-proven Cummins 6BT5.9-C130 engine, it has abundant power and good durability and is suitable for fuel in general areas with high fuel economy. Perfect matching of engine and pump power, low fuel consumption, low emissions, and low cost.
Multiple oil filter systems and air filters provide tighter protection and more convenient maintenance.
Luxury cab
Adhering to Ailisheng's driver-centered design concept, with comfortable operation, wide field of vision and low noise. It has an air-conditioning system that meets the operation's needs and a multi-functional LCD instrument panel to improve the comfort and convenience of the operation.
Strengthening the structure: Ensure the reliability and durability of the excavators.
The heavy-duty boom and arm with better installation durability, use cast steel products to increase the strength, and increase the endurance life by 1.5 times.
The travel and swinging motors are designed by International top brand to enhance durability.
High efficiency working perfomance: The potent power output and Ailisheng's unique intelligent control system and intelligent power control technology ensure efficient operation and reduce fuel consumption.
The main frame and boom are equipped with LED work headlights as standard: significantly improving the driver's night work vision and improving night work efficiency and safety.
Maintainability: The distribution of maintenance parts is reasonably designed, and daily inspections can be easily performed on the ground.
Service: Our commitment to total customer satisfaction extends worldwide. To keep your machine and business up and running with Ailisheng uptime services that are proven to cut repair costs and unplanned downtime. Ailisheng always takes customer needs as the starting point and provides customers with a full range of services, including maintenance, repair, accessories, and value-added care.
Application range: mining, general engineering, municipal engineering, road engineering.
| Specifications | Unit |
ALS150W |
|
Operating weight |
kg |
13500 |
|
Bucket capicity |
m3 |
0.5 |
|
Engine model |
|
6BT5.9-C130 |
|
Rated power |
KW |
97 |
|
Rated sped |
r/min |
2200 |
|
Working pressure |
Mpa |
32 |
|
Hydraulic system flow |
L/min |
280 |
|
Max. traction |
KN |
76.5 |
|
Max. travel speed |
km/h |
30 |
|
Climbing ability |
%/° |
58/30 |
|
Boom |
mm |
4500 |
|
Arm |
mm |
2200 |
|
Max. digging distance |
mm |
8050 |
|
Max. digging depth |
mm |
4900 |
|
Max. digging force |
KN |
90 |
|
Max digging height |
mm |
8750 |
|
Max. dumping height |
mm |
6150 |
|
Max. rear swing radius |
mm |
2250 |
|
Transportion dimensions(LxWxH) |
mm |
7500*2500*3000 |
|
Wheelbase |
mm |
2750 |
|
Tread |
mm |
1900 |
|
C/W ground clearance |
mm |
1260 |
|
Min. ground clearance |
mm |
310 |
|
Tires type |
|
9.00-20 |
|
Fuel tank capacity |
L |
240 |
|
Hydraulic tank capacity |
L |
200 |
