Product details of the electric construction equipment
Product Overview
The design of AILISHENG Construction Equipment electric construction equipment is a combination of aesthetics and functionality. The additional functions of AILISHENG Construction Equipment product deliver more economic benefits to customers. AILISHENG Construction Equipment's electric construction equipment is widely applicable in the industry. The new facility of Xiamen Ailisheng Intelligent Equipment Co.,Ltd includes a world class test and development facility.
Product Introduction
In the production process of electric construction equipment, we carefully polish the details, so as to strive for perfect quality.

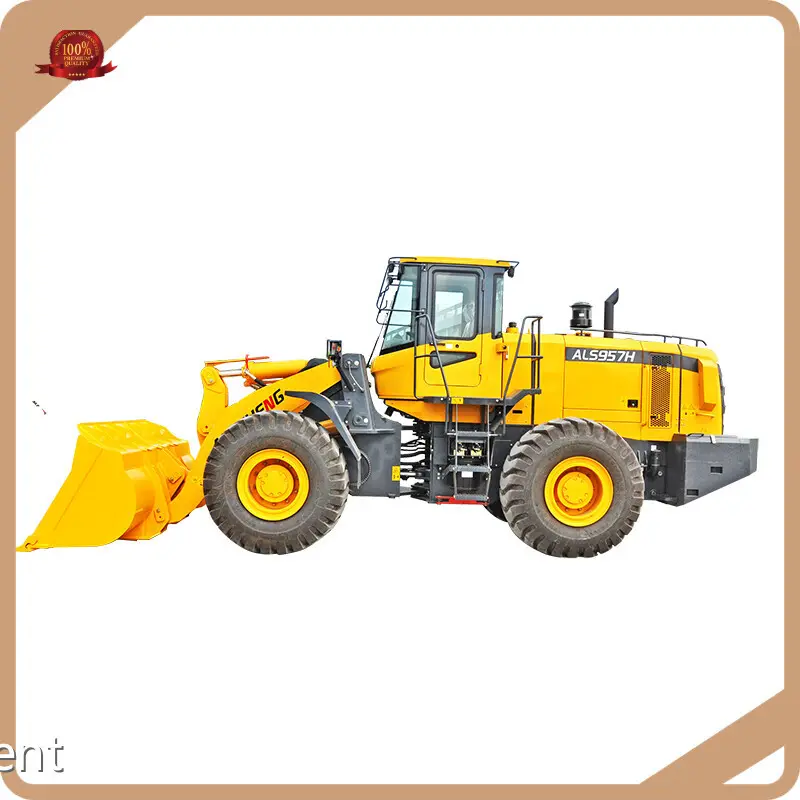

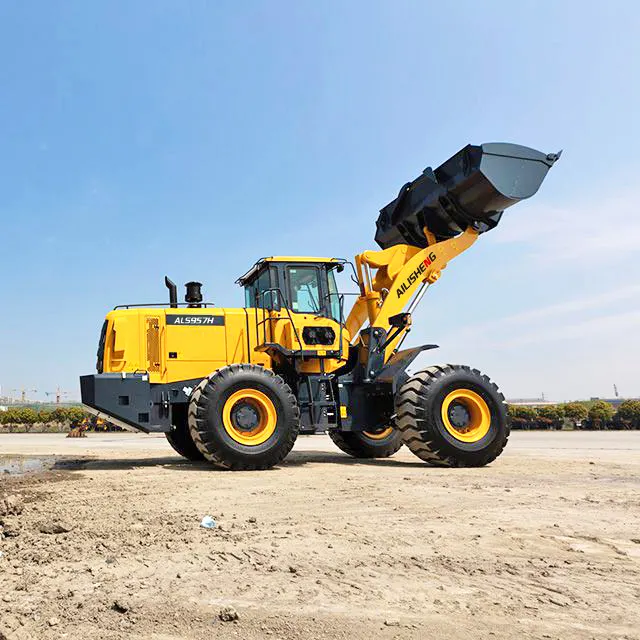

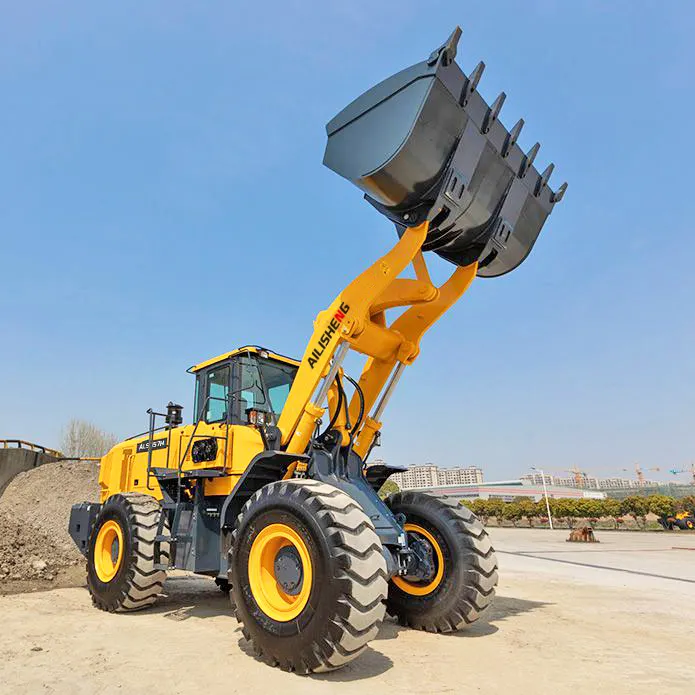

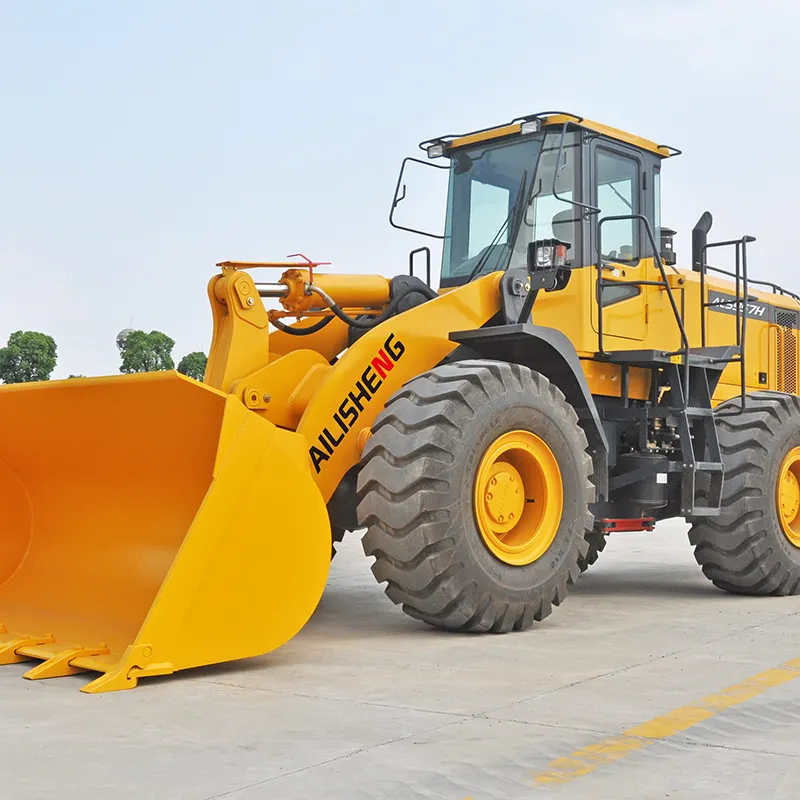

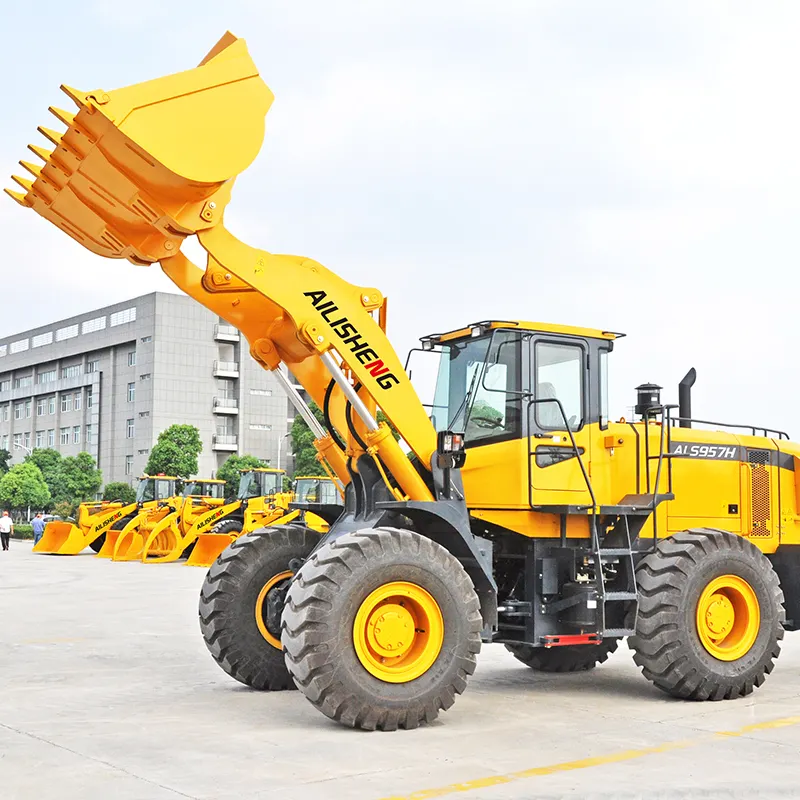

ALS957H Specification
|
||||
1 |
Length(with bucket on ground) |
8390(mm) |
||
2 |
Width(to outside of wheels) |
2800(mm) |
||
3 |
Bucket width |
2946(mm) |
||
4 |
Height(To the top of the cab) |
3450(mm) |
||
5 |
Wheel base |
3300(mm) |
||
6 |
Min. ground clearance |
450(mm) |
||
|
||||
1 |
Rated load |
5000(Kg) |
||
2 |
Operating weight |
17300KG |
||
3 |
Rated bucket capacity |
3.1(m3),Option2.2-4.5 (m3) |
||
4 |
Max. dump clearance |
3136(mm) |
||
5 |
Dump reach |
1121(mm) |
||
6 |
Min. turning radius(wheel) |
6192(mm) |
||
|
||||
1 |
Model |
Cummins 6LTAA 9.3 |
ShangChai SC11CB220G2B1 |
|
2 |
Type |
Direct injection. |
||
3 |
Rated output |
162 (kW) |
||
5 |
Total exhaust of cylinder |
9.3 (L) |
10.5(L) |
|
9 |
Rated speed |
2200(r/min) |
||
10 |
Max. Torque |
940(N.M)@1400 rpm |
843(N.M)@1400 rpm |
|
|
||||
1 |
Model |
CHANGLIN 957H.4C |
||
2 |
Type |
Power shift |
||
3 |
Gear shift position |
3 F/3 R |
||
4 |
Speed(F/R) |
6.8/8,10.8/14.3,32/34.1 |
||
5 |
Max. drawing force |
160kN |
||
6 |
Size of tire |
23.5-25-16PR |
||
|
||||
1 |
System pressure |
18MPa |
||
|
||||
1 |
System pressure |
16MPa |
||
|
||||
1 |
Type of traveling brake |
Caliper disc brake |
||
2 |
Air pressure |
6-7.5(kgf/cm2) |
||
3 |
Type of parking brake |
Caliper disc brake |
||
|
||||
1 |
Fuel(diesel) |
280(L) |
||
2 |
Oil for hydraulic system |
230(L) |
Performance Features
The hydraulic system adopts dual pump parallel flow, innovatively introduces a split cooling system to increase cooling flow and reduce the hydraulic oil temperature below 85℃;
T series appearance protective cover has a large door design, and the front air inlet of the radiator and the rear air outlet can be opened. The new cab upgrade has strong sealing, and the overall noise of the machine is much lower than the national standard;
The whole vehicle relay and fuse box are centralized, and the working device's grease nozzle is led to the side of the frame, and the pressure measuring port is arranged in the front of the auxiliary box and other humanized designs, making maintenance and repair more convenient.
