Product details of the compact articulated wheel loader
Product Information
Advanced production technology is utilized to manufacture AILISHENG Construction Equipment compact articulated wheel loader in accordance with international standards. All indicators of this product meet the requirements of international quality indicators. Xiamen Ailisheng Intelligent Equipment Co.,Ltd has won the regular customers' support and trust because of our rich experience in compact articulated wheel loader.

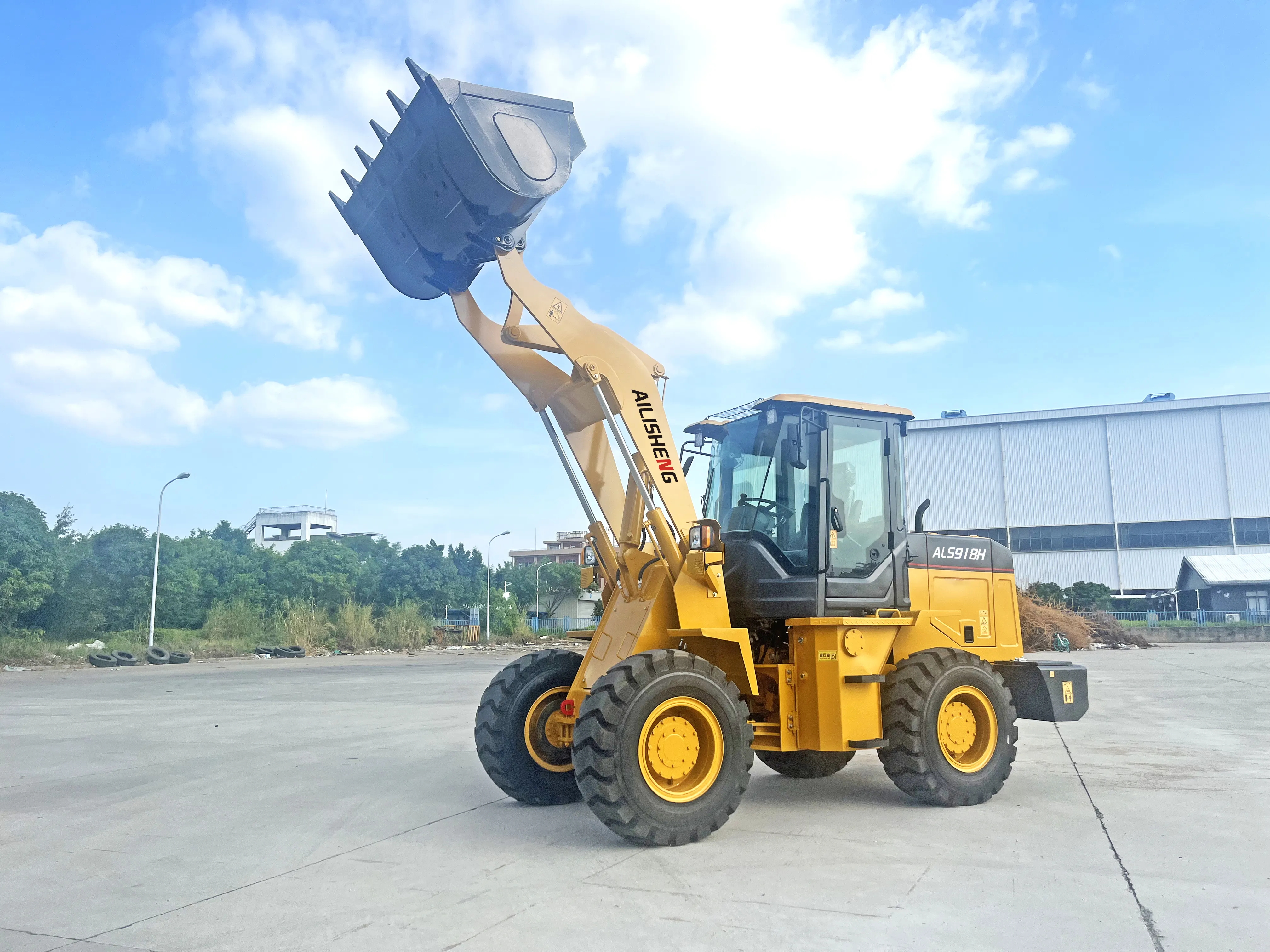

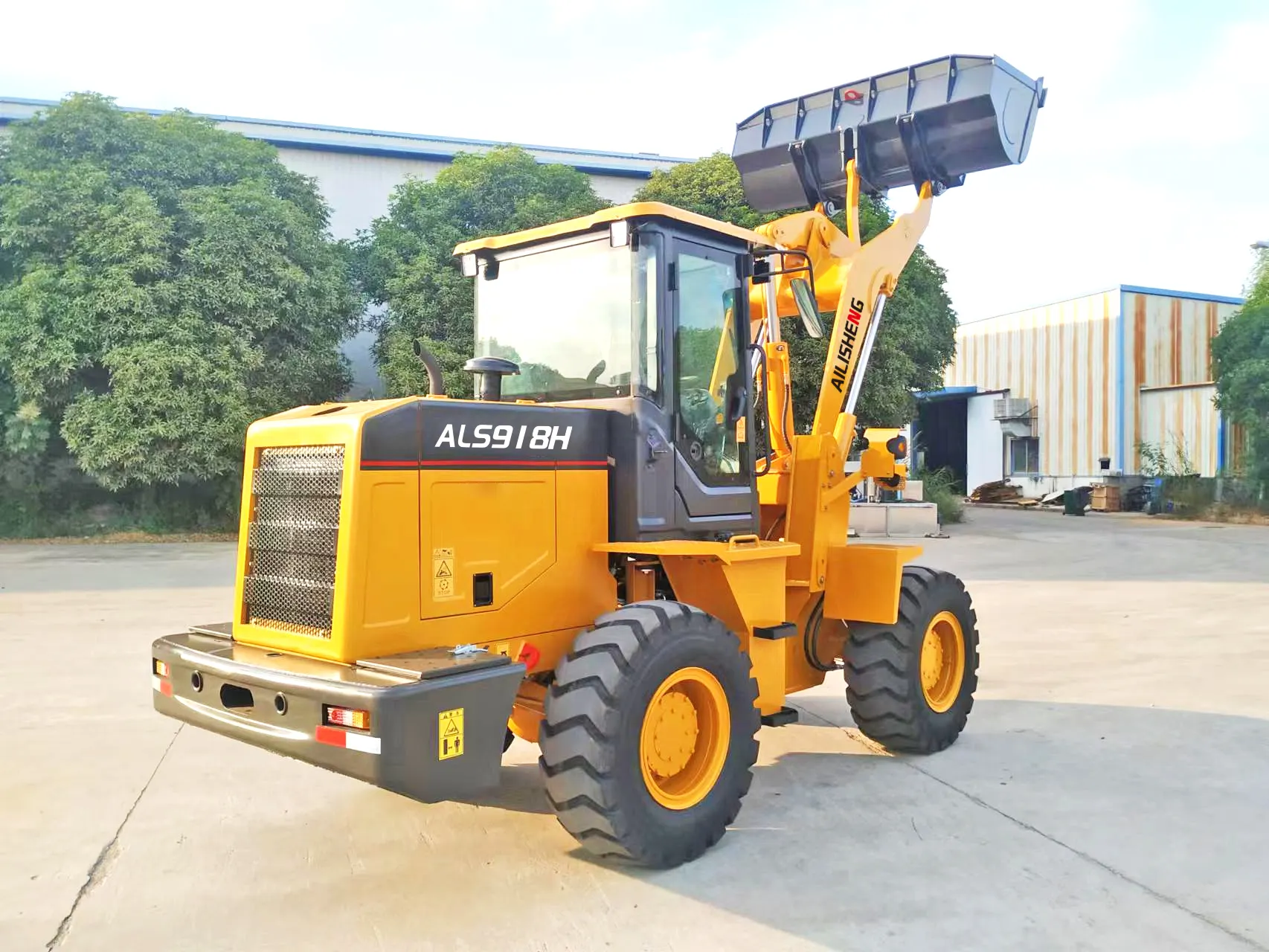

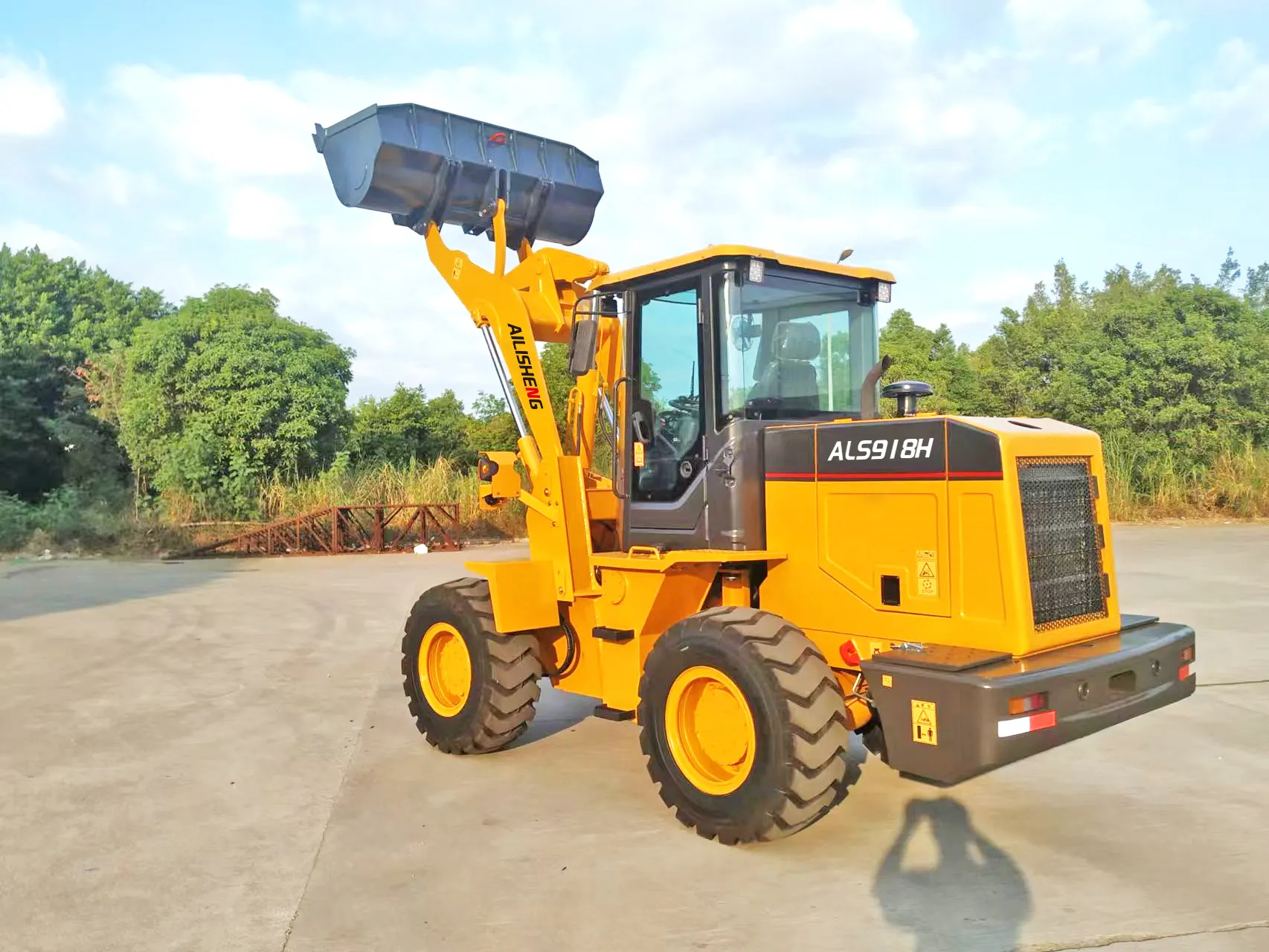

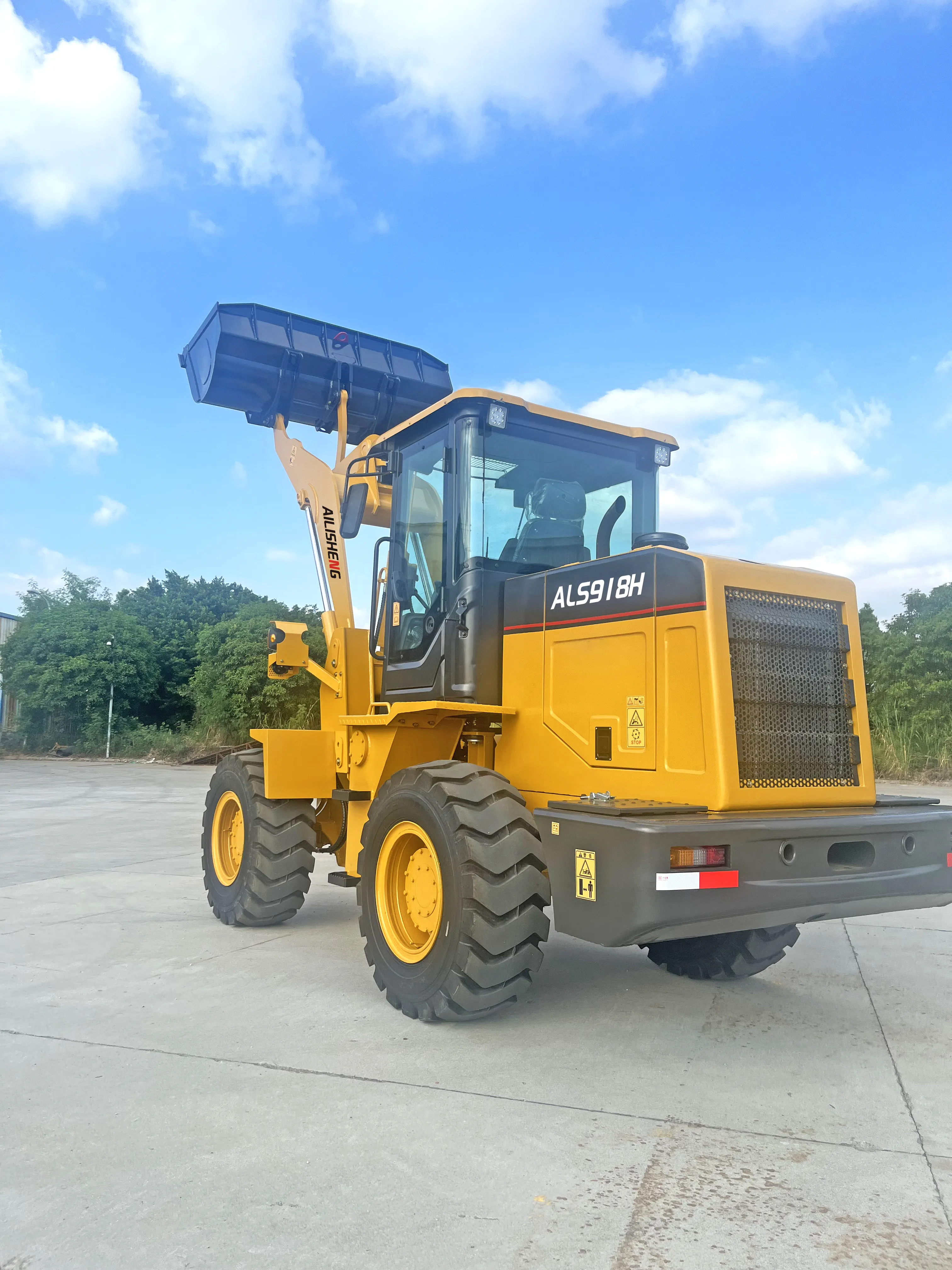

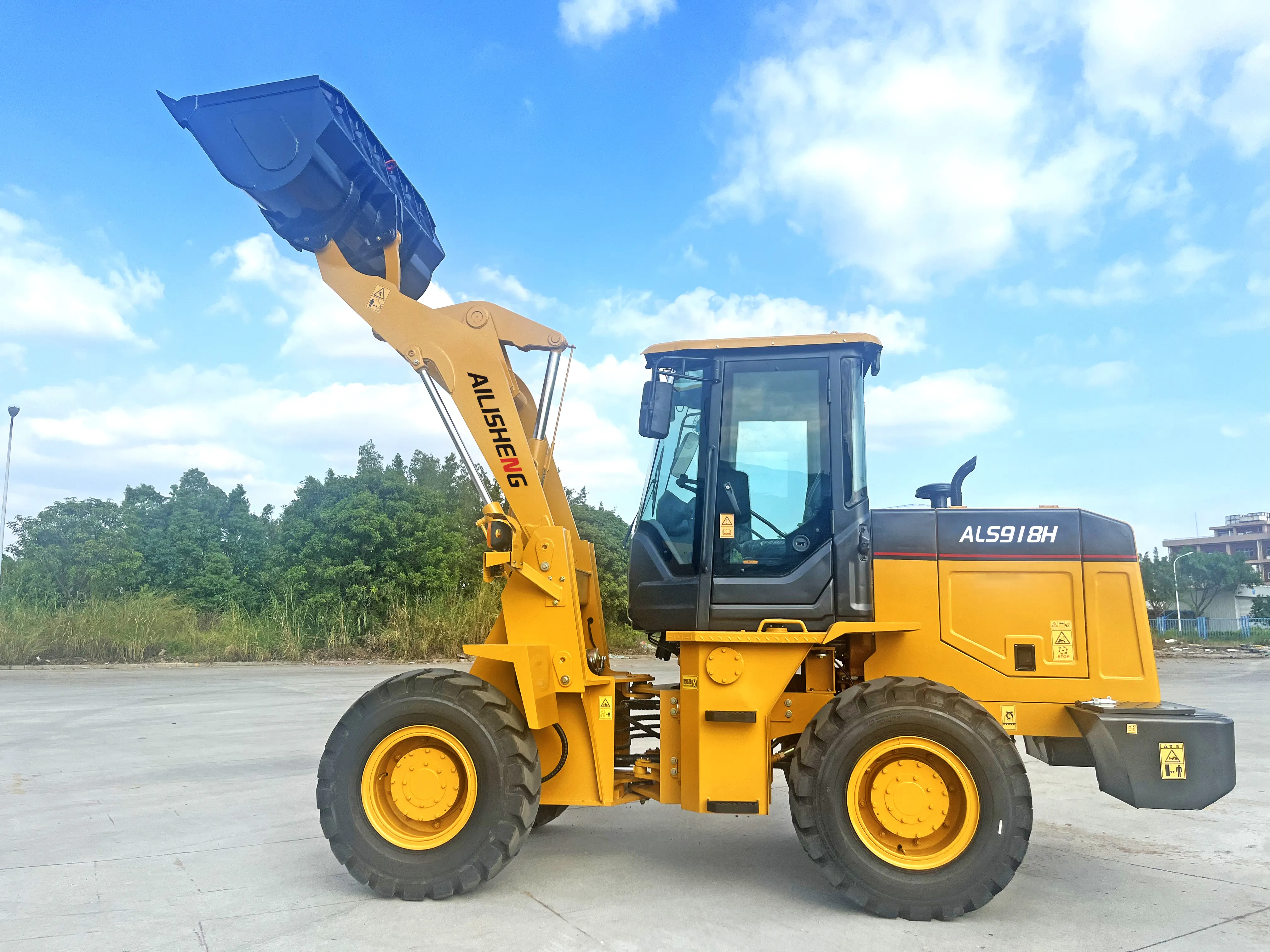

ALS918H Specification
| ALS918H Wheel Loader Main parameters | |
| overall length | 5630mm |
| overall width | 2000mm |
| overall height | 2850mm |
| wheel base | 2350mm |
| wheel track | 1450mm |
| Minimum Ground Clearance | 230mm |
| Main Performance parameters | |
| Rated load | 1800kg |
| bucket capacity | 1.0m³ |
| operating weight | 5800kg |
| speed forward I | 0-9Km/h |
| speed forward II | 0-23Km/h |
| speed backward I | 0-9Km/h |
| speed backward II | 0-23Km/h |
| maximum traction force | ≥50kn |
| gradeability | 30° |
| max dumping angle at full height | 43° |
| dumping height | ≥2650mm |
| dumping reach at max height | ≥980mm |
| bucket turning angle | |
| max tilt angle at ground level | 48.5 |
| max tilt angle at max height | 48.5 |
| Bucket high position automatic leveling performance | Yes |
| digging force | ≥45.4kn |
| lifting and lowering time | ≤6.5s |
| H turning radius at outside of tire | 4800mm |
| H` turning radius at outer edge of bucket | 5190mm |
| N steering angle | 35° |
| departure angle | 10° |
| engine | |
| engine mode | YTO II |
| Rated power | 60KW |
| rated speed | 2200r/min |
| Max. torque | 275N.m |
| Transmission system | |
| torque | |
| model | YJ280-4D(Three-element single-stage centripetal turbine) |
| type | three element, single-stage twin turbo |
| circle diameter | 280mm |
| torque ratio | K=3.43 |
| cooling method | air cooling |
| inlet pressure | 0.6-0.65MPa |
| outlet pressure | 1.3-1.5MPa |
| transmission | |
| model | BD05N2 |
| type | counter shaft power shaft |
| gear | 2F/2R |
| transmission ratio | forward |
| forward I | 2.1544-2.47 |
| forward II | 0.7681-0.88 |
| backward I | 2.2072 |
| backward II | 2.52 |
| oil pressure | 1.2-1.5MPa |
| flow rate | 25ml/r |
| front and rear axle | |
| ratio | 6.7 |
| wheel speed reduction | equipped |
| type | 一one-stage planetary reduction |
| tires | |
| tire specs | 16\70-20 |
| tire pressure | Front 0.3-0.32MPa，rear 0.28-0.30MPa |
| braking system | |
| foot brake | oil disc four wheel brake |
| brake pressure | 786-855KPa |
| hand brake | caliper disc brake |
| steering system | |
| system pressure | 14MPa |
| max turning angle | 35 (both side) |
| working system | |
| system pressure | 16MPa |
| fueling capacity | |
| diesel | 100L |
| engine oil | 15L |
| transmission/torque | 28-30L |
| transmission oil tank | 100L |
| driving axle gear oil | 14L front and rear 14L |
| storage battery | 60QA-70（2）60QA-70 (2units) |
AILISHENG Construction Equipment strives to build state-of-the-art earthmoving equipment to give every operator maximum performance, more precision, and versatile machine preferences.
Quality Compact Wheel Loaders AILISHENG Mini Compact Wheel Loaders ALS918H compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.AILISHENG summarizes the defects of past products and continuously improves them. The specifications of Quality Compact Wheel Loaders AILISHENG Mini Compact Wheel Loaders ALS918H can be customized according to your needs.
Specifications:
1. SAFETY-FIRST DESIGN
The advanced mechanism combination realizes high-level safety during of operation.
2. OPERATING COST REDUCED
With integrated check spots, the components are very durable to operate and the maintenance cost is reduced.
l Cover Back Tipping
l Clear Pipelines Layout
l Detachable cabin meets the demand of different working environments
l Oil tank is turnable for easy daily maintenance.
3. ENHANCED DURABILITY
The constant quality improvement enhances the machine durability and enables long-time continuous work!
High-Efficient Drive System
3.1. Reliable engine
Engines of a famous domestic brand are used to guarantee great power, big torque reserve, low oil consumption, low noise, and reliable performance.
3.2. Durable transmission & torque converter.
Fixed shaft power shift transmission has a compact structure and high transmission efficiency.
3.3. Axle
ALS918H specialized 20 driving axles with big modules and high reliability. It can stand the test of years of high-duty operation in mines.
3.4.Boom- Reliable & Excellent Performance
The dumping height reaches 2650mm, this can be equal to a 3-ton wheel loader. The function of material auto leveling improves working efficiency. The digging force reaches 65kN, which is 16% bigger than the other counterparts.
3.5 Strong Chassis
The section shows truck-type frame is thickened and strengthened to resist the torque force and improve durability. The central pin interval relatively wide also to improve the torque force resistance performance
4. EASY AND COMFORTABLE OPERATION
Operating a H Series wheel loader is unique to every operator. Operators can fully customize
their work environment and operating preferences to fit their individual needs.
