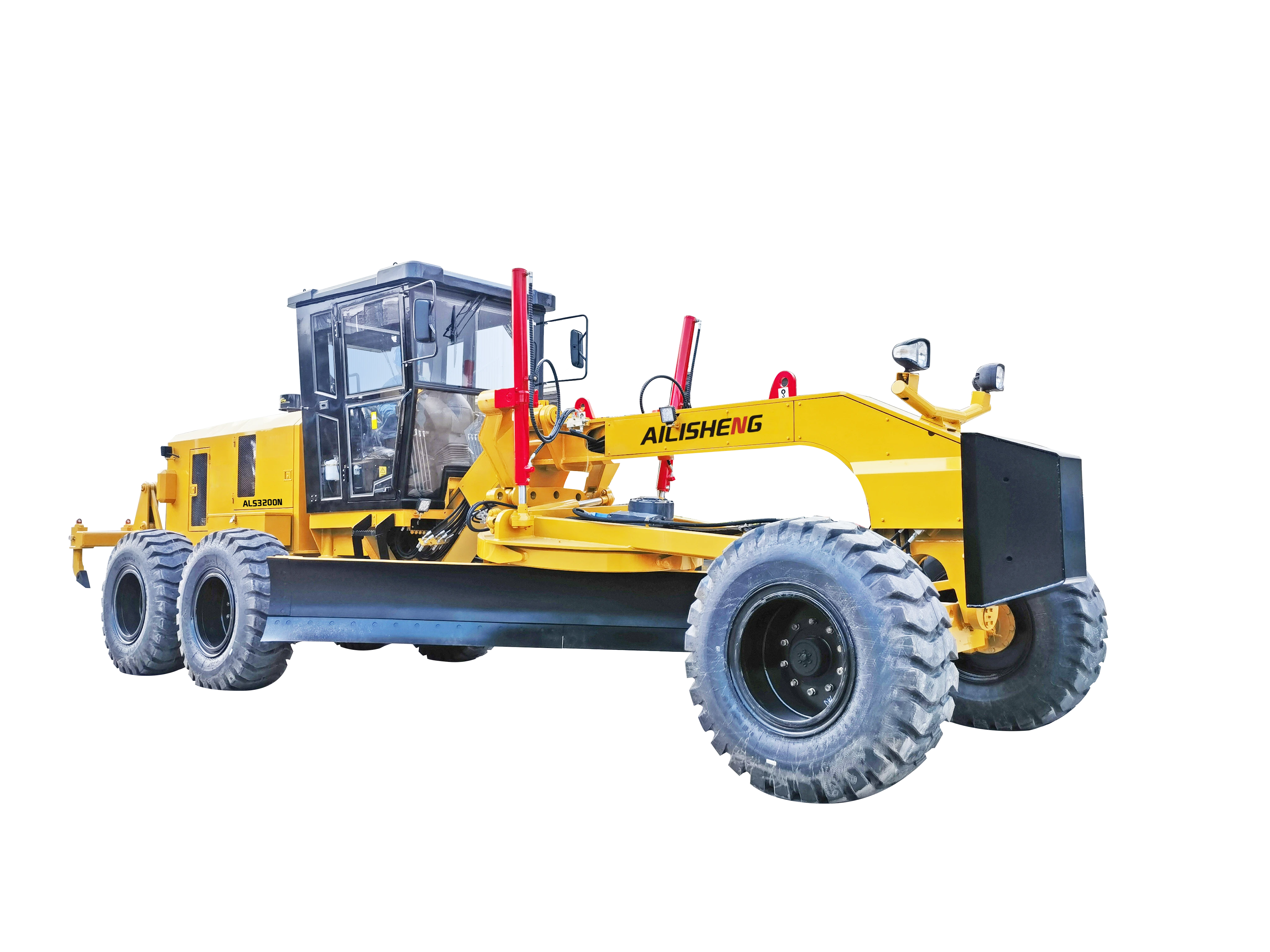

AILISHENG Motor Grader ALS3200N
Excellent Performance
● "Dual-pump and double-circuit open system completed with HUSCO&REXROTH hydraulic valves and EATON hydraulic locks, making the blade control more flexible and reliable.
● Equipped with special grader rear axle assembly, with built-in imported NO-SPIN differential.
● Equipped with the slewing gear ring and blade guide rail of new structure, facilitating the service and maintenance.
● Strong structural strength with the reinforced front axle.
● Streamline engine hood with a novel and unique shape ensures easy maintenance and heat dissipation.
● Multiple options of front bulldozer and rear ripper"
Specifications
Description | Unit | ALS3200N | |
Engine | Brand |
| Shangchai |
Model |
| SC9D220G2 | |
Rated power | kW/HP | 162/220 | |
Rated speed | rpm | 2200 | |
Blade | Height×String height | mm | 3965×610 |
Reversing angle | ° | 360 | |
Max. blade angle | ° | 90 | |
Cutting depth | mm | 500 | |
Drive type |
| Motor+Worm case | |
Front Axle | Wheel Lean Angle | ° | ±17 |
Steering Angle | ° | ±45 | |
Oscillation Angle | ° | ±15 | |
Ground Clearance | mm | 630 | |
Transmission | Type |
| Electrohydraulic gearshift |
Number of gears |
| F6/R3 | |
Forward speed | km/h | 5.1、8.7、11.4 | |
Reverse speed | km/h | 5.1、11.4、24.1 | |
Drive type |
| Rear-axle drive | |
Max. traction force | KN | ≮84 | |
Tire spec. |
| 17.5－25PR12 | |
Tire pressure | MPa | 0.26-0.28 | |
Basic Total Weight | kg | 16200 | |
System voltage |
| DC 24V | |
Max. gradeability | ° | 20 | |
Min. Turning Radius | mm | 8300 | |
Basic Overall Dimensions(L×W×H) | mm | 9400×2595×3390 | |
Full Overall Dimensions(L×W×H) | mm | 10850×2750×3390 | |
* The width for the optional attachment could be 2545mm. | |||
