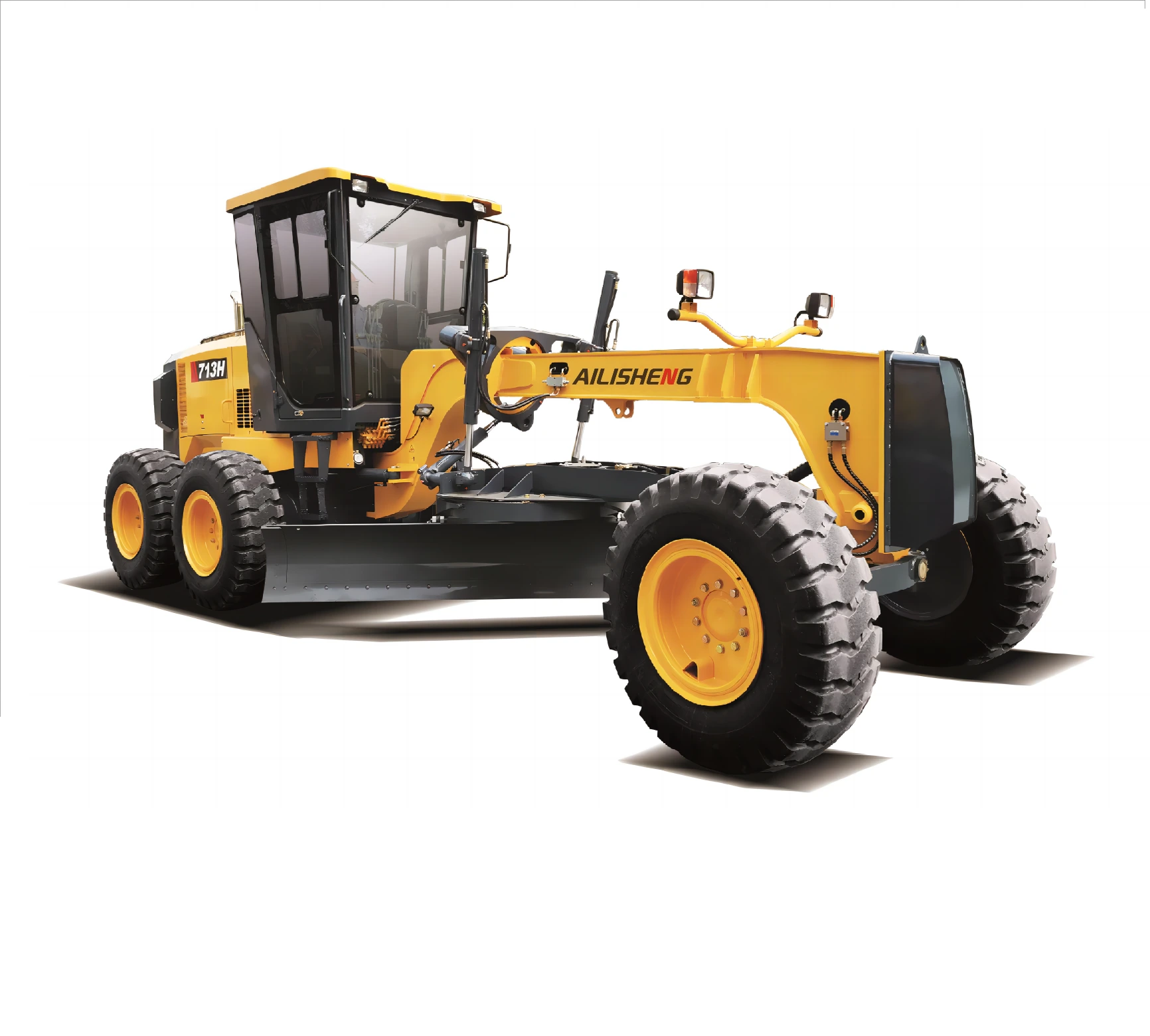

ALS713H MOTOR GRADER
Sing-handle electro-hydraulic controlled power-shift T/M, 6forward & 3reverse shifts makes operation easy and convenient.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Excellent Performance
· Sing-handle electro-hydraulic controlled power-shift T/M, 6forward & 3reverse shifts makes operation easy and convenient.
· Hydraulic lock, auto lock/unlock NO-SPIN（OPTIONAL） differential ensures stability and powerful traction.
· Ideal axle load allocation provides excellent stability while cutting hard surface.
· Serviceable, efficient hydraulic system enables every part to be fully used
· Reliable full hydraulic brake system ensures safety.
· Box-typed frame and advanced T/M enable it to complete heavy-duty work.
· A wide working range is accomplished through flexible blade suspension system and articulated frame.
Specifications
| Overall Dimension ALS713H | ||||||||||||
| 1 | Length | 8290mm | ||||||||||
| 2 | Width | 2600mm | ||||||||||
| 3 | Height(To the top of the cab) | 3465mm | ||||||||||
| 4 | Wheel base | 5780mm | ||||||||||
| 5 | Tread | 2120(mm) | ||||||||||
| 6 | Min. turning radius | 6.6（m） | ||||||||||
| Main Technical Specification | ||||||||||||
| 1 | Operating weight | 12000kg | ||||||||||
| 2 | Blade length | 3658mm | ||||||||||
| 3 | Blade height | 580mm | ||||||||||
| 4 | Shovel Blade thickness | 20mm | ||||||||||
| 5 | Max. lift above ground | 410mm | ||||||||||
| 6 | Max. grading depth | 560mm | ||||||||||
| 7 | Max. shoulder reach outside rear tire | 2000mm | ||||||||||
| 8 | Traveling speed(Km/h)，6 forward and 3 reverse | |||||||||||
| (1) forward | 6.9/10.7/17.3/26/37.8/53.4 | |||||||||||
| (2) reverse | 6.9/17.3/37.8 | |||||||||||
| Diesel engine | ||||||||||||
| 1 | Model | DongFeng Cummins 6BT5.9-C130 6BT5.9-C130 | ||||||||||
| 2 | Type | Direct injection. Turbocharged. Water cooling | ||||||||||
| 3 | Rated output | 97kW | ||||||||||
| 4 | Rated speed | 2200(r/min) | ||||||||||
| 5 | Max. Torque | 560(N.M)/1500rpm | ||||||||||
| Transmission case | ||||||||||||
| 1 | Model | YD13 （HANGCHI ADVANCE） | ||||||||||
| 2 | Type | power shift, single-shift lever, natural-shift lock device | ||||||||||
| 3 | Gear shift position | 6 Forward and 3 reverse gears | ||||||||||
| Axle and Tire | ||||||||||||
| 1 | Max. drawing force | 61.7KN（f=0.75） | ||||||||||
| 2 | Size of tire | 17.5-25-12PR(standard) | ||||||||||
| 13.00-24-12PR(optional) | ||||||||||||
| Working Device Hydraulic System | ||||||||||||
| 1 | System pressure | 17.5MPa | ||||||||||
| Steering System | ||||||||||||
| 1 | Type | Fore Tires deflexion | ||||||||||
| 2 | System pressure | 16MPa | ||||||||||
