Product features

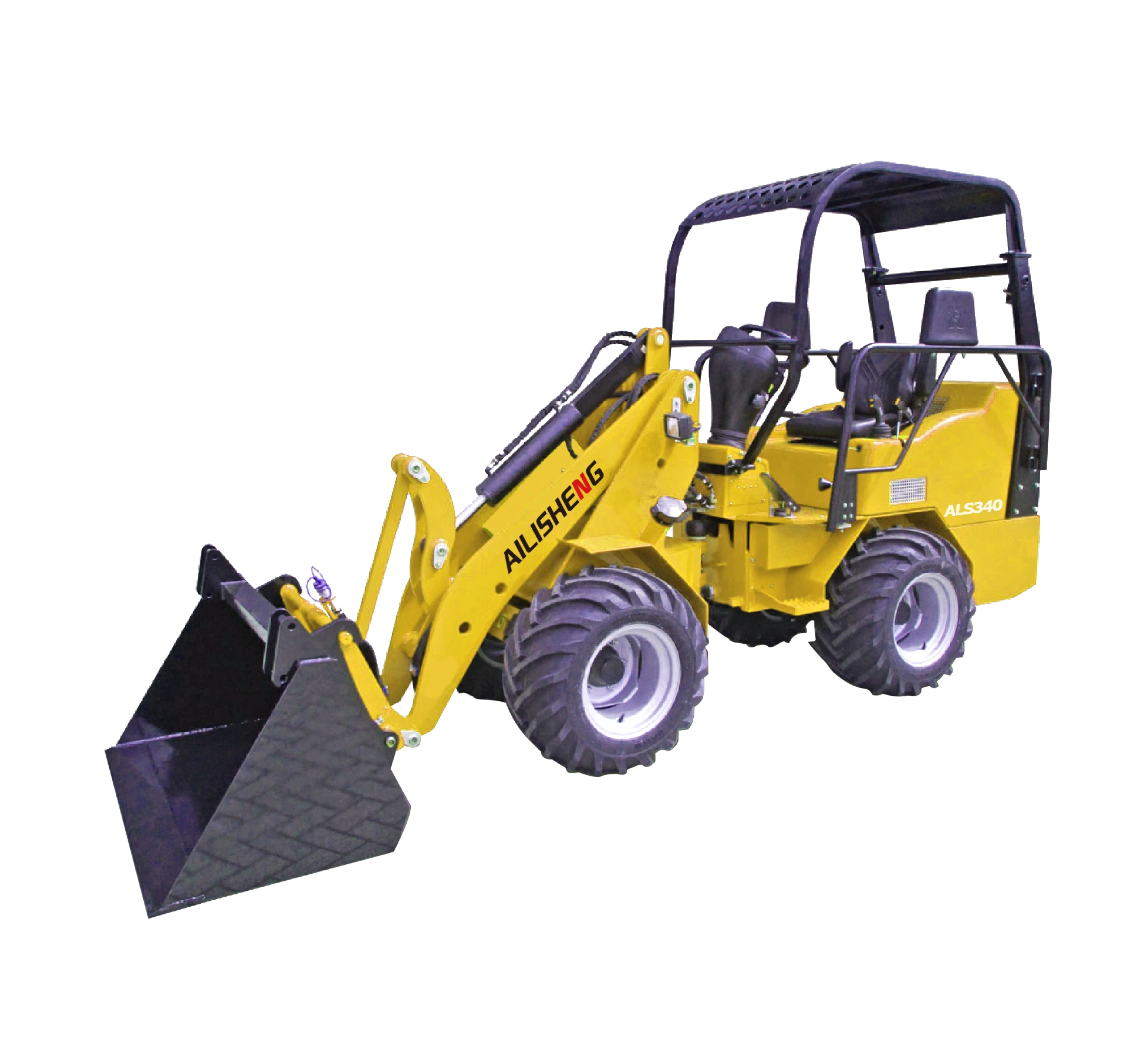

AILISHENG mini wheel loaders appears to be a compact wheel loader, which is a type of construction equipment used for loading and moving materials such as soil, sand, or gravel. It's suitable for smallscale construction projects, landscaping, and agricultural tasks where space is limited.
1. Rollbar/Overhead guard
The Rollbar/Overhead guardis a standard feature of Ailisheng machines, the machine meets the requirements of international .
2. Comfortable workplace
At Aiisheng operator convenience begins long before you even start your loader.Via the low climb you can safely and comfortably access your workplace from both sides. The driver's cab meets all requirements of an ergonomically designed workplace.
3. Operator's seat
Ailisheng ensures quick and easy access to the engine, the hydraulic and the electrical system. You can perform standard maintenance and control works on the spot yourself so that your machine will be immediately fit for operation again. This saves costs and increases the life cycle of your machine.
4. Securing vehicle power
Our loaders feature a battery cut-off switch, which is easily accessible. This helps you to separate the vehicle power from the battery and to protect your loader with a simple move against unauthorized use.
5. Easy and comfortable
Ailisheng has developed a sophisticated steering mechanism for you. With the ergonomically designed multi-function control stalk you can control the driving directions and the complete kinematics with one hand only. In this way you will not only be able to work precisely but also fatigue-free.
6. Adjustable steering column
The adjustable steering column is survivable and provides all the important data of the machinery to the operator. Pilot lamps and indication instruments supply more safety and view.
7. Robust hydraulic system
With the amply dimensioned cylinders the loader features a dump function with an enormous breaking load. The entire system has been designed in such a way to facilitate the quick loading and unloading of your cargo. As a result your working cycles will be shorter and you will be able to complete your tasks more effectively.
8. Hydraulic locking system
With their standard hydraulic locking system our loaders are extremely flexible when it comes to carrying out a great variety of different tasks. That will make your work easier and more comfortable. The accessories that can be changed without getting off turns your loader into a genuine multipurpose machine.
9. Perfected articulated steering
Thanks to the heavy duty ball-joints the articulated steering system ensures that the wheels of the loader will be firmly in touch with the ground and extremely flexible in any kind of territory. As the front and the rear end of the vehicle are swinging independently, they provide an optimal traction and can thus better respond to uneven territory.
10. Good stability
Because of their lower centre of gravity our loaders are secure and always have a good standing even under difficult conditions. This means that even when working on inclined or uneven territory you will always be firmly in touch with the ground and able to operate reliably.
11. Priority security
Needless to say, that all loaders comply with the safety refulations. We even take it a step further: Our loaders have properties that far beyond these requirements, they are approved. With our security concept we have created a wide-range solution to ensure your work under secure and reliable conditions.
Main Technical Data and Parameter
Engine date | ALS340 | |
Manufacturer | Kubota | |
Engine type | V1505-EF01 | |
Rated net power | kW | 18.5 |
At rpm | rpm | 2300 |
cooling | Vertical, water cooled, | |
4-cycle, diesel engine | ||
Electrical system | ||
Operating voltage | V | 12 |
Battery | Ah | 72 |
Generator | V , A | 12v,65A |
Weights | ||
Operating weight(standard) | kg | 2450 |
Max. Lift force | kN | 18 |
Tipping loads in bucket(according to ISO 8313) | ||
Lift frame horizontal/machine straight | kN | 11.3 |
Lift frame horizontal/machine articulated | kN | 9 |
Machine date | ||
Driving speed | km/h | 0-7,0-18 |
capacity of fuel tank | L | 65 |
Hydraulic oil | L | 40 |
Hydraulic system | ||
Hydraulic driving | ||
Output | L/min | 78.4 |
Working pressure | bar | 300 |
Hydraulic operation | ||
Output | L/min | 44.8 |
Working pressure | bar | 200 |
Hydraulic steering | ||
Output | L/min | 44.8 |
Working pressure | bar | 150 |
Dimensions | ALS340 | |
A Total length with standard bucket | 4330mm | |
A′Transport position vehicle length | 4260mm | |
Non-enclosed trailer height | 1970mm | |
B Height to top of cabin | 2330mm | |
C Total width | ||
Narrow tire | 1075mm | |
Wide tire | 1329mm | |
D Wheel base | 1550mm | |
E Minimum ground clearance | 345mm | |
F Track width | ||
Narrow tire | 812mm | |
Wide tire | 939mm | |
G Bucket width | 1370mm | |
H Radius at the outer edge | 2541mm | |
H′ Max. radius(Bucket outside) | 3037mm | |
I Total working height | 3630mm | |
J Max. height of bucket pivot | 2950mm | |
K Maximum dumping height | 2190mm | |
L Dumping reach | 630mm | |
M Digging depth | 150mm | |
N Max. inclination angle | 43° | |
O Backroll angle on the ground | 42° | |
P Departure angle | 22° | |
Q Max. dumping angle | 32° | |
T Total length without bucket | 3550mm |
