AILISHENG Construction Equipment - Lead in electric construction equipment, one stop solution for construction equipment.

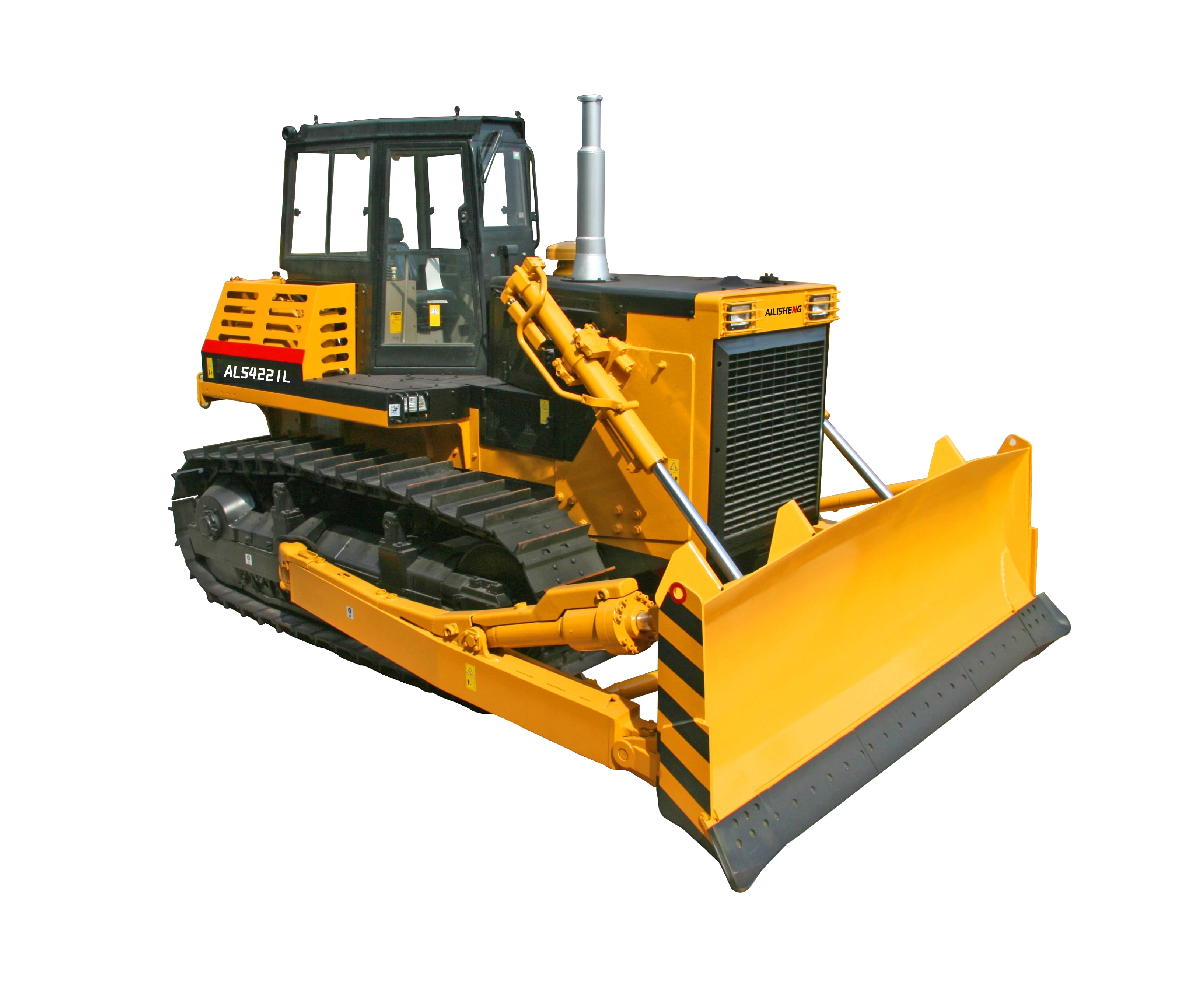

AILISHENG BULLDOZER ALS4221L 1
AILISHENG BULLDOZER ALS4221L 2
AILISHENG BULLDOZER ALS4221L 1
AILISHENG BULLDOZER ALS4221L 2

AILISHENG BULLDOZER ALS4221L

ALS4221L track bulldozer is a large-sized multipurpose track-type one used for shoveling and moving soil, sandstone, and things like that. It is widely applied in various earthwork engineering projects such as earth-bulldozing in mine fields, capital construction works, road construction sites and port construction projects etc., as well as operation tasks of grading earth, shoveling soil and towing machines.

    oops...!

    no product data.

    Go to homepage
    AILISHENG BULLDOZER ALS4221L 3



    Excellent Performance

    A diesel engine with turbocharger and fuel-feeding system of PT pump is adopted as the power supplier for the machine, with its characteristics of low fuel consumption, high power performance and large torque reserve.

    The diesel engine matches very well with the hydraulic torque converter and the transmission system, making a wide rotational speed range for machine traveling in high efficiency. Output power can be achieved perfectly, with the control of shifting on the transmission gearbox.

    A hydraulic drive system is adopted for the working device, with its characteristics of simple structure, flexibility and reliability.

    The hydraulic-assisting mode is adopted in the control system, making the machine can be operated easily.

    A mode of hanging balance beam is adopted in the traveling system, making the machine works well in rugged areas.

    Centralized pressure-testing technology is applied for inspecting and debugging failure easily; the highly generalization of wearing parts makes it easier to maintain overall machine.

    The sound-proofing, heat-proofing and vibration-absorbing cab provides efficient operation space and excellent operation vision for the driver. The cab is also equipped with a comfortable adjustable driver’s seat  and  air conditioner , together with an optional  heater.

    Equipped with straight-tilting shovel as standard as well as U-shovel and angle shovel as options, all provided with well durable blade.

    Optionally equipped with the ripper, (3-tooth or 1-tooth available),u-shovel, angle blade, air conditioning , heater, rear ripper, ROPS frame, forest cabetc."

    Specifications

    Description Unit ALS4221L
    Engine Model type Cummins NT855-C280
      Rated speed rpm 1800
      Rated power kW 175
    Travel Forward I km/h 03.6
    Speed
        II km/h 06.5
        III km/h 011.2
      Reverse I km/h 04.3
        II km/h 07.7
        III km/h 013.2
    Work Blade height mm 1315
    Equipment
      Blade width mm 3725
      Max. depth mm 540
      Max. lift mm 1210
      Max. tilt adjustment mm ≥735
      Pitch adjustment ° 55
    Specification Min. ground clearance mm 405
      Ground pressure Mpa 0.077
      Min. turning radius mm 3300
      Grade ability ° 30
      Blade Capacity 6.4
      Productivity m³/h 330
    Ripper Teeth   1 tooth 3 teeth
    (Optional)
      Max. digging depth mm 690 665
      Max. lift mm 572 555
      Teeth    Weight kg 2621 2790
    Basic Operating Weight kg 23450
    Basic DimensionLxWxH mm 5530x3725x3325
    With ripper and ROPS DimensionLxWxH mm 7150×3725×3400   (1tooth)
    6813×3725×3400  (3teeth)
