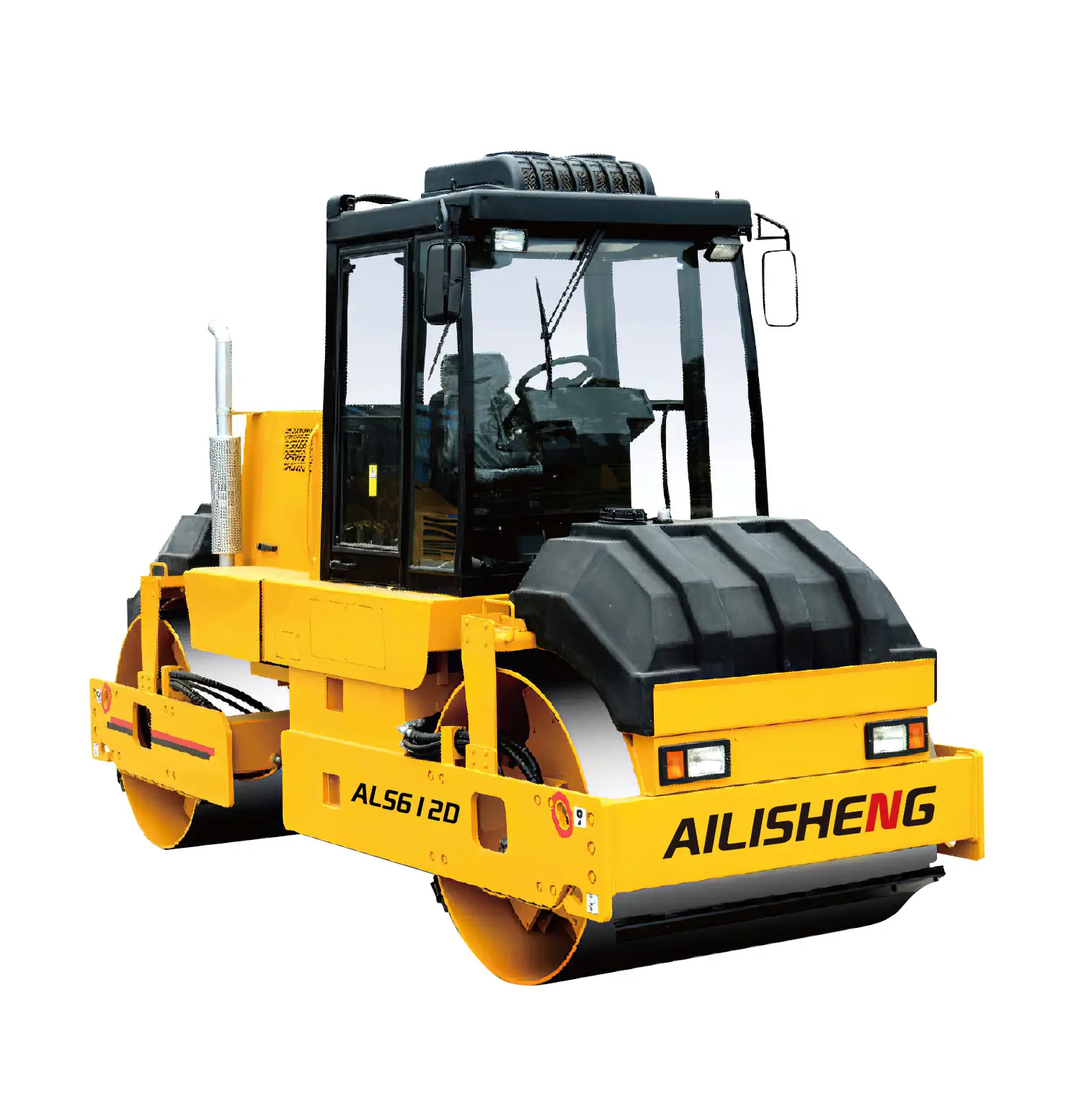

AILISHENG Tandem Vibratory Rollers ALS612D
Excellent Performance
● Equipped with the closed hydraulic driving system consisting of plunger pump and plunger motor from REXROTH or SAUER, enjoying high working pressure and long service life.
● Applying the front/rear drum dual-drive mode, thus providing proper driving performance.
● Most of mass distributed on the vibrating drum i.e. more than 57% of the total weight, producing large exciting force, proper compacting performance and high working efficiency as a result.
● Protection mechanism from mis-operation. Safe and reliable three-stage braking system.
● Spacious cab is equipped with air-conditioner to provide a high level of comfort."
Specifications
|
Description |
Unit |
ALS612D |
|
|
Operating Weight |
kg |
12000 |
|
|
Vibration Frequency |
Hz |
30/35/45 |
|
|
Theoretical Amplitude |
mm |
0.42/0.9 |
|
|
Centrifugal Force |
KN |
40/162 |
|
|
Drum Weight |
kg |
6100/5900 |
|
|
Min. Turning Radius |
mm |
6500 |
|
|
Max. Gradeability |
% |
30 |
|
|
Drum Diameter |
mm |
1250 |
|
|
Drum Width |
mm |
2130 |
|
|
Travel Speed |
km/h |
0-10 |
|
|
Brand |
|
Cummins |
|
|
|
Model |
|
6BT5.9 |
|
|
Rated power |
kW |
112 |
|
|
Rated speed |
rpm |
2400 |
|
Min. ground clearance |
mm |
390 |
|
|
Steering hydraulic system |
Maximum steering angle |
° |
35 |
|
|
Maximum swinging angle |
° |
9 |
|
System voltage |
|
DC 24V |
|
|
Overall Dimensions(L×W×H) |
mm |
5189×2280×3326 |
|
