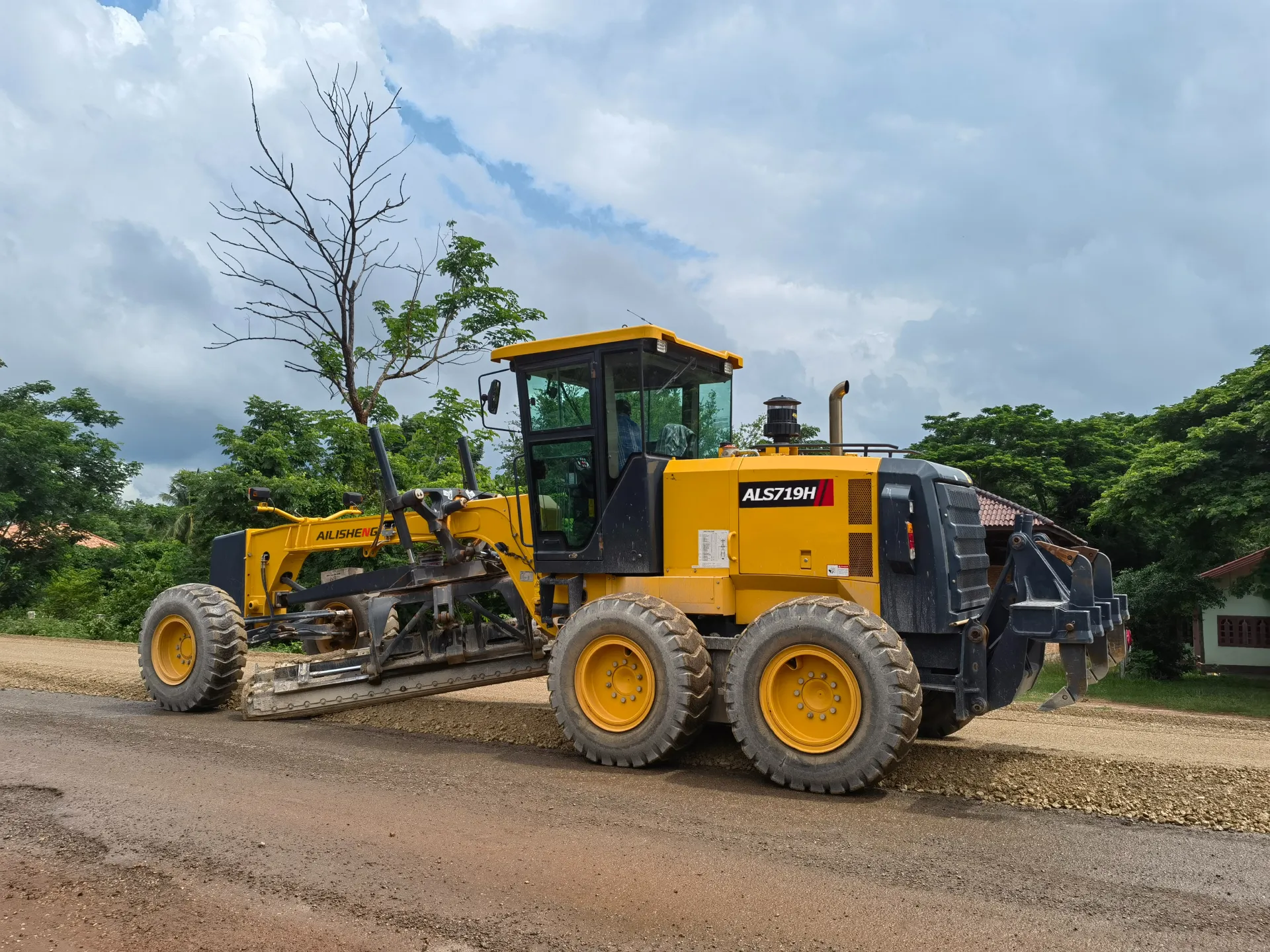

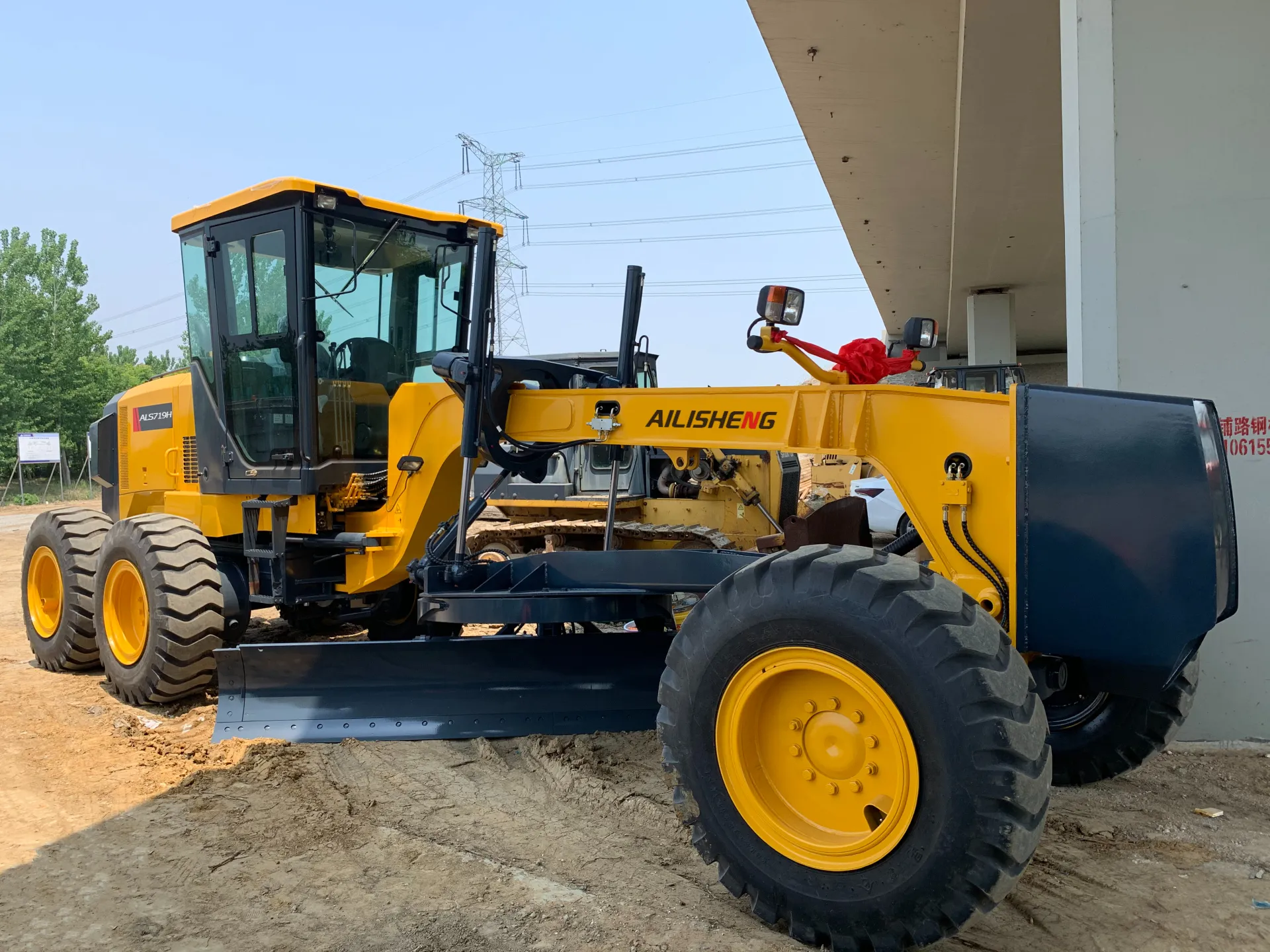

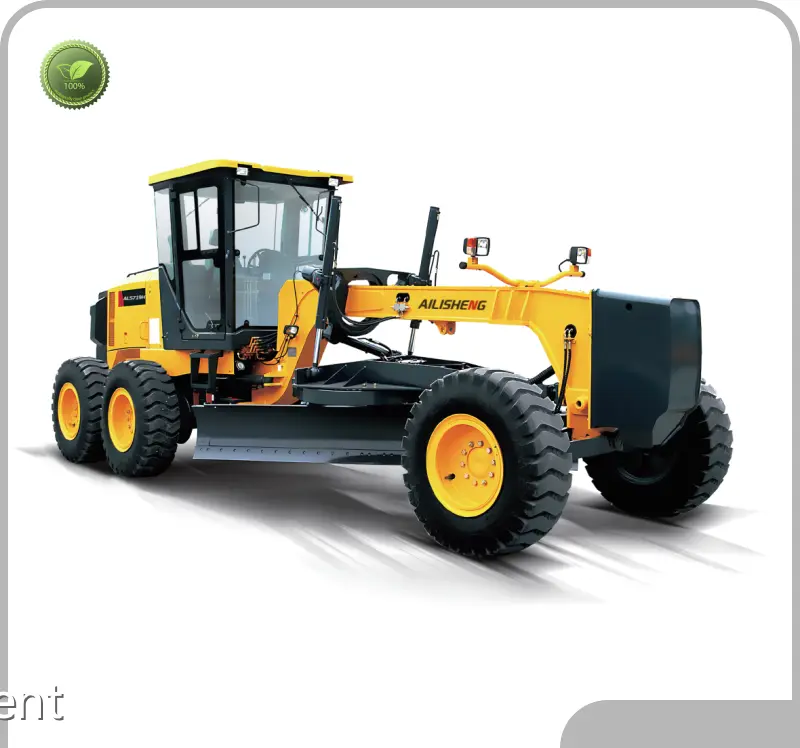

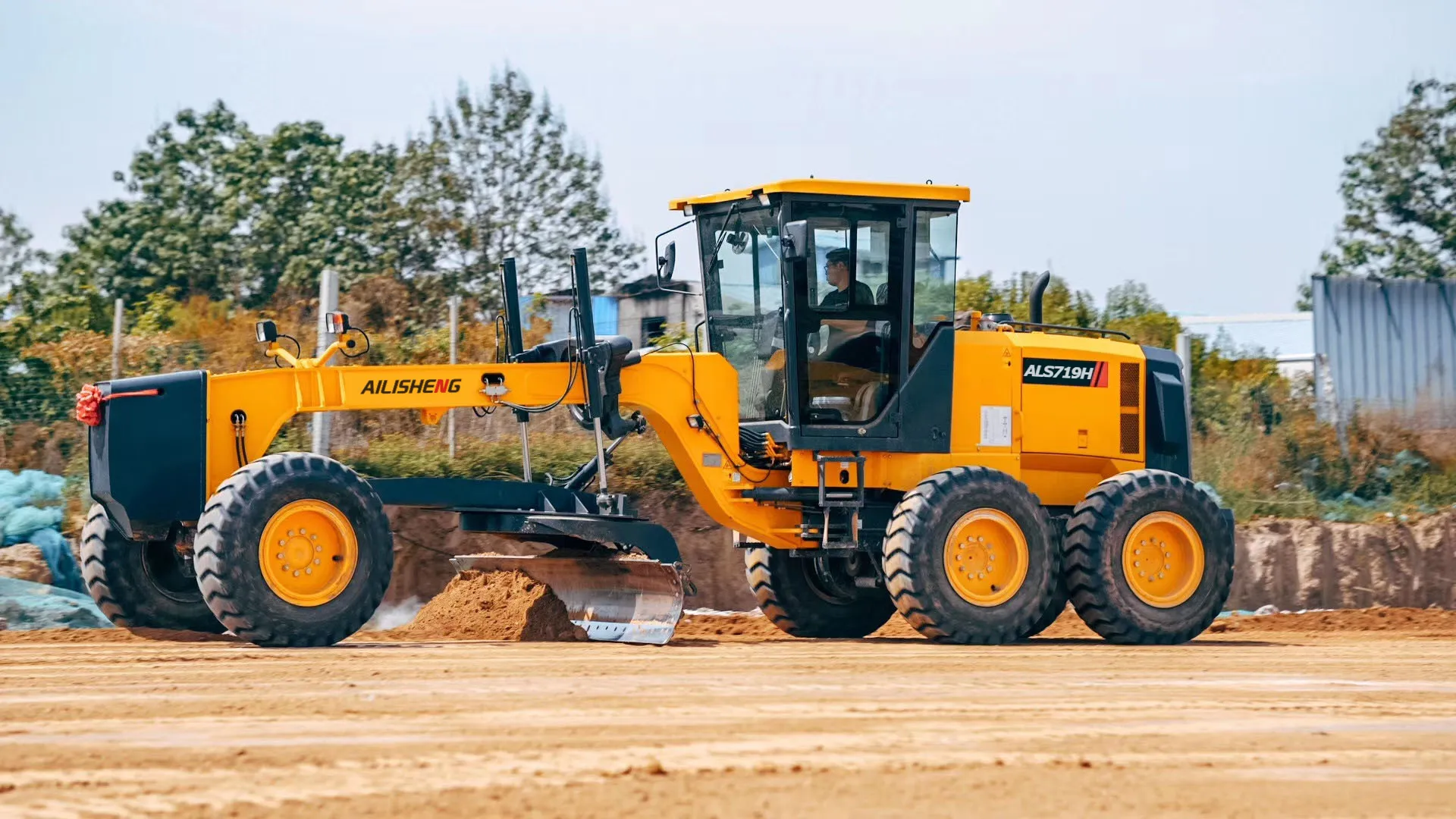

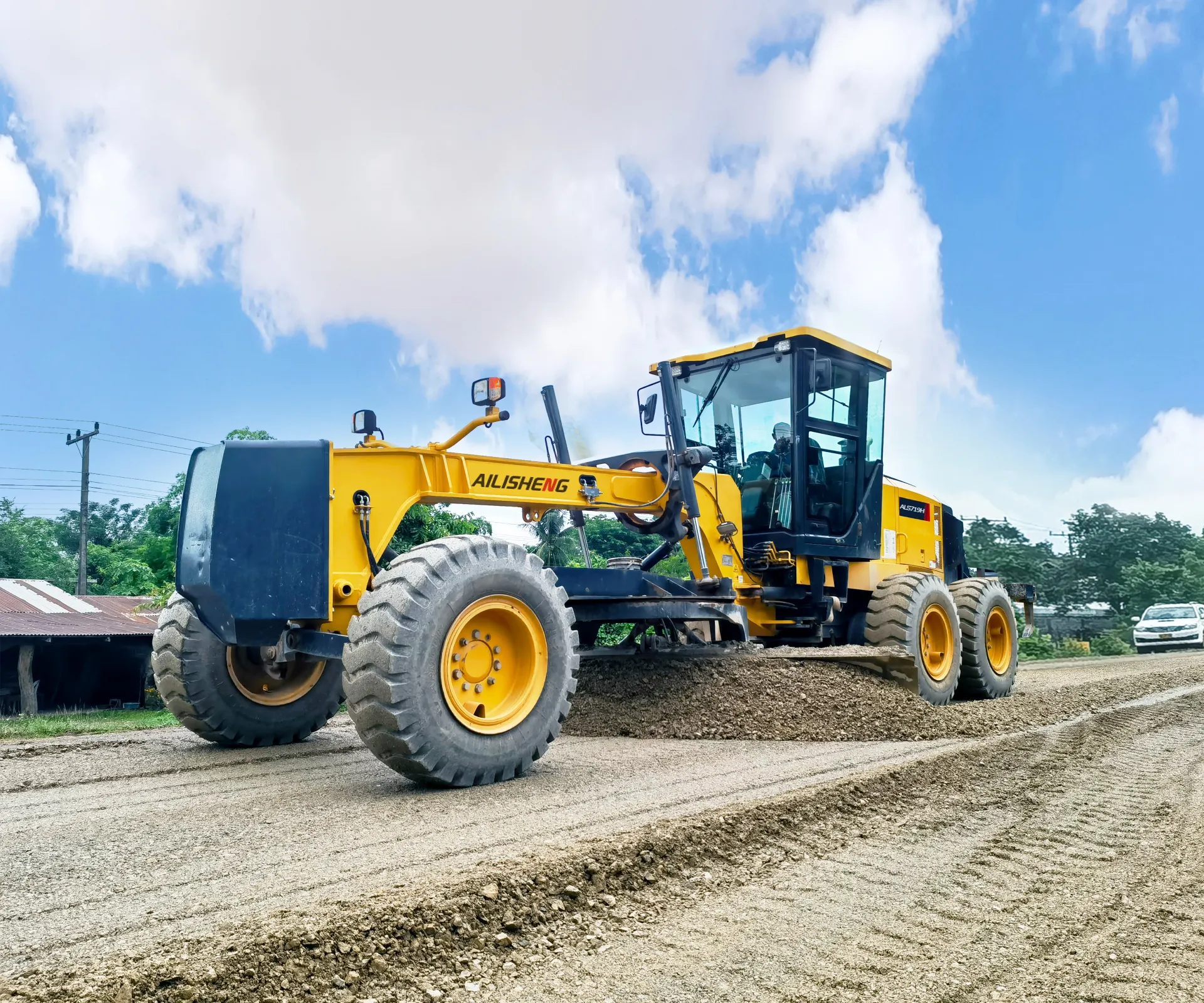

Top Small Motor Grader for Sale Factory Price
Product details of the small motor grader for sale
Quick Detail
The appearance of AILISHENG Construction Equipment small motor grader for sale is designed by top-class design team. The product has a superior quality and has got relative quality certificates. AILISHENG Construction Equipment does its greatest effort to produce small motor grader for sale with high quality.
Product Description
The small motor grader for sale we produce are able to stand up to the details.
Excellent Performance
· Equipped with reliable Cummins 6CTA8.3-C190 engine.
· Sing-handle electro-hydraulic controlled power-shift T/M, 6 forward & 3reverse shifts makes operation easy and convenient.
· Hydraulic lock, auto lock/unlock NO-SPIN（Optional） differential ensures stability and powerful traction.
· Ideal axel load allocation provides excellent stability while cutting hard surface.
· Serviceable, efficient hydraulic system enables every part to be fully used.
· Box-typed frame and advanced T/M enable it to complete heavy-duty work.
· A wide working range is accomplished through flexible blade suspension system and articulated frame.
Specifications
| Overall Dimension ALS719H | ||||||||||||
| 1 | Length | 8950mm | ||||||||||
| 2 | Width | 2600mm | ||||||||||
| 3 | Height(To the top of the cab) | 3420mm | ||||||||||
| 4 | Wheel base | 6100mm | ||||||||||
| 5 | Tread | 2120(mm) | ||||||||||
| 6 | Min. turning radius | 7.3（m） | ||||||||||
| Main Technical Specification | ||||||||||||
| 1 | Operating weight | 15600kg | ||||||||||
| 2 | Blade length | 4268mm | ||||||||||
| 3 | Blade height | 580mm | ||||||||||
| 4 | Shovel Blade thickness | 20mm | ||||||||||
| 5 | Max. lift above ground | 450mm | ||||||||||
| 6 | Max. grading depth | 535mm | ||||||||||
| 7 | Max. shoulder reach outside rear tire | 2400mm | ||||||||||
| 8 | Traveling speed(Km/h)，6 forward and 3 reverse | |||||||||||
| (1) forward | 6.5/11.4/14.6/24.8/30/49.2 | |||||||||||
| (2) reverse | 6.5/14.6/30 | |||||||||||
| Diesel engine | ||||||||||||
| 1 | Model | Cummins 6CTA8.3-C190 | ||||||||||
| 2 | Type | Direct injection. Turbocharged. Air to air cooling | ||||||||||
| 3 | Rated output | 142kW | ||||||||||
| 4 | Rated speed | 2200(r/min) | ||||||||||
| 5 | Max. Torque | 860(N.M)/1400r/min | ||||||||||
| Transmission case | ||||||||||||
| 1 | Model | 6WG180 (ZF technology) | ||||||||||
| 2 | Type | power shift, single-shift lever, natural-shift lock device | ||||||||||
| 3 | Gear shift position | 6 Forward and 3 reverse gears | ||||||||||
| Axle and Tire | ||||||||||||
| 1 | Max. drawing force | 80.2KN（f=0.75） | ||||||||||
| 2 | Size of tire | 17.5-25-12PR(standard) | ||||||||||
| 13.00-24-12PR(optional) | ||||||||||||
| Working Device Hydraulic System | ||||||||||||
| 1 | System pressure | 17.5MPa | ||||||||||
| Steering System | ||||||||||||
| 1 | Type | Fore Tires deflexion | ||||||||||
| 2 | System pressure | 16MPa | ||||||||||
