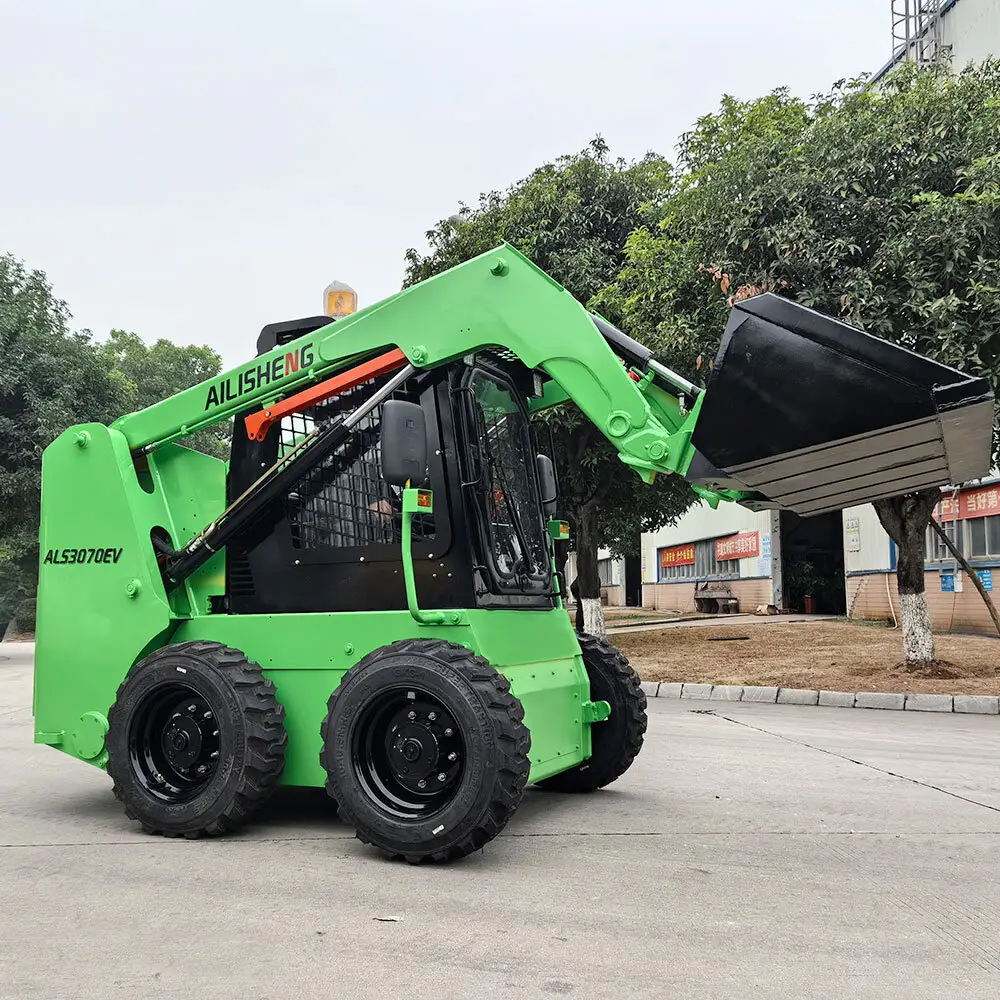

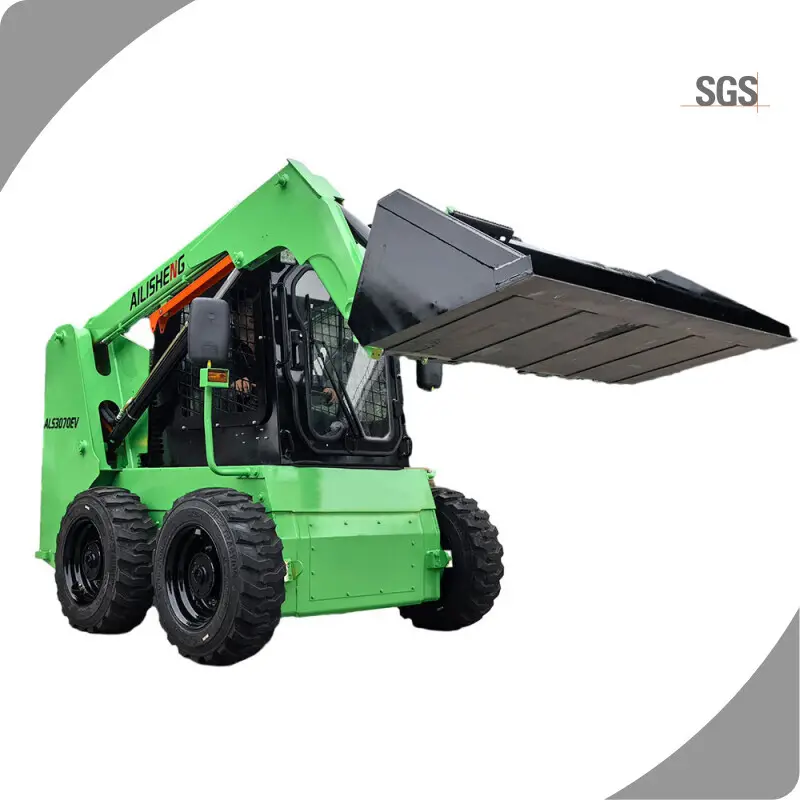

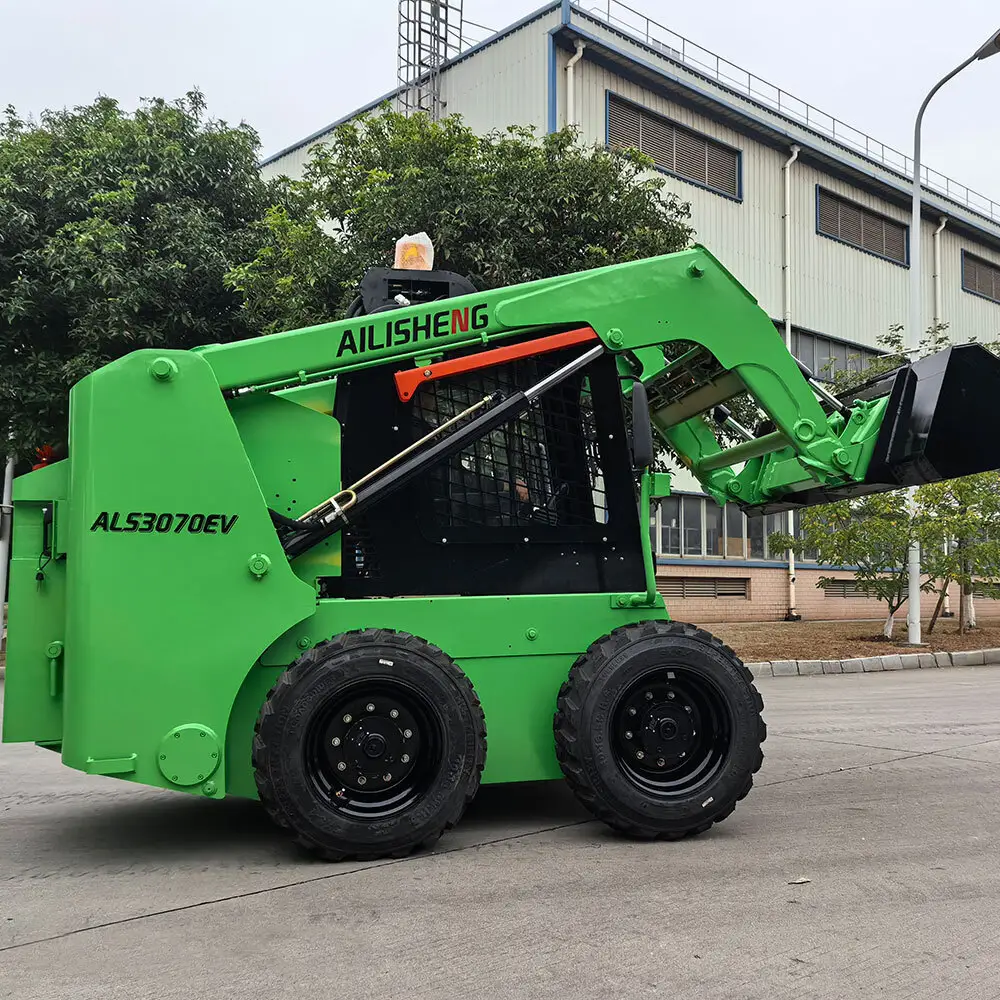

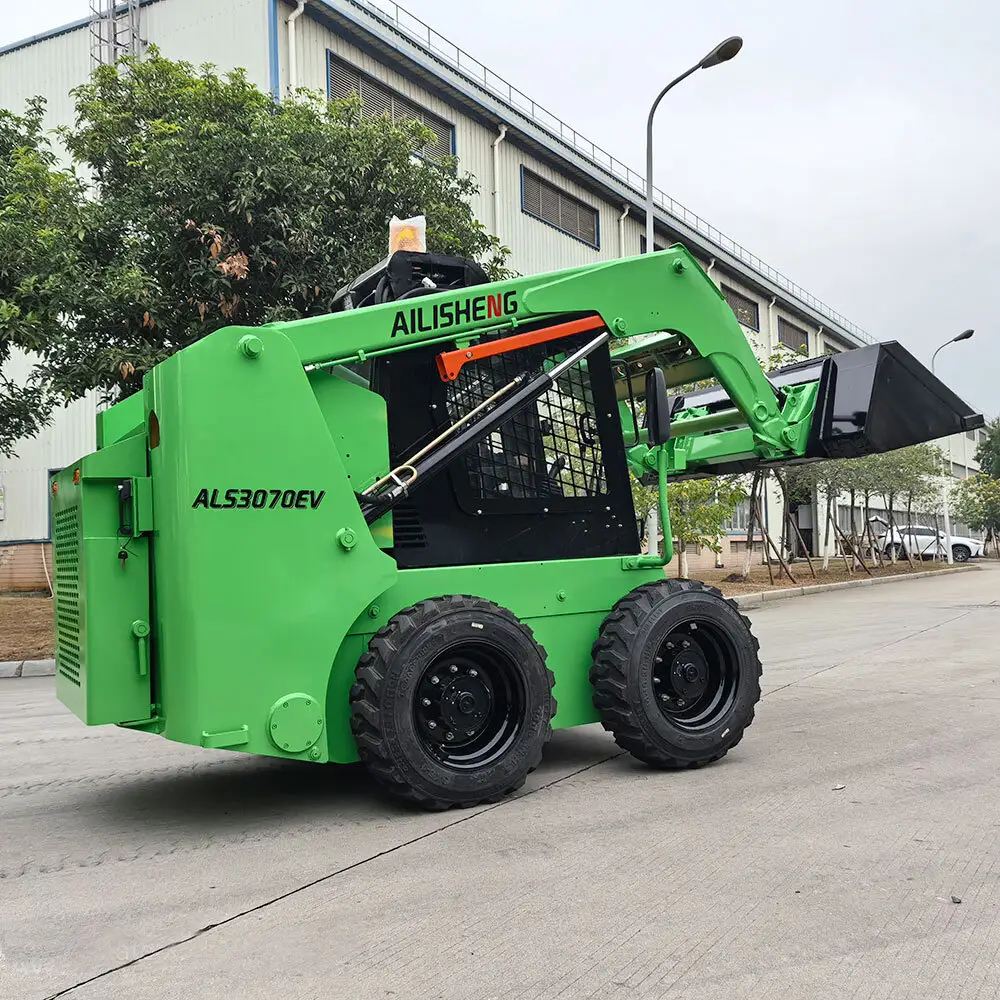

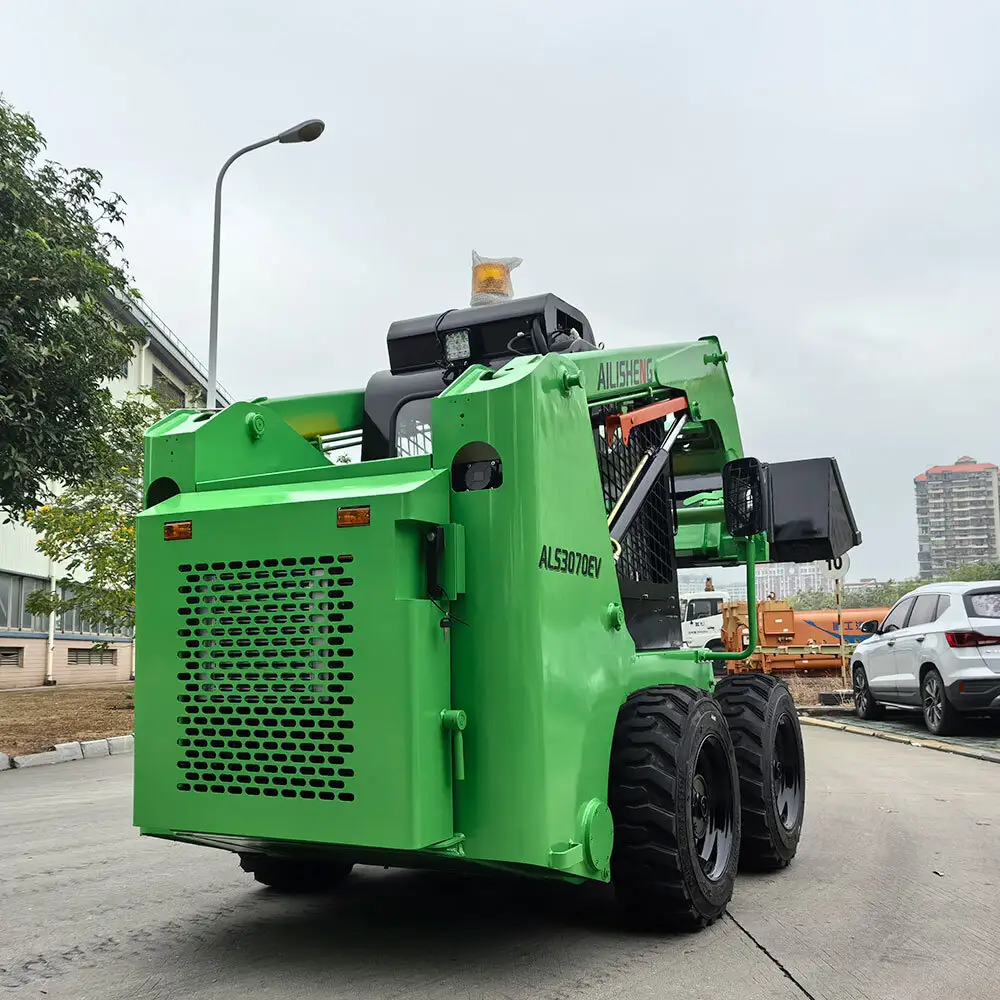

Top Battery Powered Skid Steer
Company Advantages
· battery powered skid steer Design: Simple, bright, economical and practical.
· The product is unbeatable in terms of performance, longevity, and practicality.
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd's consistent purpose is to be ready to render excellent service to customers.
Product features
● Four wheel drive, full power. The whole machine has compact structure and flexible operation. The structural parts of the whole machine are optimized, stable and reliable.
● Reliable battery, drive motor and electrical accessory system, advanced AC controller and CANbus data bus technology ensure the durability and long endurance of the equipment.
● The cover of the whole machine can be turned over to facilitate maintenance. The system maintenance items are simple and convenient, saving maintenance time and labor cost. Families can charge by themselves, which is convenient and safe to use.
● The operating device is designed by ergonomics, with comfortable operation and stable driving. The whole machine protection frame provides full safety protection for drivers.
● Pure electric system has the advantages of high efficiency, zero exhaust emission, low noise, environmental protection and energy saving. It is suitable for indoor and outdoor use with lower cost.
● A variety of accessories can be selected to meet the needs of various working conditions such as loading, forking, grass clamping, snow pushing, cleaning, drilling, hoisting and so on.
|
Model |
Fuel loader |
Electric Loader |
Cost comparison of 200 days per year |
||||
|
Country |
Diesel price |
Hourly fuel consumption |
Cost of working 8 hours per day |
Electricity price |
Hourly energy consumption |
Cost of working 8 hours per day |
|
|
Canada |
1.6 C$/L |
5L/h |
64 C$ |
0.06 C$/Kwh |
5Kwh/h |
2.4 C$ |
save 12320 C$ |
|
U.S.A |
0.66 $/L |
26.4 $ |
0.13 $/Kwh |
5.2 $ |
Save 4240 $ |
||
|
China |
6.7 RMB/L |
268 RMB |
0.50RMB/Kwh |
20 RMB |
Save 49600 RMB |
||
Main technical parameter
|
|
ALS3070EV |
|
Electric motor model |
5×PMSM |
|
Rated power |
5x12kW |
|
Maximum power |
5x12kW |
|
Maximum torque(PER MOTOR) |
160Nm |
|
Battery Pack |
30kwh |
|
Max. Speed (km/h) |
13 |
|
Tire (track) model |
10-16.5 |
|
Loading Capacity(kg) |
700 |
|
Bucket capacity(m3) |
0.4 |
|
Rated flow(L/min) |
62.5 |
|
hydraulic tank capacity(L) |
70 |
|
Weight with bucket(kg) |
2700 |
|
Dimension |
|
|
Height at Maximum Extension (mm) |
3980 |
|
Hinge Pin Height (mm) |
3080 |
|
Total Height (mm) |
2140 |
|
Height to bottom of bucket(mm) |
2913 |
|
Overall length without bucket ( mm ) |
2640 |
|
overall length with bucket(mm) |
3420 |
|
Dumping angle at maximum height(° ) |
40 |
|
Dumping height(mm) |
2380 |
|
Dumping reach(mm) |
700 |
|
Rollback at ground position(° ) |
30 |
|
Rollback fully raised at max height(° ) |
104 |
|
Wheelbase(mm) |
991 |
|
Ground clearance(mm) |
185 |
|
Angle of departure(°) |
20 |
|
Front turning radius without bucket(mm) |
1168 |
|
Front turning radius(mm) |
1958 |
|
Rear tuning radius(mm) |
1630 |
|
Rear length (mm) |
1108 |
|
Track width(mm) |
1450 |
|
Width (mm) |
1720 |
|
Bucket width (mm) |
1740 |
Company Features
· AILISHENG Construction Equipment is one of primary brands that is committed to battery powered skid steer industry.
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd focuses on technical innovation.
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd is a company who sticks to customer first always. Call now!
Product Details
AILISHENG Construction Equipment will show you product's specific details below.
Application of the Product
AILISHENG Construction Equipment's battery powered skid steer can be widely used in various fields.
We have been engaged in the production and management of Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders for many years. For some problems encountered by customers in the procurement, we have the ability to provide customers with a practical and effective solution to help customers solve problems better.
Enterprise Advantages
We have a highly educated, high-quality, young and energetic team that provides a solid foundation for our development.
AILISHENG Construction Equipment puts customers first and strives to provide quality and considerate services to meet the needs of customers.
With a focus on talents and techniques, our company holds our business philosophy of 'people-oriented, technological innovation, quality assurance'. We strive to give full play to the advantages of talents and adopt advanced technology, to produce a full range of products in high quality and reasonable price.
Established in AILISHENG Construction Equipment has gone through ups and downs for years. We embrace today's outstanding achievements among difficulties and hardships, and form our own unique development path.
AILISHENG Construction Equipment sells Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders well in the domestic market and exports them to different countries and regions all over the world, based on the high quality and excellent service.
