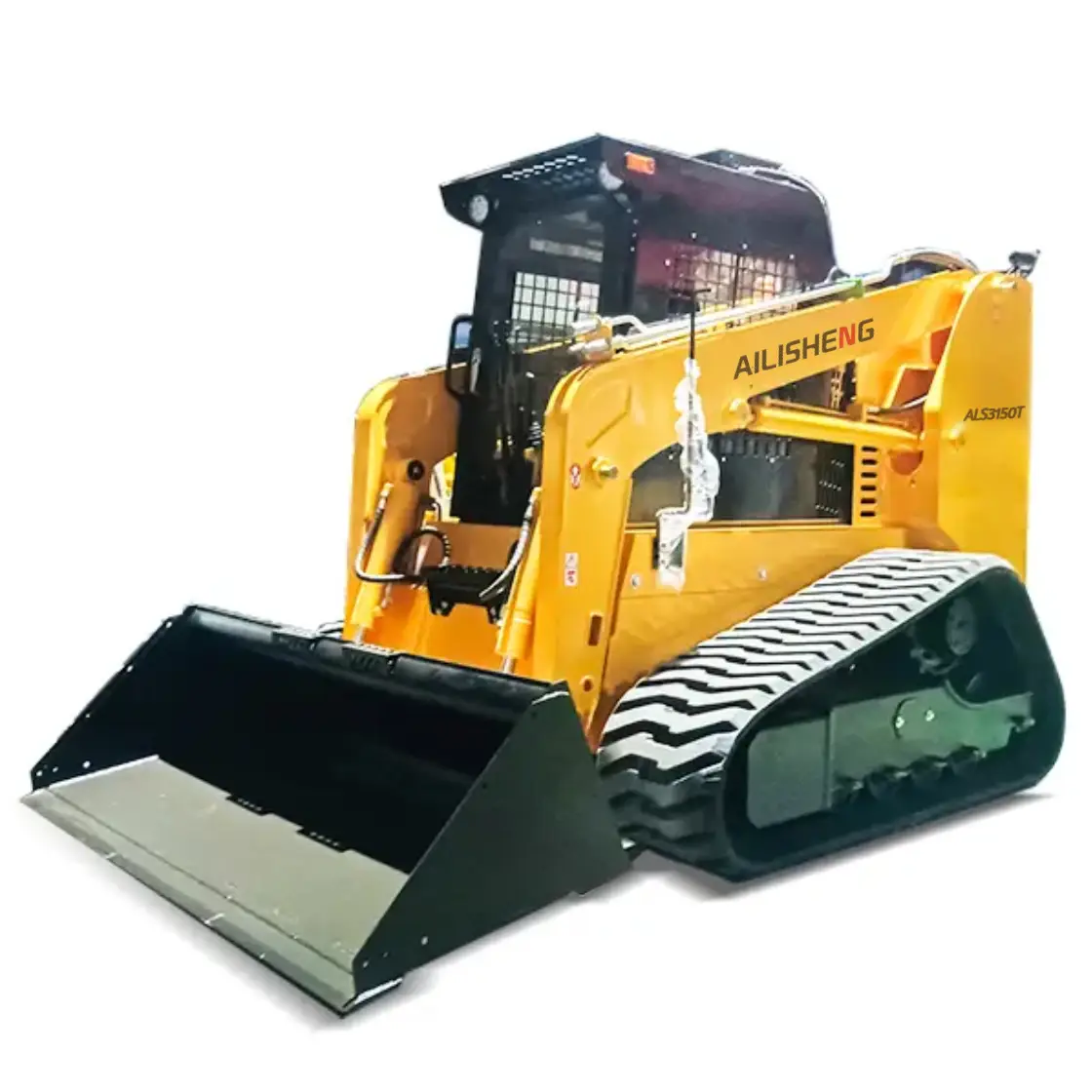

AILISHENG Track-Type Skid Steer Loader ALS3150T
This product is characterised by its ultimate stability and power. The ALS3150T crawler type skid steer loader has been engineered for optimal performance on challenging terrains. Its exceptional stability and load-bearing capacity make it ideal for muddy, uneven, or obstacle-ridden surfaces. This loader has been designed to ensure unparalleled stability and reliability in harsh working environments thanks to its large ground contact area.
Key Features:
- The power transmission system is robust and efficient. The vehicles are equipped with high-quality engines from leading brands, delivering robust power, minimal emissions, and optimal fuel efficiency. Static hydraulic drive technology ensures stable and efficient driving performance.
- This product boasts unparalleled multi-functionality. The interchangeable quick-change coupling facilitates rapid attachment changes, thus allowing versatility for a variety of tasks.
- The product's solid and reliable design is of the utmost importance. The integral frame boasts a compact structure and optimised critical structural parts, enhancing the product's durability and stability.
- Flexible Operations: Automatic bucket leveling during lifting prevents material scattering, enhancing efficiency.
Additional Options:
- A variety of engine options are available.
- The product offers a range of customisable features.
- We are pleased to offer a range of mechanical and hydraulic quick-change mount options.
- Radial lifting with leveling valve for improved material handling.
Quality Control and After-Sales Service:
- The PDI certificate is a guarantee of quality assurance.
- Our company is proud to offer comprehensive 24/7 online support and complimentary spare parts during the warranty period.
- Local support is provided through a network of distributors.
- Should you encounter an urgent issue, our technical team is available for one-to-one video meetings.
The ALS3150T is the industry-standard model for all-terrain skid steer loaders, offering unparalleled stability, power, and reliability for challenging applications.
Specifications and main parameters:
|
Overall Dimension |
||
|
1 |
Length(with bucket on ground) |
3700(mm) |
|
2 |
Width |
1990(mm) |
|
3 |
Bucket width |
1990(mm) |
|
4 |
Height(To the top of the cab) |
2150(mm) |
|
5 |
Crawler width |
450(mm) |
|
6 |
Min. ground clearance |
200(mm) |
|
Diesel Engine |
||
|
1 |
Model |
WP4.1G0036 |
|
2 |
Output |
103Kw/2400rpm |
|
3 |
Type |
4 Cylinder in-line, Water cooled, 4 stroke,Diesel engine |
|
Main Technical Specification |
||
|
1 |
Rated load |
1500(Kg) |
|
2 |
Operating weight |
4850KG |
|
3 |
Rated bucket capacity |
0.75(m3) |
|
4 |
Max. breakout force |
27kN |
|
5 |
Static tipping loads |
≥20kN |
|
6 |
Max. dump clearance |
2450(mm) |
|
7 |
Dump reach |
700(mm) |
|
8 |
Dump angle at any position |
≥400 |
|
9 |
Angle of departure |
300 |
|
10 |
Traveling speed(Km/h) |
|
|
|
(1) forward gear |
0～12/18 |
|
|
(2) reverse gear |
0～12/18 |
|
Oil Capacity |
||
|
1 |
Fuel(diesel) |
90(L) |
|
2 |
Engine lubricating oil |
10(L) |
|
3 |
Oil for chain box（one side) |
5.7(L) |
|
4 |
Oil for hydraulic system |
90(L) |
