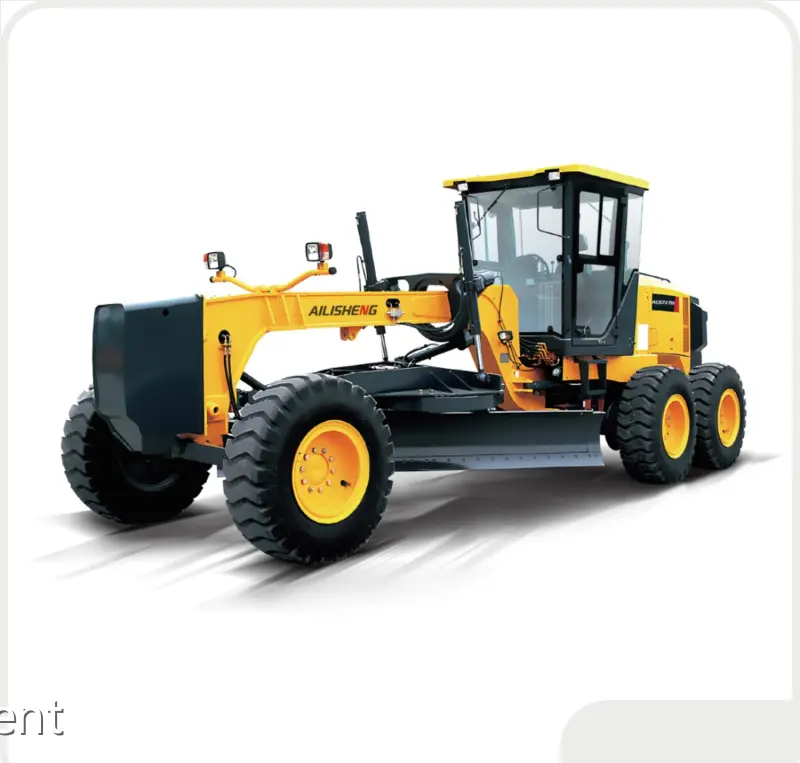

Small Motor Grader for Sale Wholesale - AILISHENG Construction Equipment 1
Small Motor Grader for Sale Wholesale - AILISHENG Construction Equipment 2
Small Motor Grader for Sale Wholesale - AILISHENG Construction Equipment 3
Small Motor Grader for Sale Wholesale - AILISHENG Construction Equipment 4
Small Motor Grader for Sale Wholesale - AILISHENG Construction Equipment 5
Small Motor Grader for Sale Wholesale - AILISHENG Construction Equipment 6
Small Motor Grader for Sale Wholesale - AILISHENG Construction Equipment 1
Small Motor Grader for Sale Wholesale - AILISHENG Construction Equipment 2
Small Motor Grader for Sale Wholesale - AILISHENG Construction Equipment 3
Small Motor Grader for Sale Wholesale - AILISHENG Construction Equipment 4
Small Motor Grader for Sale Wholesale - AILISHENG Construction Equipment 5
Small Motor Grader for Sale Wholesale - AILISHENG Construction Equipment 6

Small Motor Grader for Sale Wholesale - AILISHENG Construction Equipment

Inquiry

Product details of the small motor grader for sale


Quick Detail

These AILISHENG Construction Equipment small motor grader for sale are designed and developed in line with industry norms and standards. In its production, we place the highest value on reliability and quality. Xiamen Ailisheng Intelligent Equipment Co.,Ltd has high operational efficiency with comprehensive workforce management.


Product Description

Compared with similar products, our small motor grader for sale's outstanding advantages are as follows.

ALS717H 03

Excellent Performance

· Sing-handle electro-hydraulic controlled power-shift T/M, 6forward &3reverse shifts makes operation easy and convenient

· Hydraulic lock, auto lock/unlock NO-SPIN(Optional) differential ensures stability and powerful traction

· Ideal axle load allocation provides excellent stability while cutting hard surface

· Serviceable, efficient hydraulic system enables every part to be fully used.

· Box-typed frame and advanced T/M enable it to complete heavy-duty work.

· A wide working range is accomplished through flexible blade suspension system and articulated frame.

ALS717H 01

Specifications

Overall Dimension ALS717H
1 Length 8820mm
2 Width 2600mm
3 Height(To the top of the cab) 3420mm
4 Wheel base 6100mm
5 Tread 2120(mm)
6 Min. turning radius  7.3(m)
Main Technical Specification
1 Operating weight 14500kg
2 Blade length  3658mm
3 Blade height 580mm
4 Shovel Blade thickness  20mm
5 Max. lift above ground  450mm
6 Max. grading depth  535mm
7 Max. shoulder reach outside rear tire  2000mm
8 Traveling speed(Km/h),6 forward and 3 reverse
  (1) forward 6.5/11.4/14.6/24.8/30/49.2
  (2) reverse 6.5/14.6/30
Diesel engine
1 Model                          Cummins 6BTA5.9-C180
2 Type Direct injection. Turbocharged. Water cooling
3 Rated output 132kW
4 Rated speed 2200(r/min)
5 Max. Torque 750(N.m) at 1300r/min
Transmission case
1 Model 6WG180 (ZF technology)
2 Type power shift, single-shift lever, natural-shift lock device
3 Gear shift position  6 Forward and 3 reverse gears
Axle and Tire
1 Max. drawing force  74.6KN(f=0.75)
2 Size of tire 17.5-25-12PR(standard)
13.00-24-12PR(optional)
Working Device Hydraulic System
1 System pressure 17.5MPa
Steering  System
1 Type Fore Tires deflexion
2 System pressure 16MPa
