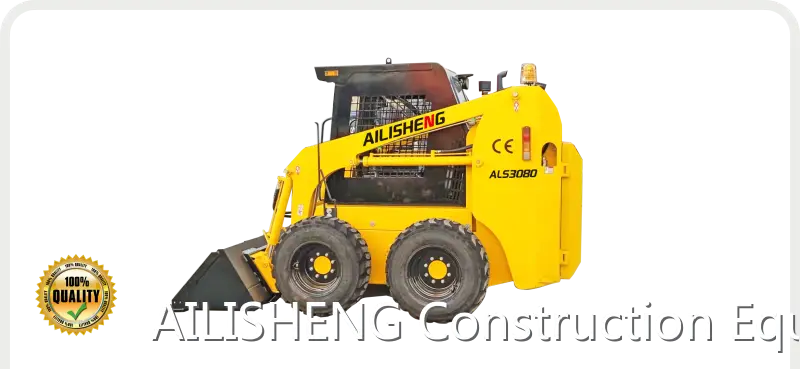

Product details of the skid steer loaders supplier
Product Information
AILISHENG Construction Equipment skid steer loaders supplier has the advantages of good material and smooth outline. The product is highly preferred by our clients for featuring long service life and strong practicality. This product is effectively applied in the industry with its compatible functions.
Product features
- Delivering unmatched performance, versatility, and ease of operation, the Ailisheng Skid Steer Loader is ideal for small confined areas, such as constructions sites, factory facilities, workshops, warehouses, docks, decks, ship cabins as well as other key sectors.
- Skid steer loader can attach various attachments to perform shoveling, stacking, lifting, digging, boring, breaking,grabbing, pushing, scarification, trenching, compacting, road cleaning, and many other operations which are provided to increase your flexibility, enabling you to handle many jobs with just the one machine.
- Using of simulation technology to learn the mission data at travelling and working conditions helped optimizing power and fuel efficiency.
-Compact structure, maneuverable movement suitable for narrow Space operation.
-Open cabin with mechanical control system.
-Double accelerograph control.
-Hydraulic brake.
Main Parameters
|
|
ALS3080 |
|
Engine Brand |
Xinchai |
|
Engine model |
498 |
|
Bore x stroke (mm) |
95X105 |
|
Rated power (Kw) |
45 |
|
Rated speed(rpm) |
2650 |
|
Number of cylinders |
4 |
|
Max. torque (N.m) |
156 |
|
Displacement (L) |
2.67 |
|
Max. Speed (km/h) |
12 |
|
Tire (track) model |
10-16.5 |
|
Loading Capacity (kg) |
700/800 |
|
Lifting Type |
Arc-Shaped Lifting |
|
Bucket capacity(m3) |
0.4 |
|
Rated flow(L/min) |
75 |
|
tank capacity(L) |
65 |
|
Weight with bucket(kg) |
3100 |
|
Dimension |
|
|
Height at Maximum Extension(mm) |
3980 |
|
Hinge Pin Height (mm) |
3080 |
|
Total Height (mm) |
2140 |
|
Height to bottom of bucket(mm) |
2913 |
|
Overall length without bucket ( mm ) |
2640 |
|
overall length with bucket(mm) |
3420 |
|
Dumping angle at maximum height(° ) |
40 |
|
Dumping height(mm) |
2380 |
|
Dumping reach(mm) |
750 |
|
Rollback at ground position(° ) |
30 |
|
Rollback fully raised at max. height(° ) |
104 |
|
Wheelbase(mm) |
991 |
|
Ground clearance(mm) |
185 |
|
Angle of departure(°) |
20 |
|
Front turning radius without bucket(mm) |
1168 |
|
Front turning radius(mm) |
1958 |
|
Rear tuning radius(mm) |
1630 |
|
Rear length (mm) |
1108 |
|
Track width(mm) |
1450 |
|
Width (mm) |
1720 |
|
Bucket width (mm) |
1740 |
|
The structure and parameters are subject to change without prior notice due to technical progress. If the sample product is different from the actual product in some way, the actual product shall prevail. |
|
