Product details of the skid steer loader backhoe attachment
Product Information
Designers dare to make breakthroughs in the design of AILISHENG Construction Equipment skid steer loader backhoe attachment. Products under the supervision of professionals, through strict quality inspection, to ensure product quality. Xiamen Ailisheng Intelligent Equipment Co.,Ltd has a skilled tech-team and well-performed sales network.
Product's Main technical parameter
ALS0209H Snow blower machine technical parameter | ||
Model | ALS0209H84 | ALS0209H72 |
Overall length(mm) | 1120 | 1120 |
Overall width(mm) | 2200 | 1896 |
Overall height Low toss standard configuration(mm) | 1695 | 1695 |
Overall height (Hight toss option)(mm) | 3458 | 3458 |
Transportation height(mm) | 1593（Low）/2140（Height） | 1593（Low）/2140（Height） |
Operating weight(Incl hanger)(kg) | 554（Low）/600（H） | 520（Low）/570（Height） |
Operating method | electric hydraulic control | electric hydraulic control |
Rotation Angle(°) | 270(low)/200（Height） | 270（low）/200（Height） |
Maximum loading height(High) toss option(mm) | 3.3 | 3.3 |
The fastest distance to throw snow(mm) | 12 | 12 |
Hydraulic flow(L/min) | 120-150 | 120-150 |
Maximum permissible pressure(Mpa) | 20 | 20 |
Applicable machine(High flow) | Skid steer loader | Skid steer loader |
Product's main features

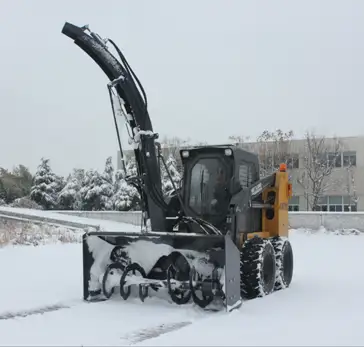

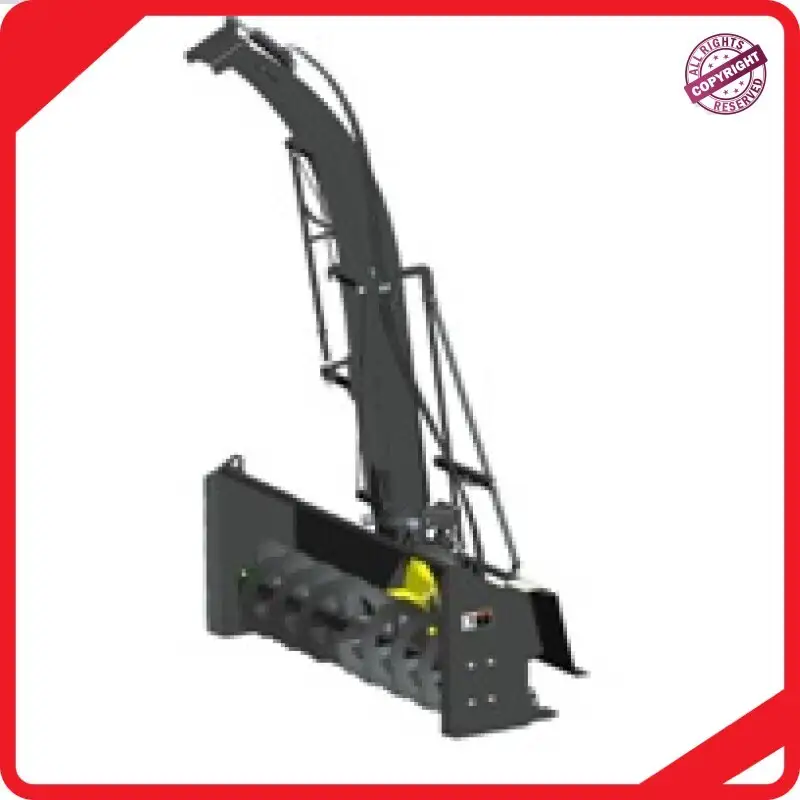

1. The hydraulic drive snow blower is the ideal tool to remove the driveway, sidewalk and parking lot on the thick snow.
2. Optional low or high throw tube, suitable for different conditions and different field cooperation.
3. Snow direction can achieve 270 (low throw)/200 (high throw) degrees of rotation positioning, convenient for various operation environment.
4. Snow throw direction adjustable, ensure a large number of snow, equipment smooth operation, to achieve the ideal working state.
5. Adjustable height of the support leg, prevent the edge plate from encountering sand and damage the surface of the ground paving.
6. The operation speed is fast, is the ideal clearing and transporting snow machinery, to meet the requirements of the city's rapid snow removal.
7. The farthest can be thrown to the snow to 12 meters, according to the thickness of the snow layer, timely adjust the operation speed of the snow thrower, in general, the operation speed is controlled at 0-1km/h.
8. Can be used in conjunction with the snow shovel, snow brush and transport vehicle, to achieve removal, collection upper (high throw tube), transported out of a one-stop quick operation, to ensure the safety and smooth operation of urban roads and highways.
P.S.: The product is constantly updated and improved, we reserve the right to change the parameters and design without notifying the user in advance, the product appearance color in the photo may differ from the actual product, the color standard shall prevail.
