Quality Small Dozer for Sale
Company Advantages
· It is icing on the cake for AILISHENG Construction Equipment to carry out the latest design for small dozer for sale.
· The product has obtained many international certifications, which is the strong proof of its high quality and high performance.
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd serves global customers with one of the largest sales and service networks in small dozer for sale industry.
Excellent Performance

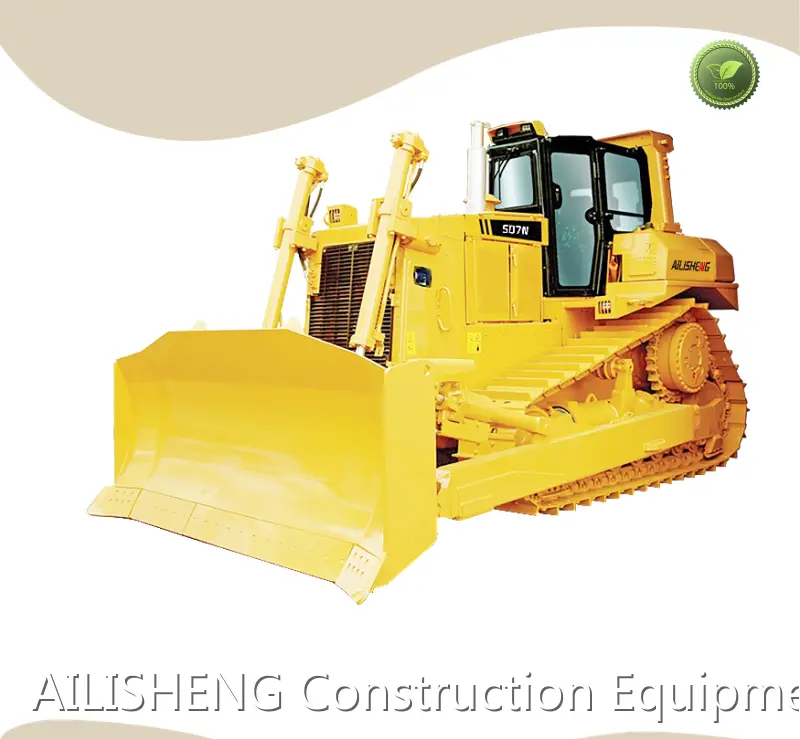

SD7N bulldozer is 230 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls.
SD7-230 horsepower, elevated sprocket bulldozer integrate with modular design is easy to repair & maintenance, It relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency. Safety comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.
It can be equipped with straight tilting blade, angle blade, coal pushing blade, U shape blade; single shank ripper, three shanks ripper; ROPS, FOPS, forest defence cabin etc.. It is can ideal machine used in communication, oil field, power, mining etc. large earth moving program.
Main technical parameter
|
Description |
Unit |
SD7N |
|
|
Dozer Type |
|
Tilt |
|
|
Operation weight (not including ripper) |
Kg |
23800 |
|
|
Operation weight (With three-shanks ripper) |
Kg |
27800 |
|
|
Ground pressure |
KPa |
71.9 |
|
|
Track gauge |
mm |
1980 |
|
|
Gradient |
|
30°/25° |
|
|
Min. ground clearance |
mm |
404 |
|
|
Dozing capacity |
m³ |
8.4 | |
|
Blade width |
mm |
3500 |
|
|
Max. digging depth |
mm |
498 |
|
|
Overall dimensions |
mm |
5677x3500x3402 |
|
|
Overall dimensions (including ripper) |
mm |
7616x3500x3402 |
|
|
Engine |
|
|
|
|
Type |
|
Cummins NT855-C280s10 |
|
|
Rated revolution |
rpm |
2100 |
|
|
Flywheel power |
KW/HP |
169/230 |
|
|
Max. torque |
N.m/rpm |
1097/1500 |
|
|
Rated fuel consumption |
g/KW.h |
≤235 |
|
|
Undercarriage system |
|
|
|
|
Type |
|
The track is triangle shape. The sprocket is elevated elastic suspended. |
|
|
Number of track rollers (each side) |
|
7 |
|
|
Pitch |
mm |
216 |
|
|
Width of shoe |
mm |
560 |
|
|
Implement hydraulic system |
|
|
|
|
Max. system pressure |
MPa |
18.6 |
|
|
Pump type |
|
High pressure gears pump |
|
|
System output |
L/min |
194 |
|
|
Gear 1st 2nd 3rd |
|
Forward (Km/h) 0-3.9 0-6.5 0-10.9 |
|
Backward (Km/h) 0-4.8 0-8.2 0-13.2 |
Driving system
Torque converter Torque converter is power separating hydraulic-mechanic type
Transmission Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering clutch. The steering clutch is hydraulic pressed, usually separated clutch.
Braking clutch The braking clutch is pressed by spring, separated hydraulic, meshed type.
Final drive The final drive is two-stage planetary reduction gear mechanism, splash lubrication.
Company Features
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd has grown to be a professional manufacturer and supplier for its small dozer for sale.
· By mastering advanced technology, small dozer for sale is produced with high performance. AILISHENG Construction Equipment tries its best to guarantee the quality of small dozer for sale.
· Integrity will become the heart and soul of our company's culture. In business activities, we will never cheat our partners, suppliers, and clients no matter what. We will always work hard to realize our commitment to them.
Application of the Product
Our small dozer for sale is widely used in industry.
With a focus on Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders, AILISHENG Construction Equipment is dedicated to providing reasonable solutions for customers.
Product Comparison
Compared with the small dozer for sale of our peers, the small dozer for sale we produce is provided with the following advantages.
Enterprise Advantages
Our company has introduced an advanced management model and built a strong and professional elite team. They pave the way for our better development.
AILISHENG Construction Equipment has advanced technical support and perfect after-sales service. Customers can select and purchase without worries.
As a company with social responsibility, AILISHENG Construction Equipment has always adhered to the enterprise spirit of 'concentration, dedication, and professionalism'. We pay great attention to the reputation, customers, and integrity during business development. We constantly innovate and pursue excellence, with the commitment of becoming a modern enterprise with a good reputation in the domestic market.
AILISHENG Construction Equipment was established in Our company has won unanimous praise from customers, because of years of industry experience, professional production technology and perfect service system.
AILISHENG Construction Equipment's Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders are only sold well throughout the country, but also exported to Europe, America, Southeast Asia, the Middle East, and other countries and regions. And the market share continues to grow.
