Quality Single Drum Vibratory Compactors Supply

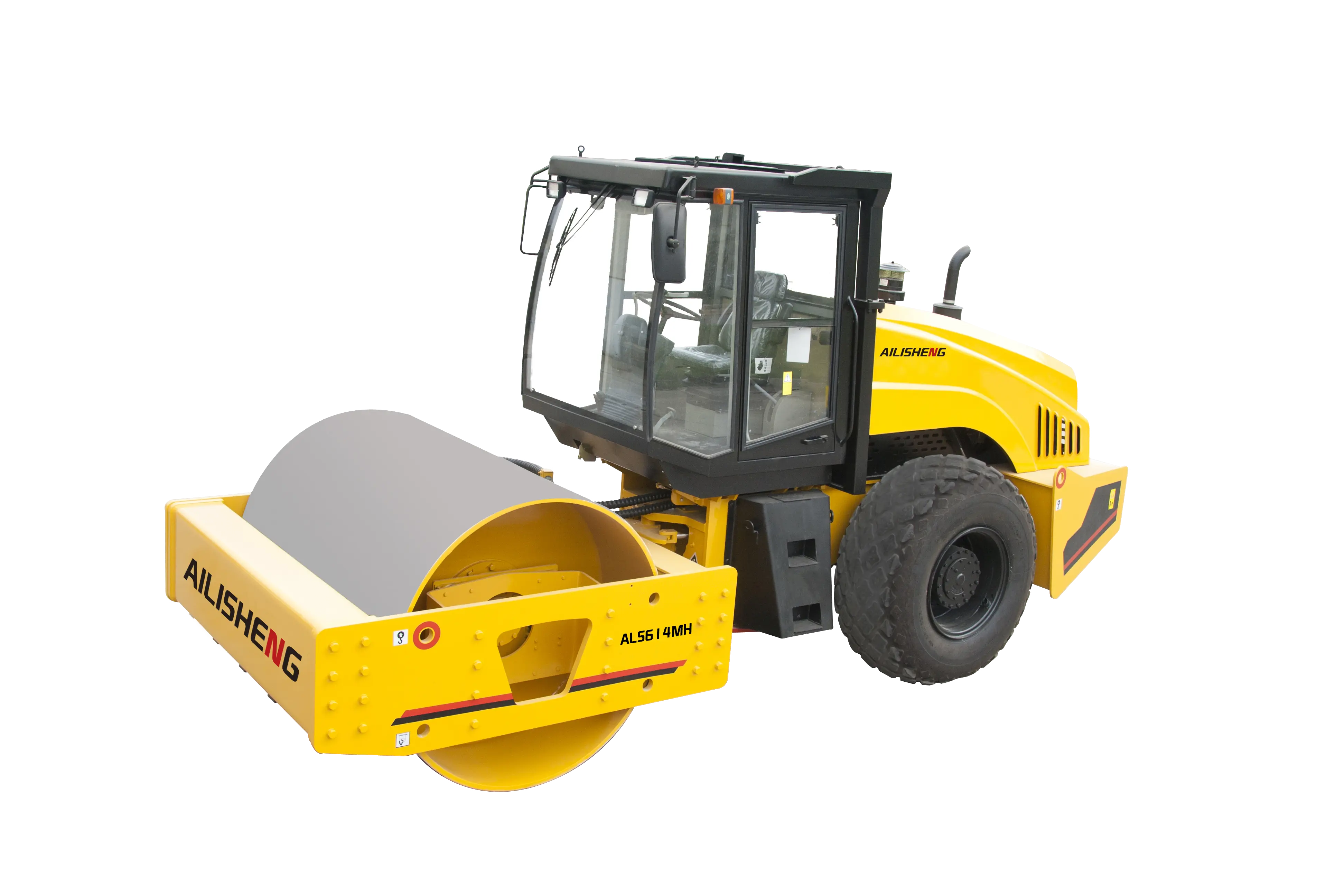

Product details of the single drum vibratory compactors
Product Introduction
The raw materials of AILISHENG Construction Equipment single drum vibratory compactors are procured from some of the most trustworthy and certified vendors in the industry. AILISHENG Construction Equipment's product is subject to a professional quality inspection team. AILISHENG Construction Equipment is able to produce single drum vibratory compactors with bulk production to ensure the business efficiency.
Performance
● "Equipped with Cummins engine, enjoying a stable and reliable performance.
● "Equipped with the closed hydraulic driving system consisting of plunger pump and plunger motor from REXROTH or SAUER, enjoying high working pressure and long service life.
● Applying the front and rear wheels dual-drive mode, thus providing proper driving performance.
● Most of mass distributed on the vibrating drum i.e. more than 56% of the total weight, producing large exciting force, proper compacting performance and high working efficiency as a result.
● The spacious and quiet cab provides excellent all-around visibility and features thermal insulation, vibration reduction.
● The machine is also equipped with an optional compactibility measuring instrument, according to users’ requirement. "
Specifications
|
Description |
Unit |
ALS614H |
|
|
Operating Weight |
kg |
14000 |
|
|
Drum Weight |
kg |
8200 |
|
|
Driving Wheel(D×W) |
mm |
Φ1550X2130 |
|
|
Travel Speed |
Ⅰ |
km/h |
0～4.3 |
|
|
Ⅱ |
km/h |
0～6.4 |
|
|
Ⅲ |
km/h |
0～9.2 |
|
|
Ⅳ |
km/h |
/ |
|
Max. Gradeability |
% |
45 |
|
|
Vibration Frequency |
Hz |
30 |
|
|
Amplitude (H/L) |
mm |
1.8/0.9 |
|
|
Centrifugal Force(H/L) |
KN |
260/130 |
|
|
Min. Turning Radius |
mm |
6300 |
|
|
Engine |
Brand |
|
Cummins |
|
|
Model |
|
6BT5.9-C150 |
|
|
Rated power |
kW |
112 |
|
|
Rated speed |
rpm |
2400 |
|
Tire spec. |
|
23.1-26-12PR |
|
|
Tire pressure |
MPa |
0.14-0.17 |
|
|
Steering hydraulic system |
Maximum steering angle |
° |
35 |
|
|
Maximum swinging angle |
° |
9 |
|
System voltage |
|
DC 24V |
|
|
Overall Dimension(L×W×H) |
mm |
5717×2270×3200 |
|
Company Feature
• AILISHENG Construction Equipment's Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders are sold well in the domestic and foreign market. They are favored and recognized by customers.
• AILISHENG Construction Equipment adheres to the principle of 'users are teachers, peers are examples'. We adopt scientific and advanced management methods and cultivates a professional and efficient service team to provide quality service for customers.
• The open and smooth traffic creates convenience for the transportation and timely supply of Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders.
• Our company was established in and has been engaged in the industry for years.
Thanks for your interest in AILISHENG Construction Equipment's Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders. If you are interested in our products, please feel free to contact us to place orders. You can enjoy discounts on your first purchase!
