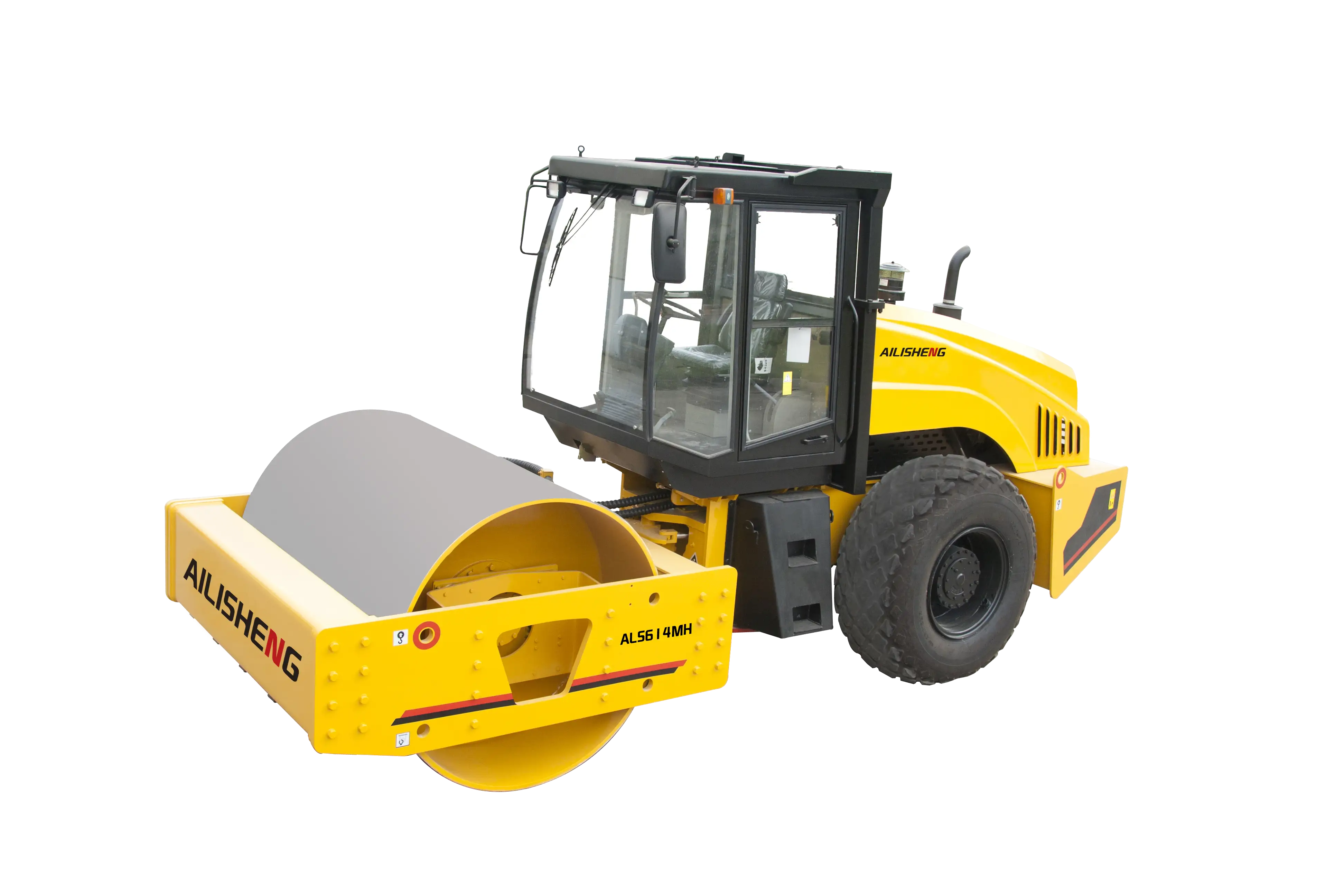

Product details of the electric construction equipment
Quick Detail
The body frame lightweight design of electric construction equipment have the extremely vital significance. electric construction equipment has a broad application future because of its powerful advantages. AILISHENG Construction Equipment's electric construction equipment is widely used in many industries. The success of Xiamen Ailisheng Intelligent Equipment Co.,Ltd hinges on our outstanding team of electric construction equipment designers and manufacturing engineers.
Product Introduction
We insist on regulating the production process of the products in accordance with standards, so as to promote the electric construction equipment has higher quality. Compared with peer products, the specific advantages are mainly reflected in the following aspects.
Performance
● "Equipped with Cummins engine, enjoying a stable and reliable performance.
● "Equipped with the closed hydraulic driving system consisting of plunger pump and plunger motor from REXROTH or SAUER, enjoying high working pressure and long service life.
● Applying the front and rear wheels dual-drive mode, thus providing proper driving performance.
● Most of mass distributed on the vibrating drum i.e. more than 56% of the total weight, producing large exciting force, proper compacting performance and high working efficiency as a result.
● The spacious and quiet cab provides excellent all-around visibility and features thermal insulation, vibration reduction.
● The machine is also equipped with an optional compactibility measuring instrument, according to users’ requirement. "
Specifications
Description |
Unit |
ALS614H |
|
Operating Weight |
kg |
14000 |
|
Drum Weight |
kg |
8200 |
|
Driving Wheel(D×W) |
mm |
Φ1550X2130 |
|
Travel Speed |
Ⅰ |
km/h |
0~4.3 |
|
Ⅱ |
km/h |
0~6.4 |
|
Ⅲ |
km/h |
0~9.2 |
|
Ⅳ |
km/h |
/ |
Max. Gradeability |
% |
45 |
|
Vibration Frequency |
Hz |
30 |
|
Amplitude (H/L) |
mm |
1.8/0.9 |
|
Centrifugal Force(H/L) |
KN |
260/130 |
|
Min. Turning Radius |
mm |
6300 |
|
Engine |
Brand |
|
Cummins |
|
Model |
|
6BT5.9-C150 |
|
Rated power |
kW |
112 |
|
Rated speed |
rpm |
2400 |
Tire spec. |
|
23.1-26-12PR |
|
Tire pressure |
MPa |
0.14-0.17 |
|
Steering hydraulic system |
Maximum steering angle |
° |
35 |
|
Maximum swinging angle |
° |
9 |
System voltage |
|
DC 24V |
|
Overall Dimension(L×W×H) |
mm |
5717×2270×3200 |
