Professional Dozer for Sale
Company Advantages
· dozer for sale perfectly combines art and innovation.
· The product is of high quality and reliable.
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd implements comprehensive quality inspection measures in all aspects of production.

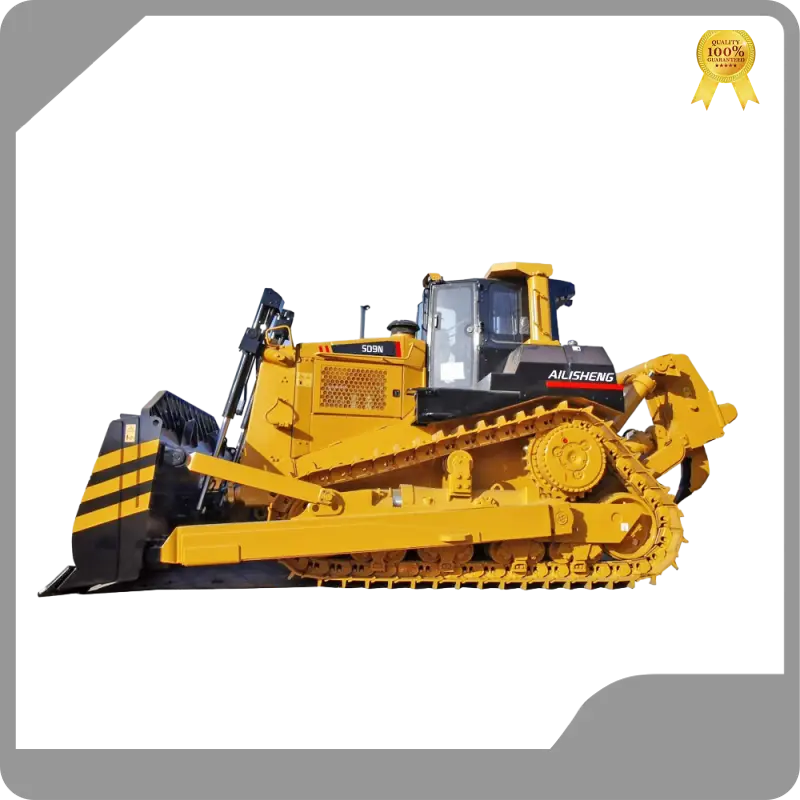

SD9N bulldozer is track-type dozer with elevated sprocket, hydraulic direct drive, semi-rigid suspended and hydraulic controls. Equipped with power separating hydraulic-mechanic type Torque converter, planetary, power shift and one lever control transmission. SD9N bulldozer equipped with integrated hydraulic system, electric monitoring, SD9N bulldozer can be equipped with many optional equipment and attachment, it can be used in road building, hydro-electric construction, land clearance, port and mine development and other construction field.
Main technical parameter
|
Description |
Unit |
SD9N |
|
|
Dozer Type |
|
Tilt |
|
|
Operation weight (not including ripper) |
Kg |
43200 |
|
|
Operation weight (With three-shanks ripper) |
Kg |
48880 |
|
|
Ground pressure |
KPa |
112 |
|
|
Track gauge |
mm |
2250 |
|
|
Gradient |
|
30°/25° |
|
|
Min. ground clearance |
mm |
517 |
|
|
Dozing capacity |
m³ |
13.5 | |
|
Blade width |
mm |
4314 |
|
|
Max. digging depth |
mm |
614 |
|
|
Overall dimensions |
mm |
8478x4314x3970 |
|
|
Engine |
|
|
|
|
Type |
|
Cummins KTA19-C525S10 |
|
|
Rated revolution |
rpm |
1800 |
|
|
Flywheel power |
KW/HP |
316/430 |
|
|
Torque storage coefficient |
|
18% |
|
|
Undercarriage system |
|
|
|
|
Type |
|
The track is triangle shape. The sprocket is elevated elastic suspended. |
|
|
Number of track rollers (each side) |
|
8 |
|
|
Pitch |
mm |
240 |
|
|
Width of shoe |
mm |
610 |
|
|
Implement hydraulic system |
|
|
|
|
Max. system pressure |
MPa |
18.3 |
|
|
Pump type |
|
Gears oil pump |
|
|
System output |
L/min |
358 |
|
|
Gear 1st 2nd 3rd |
|
Forward (Km/h) 0-3.9 0-6.7 0-12.2 |
|
Backward (Km/h) 0-4.8 0-8.5 0-15.1 |
Driving system
Torque converter Torque converter is power separating hydraulic-mechanic type
Transmission Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering clutch. The steering clutch is hydraulic pressed, usually separated clutch.
Braking clutch The braking clutch is pressed by spring, separated hydraulic, meshed type.
Final drive The final drive is two-stage planetary reduction gear mechanism, splash lubrication.
Company Features
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd is a technologically advanced manufacturer of dozer for sale.
· We have our own manufacturing shop. It is equipped with high efficiency and modern manufacturing machines, which enables us to process our orders quickly and flexibly. We have our own integrated design team. With their years of expertise, they are capable of designing new products and adapt our wide range of customers' specifications. Each of our professional members has gained extensive knowledge and years of expertise in the dozer for sale industry. They are capable of delivering the best products and services at the highest level.
· We will never neglect any details and always keep open-minded to win more customers for our dozer for sale. Ask!
Product Details
More details of dozer for sale are shown as follows.
Enterprise Advantages
We have a professional technical team to provide customers with the best technical support and guarantee in the process of our development and growth.
AILISHENG Construction Equipment takes customer's satisfaction as an important criterion and provides thoughtful and reasonable services for customers with a professional and dedicated attitude.
With the tenet of 'customer first, reputation first', we insist on the policy of higher standards, higher quality and higher efficiency to truly manage with love and work with sincerity.
AILISHENG Construction Equipment was built in During the years, our company has continuously explored and innovated to expand the scale and improve our competitive strength. Based on the rapid development, we have become the role model in the industry.
Our products are not only sold well throughout the country, but also exported to Europe, America, Southeast Asia, the Middle East and other countries and regions. And the market share continues to grow.
