New Road Grader Price List
Product details of the road grader
Product Overview

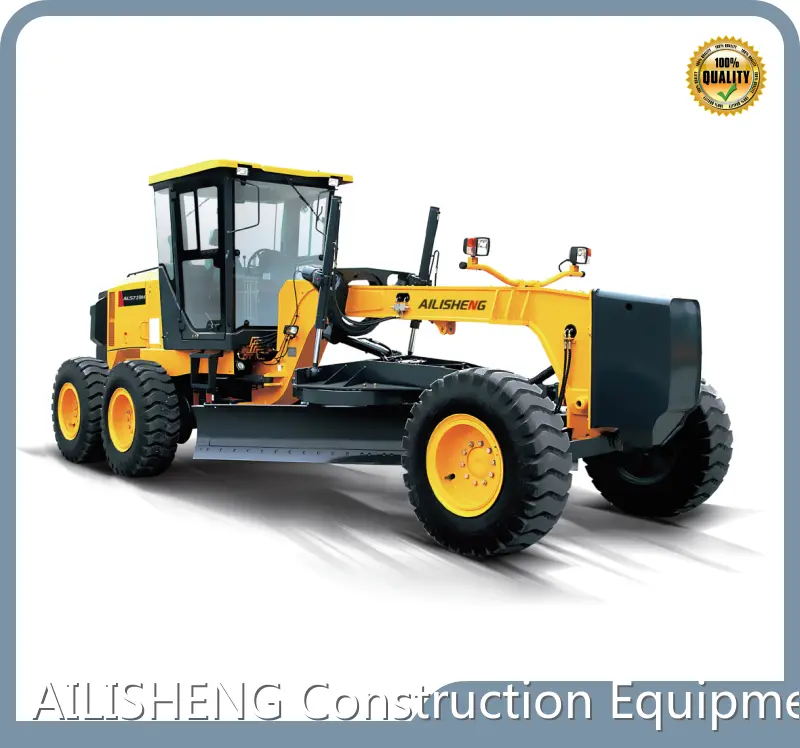

AILISHENG Construction Equipment road grader is scientifically designed based on the experience of users. Prior to delivery, the product must be rigorously inspected to ensure high quality in all aspects of performance, availability and more. Our road grader has a wide range of applications and can be used in a variety of situations and scenarios. AILISHENG Construction Equipment has professional technicians to attend to the work of producing road grader with quality guaranteed.
Product Introduction
Our road grader are perfect in every detail.
Excellent Performance
· Equipped with reliable Cummins 6CTA8.3-C190 engine.
· Sing-handle electro-hydraulic controlled power-shift T/M, 6 forward & 3reverse shifts makes operation easy and convenient.
· Hydraulic lock, auto lock/unlock NO-SPIN（Optional） differential ensures stability and powerful traction.
· Ideal axel load allocation provides excellent stability while cutting hard surface.
· Serviceable, efficient hydraulic system enables every part to be fully used.
· Box-typed frame and advanced T/M enable it to complete heavy-duty work.
· A wide working range is accomplished through flexible blade suspension system and articulated frame.
Specifications
| Overall Dimension ALS719H | ||||||||||||
| 1 | Length | 8950mm | ||||||||||
| 2 | Width | 2600mm | ||||||||||
| 3 | Height(To the top of the cab) | 3420mm | ||||||||||
| 4 | Wheel base | 6100mm | ||||||||||
| 5 | Tread | 2120(mm) | ||||||||||
| 6 | Min. turning radius | 7.3（m） | ||||||||||
| Main Technical Specification | ||||||||||||
| 1 | Operating weight | 15600kg | ||||||||||
| 2 | Blade length | 4268mm | ||||||||||
| 3 | Blade height | 580mm | ||||||||||
| 4 | Shovel Blade thickness | 20mm | ||||||||||
| 5 | Max. lift above ground | 450mm | ||||||||||
| 6 | Max. grading depth | 535mm | ||||||||||
| 7 | Max. shoulder reach outside rear tire | 2400mm | ||||||||||
| 8 | Traveling speed(Km/h)，6 forward and 3 reverse | |||||||||||
| (1) forward | 6.5/11.4/14.6/24.8/30/49.2 | |||||||||||
| (2) reverse | 6.5/14.6/30 | |||||||||||
| Diesel engine | ||||||||||||
| 1 | Model | Cummins 6CTA8.3-C190 | ||||||||||
| 2 | Type | Direct injection. Turbocharged. Air to air cooling | ||||||||||
| 3 | Rated output | 142kW | ||||||||||
| 4 | Rated speed | 2200(r/min) | ||||||||||
| 5 | Max. Torque | 860(N.M)/1400r/min | ||||||||||
| Transmission case | ||||||||||||
| 1 | Model | 6WG180 (ZF technology) | ||||||||||
| 2 | Type | power shift, single-shift lever, natural-shift lock device | ||||||||||
| 3 | Gear shift position | 6 Forward and 3 reverse gears | ||||||||||
| Axle and Tire | ||||||||||||
| 1 | Max. drawing force | 80.2KN（f=0.75） | ||||||||||
| 2 | Size of tire | 17.5-25-12PR(standard) | ||||||||||
| 13.00-24-12PR(optional) | ||||||||||||
| Working Device Hydraulic System | ||||||||||||
| 1 | System pressure | 17.5MPa | ||||||||||
| Steering System | ||||||||||||
| 1 | Type | Fore Tires deflexion | ||||||||||
| 2 | System pressure | 16MPa | ||||||||||
Company Advantages
Xiamen Ailisheng Intelligent Equipment Co.,Ltd is a enterprise that integrates production and sales of products. Our main product is Electric Construction Equipment,Excavators,Wheel Loaders,Soil Vibratory Compactors,Landfill Compactors,Skid Steer Loaders,Forklift Trucks,Telescopic Forklift,Dozers,Motor Graders,Backhoe Loaders. AILISHENG Construction Equipment adheres to the business philosophy of 'detail determines quality and integrity continues market'. We always strive for survival by quality and achieve development through reputation. And the benefit is gained from management. We are committed to providing effective solutions for customers at home and abroad. AILISHENG Construction Equipment has experienced R&D and production personnel to conduct product development and design and guarantee the high quality of products. We are willing to understand the real needs of our customers. Then, we will provide the best solutions to their needs.
If you are in need for products of reliable quality and affordable price, please contact us at any time!
