New Grader Equipment Grader Equipment Company

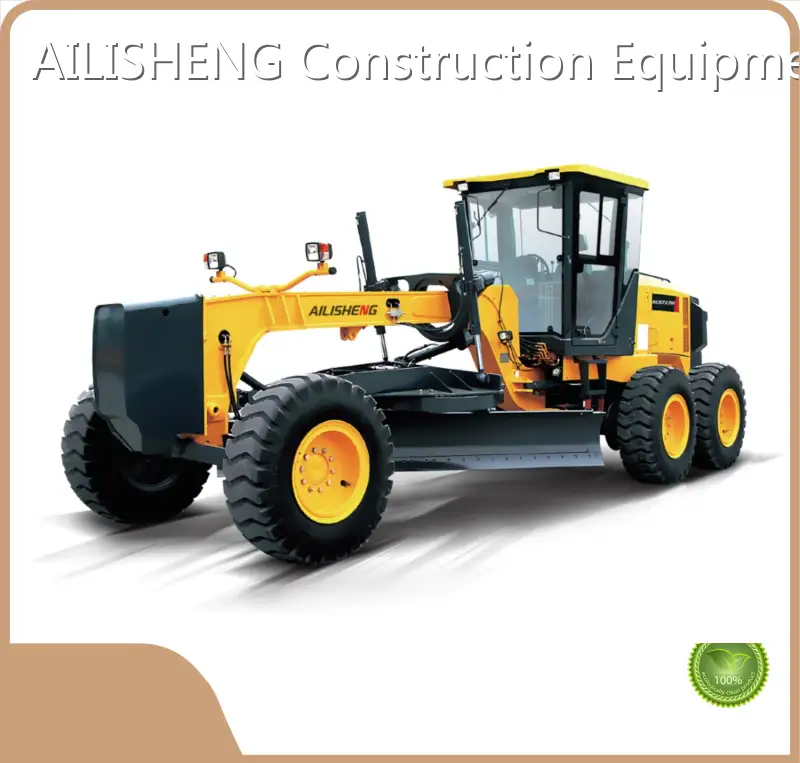

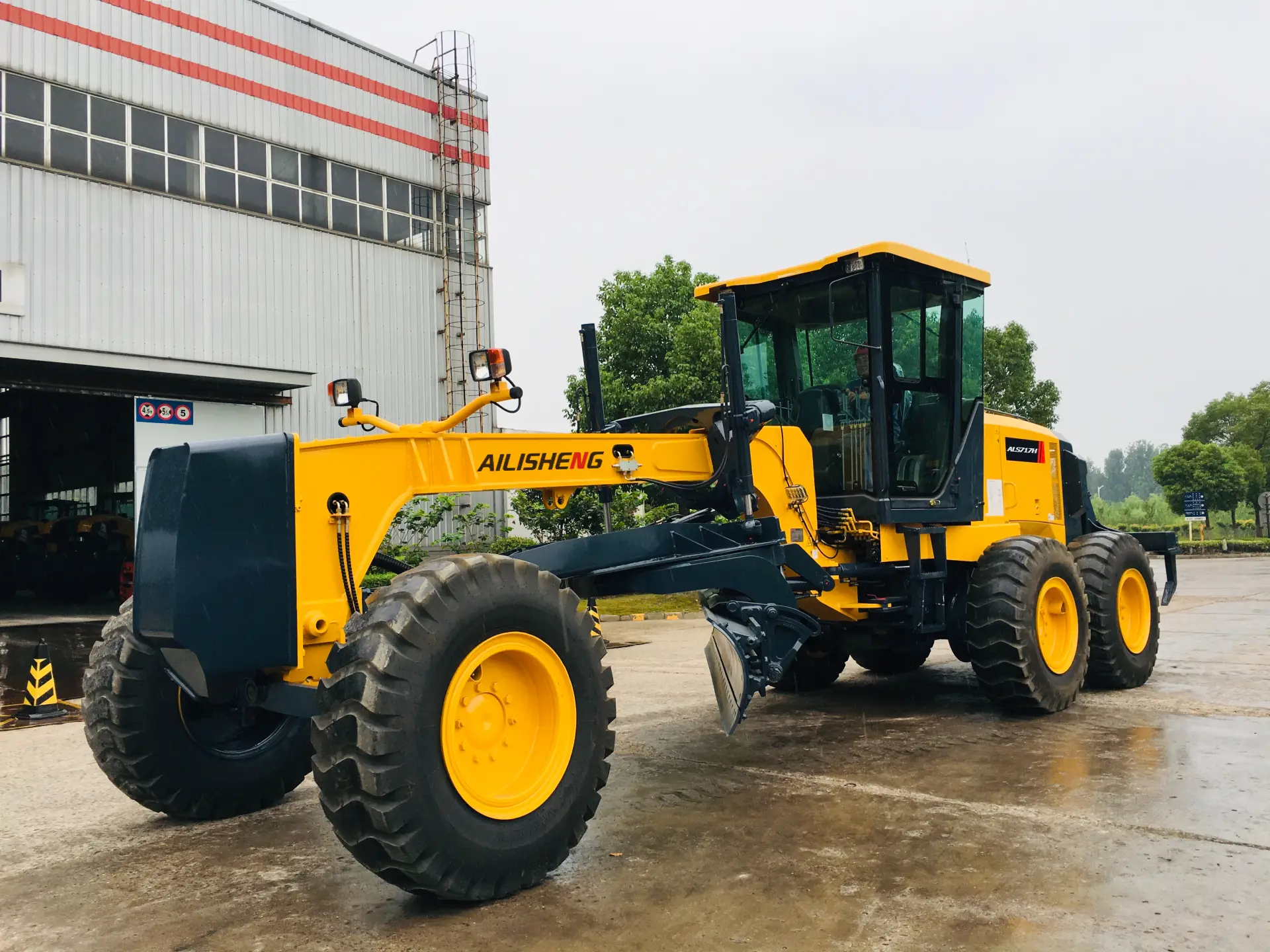

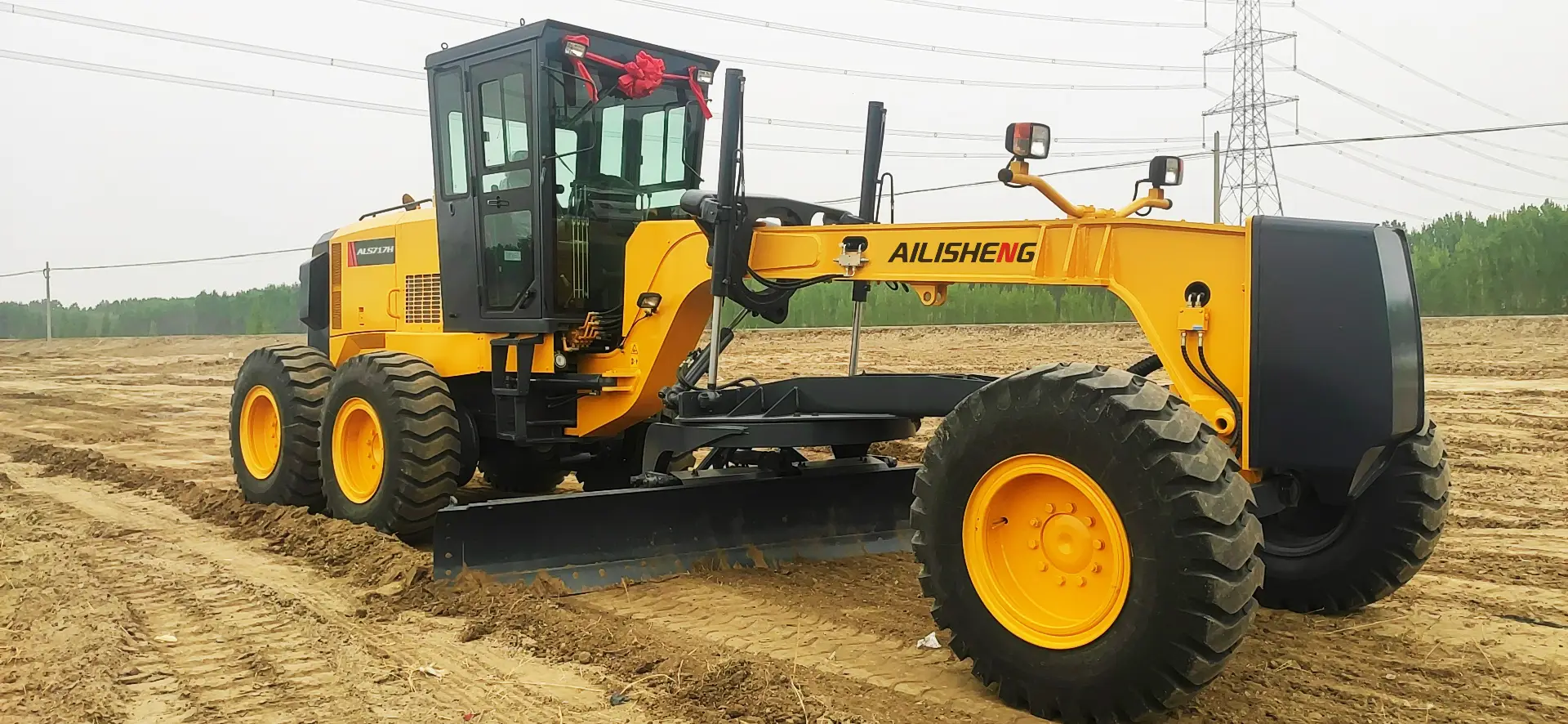

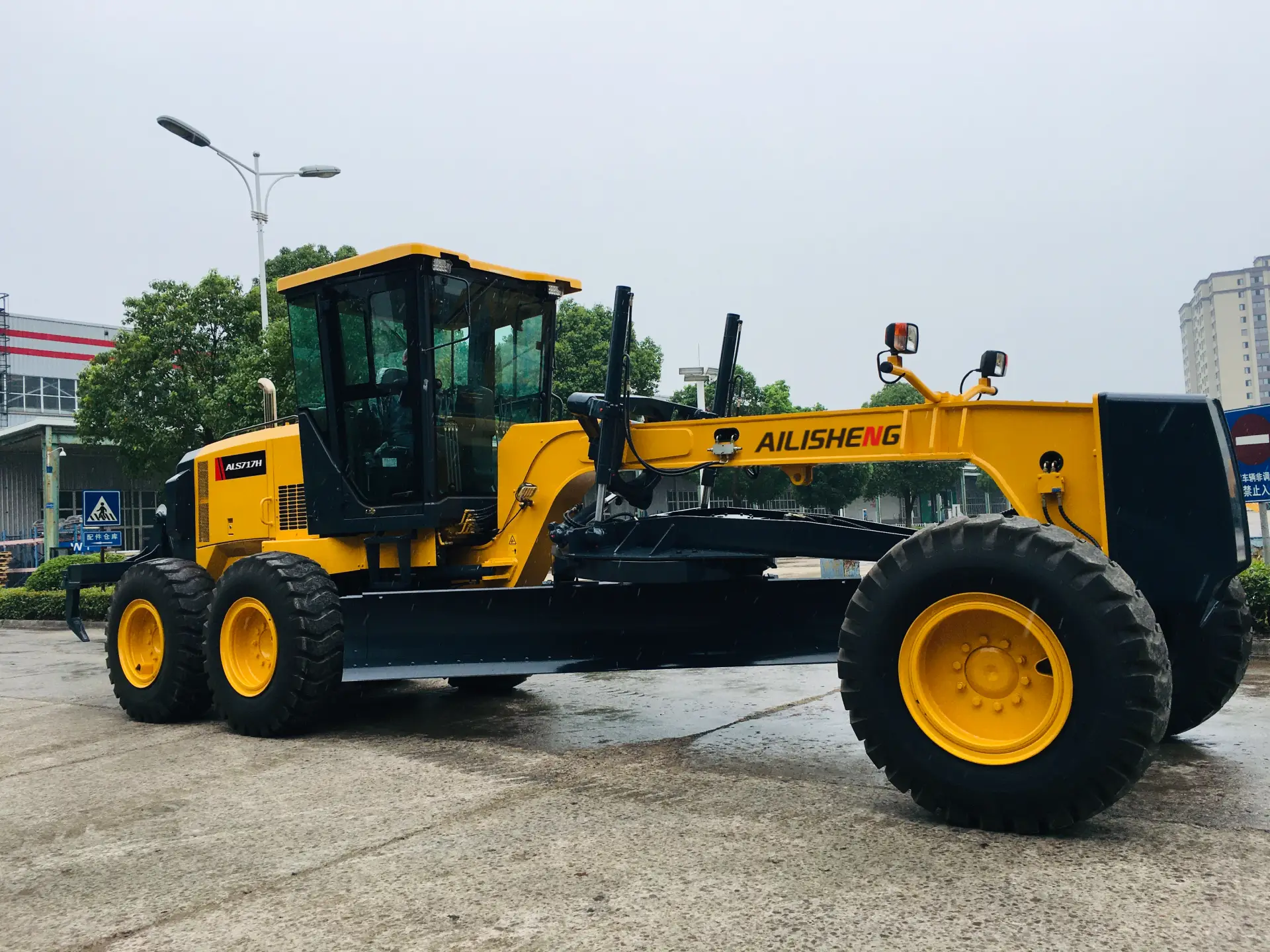

Product details of the grader equipment
Product Overview
The whole production process of AILISHENG Construction Equipment grader equipment is conducted by workers who are proficient in the production techniques. It is developed as we closely track international advanced technology and development trends. . AILISHENG Construction Equipment's grader equipment can be used in a variety of industries. The product has many excellent performance, suitable for a variety of applications.
Product Description
The grader equipment produced by AILISHENG Construction Equipment stands out in many similar products. And the specific advantages are as follows.
Excellent Performance
· Sing-handle electro-hydraulic controlled power-shift T/M, 6forward &3reverse shifts makes operation easy and convenient
· Hydraulic lock, auto lock/unlock NO-SPIN（Optional） differential ensures stability and powerful traction
· Ideal axle load allocation provides excellent stability while cutting hard surface
· Serviceable, efficient hydraulic system enables every part to be fully used.
· Box-typed frame and advanced T/M enable it to complete heavy-duty work.
· A wide working range is accomplished through flexible blade suspension system and articulated frame.
Specifications

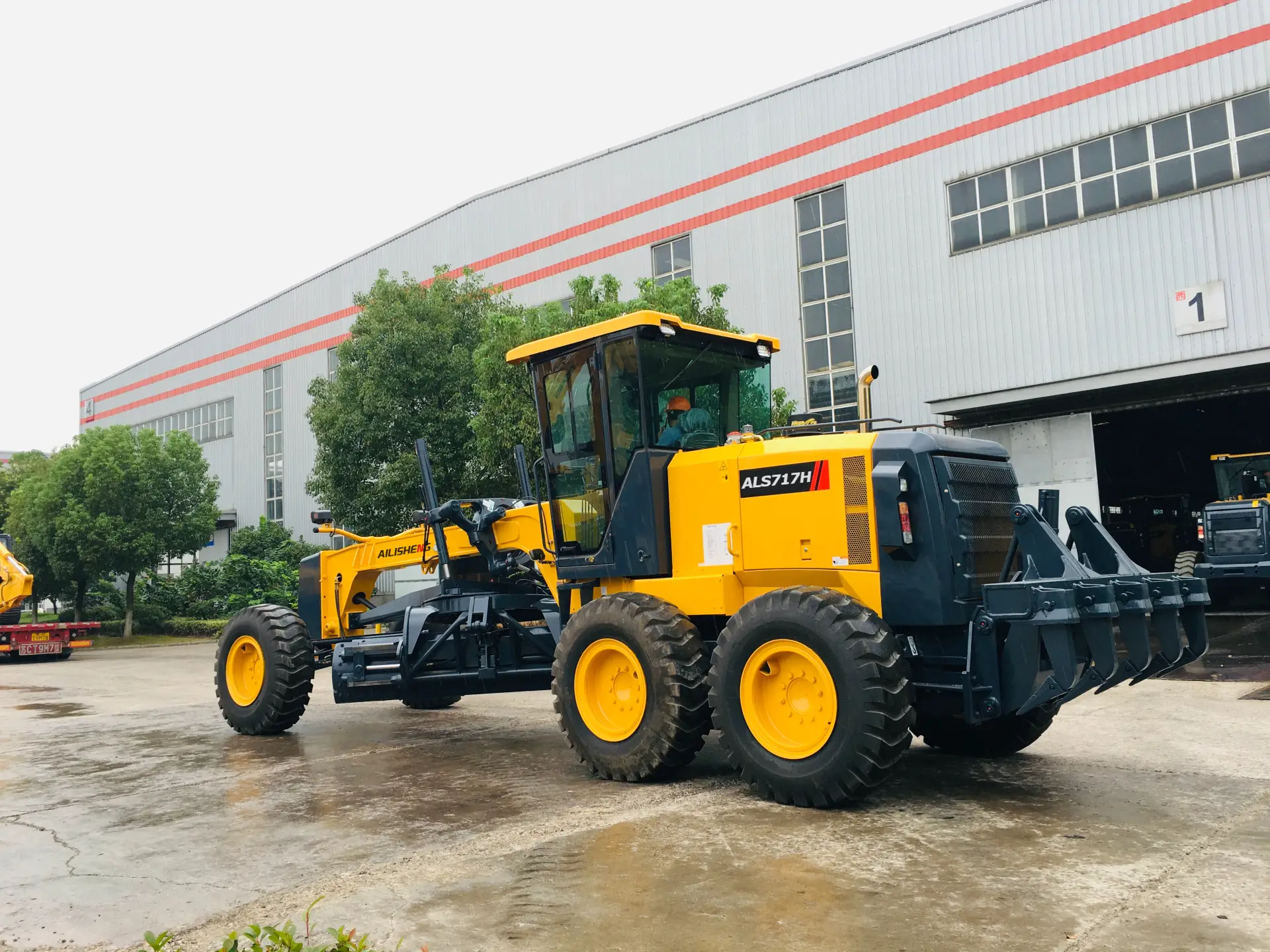

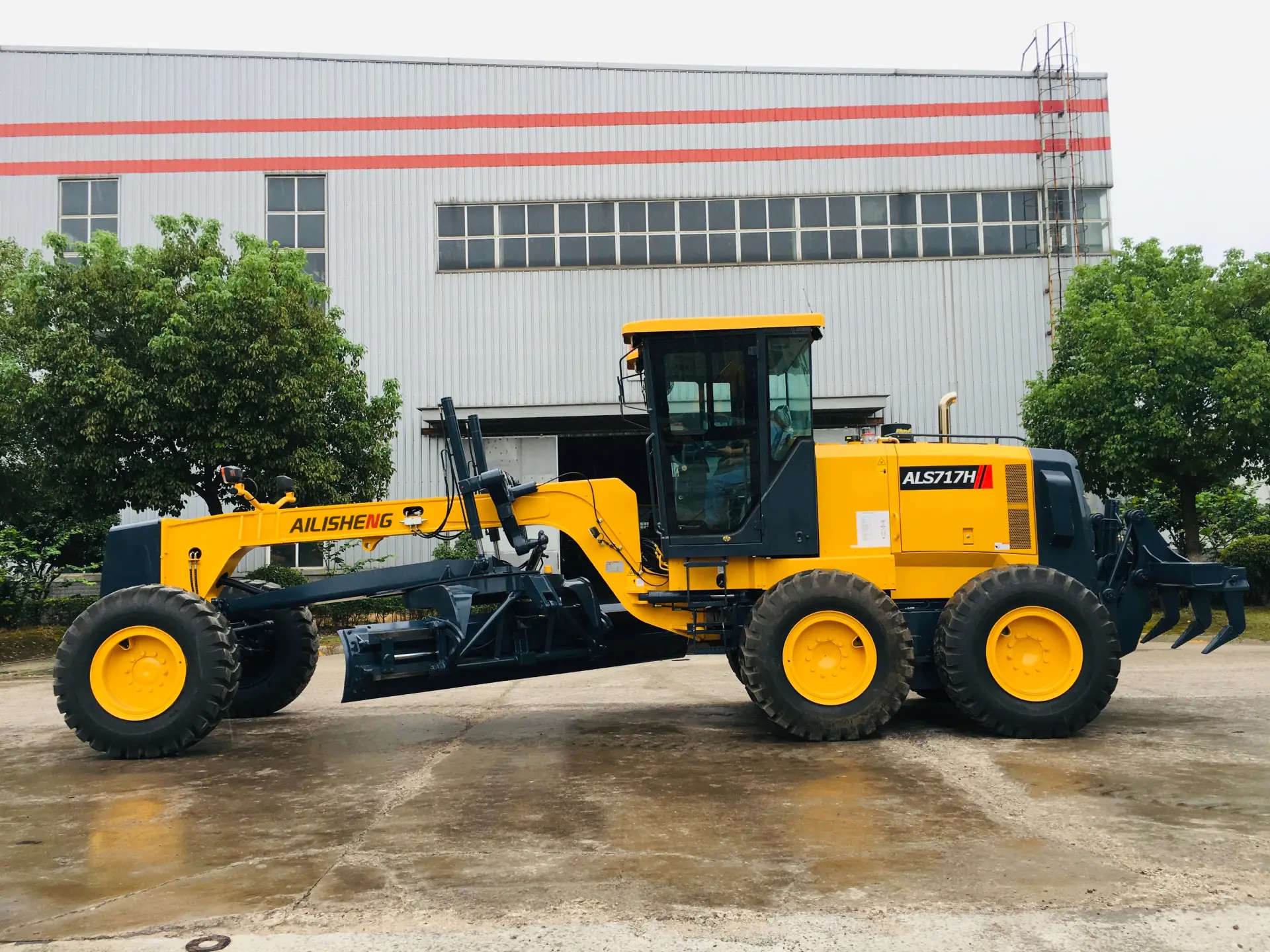

| Overall Dimension ALS717H | ||||||||||||
| 1 | Length | 8820mm | ||||||||||
| 2 | Width | 2600mm | ||||||||||
| 3 | Height(To the top of the cab) | 3420mm | ||||||||||
| 4 | Wheel base | 6100mm | ||||||||||
| 5 | Tread | 2120(mm) | ||||||||||
| 6 | Min. turning radius | 7.3（m） | ||||||||||
| Main Technical Specification | ||||||||||||
| 1 | Operating weight | 14500kg | ||||||||||
| 2 | Blade length | 3658mm | ||||||||||
| 3 | Blade height | 580mm | ||||||||||
| 4 | Shovel Blade thickness | 20mm | ||||||||||
| 5 | Max. lift above ground | 450mm | ||||||||||
| 6 | Max. grading depth | 535mm | ||||||||||
| 7 | Max. shoulder reach outside rear tire | 2000mm | ||||||||||
| 8 | Traveling speed(Km/h)，6 forward and 3 reverse | |||||||||||
| (1) forward | 6.5/11.4/14.6/24.8/30/49.2 | |||||||||||
| (2) reverse | 6.5/14.6/30 | |||||||||||
| Diesel engine | ||||||||||||
| 1 | Model | Cummins 6BTA5.9-C180 | ||||||||||
| 2 | Type | Direct injection. Turbocharged. Water cooling | ||||||||||
| 3 | Rated output | 132kW | ||||||||||
| 4 | Rated speed | 2200(r/min) | ||||||||||
| 5 | Max. Torque | 750(N.m) at 1300r/min | ||||||||||
| Transmission case | ||||||||||||
| 1 | Model | 6WG180 (ZF technology) | ||||||||||
| 2 | Type | power shift, single-shift lever, natural-shift lock device | ||||||||||
| 3 | Gear shift position | 6 Forward and 3 reverse gears | ||||||||||
| Axle and Tire | ||||||||||||
| 1 | Max. drawing force | 74.6KN（f=0.75） | ||||||||||
| 2 | Size of tire | 17.5-25-12PR(standard) | ||||||||||
| 13.00-24-12PR(optional) | ||||||||||||
| Working Device Hydraulic System | ||||||||||||
| 1 | System pressure | 17.5MPa | ||||||||||
| Steering System | ||||||||||||
| 1 | Type | Fore Tires deflexion | ||||||||||
| 2 | System pressure | 16MPa | ||||||||||
