New Electric Excavator Price List
Product features

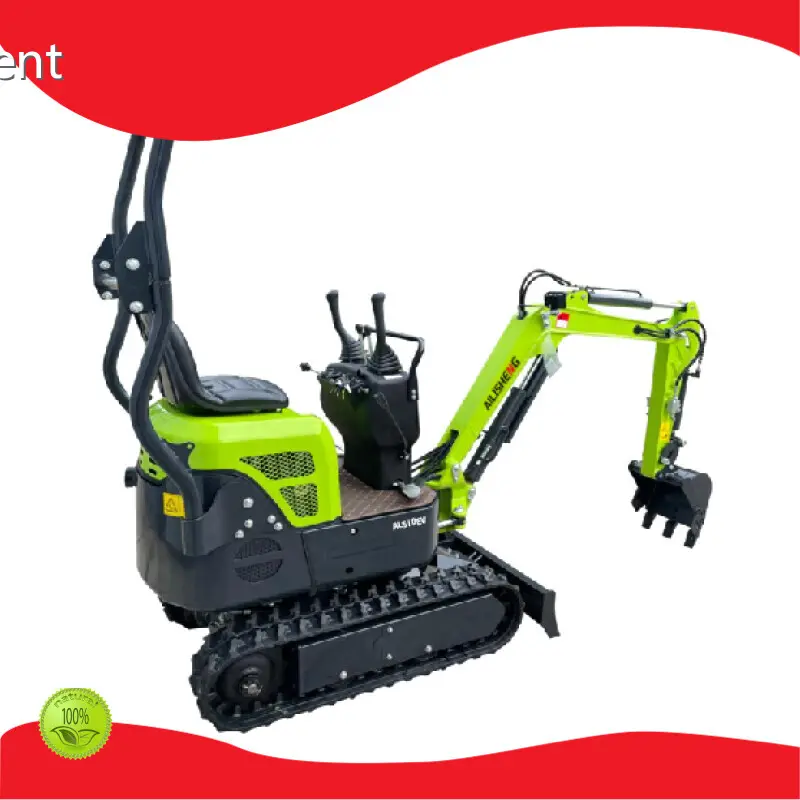

● The ALS10EV series all electric compact mini excavator can expand your work field and time range to a greater extent, showing the working performance no less than that of the same traditional internal combustion engine powered models. Its unique features of environmental friendliness and lower cost, as well as its traditional characteristics such as ultra compactness, durability and versatility, make it an ideal machine for use in places that are sensitive to noise and waste gas and have very narrow and compact workplaces.
● The lithium iron phosphate power battery used in this product does not need maintenance, the power cost is far lower than the fuel cost, which greatly reduces the noise, vibration, pollution-free, high efficiency, high stability and high quality. Standard on-board charging and plug and charge of civil electricity. ALS10EV electric excavator adopts electric professional design chassis, frame, boom and hydraulic system, with excellent performance. It can adapt to a large number of auxiliary working devices, such as bucket, crushing, clamp, drilling, etc., with flexible and convenient switching.
● Optional configurations also include retractable chassis, boom side sway, folding anti roll frame, four column ceiling, fast charging, photovoltaic charging, remote control device, etc.
Main technical parameter
|
|
Item |
Unit |
ALS10EV |
|
Electric system |
Battery type |
|
LEP(CATL) |
|
Battery capacity |
Kwh |
6.44 |
|
|
System voltage |
V |
48 |
|
|
Runtime(Continuous) |
Hrs |
8(4) |
|
|
Charging |
|
On-board charger |
|
|
Indicative charge time (on-board) |
hrs |
8 @110v / 6@ 220v |
|
|
Off-board fast charge(optional) |
hrs |
2@220 |
|
|
Motor type |
|
AC |
|
|
Motor power (continuous / peak) |
HP (kw) |
4/6 |
|
|
Drive Performance |
Max travel speed |
mph(km/h) |
1(1.63) |
|
Max. traction force |
lb (kg) |
610 |
|
|
Track type |
|
Rubber |
|
|
Ground contact pressure |
psi (kpa) |
3.48（24） |
|
|
Rubber width |
in. (mm) |
5.9''(180) |
|
|
Gradeability |
% |
30 |
|
|
Operating Performance |
Operating weight |
lb (kg) |
2028(920) |
|
Standard bucket capacity |
cu.ft (cu.m) |
0.022 |
|
|
Max. arm digging force |
lb (kg) |
1201(545) |
|
|
Max. bucket breakout force |
lb (kg) |
1411(640) |
|
|
Max.boom cylinder lifting force |
lb (kg) |
584(265) |
|
|
Swing speed(Max.speed) |
rpm |
8 |
|
|
*Boom swing angle left/right |
degree |
65/55 |
|
|
Hydraulics |
Total hydraulic flow |
gal/min(L/min) |
4.75（18） |
|
Max. operating pressure |
psi (mpa) |
2610(18) |
|
|
Reservoir capacity |
gal (ltr) |
3.17(12) |
Company Advantages
· electric excavator's structure adopts the unique technology to guarantee the high performance.
· It is rigorously tested to ensure high durability as per quality standards.
· The product has many usages and is widely used by people from various fields.
Company Features
· Xiamen Ailisheng Intelligent Equipment Co.,Ltd is located in one of the planet's most productive electric excavator areas.
· Our company is an award-winning enterprise. For so many years, we have gained many awards such as model enterprise award and much compliments from society.
· It is our glorious duty to realize the modernizational improvement of electric excavator industry. Get more info!
Application of the Product
Our electric excavator has a wide range of applications.
Guided by the actual needs of customers, AILISHENG Construction Equipment provides comprehensive, perfect and quality solutions based on the benefit of customers.
