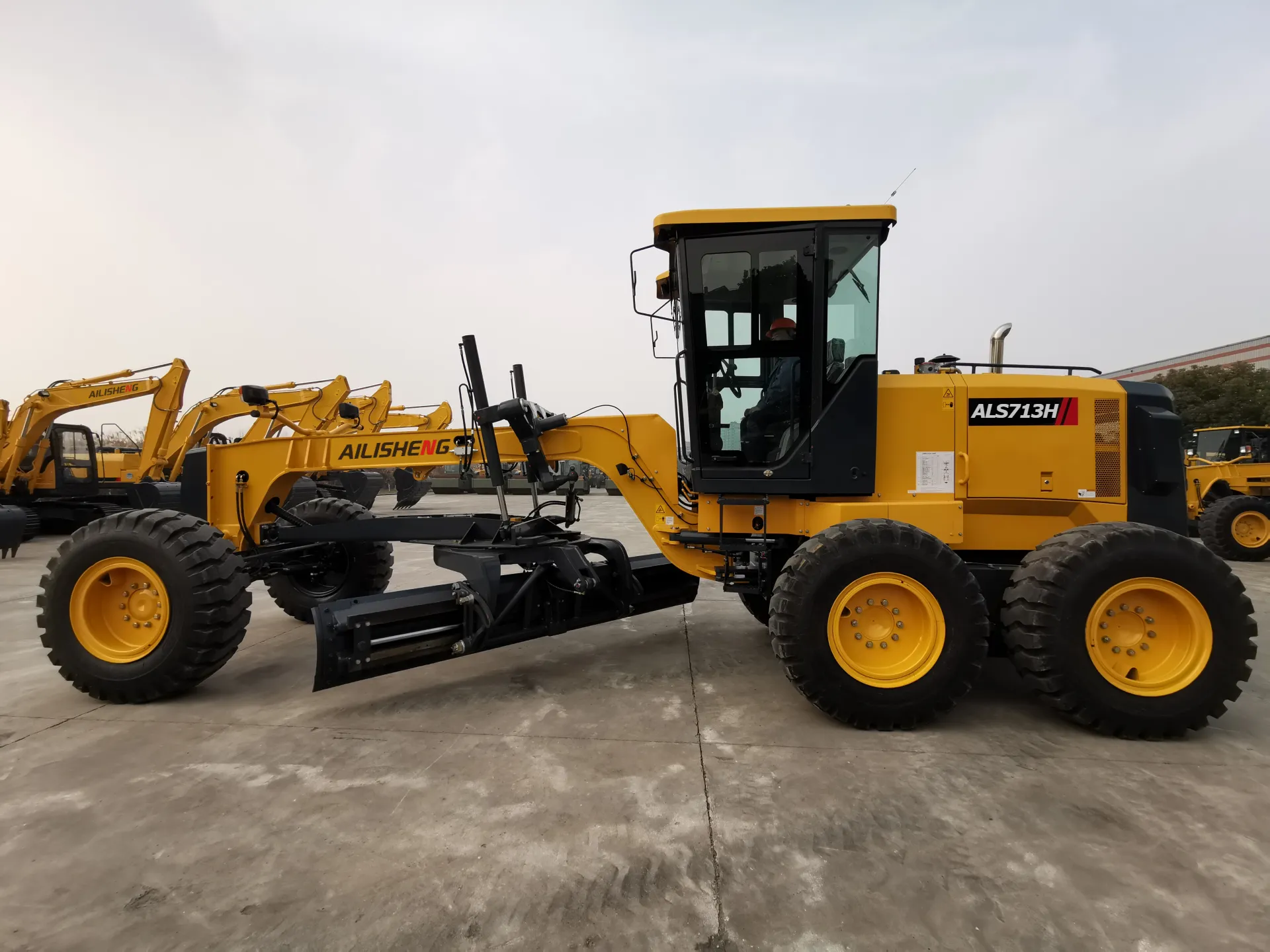

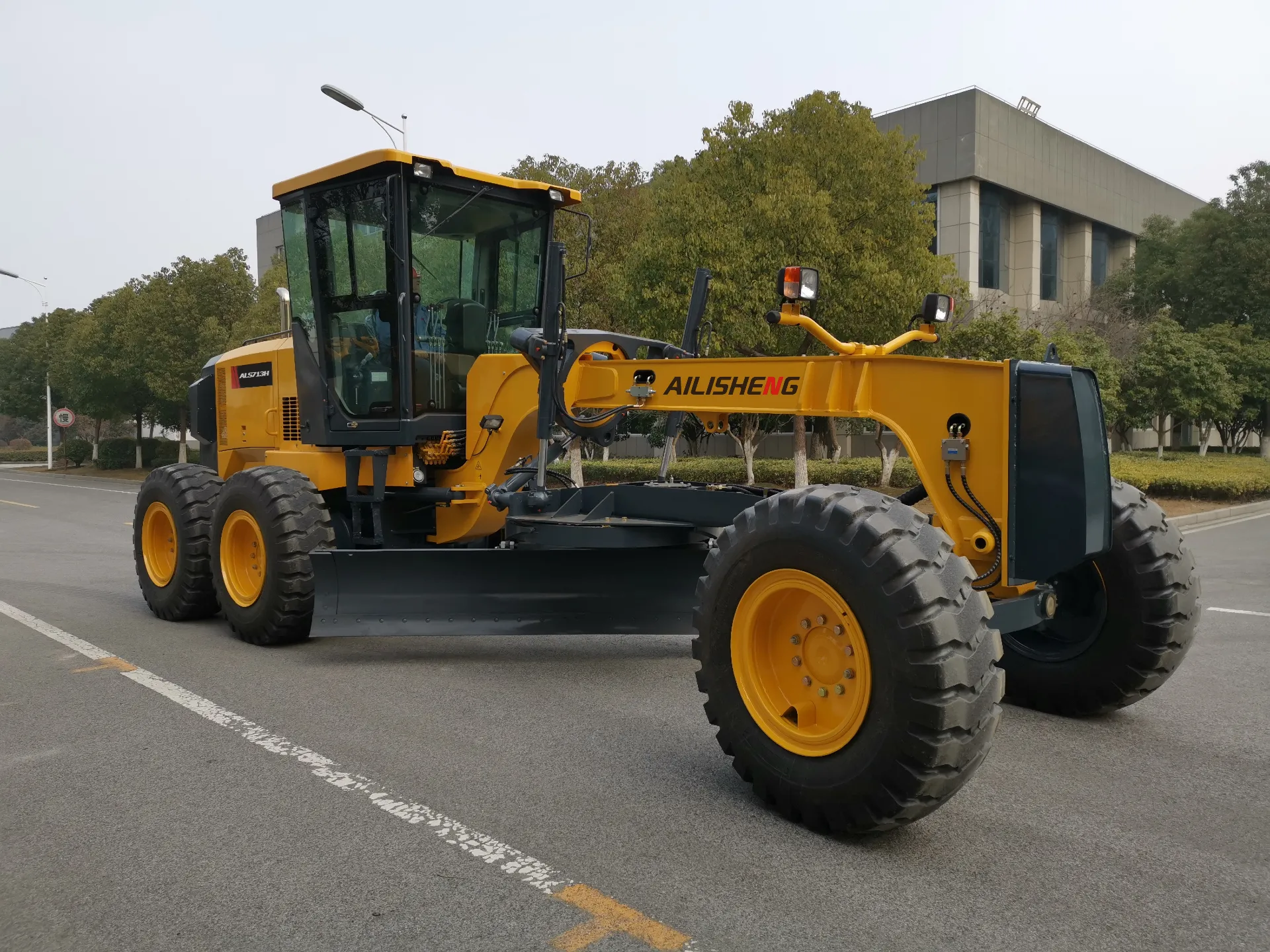

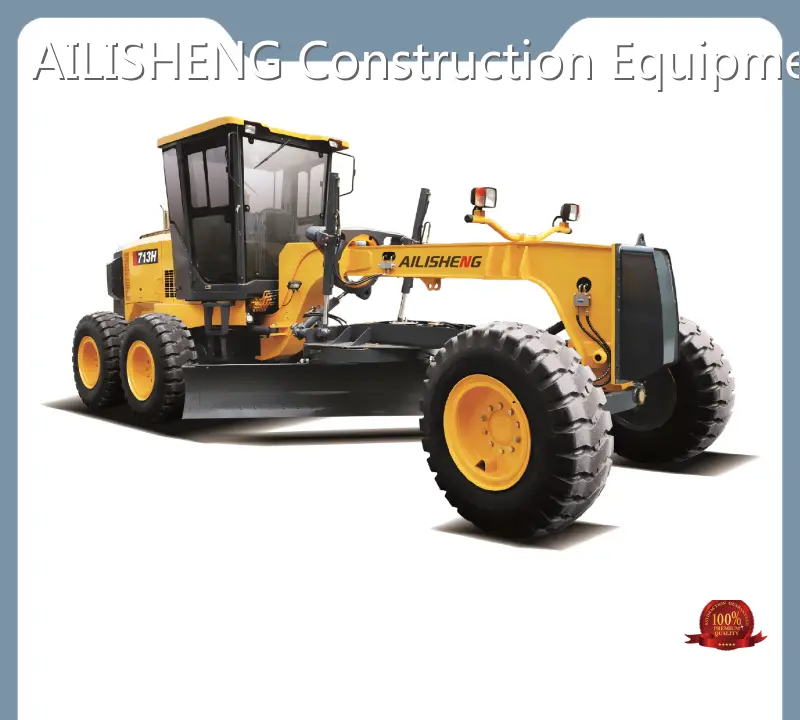

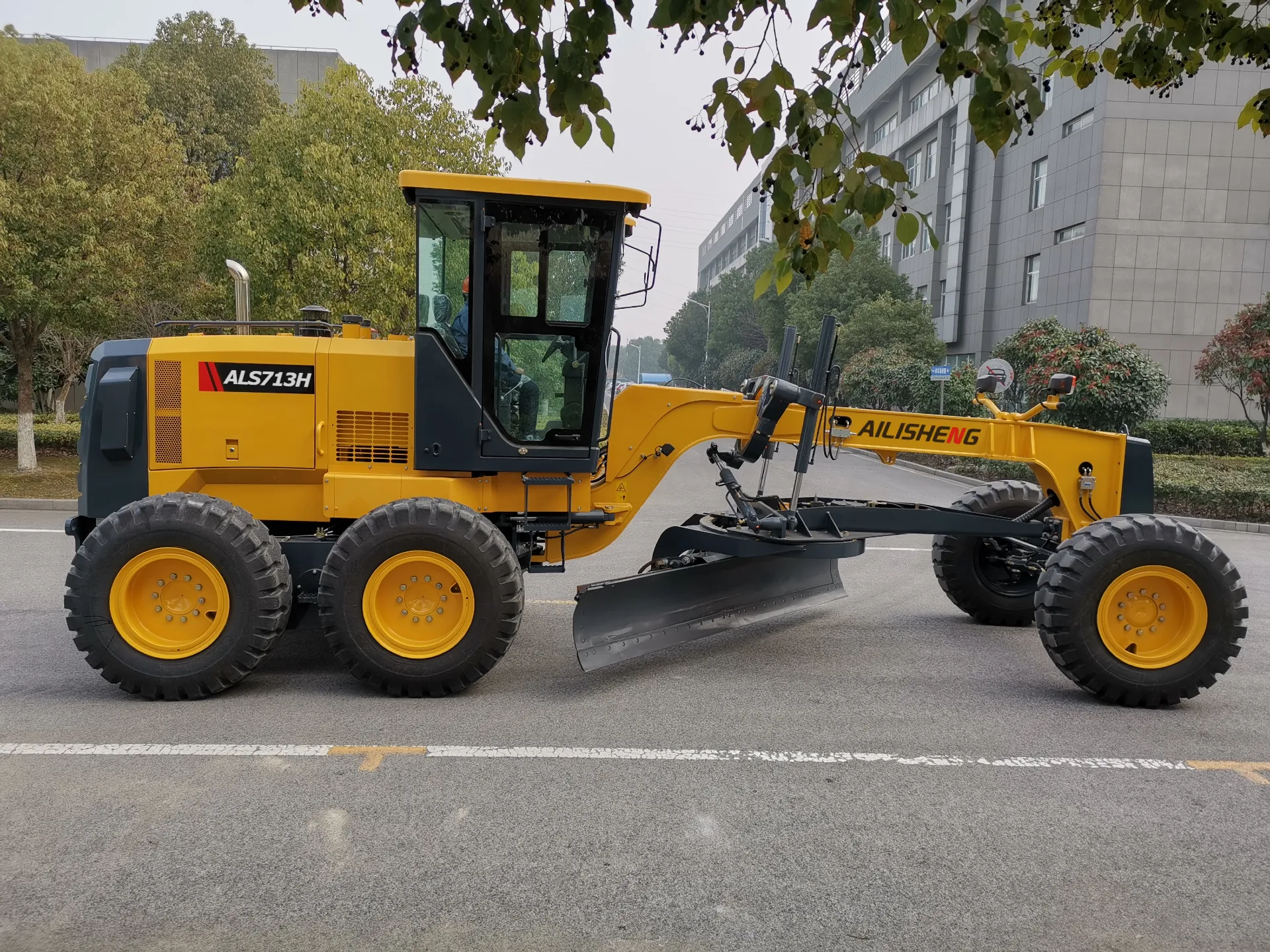

Product details of the mini motor grader for sale
Product Introduction
AILISHENG Construction Equipment mini motor grader for sale is available in different designs and colors. mini motor grader for sale serves many famous brand. The product, with an affordable price, is widely used by customers from various fields.
Excellent Performance
· Sing-handle electro-hydraulic controlled power-shift T/M, 6forward & 3reverse shifts makes operation easy and convenient.
· Hydraulic lock, auto lock/unlock NO-SPIN(OPTIONAL) differential ensures stability and powerful traction.
· Ideal axle load allocation provides excellent stability while cutting hard surface.
· Serviceable, efficient hydraulic system enables every part to be fully used
· Reliable full hydraulic brake system ensures safety.
· Box-typed frame and advanced T/M enable it to complete heavy-duty work.
· A wide working range is accomplished through flexible blade suspension system and articulated frame.
Specifications
Overall Dimension ALS713H | ||||||||||||
1 | Length | 8290mm | ||||||||||
2 | Width | 2600mm | ||||||||||
3 | Height(To the top of the cab) | 3465mm | ||||||||||
4 | Wheel base | 5780mm | ||||||||||
5 | Tread | 2120(mm) | ||||||||||
6 | Min. turning radius | 6.6(m) | ||||||||||
Main Technical Specification | ||||||||||||
1 | Operating weight | 12000kg | ||||||||||
2 | Blade length | 3658mm | ||||||||||
3 | Blade height | 580mm | ||||||||||
4 | Shovel Blade thickness | 20mm | ||||||||||
5 | Max. lift above ground | 410mm | ||||||||||
6 | Max. grading depth | 560mm | ||||||||||
7 | Max. shoulder reach outside rear tire | 2000mm | ||||||||||
8 | Traveling speed(Km/h),6 forward and 3 reverse | |||||||||||
(1) forward | 6.9/10.7/17.3/26/37.8/53.4 | |||||||||||
(2) reverse | 6.9/17.3/37.8 | |||||||||||
Diesel engine | ||||||||||||
1 | Model | DongFeng Cummins 6BT5.9-C130 6BT5.9-C130 | ||||||||||
2 | Type | Direct injection. Turbocharged. Water cooling | ||||||||||
3 | Rated output | 97kW | ||||||||||
4 | Rated speed | 2200(r/min) | ||||||||||
5 | Max. Torque | 560(N.M)/1500rpm | ||||||||||
Transmission case | ||||||||||||
1 | Model | YD13 (HANGCHI ADVANCE) | ||||||||||
2 | Type | power shift, single-shift lever, natural-shift lock device | ||||||||||
3 | Gear shift position | 6 Forward and 3 reverse gears | ||||||||||
Axle and Tire | ||||||||||||
1 | Max. drawing force | 61.7KN(f=0.75) | ||||||||||
2 | Size of tire | 17.5-25-12PR(standard) | ||||||||||
13.00-24-12PR(optional) | ||||||||||||
Working Device Hydraulic System | ||||||||||||
1 | System pressure | 17.5MPa | ||||||||||
Steering System | ||||||||||||
1 | Type | Fore Tires deflexion | ||||||||||
2 | System pressure | 16MPa |
Company Advantage
• The excellent quality of our company's products brings a wide range of customers sources and has attracted a large number of customers from overseas to purchase.
• AILISHENG Construction Equipment has a production team with rich experience and advanced technology, which provides a strong guarantee for product quality.
• Our customer service system is comprehensive. We make sure that consumers legal right can be protected effectively, so we provide consumers with information consultation, product distribution, product return and replacement and so on.
• AILISHENG Construction Equipment's location has traffic convenience with multiple traffic lines joining up. This contributes to the transportation and ensures the timely supply of products.
• AILISHENG Construction Equipment was established in During the development, we have constantly explored in the market and have introduced advanced science and technology and production equipment. Now we develop the business on the basis of large-scale production.
Our products are of excellent quality and favorable price, winning a wide recognition. If you want to know more about the products, please contact us!
