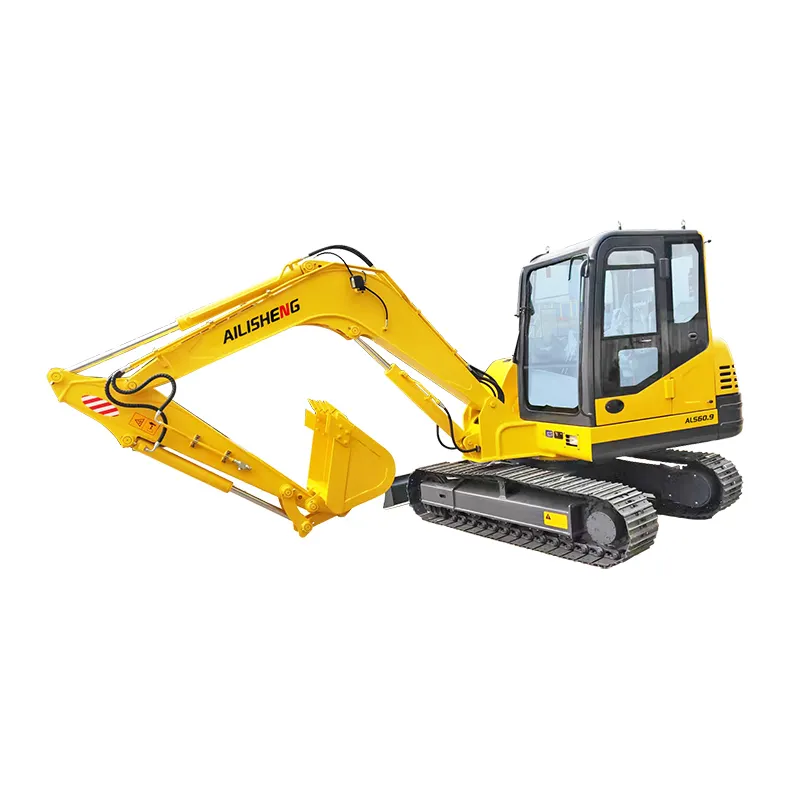

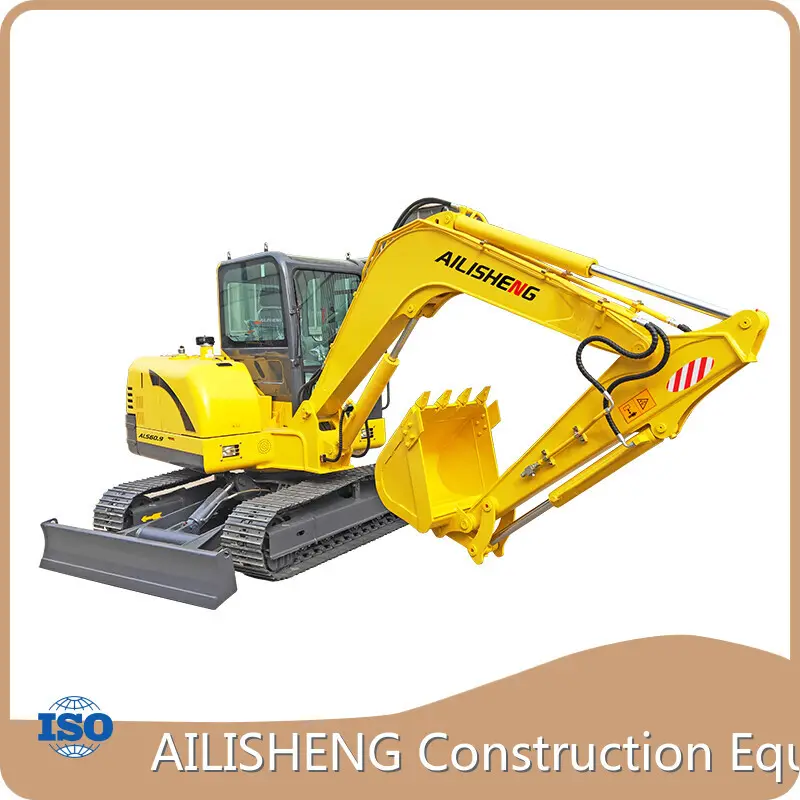

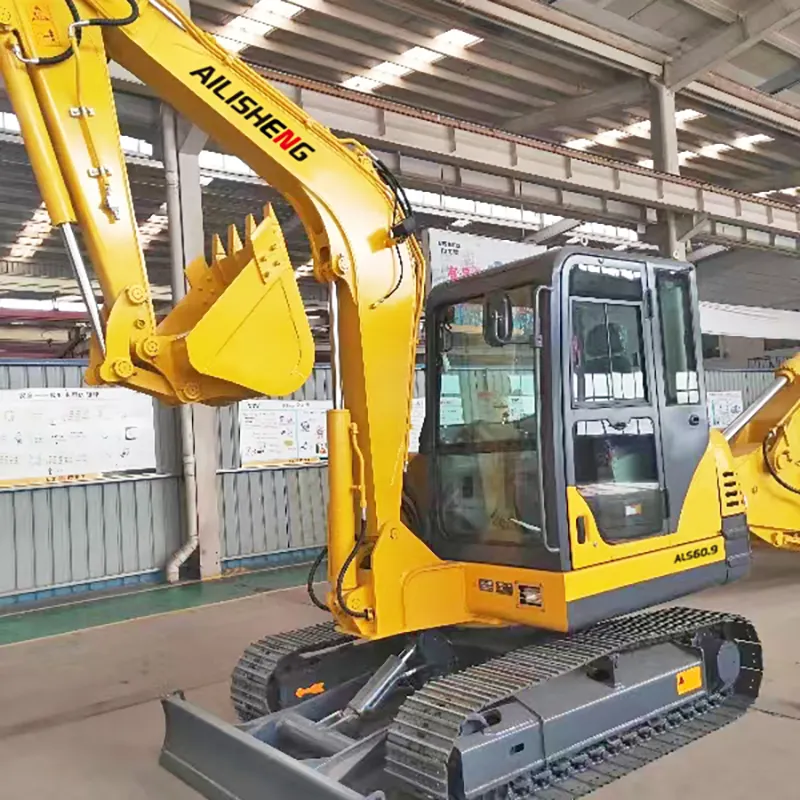

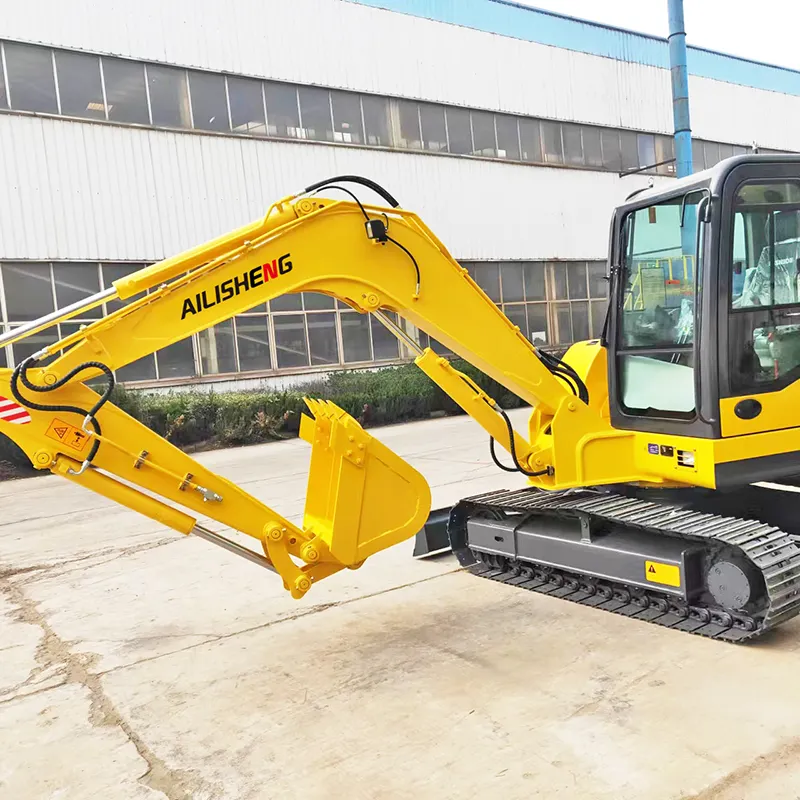

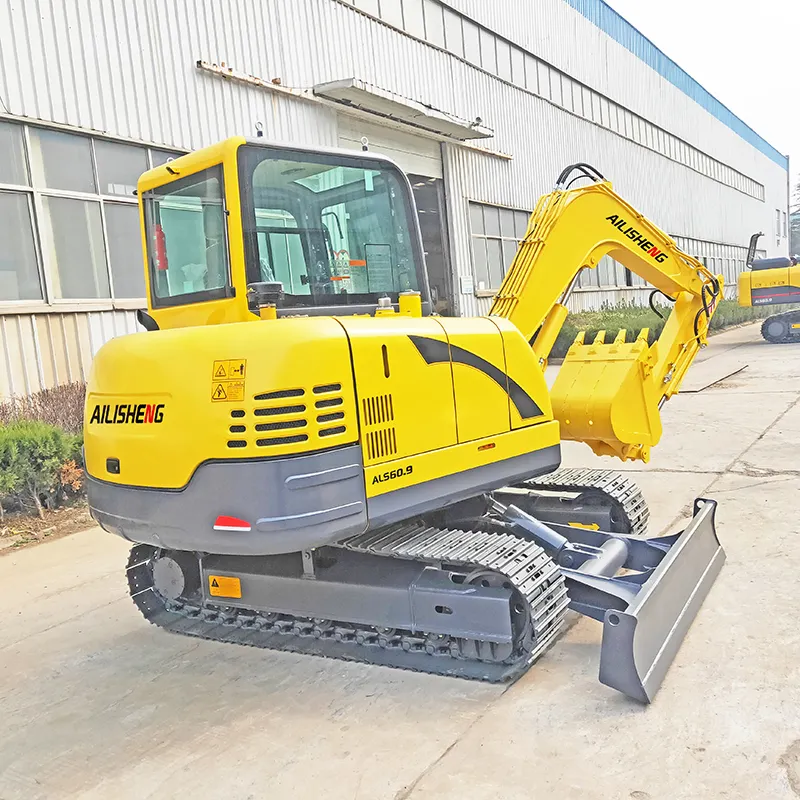

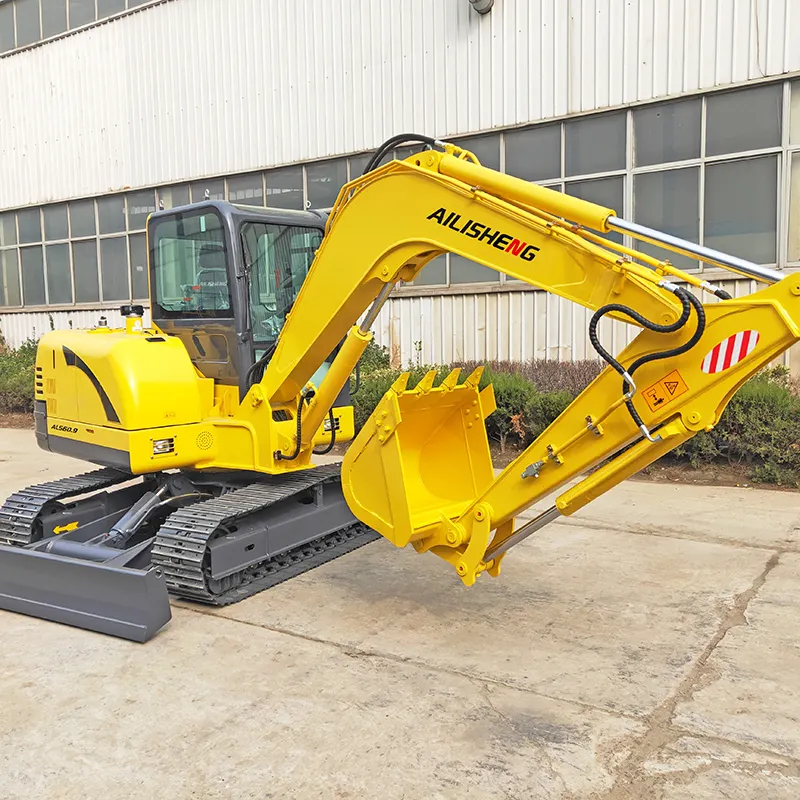

Product details of the mini excavator price

Product Introduction

The production of AILISHENG Construction Equipment mini excavator price is compatible with the newest technology. Before delivering, we closely inspect the quality of the product. Xiamen Ailisheng Intelligent Equipment Co.,Ltd is committed to achieve optimal service results.

Products Features

High-efficiency hydraulic system

The internationally renowned hydraulic system and intelligent electronic control system greatly improve the product's working efficiency, with stable performance, soft operation and reliable quality. The overall performance of the hydraulic system is reasonably matched with the output power of the engine, which significantly reduces energy loss.

High reliability Yanmar engine

Using the well-proven Yanmar engine, it has abundant power and good durability and is suitable for fuel in general areas with high fuel economy. Perfect matchin

High efficiency working perfomance

The potent power output and Ailisheng's unique intelligent control system and intelligent power control technology ensure efficient operation and reduce fuel consumption.

Strengthening the structure

Ensure the reliability and durability of the excavators. Increase the thickness of the plate for critical parts and adapt to the advanced manufacturing process to improve durability. It not only increases the plate thickness and force-bearing area but also adopts an integrated casting structure at the linked part, dramatically improving service life.

Ultra-long life

Finite element stress analysis software and MT and UT dual flaw detection guarantees are used to improve the strength of structural parts and covering parts.

Structure-optimized chassis

The chassis structure design is optimized to improve the overall working stability and the durability of the lower chassis. ALS60.9 has the characteristics of wide gauge and long track characteristics, more reasonable weight distribution, stability in dynamic and slope operation, stronger side lifting force, and more stable operation under heavy load.

Luxury cab

Adhering to Ailisheng's driver-centered design concept, with comfortable operation, wide field of vision and low noise. It has an air-conditioning system that meets the operation's needs and a multi-functional LCD instrument panel to improve the comfort and convenience of the operation.

The main frame and boom are equipped with LED work headlights as standard

Significantly improving the driver's night work vision and improving night work efficiency and safety.

Maintainability

The distribution of maintenance parts is reasonably designed, and daily inspections can be easily performed on the ground.

Service

Our commitment to total customer satisfaction extends worldwide. To keep your machine and business up and running with Ailisheng uptime services that are proven to cut repair costs and unplanned downtime. Ailisheng always takes customer needs as the starting point and provides customers with a full range of services, including maintenance, repair, accessories, and value-added care.

Application range

Mining, general engineering, municipal engineering, road engineering.

Electric Wheel Loaders Parameters

Type		ALS60.9
Operating weight	T	6.05
Bucket capacity(SAE)	m3	0.22-0.28
Engine model		Yanmar 4TNV94L-BVTY2C
Power	kw/r/min	36.2/2100
Volume of fuel tank	L	100
Travel speed (High/Low)	km/h	4.2/2.2
Swing speed	r/min	9.5
Gradeability	°	30
Digging force of bucket	KN	38.5
Digging force of stick	KN	24.3
Specific pressure of ground contact	Kpa	36.1
Max. Traction	kN	55
Type of hydraulic pump		HP5V76
Maximum flow	L/min	160
Working pressure	Mpa	32
Volume of hydraulic fluid tank	L	80
A-Overall length	mm	5960
B-Overall Width	mm	1960
C-Overall height(tope of boom)	mm	1995
D-Overall height(tope of cab)	mm	2690
E-Gap from counterweight to ground	mm	700
F-Min ground clearance	mm	360
G-Tail swing radius	mm	1700
H-Length of track on ground	mm	2000
J-Track length	mm	2560
K-Gauge	mm	1560
L-Width of track	mm	1960
M-Width of track shoe	mm	400
N-Width of turning table	mm	1906
O-Max. digging height	mm	5750
P-Max. dumping height	mm	3980
Q-Max. digging depth	mm	3860
R-Max. vertical wall digging depth	mm	3040
Max. digging depth at 2.5m plane	mm	3440
T-Max. digging distance	mm	6170
U-Max. digging distance at plane	mm	6045
Min. swing radius	mm	2380
Max height at min swing radius	mm	4395
Distance from center of swing to rear end	mm	1700
Y-Thickness of track grouses	mm	14
Length of stick	mm	1630
Length of boom	mm	3000
