Mini Digger for Sale by AILISHENG Construction Equipment
Company Advantages
· mini digger for sale is strongly recommended for its mini digger for sale design.
· Multiple tests have been conducted in every production stage to ensure the consistent quality of the product.
· Customers can request a variety of colors and print designs.
Product features

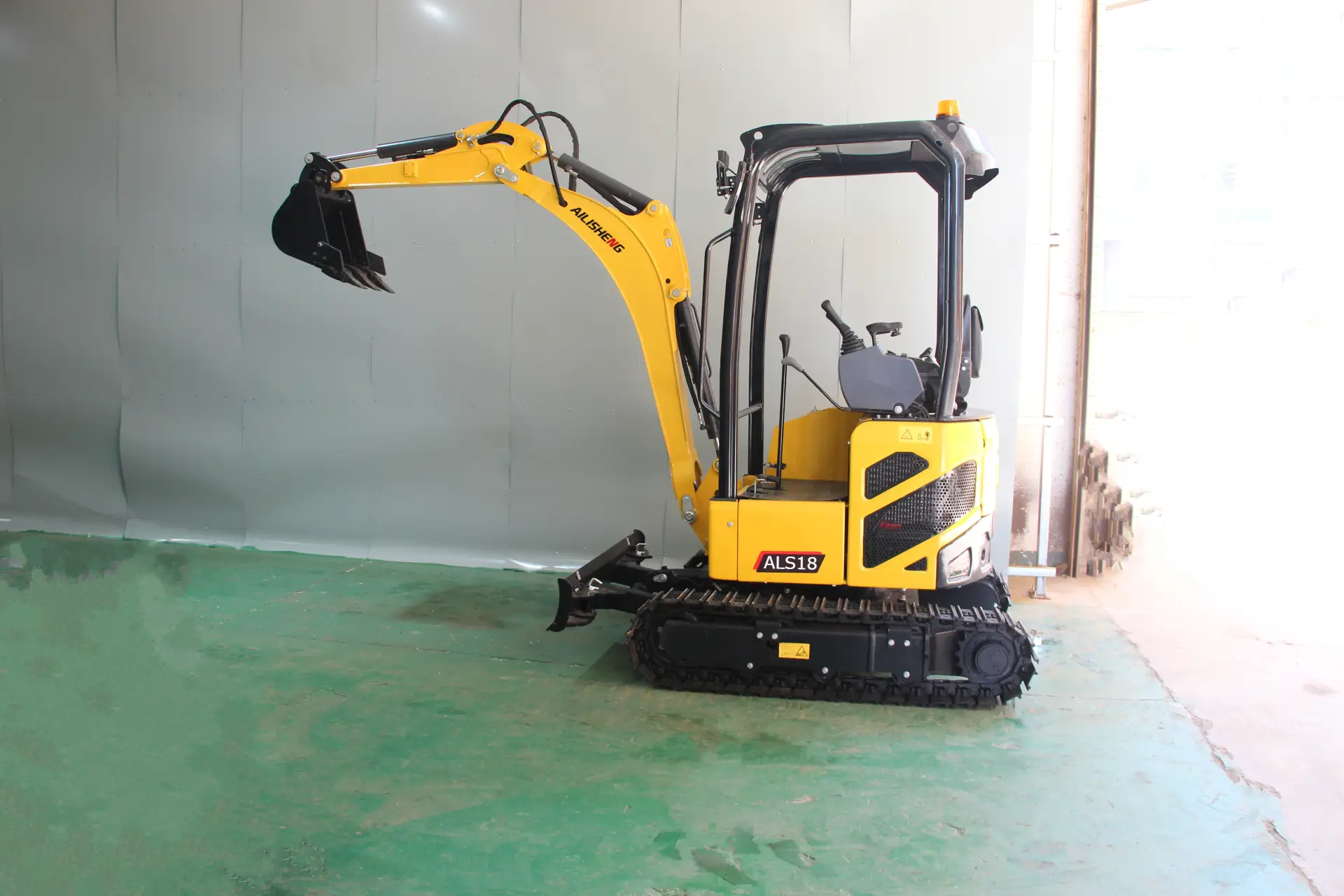

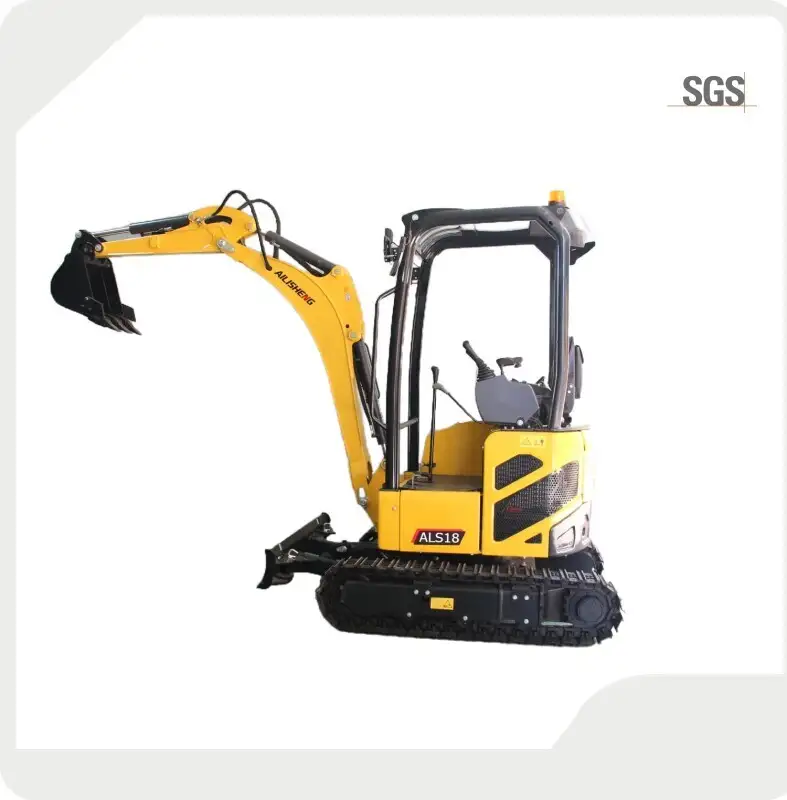

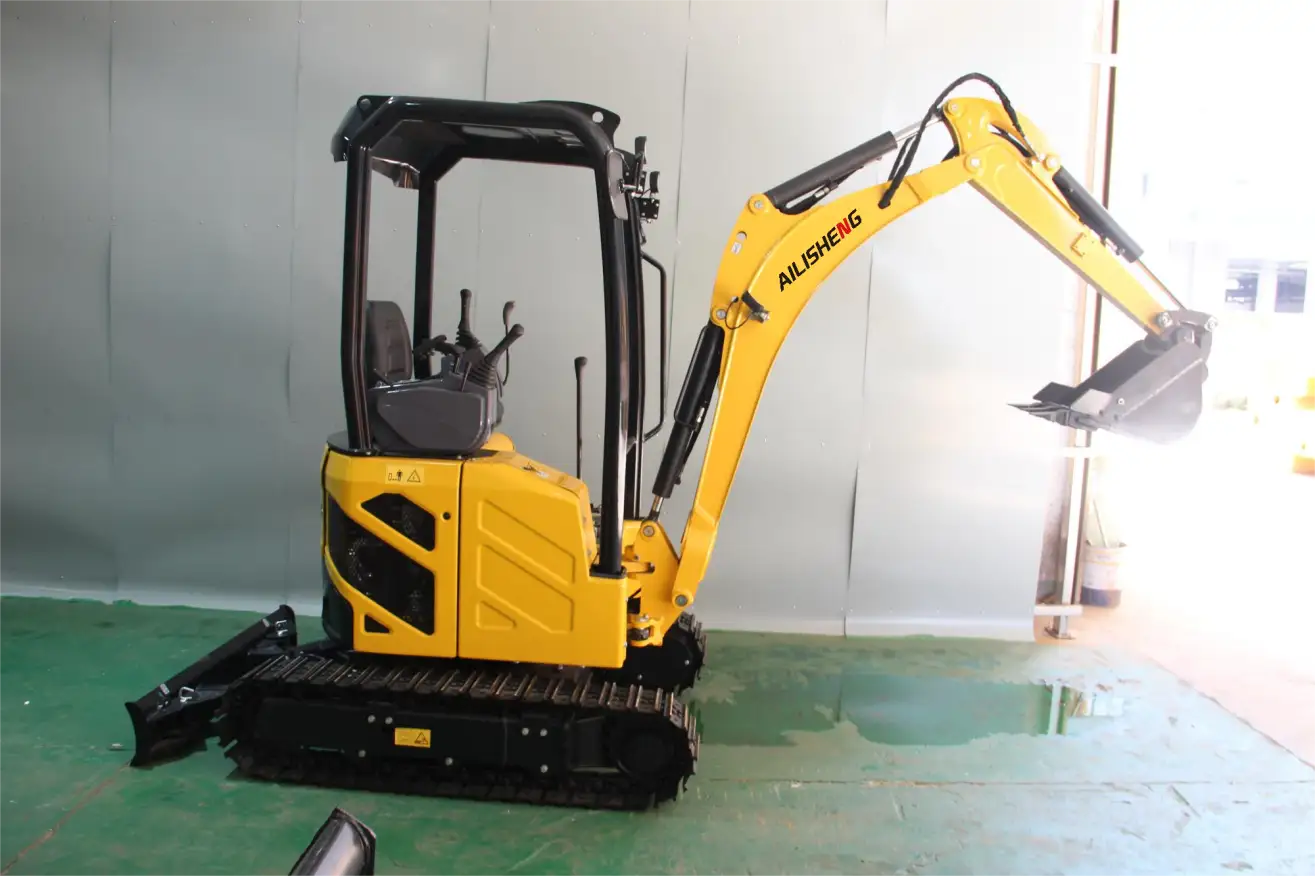

ALS18 combines a compact design with wide digging reach for efficient performance, excellent maneuverability, and tough durability to ensure an extended working life.
Ailisheng mini excavator ALS18 with KUBOTA D902 engine,NACHI main pump, Nabtesco control valve,Eaton swing motor, NAHHI travel motor.
The ergonomic and sturdy joysticks, which work completely proportionally, expand the functions and possibilities for controlling the excavator. The operator can carry out movements more precisely and work with increased concentration.
The powerful and well-balanced arm and bucket let you dig faster and more efficiently even in the toughest conditions.
KUBOTA’s impressive D902 engine is engineered for maximum digging and lifting performance. They also deliver minimized noise and vibration, and meet the latest engine emission regulation.
The wide variable track width provides superior stability so you can perform safely with its attachments. And the hydraulic system and powerful boom cylinder deliver the lifting power you need for a wide range of jobs. Combined, you get an advanced hydraulic system that automatically regulates and distributes the optimum amount of oil to each cylinder based on the weight of the load, for smooth, responsive and stable lifting capacity and operation.
For excellent performances across uneven surfaces, the ALS18 has an extendable undercarriage. Retracted, it measures 990 mm, with reduced width offering greater maneuverability and access to confined spaces and through narrow entrances. By extending to 1240 mm, it offers greater frontal stability and lifting capability. And whether extended or retracted, this well-balanced machine offers excellent weight distribution. In addition, the extendable blade makes enlargement maneuvering quick and easy.
With its swing boom, even the tightest spaces become efficient work places. The boom swing realizes direct digging operation close to the house edge without put the machine in motion.
ALS18 has a wide range of powerful working applications for digging, lifting, loading and mulching. Plus, the increased efficiency of our bucket capacity, digging depth and load over height meet or exceed the requirements of today’s construction sites.
Optional configurations also include retractable chassis, boom side sway, folding anti roll frame, four column ceiling, fast charging, photovoltaic charging, remote control device, etc.
Main technical parameter
| 1.8T Mini Excavator ALS18 | |||
| Item | Unit | ALS18 | |
| Main dimensions | A Full Length | mm | 3570 |
| B Transporting Width | mm | 990/1240 | |
| C Overall height of cab | mm | 2250 | |
| D overall width | mm | 990/1240 | |
| E Total width of upper slewing platform | mm | 760/1010 | |
| Working dimensions | F boom height | mm | 2630 |
| G Distance from the center of gyration to the rear of the track | mm | 815 | |
| H Maximum digging height | mm | 3540 | |
| I Maximum dumping height | mm | 2440 | |
| J Maximum digging depth | mm | 2310 | |
| K Maximum Vertical Digging Depth | mm | 1910 | |
| L Maximum digging radius | mm | 3900 | |
| M Minimum turning radius | mm | 1430 | |
| N The minimum turning radius of the tail | mm | 620 | |
| O Maximum ground digging radius | mm | 3840 | |
| P Maximum lift of bulldozing blade | mm | 245 | |
| Q Maximum descending height of bulldozing blade | mm | 200 | |
| Machine performance parameters | Operating weight | Kg | 1860 |
| Bucket capacity | m³ | 0.04 | |
| Maximum travelling speed | Km/h | 3.8 | |
| Swing speed | (rpm) | 9 | |
| Boom swing angle left/right | ° | 65/58 | |
| Gradeability | % ° | 58/30 | |
| Ground pressure | Kpa | 25 | |
| Bucket Digging Force | KN | 15.2 | |
| Hydraulic system pressure | Mpa | 18 | |
| Engine | Brand | Kubota | |
| Model | D902 | ||
| Rated net power | Kw | 11.8 | |
| Rated speed | rpm | 2300 | |
Company Features
· Currently, Xiamen Ailisheng Intelligent Equipment Co.,Ltd is in at an internationally leading position in production mini digger for sale.
· By applying high technology to production mini digger for sale, AILISHENG Construction Equipment stands out in the industry.
· Our ambition is to take part in securing a continuous development in the mini digger for sale industry that has to be capable of both appreciating qualities and encouraging innovation.
Product Details
The following is the section for presenting details of the mini digger for sale.
